Hi All,

Despite some infos are available about ALCMs, I wonder if accurate scale drawings are available because I would like to build accurate missile kits from the Modellcollect Set in 1/72 scale (I don't known if these are accurate in dimensions).

Thanks for the info !

XB-35

http://www.ausairpower.net/Tomahawk-Subtypes.html
https://www.reddit.com/r/hoggit/comments/ll8krf
View: https://www.reddit.com/r/hoggit/comments/ll8krf/agm109_tomahawk_nuclear_strike_version_one_hour/
mechajournal.com

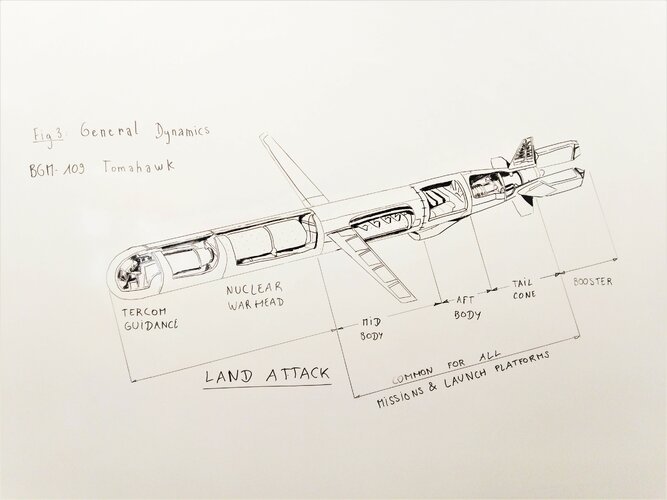

General Dynamics BGM-109 Tomahawk Cruise Missile - Mecha Journal

ROBOTECH Technical Files by Pieter Thomassen, with Peter Walker and Robert Morgenstern edited by Tim Wing Designation: General Dynamics BGM-109 Tomahawk (R, S, T) Surface vessel launched cruise missile, UGM-109 Tomahawk (R, S, T) Submarine launched cruise missile Type: (BGM) Surface vessel...
mechajournal.com mechajournal.com
I hope this helps


Attachments

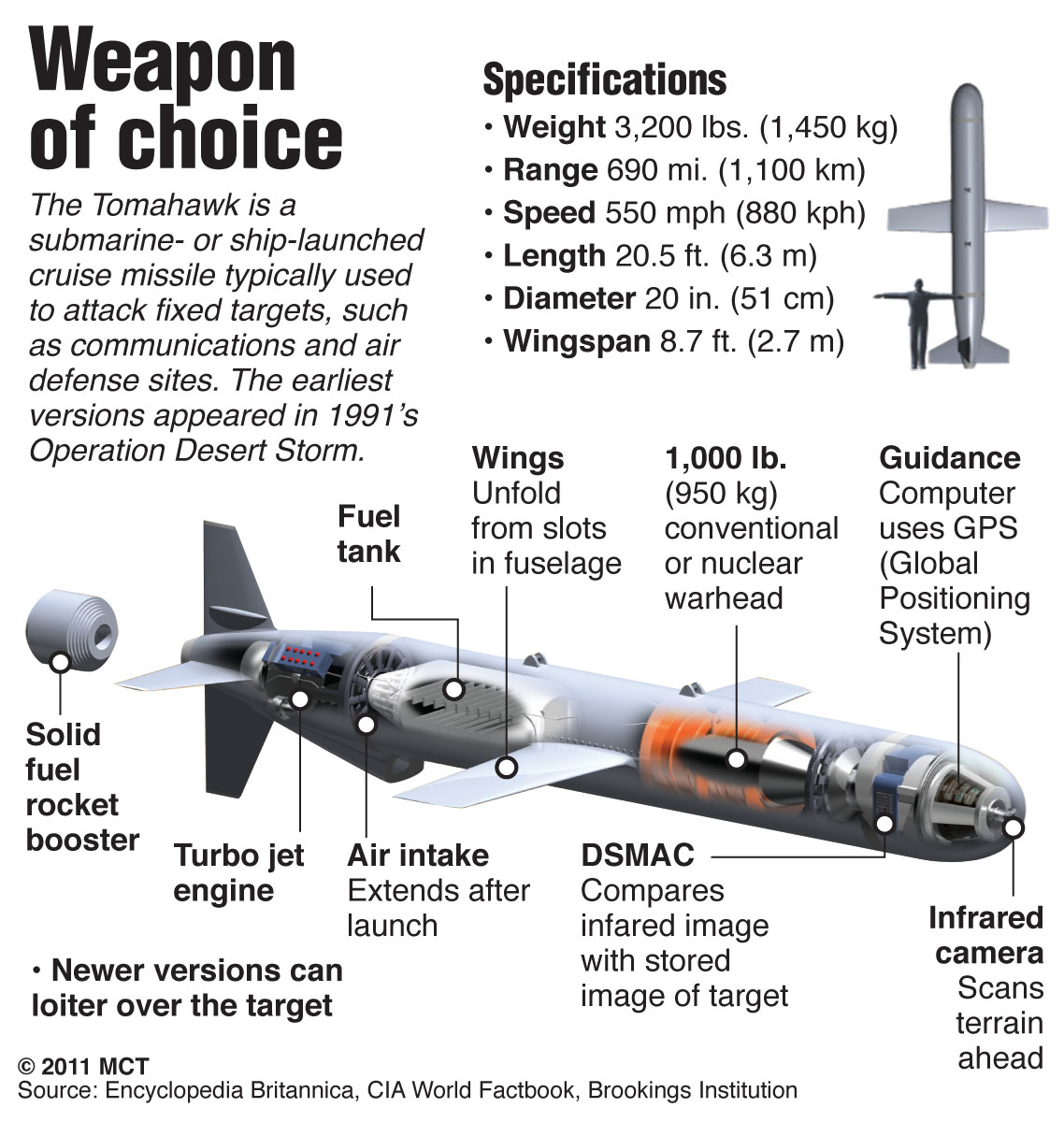

  • Tomahawk-.jpg
    860.7 KB · Views: 81

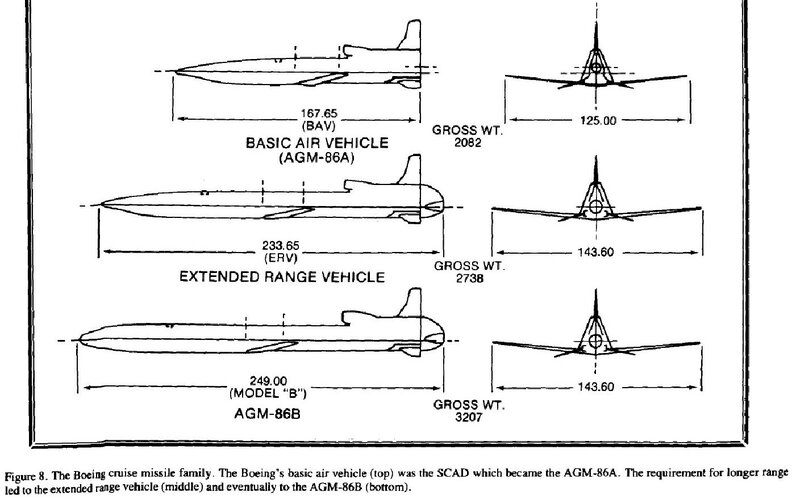

Data for AGM-86B (except where noted):

Length6.32 m (20 ft 9 in)
Wingspan3.66 m (12 ft)
Diameter62 cm (24.5 in)
Weight1450 kg (3200 lb)
AGM-86C Block I: 1950 kg (4300 lb)
Speed800 km/h (500 mph)
Range2400 km (1500 miles)
AGM-86C Block I: 1200 km (750 miles)
PropulsionWilliams F107-WR-101 turbofan; 2.7 kN (600 lb)
WarheadW-80-1 thermonuclear (5-150 kT)
AGM-86C Block I: 1450 kg (3000 lb) HE blast-fragmentation
AGM-86D: 540 kg (1200 lb) hard-target penetrator
