Long Range Engagement Weapon (LREW)

bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
9,808
Reaction score
871
Great find sir!

Do you have the whole OSD Emerging Tech budget doc? Thanks


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,011
Reaction score
1,064
Wonder why they're using canards instead of a CUDA-like thruster arrangement. ???


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,750
Reaction score
640
sferrin said:
Wonder why they're using canards instead of a CUDA-like thruster arrangement. ???
Looks almost exactly like the Excalibur canard section. Maybe it's just a case of the artist recycling existing graphics elements, not representing the specific design, which is still classified.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,011
Reaction score
1,064
TomS said:
sferrin said:
Wonder why they're using canards instead of a CUDA-like thruster arrangement. ???
Looks almost exactly like the Excalibur canard section.
Made me think of this:


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,011
Reaction score
1,064
I would expect something more like CUDA with a booster, making the full assembly about the size of AIM-120.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,919
Reaction score
559
Hood said:
Apparently that image was shown in a presentation last April by Chuck Perkins, the principal deputy to the assistant secretary of defense for research and engineering.
Flight are assuming that it was an unclassified concept image rather than an actual LREW design study.
https://www.flightglobal.com/news/articles/new-long-range-missile-project-emerges-in-us-budget-442816/
Probably that's why Perkins presentation is attached in the first message of the topic (which actually have initiated publication at Flight site), and image is labeled as 'LREW concept art'.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
2,351
Reaction score
99
flateric said:
Hood said:
Apparently that image was shown in a presentation last April by Chuck Perkins, the principal deputy to the assistant secretary of defense for research and engineering.
Flight are assuming that it was an unclassified concept image rather than an actual LREW design study.
https://www.flightglobal.com/news/articles/new-long-range-missile-project-emerges-in-us-budget-442816/
Probably that's why Perkins presentation is attached in the first message of the topic (which actually have initiated publication at Flight site), and image is labeled as 'LREW concept art'.
The number of trade publications/outlets/hacks who shamelessly lift postings and analysis from this site without attribution is appalling.

One did PM me out of apparent guilt. You know who you are.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,919
Reaction score
559
In this case there's no problem with Trimble as I shared discovery with him.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
2,351
Reaction score
99
flateric said:
In this case there's no problem with Trimble as I shared discovery with him.
And proper attribution on Trimble's part would have made your sharing clear and
obviated the need for this discussion :)


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,919
Reaction score
559
Oh, I'm already too old for that wannabefamous stuff.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
2,351
Reaction score
99
flateric said:
Oh, I'm already too old for that wannabefamous stuff.
Now we just need to get the people taking without attribution to feel the same way!


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,919
Reaction score
559

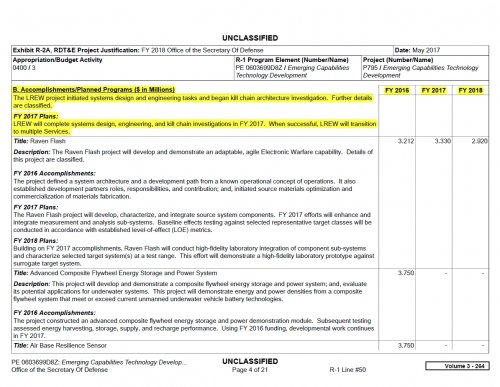

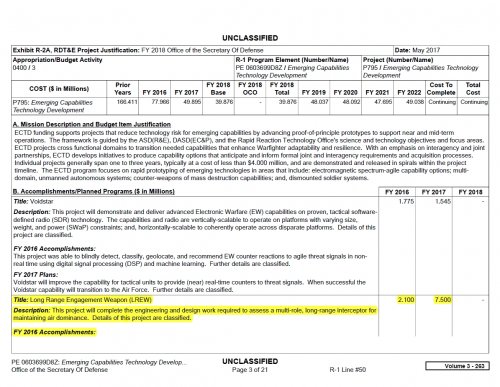

bobbymike said:
Do you have the whole OSD Emerging Tech budget doc? Thanks
http://comptroller.defense.gov/Portals/45/Documents/defbudget/FY2018/budget_justification/pdfs/03_RDT_and_E/OSD_0400_PB_18_Justification_Book_Final.pdf


litzj

BLOG : http://jaesan-aero.blogspot.com/
Joined
Feb 4, 2012
Messages
248
Reaction score
23
Website
jaesan-aero.blogspot.com
Is that revive of AIM-152?

https://upload.wikimedia.org/wikipedia/commons/thumb/2/29/AIM-152_AAAM.svg/310px-AIM-152_AAAM.svg.png


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,011
Reaction score
1,064
I wonder how many of those they could have stuffed into an F-22. :'(


SpudmanWP

CLEARANCE: Top Secret
Senior Member
Joined
Nov 10, 2008
Messages
1,079
Reaction score
40
I did a napkin-analysis once and found that 7-8 could fit in each of the F-22's bays for a total of 14-16.

If they made a short-booster version as an Aim-9 replacement then 2-3 could fit in each Aim-9 bay.

Yeah, that much.

My calculations were based on that they are tube launched, can be packed in tight, can be stacked in two layers, and were planned to be launched via a tilting bed method (F-14 center-line plan).
