Following the discussion of Nieuport vs. Loire-Nieuport designations in another topic, I'm starting this new thread to clearly distinguish the Loire and Loire-Nieuport production.

The list is probably very incomplete but it's a start.


LOIRE

11 Three-seat mail transport (1935, 2 built).

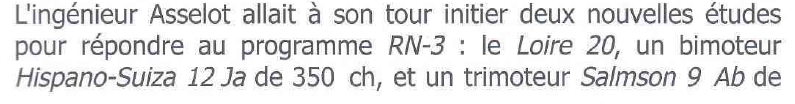

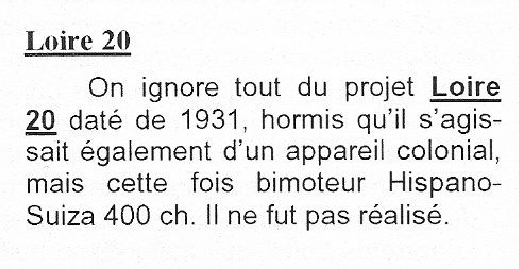

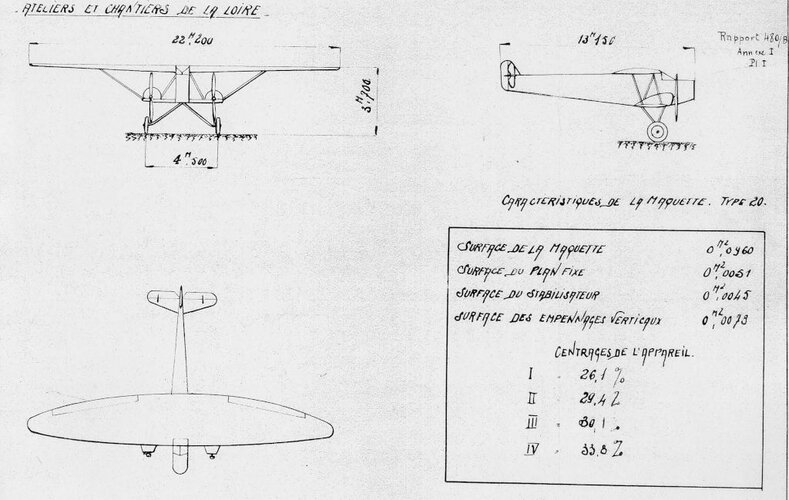

20 Colonial aircraft project powered by two 400 hp Hispano-Suiza.
30 Three-seat reconnaissance aircraft with three Salmson 9Ab engines (1932, one built).
301 Experimental three-seat test-bed for an armored turret, modified from Loire 30 (1934).
40 Single-seat lightweight fighter project with 300 hp Gnome & Rhône Titan II engine.
41 Single-seat lightweight fighter project with 500 hp Hispano-Suiza 12Mc engine.
42 Single-seat lightweight fighter project with 420 hp Gnome-Rhone 9 Asb Jupiter VII engine.
43 High gull-wing all-metal single-seat fighter prototype (1932, one built).
44
Single-seat lightweight fighter project with Hispano-Suiza engine in pusher position.
45
Single-seat fighter prototype (1933, one built).
46
High wing monoplane fighter derived from Loire 45, powered by Hispano-Suiza or Gnome & Rhone engine (1934, 61 built).
50 Small three-seat training and liaison amphibian with pusher Salmson 9Ab engine (1931, one built).
50 bis Same aircraft reengined with Hispano-Suiza 9 Qd.
501 Production version of Loire 50 bis as liaison type for Aéronavale with one Hispano-Suiza 9Qdr (1935, 6 built).
502 Projected variant with Lorraine Algol engine.
51 Projected variant of Loire 501.
60 Four-seat liaison flying boat with three Renault 4Pb engines (1932, one built).
601 Former Loire 60 reengined with just one Gnome & Rhône 9Adx engine (1933).
603 Same aircraft with a tractor Salmson engine, later used as a flying test-bed for the Loire 70.
70 Maritime patrol and recce flying boat with three Gnome & Rhône K.9 engines, including one in pusher position (1933, 8 built).
701 First Loire 70 re-engined with Hispano-Suiza engines.
102 "Bretagne" large transatlantic transport prototype, a competitor of the LeO H-47 (1936, one built).
130 Catapult-launched pusher patrol flying boat (1934, 124 built, including 111 for the Aéronavale and 12 for the Armée de l'air).
130.C Batch of five aircraft with reinforced structure for operation in the colonies.

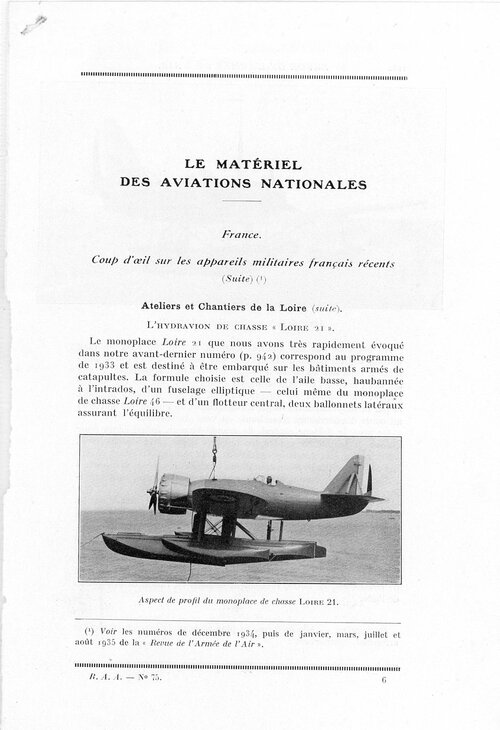

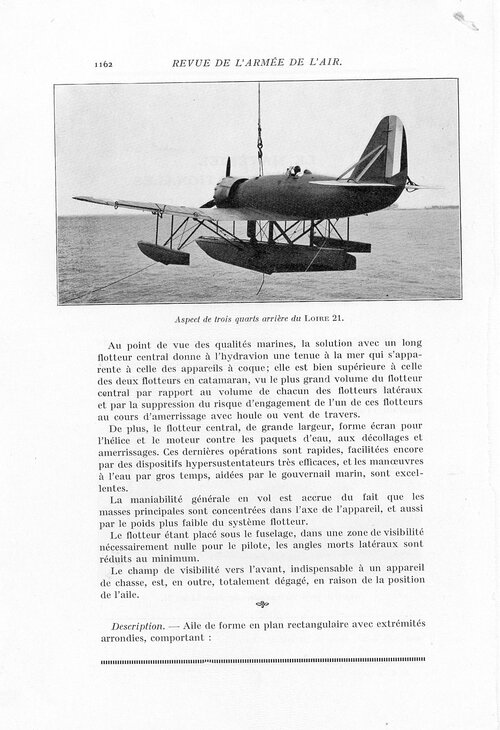

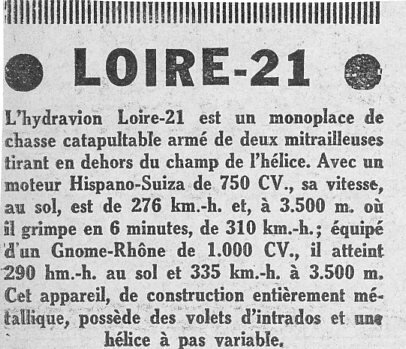

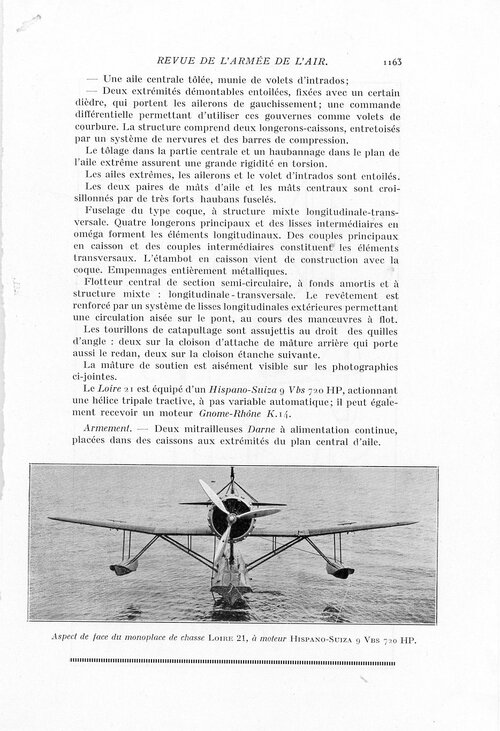

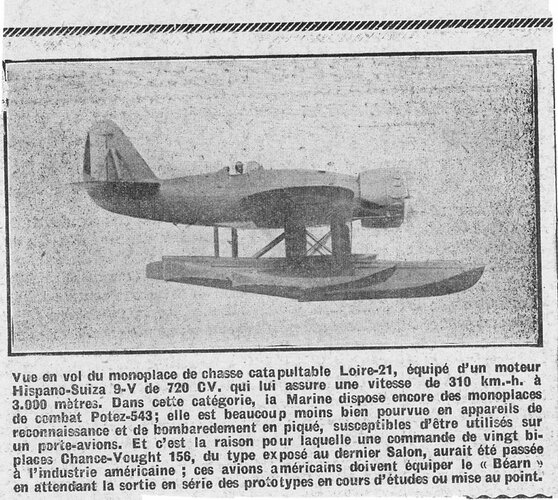

210 (also found as the Loire 21 and Loire-Nieuport 210) Single-engine seaplane fighter (1937, 21 built).
240 See Loire-Nieuport LN-10.
250
Single-seat fighter prototype competing with LN-160 (1935, one built).


LOIRE-NIEUPORT

LN-10 (former Loire 240) Gull-wing twin-float twin-engine torpedo-bomber seaplane (1939, one built).
LN-160 (former Nieuport 160) Single-engine, single-seat fighter prototype, first LN-161 prototype when flown with Hispano-Suiza 12Xcrs engine (1935).
LN-161 (former Nieuport 161) Fighter prototypes with Hispano-Suiza 12Ycrs engine (also known as SNCAO 161) (3 built, 1936).
LN-20 Twin-engine twin-fin fighter project (1939).
LN-30 Very large flying boat airliner project, an enlarged derivative of the Loire 102 with six Hispano-Suiza 12Ydrs engines (became CAO.300).
LN-301 New designation of LN-31.
LN-31 (redesignated as LN-301) Variant of LN-30 with five Gnome & Rhône Lars 1 engines (1936).
LN-40 Single-seat single-engine dive-bomber prototype derived from the Ni-140 and LN-161 (1936).
LN-401 Production version of LN-40 for French Aéronavale (1939, 36 built).
LN-402 One LN-401 modified experimentally with a Hispano-Suiza 12Y-31 engine (1939).
LN-411 Production version of LN-40 for French Armée de l'air (1939, 40 built, all transferred to Aéronavale but one).
LN-42 Last LN-411 modified with entirely new wing and more powerful engine (1940).
LN-560 Dive-bomber project with Hispano-Suiza 12 Z engine.
LN-561 Dive-bomber project with Hispano-Suiza 12 Z engine.
LN-60
Single-seat fighter project, an optimised version of the LN-161 (became the CAO.200) (1938).


Useful links:


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,357
Reaction score
6,004
Hi,


the Loire 10 was a colonial aircraft project,powered by one 230 hp Salmson 9 Ab engine.


AFM magazine 04

Last edited:

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
32
Hi,
Some additions from an article by Claveau in Trait d'Union no.247:
- Loire 53: Projected two-seat trainer variant of the Loire 50, with HS 9 Qdr engine
- the aircraft described above as "Loire 603" is called Loire 602 in the article
- Loire 62: Projected two-seat trainer variant of the Loire 601, with GR 9 Adx
- Loire 63: Projected three-seat observation variant of the Loire 601, with HS 9 Qdr
- various three- and four-engine configurations were initially considered for the Loire 70
- the series production Loire 70 was called Loire 70 S (confirmed in Les Ailes Françaises vol.2)
- the Loire 701 was a project only (confirmed in Les Ailes Françaises vol.2)
- Loire 80: three-engine derivative of the Loire 70, project only
- Loire 100: flying boat for the South Atlantic, four push-pull HS 9V engines on the wings
- Loire 101: similar to the Loire 100, same engines in tractor position (the two projects were superseded by the Loire 102)
- Loire 102M: military variant of the Loire 102
- name unknown: variant of the Loire 102 for Mediterranean service
- the two versions of the Loire 130 were sometimes called Loire 130 Métropole and Loire 130 Colonial (confirmed in Les Ailes Françaises vol.2)
- Loire 135: projected coastal observation variant of the Loire 130
- name unknown: projected transport variant of the Loire 130
- Loire 211: projected variant of the Loire 210 with GR 14 Mars


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,357
Reaction score
6,004
c460 said:
- name unknown: variant of the Loire 102 for Mediterranean service

I think it was Loire-105 as in Messier site.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,357
Reaction score
6,004
Hi,

LN-21 was developed from LN-20 as C.2 instead off C.3,a two-seat fighter Project
LN-43 was on-board from aircraft carrier,a version of LN-42
LN-70 ------?
LN-80 was a redesigned of LN-21


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,357
Reaction score
6,004
From TU magazine,

602 was a version of Type-601,but powered by three 230 hp Salmson 9Ad engines,mounted in pulling
position.
