The Lockheed PRC-105 civil aircraft project was mentioned in JAWA 1986-1987 (page 439). Was there an illustration (artist's impression or three-view drawing) of this project in one of the following Jane's (or another publication)?


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
896
Reaction score
117
boxkite said:
The Lockheed PRC-105 civil aircraft project was mentioned in JAWA 1986-1987 (page 439). Was there an illustration (artist's impression or three-view drawing) of this project in one of the following Jane's (or another publication)?

I can only assume the PRC designation might have stood for People's Republic of China.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308
My dear boxkite,

a small info,please see;
http://asia.stanford.edu/events/spring06/ee402t/bio/klee.html


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
862
Reaction score
222
hesham said:
My dear boxkite,

a small info,please see;
http://asia.stanford.edu/events/spring06/ee402t/bio/klee.html

Hesham,

Yes, this website seems to give a confirmation for TinWing's guess. The '105' could be the number of seats/passengers ... ?


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
135
Website
theavgeeks.com
My impression of the PRC-105 is that it would have been a stretched P-3 Orion with five-abreast seating to replace the Il-18 in the Chinese market.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308
Sentinel Chicken said:
My impression of the PRC-105 is that it would have been a stretched P-3 Orion with five-abreast seating to replace the Il-18 in the Chinese market.

https://www.flightglobal.com/FlightPDFArchive/1986/1986%20-%201258.PDF


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
338
Reaction score
236

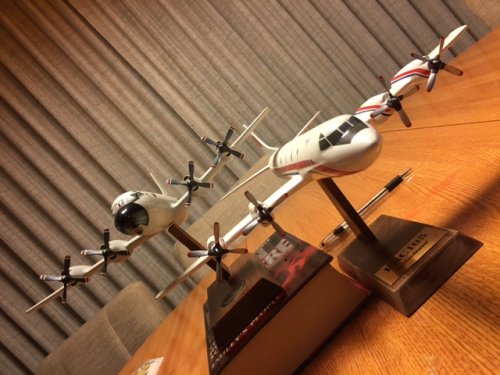

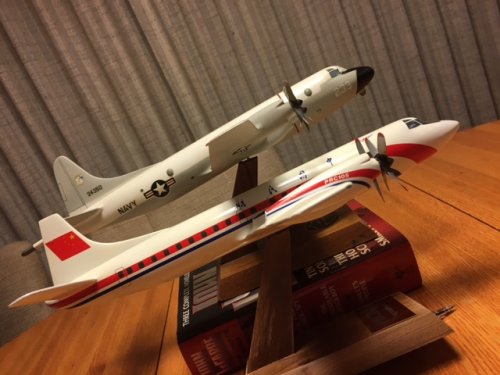

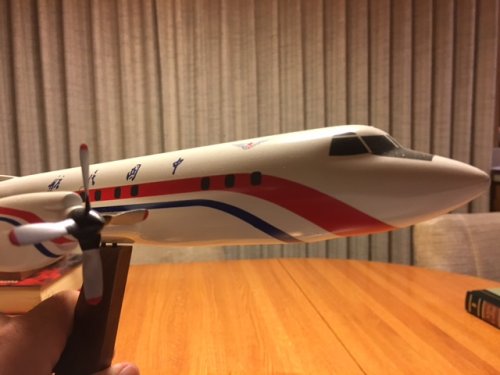

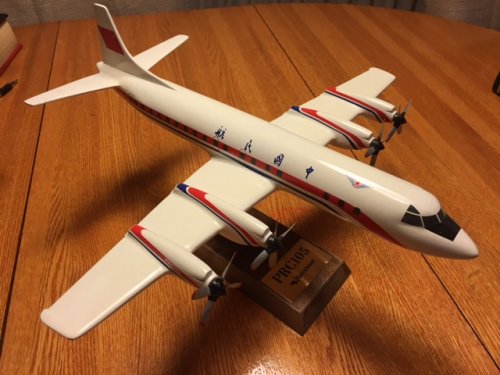

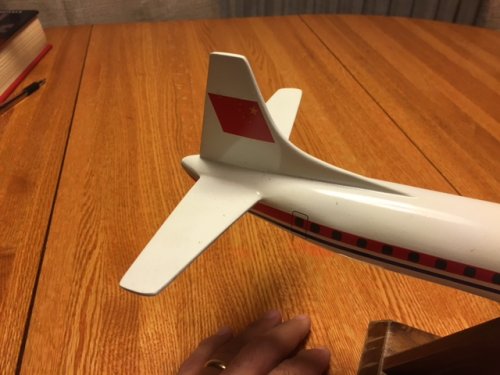

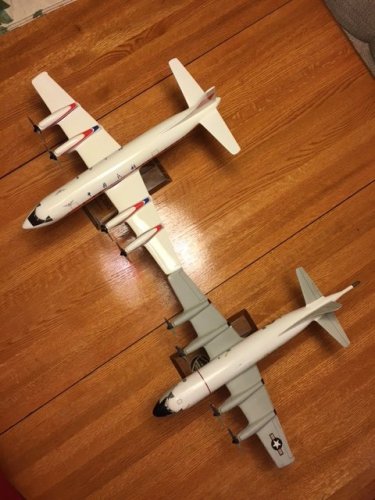

Since Circle 5 seems to be slacking off, I went ahead and took photos of a display model of this proposal along with some family portraits with a P-3C model. Obvious on the model are the fuselage stretch, wing root inserts, larger tailplane and cosmetic changes to the nosecone and vertical fin. I don't think the nose and fin changes are a net improvement and the squared-off tail, in particular, gives the airplane an Antonovish look (no offense intended). It also looks like the cockpit eyebrow windows are different, but this might just be due to the different decals used.
Also notable is that:
- the payload bay contours seem to have been retained - this may have provided a little extra underfloor volume at minimal/no cost in drag or may just be due to a lack of ambition on the modeler's part. I'd think that this area would have to be redesigned in the airliner to eliminate the structural weight penalty associated with the payload bay, so guess that the modeler is to blame.
- the wingtip sensor fairings are also retained. I'd guess that these would have disappeared also.
Interestingly, or perhaps not, the original box for the model was hand-marked both "Chinese Electra" and "Passenger P-3".
I don't think that this project had much of a chance. The government of an ambitious developing country would seem unlikely to sign on to a failed (commercially) airliner design from 25 years ago, whatever it's technical merits.


Attachments

  • IMG_8314.JPG
    121.4 KB · Views: 359
  • IMG_8316.JPG
    82.5 KB · Views: 345
  • IMG_8315.JPG
    103.7 KB · Views: 339
  • IMG_8312.JPG
    113.4 KB · Views: 328
  • IMG_8310.JPG
    72.9 KB · Views: 318
  • IMG_8313.JPG
    137.2 KB · Views: 46

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
234
taildragger said:
Since Circle-5 seems to be slacking off [...]

Yes, well some of us don't happen to have a Lockheed PRC-105 model conveniently on hand to illustrate a point. The reason I'm slacking off is that I switched my interests from aerospace concept models to PEZ dispensers. ::)

Nice model, BTW!
