Lockheed Patrol bomber

hermankeil

CLEARANCE: Restricted
Joined
Sep 21, 2006
Messages
28
Reaction score
3
Back in late 1953, early 1954, I was working at CALAC Division of Lockheed in Burbank. In the building next door, they were building a mockup. It was behind walls but we could see it from the stairwell in our building. It was a twin engined patrol bomber similar to the P2V but with turboprop engines. It had a raised cockpit area similar to a Lancaster or B-36. Does anyone have any info on this machine?


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
191
There have been many projected variants of the NEPTUNE, but not all of them are well documented (and probably only a few ended up in full-scale mock-up form!).

I would say this could be the L-198, a high-altitude version of P2V with propeller-turbines, a project dated circa 1953. Anyone to confirm this?


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,789
Reaction score
29
Lockheed TDN L-198 was a planned modification of the Model 26,P2V aircraft.
The normal P2V mission was to be changed to long-range bombing,mine laying
and ECM escort.
In appearance the L-198 would evolve from the P2V-5 with a fuselage stretch
dual wheel landing gears and a new engine /nacelle combination for the turboprop engines.

As such the L-198 was never produced.

Source :Journal AAHS Spring 2000-The Lockheed that never were-Bill Slayton.


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,559
Reaction score
48
Six engine name indicates the turboprops are Allison T40s (twin T38s)? Combined with two turbojets in the wingtip pods. Probably a good indication of why it never went past mockups: another aircraft burnt on the bonfire of the T40s.


circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
72

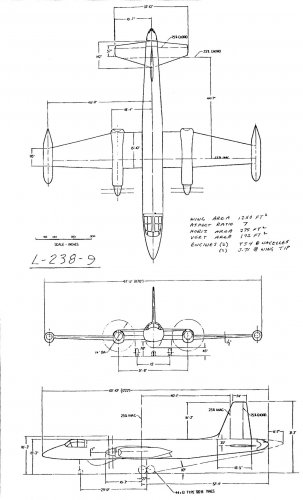

The T40 wasn't the only twin-turboprop engine on Allison's drawing board in the early 1950s. As indicated on this 3-view drawing, the Lockheed L-238-9 was, in fact, to be equipped with a pair of Allison T54 twin-turboprop engines (25% more powerful than the T40) and a pair of J71 wingtip turbojets. The T54 was also the chosen powerplant for the Lockheed FV-2 production variant of the "Salmon" VTOL tailsitter.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
191
Very interesting folks, thanks! Yep, the Allison T40 caused a lot of harm to a lot of sound aircraft designs... the XA2J-1 Super Savage comes to mind... but there are plenty others. The T54 was probably shelved judging from the poor record of its elder brother.

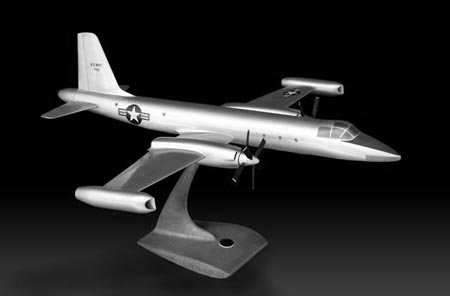

One thing about this project though. hermankeil talks about a raised cockpit a la Junkers Ju-88, which is hardly what this plan and scale model represent. I'm thinking of something in the fashion of the Convair B-36... Coming to think of it, has Lockheed ever done such cockpit designs ever? The closest I've seen is this strange unidentified cargo derivative of the Herc, and even here it's largely the consequence of the front hinge doors.


Attachments

circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
72
Stargazer2006 said:
The T54 was probably shelved judging from the poor record of its elder brother.
Development work on the T54 was gradually phased out by Allison starting in 1951, but this had absolutely nothing to do with the T40's record, as the T54 was an entirely different engine.

Soon after starting work on the T54 for the Navy, Allison also started on the T56 axial-flow turboprop, with Air Force support, for the purpose of powering the YC-130. The T54 was a good design, but it became redundant and even obsolete because the T56 was so advanced. Allison T56 engines would successfully power hundreds of Lockheed Electras and Orions, Convair 580s, Grumman Hawkeyes, Greyhounds, etc. in addition to the C-130 Hercules.

Ref.: The History of North American Small Gas Turbine Aircraft Engines by Leyes & Fleming.

As for the Lockheed L-238-9, it is closer to hermankiel's description than other Neptune proposals, including the L-198, but let's see if he recognizes it... Maybe his 1953 mockup wasn't actually based on a Neptune.


aim9xray

CLEARANCE: Top Secret
Senior Member
Joined
Feb 20, 2007
Messages
515
Reaction score
77
Stargazer2006 said:
Coming to think of it, has Lockheed ever done such cockpit designs ever?
Well, sure! The P2V-7 (later SP-2H) had a bulged (raised) cockpit canopy, which might just have been fallout from this mockup.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
191
Thanks. I know of the bulged canopy on the later P-2 versions, but somehow hermankeil's description sounded more protruding, more separate from the fuselage. I must say from looking at certain pictures though that he could have been misled into thinking so. Here's an example:



hermankeil

CLEARANCE: Restricted
Joined
Sep 21, 2006
Messages
28
Reaction score
3
As I remember the mockup, the greenhouse was definitely proud of the fuselage, similar to the North American AJ-1, almost a bubble. It was all glass but with frames. There were plenty of P2V-7s' parked around so I remember that shape. The mockup was definitely different. Of course this was 50+ years ago and my once powerful brain is not what it used be.
Herman


smurf

CLEARANCE: Top Secret
Joined
Sep 6, 2006
Messages
544
Reaction score
0
Are there any performance estimates known for these Lockheed turboprop twins, please?


masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
98
Reaction score
305

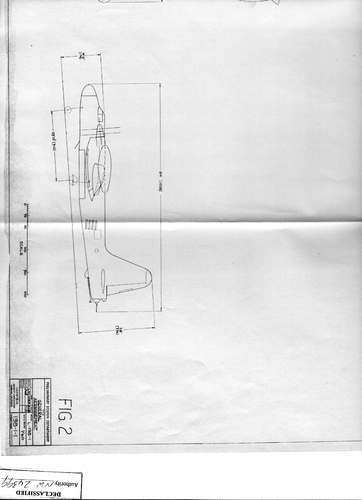

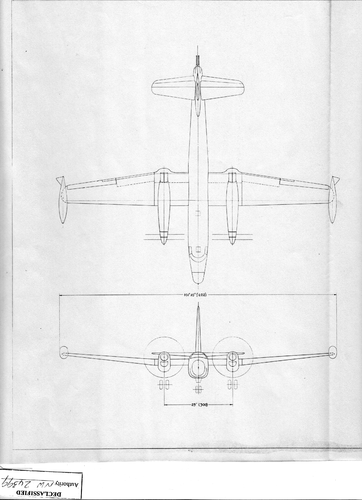

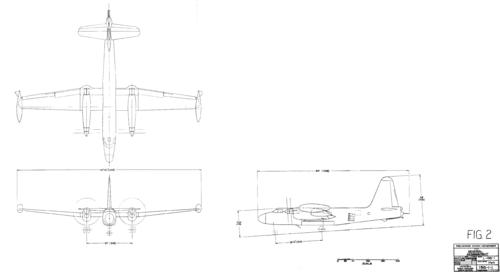

I apologize for not keeping up but haven’t been on the site for a very long time. Enclosed are two views of the proposed T40 powered P2V and a data sheet from the archives.

This is primarily to correct the observations of Stargazer2006 and Circle-5 concerning the T-40 engine but let me digress a bit. On one or more of theses threads, have been comments about how errors in aviation history are passed on because authors just repeat what they’ve read rather than doing research. For years the Northrop XP-56 was shown a length of 27’ 6” in all articles and references. Even William Greens series of fighter books used this dimension. When vacuform and resin kits started coming out of the Czech Republic I was in contact with several of the producers and the XP-56 they sent me didn’t “look right” but measured out as 27’ 6 “. I then got “NORTHROP An Aeronautical History” by Fred Anderson published by Northrop Corporation (1976). Guess what…...he showed the XP-56 length at 23’ 6”! What to do? I wrote Robert Mikish (RIP) at the NASM in DC and asked if he would measure the fuselage resting at Silver Hills panel by panel, which he did and low and behold is was 23’ 6”. I wrote the Czech’s and they redid the kit.

The same has been true of the story of the Allison T38/T40 family of engines. I have spent the last 45 years researching these engines and the aircraft they powered or were to power. I’ll skip a lot and get to the meat. When Allison began work on the dual power plant engine it designated it the Model 500. After they knew it was to progress further they designated one power section the Model 501 for speedier development. The Navy did it in reverse since they only got hard data on the single power section first they submitted a request to the Army Air Force (who managed all engine designations) and it was assigned T38 (all even numbers being Navy programs all odd numbers being Army Air Force). When Allison was able to provide hard engineering data on the dual powered engine the Navy requested another designation and was given T40. Please note that they are reversed sequentially, the Model 500 is the T40 and the Model 501 is the T38. The Allison plant was an Air Force managed plant. Now if you explore the T54 and the T56 you will see that they are still listed by Allison as the Model 500 and 501. Why??? Because they are. As a budget restriction and with the T40 going into production the Navy terminated the contract for the T38 and no longer financed it. This posed a problem for the Navy later as the T40 design was improved and it was decided the Navy also needed T38’s for several helicopter programs but that’s another story. The only difference between the T38 and T56 was the deletion of three of the compressor stages from 17 to 14 and the deletion of the individual combustion chamber and fuel nozzles from eight to six. But the only place you will count six on a T56 is on the Renwal T-56 plastic model which has six combustion chambers as the actual T56 shrouded them all in a single circular casing.

Your thread on the C-130 competition notes all ten contenders but one were T38 or T40 powered yet it flew with the T-56! I have yet to find out if the now Air Force resubmitted for the T56 destination or the Navy did at the Air Force’s request. But just like the B-29/B50 thing, its easier to start a new program than restart an old one. It being that the advanced T38 was relabeled the T56 hence the T40 could not remain the T40 with T56 power sections so was given the T54 designation.

Just like the aircraft, P-51A, B, C, D & H are all Mustangs, the same goes with the engines. The designation stays the same with just variations like the Model 500-A-2, 500-A-4, 500-C13 changed as the power output is increased through the use of new materials like carbon seals, revised air channels, deletion of compressor stages to a more optimism number, etc.

The Rolls Royce (Allison) Heritage Trust group in Indianapolis is made up primarily of retired Allison engineers. When I said I thought the 500-A-8 was the same as the T54 the president started laughing and said, “of course it is, but few people know it.”

Retired Allison/Rolls Royce engineer John Leonard of the RR Heritage Trust put out an excellent book titled “The Allison Engine Catalog” (2008). I quote from page 61: “The T54 was originally called the T40-A-8 or the Allison Model 500-C. All T40s were Allison model 500-A or 500-B. The T40 and T56 were similar except the T54 used the T56 power sections and thus was more powerful.” It was all one program with four designations the difference being either one or two identical power sections.

The death kneel was too much new technology into one engine; electronic fuel controls, high speed dual rotation propellers, synthetic oils, complex gear boxes. Someone will say ‘but the British did it. NO the British did not do it. The dual rotation propellers such as on the ASW Gannet have a gear box where each engine drives a single propeller. Loose an engine – loose a propeller. No meshing between engines or propellers. The Allison gearbox took two drive shafts of 13,820 rpm and ran them through a gear box that then merged them and ran them to dual propellers. I could go on but enough for this thread.


Attachments

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,704
Reaction score
75
Very interesting folks, thanks! Yep, the Allison T40 caused a lot of harm to a lot of sound aircraft designs... the XA2J-1 Super Savage comes to mind... but there are plenty others. The T54 was probably shelved judging from the poor record of its elder brother.

One thing about this project though. hermankeil talks about a raised cockpit a la Junkers Ju-88, which is hardly what this plan and scale model represent. I'm thinking of something in the fashion of the Convair B-36... Coming to think of it, has Lockheed ever done such cockpit designs ever? The closest I've seen is this strange unidentified cargo derivative of the Herc, and even here it's largely the consequence of the front hinge doors.
So what the design/designation of the aircraft/glider you've depicted in this post please Stargazer2006

Regards
Pioneer


masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
98
Reaction score
305
Thank you. I run on Linux as my son set up my computer and haven't learned the GIMP program to clean up drawings.....want to teach me?
