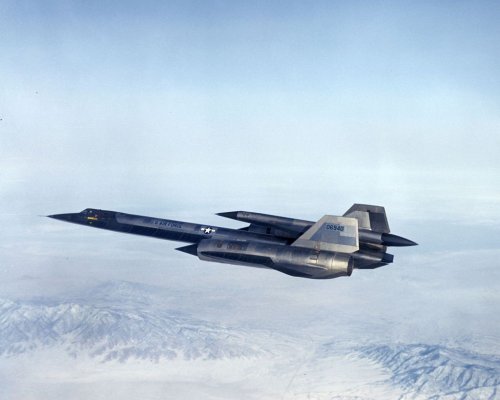

Nice shot!!

One question: did was ever considered a manned version of M-21/D-21??


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,269
Reaction score
14

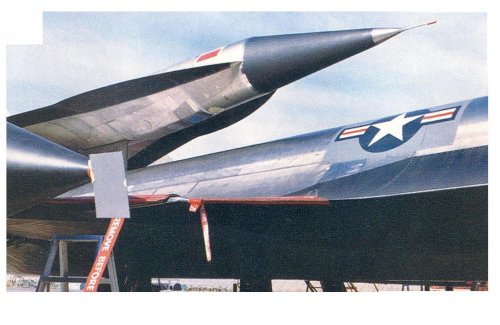

The mother ship is designated M-12 (not M-21), and as far as I know, a manned version of the D-21 was never an option.


shockonlip

CLEARANCE: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
0
archipeppe said:
Nice shot!!

One question: did was ever considered a manned version of M-21/D-21??
There are several problems with that:
- The goal was smaller in size to aid stealth, and lighter in weight for higher altitude, and
adding a man contradicts those as you not only need suport for the pilot but you need
landing gear mechanisms etc.. A man makes it more risky for sensitive overflights too.
So it was designed as an autonomous vehicle. It was not an RPV.
- Because of the above, there is no room for a man - the only room in the front is in the
Q-bay, which is under the inlet duct.

You could however ride it Slim Pickens style - bareback! :)


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
191
shockonlip said:
You could however ride it Slim Pickens style - bareback! :)
Or perhaps in a special fairing on top, lying on your belly? I know I for one wouldn't go for a ride on that one, even for a large sum of money!!!


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,182
Reaction score
11
XB-70 Guy said:
The mother ship is designated M-12 (not M-21), and as far as I know, a manned version of the D-21 was never an option.

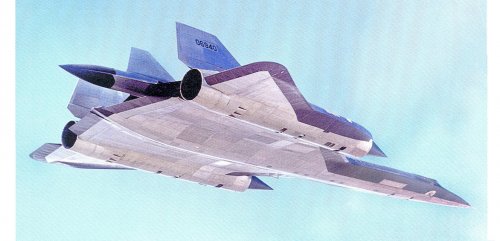

Not sure about that, I always heard that it was designated M-21 to avoid any association with the recon A-12, with the combo being referred to as MD-21.

Check this out:


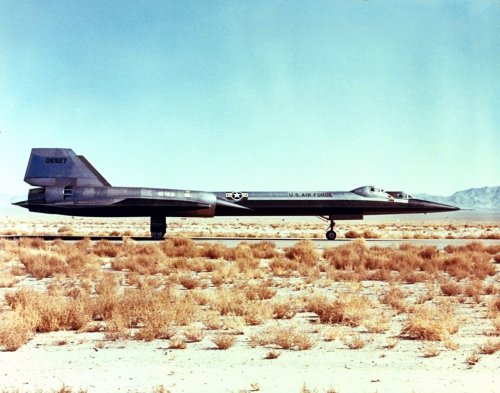

Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
191
Funny this. Nearly every source I have on Lockheed (including the Jay Miller Skunk Works book) refer to the aircraft as the M-12 and the drone as the D-21... Could this be a typo?


archipeppe

CLEARANCE: Top Secret
Joined
Oct 18, 2007
Messages
1,578
Reaction score
94
Stargazer2006 said:
Funny this. Nearly every source I have on Lockheed (including the Jay Miller Skunk Works book) refer to the aircraft as the M-12 and the drone as the D-21... Could this be a typo?
Yeah like the RS-71 that become SR-71.
Otherwise the lightning dosen't strike twice in the same place.....


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,269
Reaction score
14
Like the proposed RS-70 version of the Valkyrie that was not proceeded with, the RS-71 was a proposed reconnaissance strike (RS) version of the A-12 that was not put into service either. On the other hand, in the case of the M-12 and D-21 designations, the prefix M meant "Mother," and the prefix D meant "Daughter." The number 21 was just a reversal of the number 12 so there wasn't confusion between the A-12 airplane and the drone, which at first was designated D-12.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,182
Reaction score
11
Stargazer2006 said:
Funny this. Nearly every source I have on Lockheed (including the Jay Miller Skunk Works book) refer to the aircraft as the M-12 and the drone as the D-21... Could this be a typo?
Do you mean the big Skunk Works history? I've got the revised edition and it says M-21, as do Crickmore's latest books, Peter Merlin's recent book, and the recently published CIA history of the OXCART program.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
191
SOC said:
Stargazer2006 said:
Funny this. Nearly every source I have on Lockheed (including the Jay Miller Skunk Works book) refer to the aircraft as the M-12 and the drone as the D-21... Could this be a typo?
Do you mean the big Skunk Works history? I've got the revised edition and it says M-21, as do Crickmore's latest books, Peter Merlin's recent book, and the recently published CIA history of the OXCART program.
Oops. Funny how memory can betray you. Not only the Aerofax book has "M-21", but the Warbird Tech book on the Lockheed Blackbirds by Landis and Jenkins also does! And to top it all, Lockheed's Blackworld Skunk Works by Crickmore in the Osprey Aviation series follows suit!

I'm positive that I've also read the M-12/D-21 story somewhere, but evidence seems to go against that...


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,269
Reaction score
14
Back in 2004 when Crowood of the U.K. published my book LOCKHEED SR-71 BLACKBIRD, I devoted a whole chapter to the M-12/D-21 air vehicles. However, suffering from a "Grand Illusion," I erroniously called them M-21/D-21. Apparently I was wrong because today I believe the M-12 and D-21 designations are the correct designations.


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,316
Reaction score
177
that mix up is easy explane

M-21 aircraft based on A-12. so allot makes the mistake and label it M-12

here more Picture of M-21 / D-21
http://jpcolliat.free.fr/f12/f12-4.htm
http://jpcolliat.free.fr/f12/f12-5.htm

[flash=200,200]http://www.youtube.com/watch?v=5w64fyqmLEU[/flash]

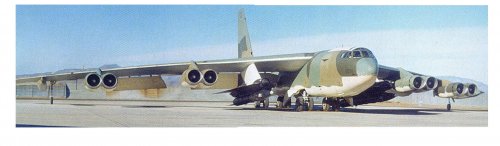

after disaster M-21 they change name to D-21B Senior Bowl

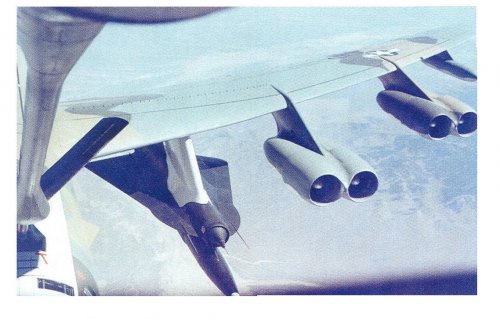

and launch with rocket from B-52
http://jpcolliat.free.fr/f12/f12-6.htm
http://jpcolliat.free.fr/f12/f12-8.htm
http://jpcolliat.free.fr/f12/f12-9.htm


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,182
Reaction score
11
"Crowood of the U.K. published my book LOCKHEED SR-71 BLACKBIRD"

Hey, I've got that one. Really well done. It wasn't as detailed in some areas as some of the others (which were written to focus on specific topics for the most part), but I think it did a very nice job providing an overview of the entire family. The problem with these damn books is that they constantly fall out of date with new info being declassified at a more rapid rate nowadays, but without being focused too much on the A-12 or the operational missions of the aircraft I think you successfully avoided a lot of that.

I've got your old Aero-series book on the XB-70 as well, that one was one of my favorites growing up. It's still the only place I've seen the photo of Walt Spivak "holding up" the XB-70 published.

"after disaster M-21 they change name to D-21B Senior Bowl
and launch with rocket from B-52"

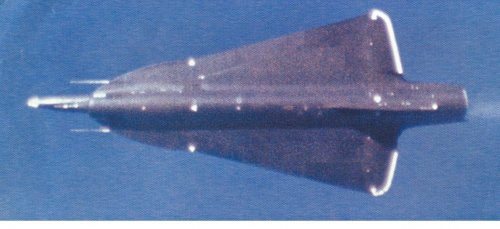

That launch video demonstrates one D-21 issue that nobody else has ever caught onto: flight test D-21s meant to be fired had the two leading edge probes. They were not a SENIOR BOWL D-21B upgrade, else they wouldn't be visile in the video! Pause the video at 15 seconds and they can clearly be seen. I mentioned this here: http://geimint.blogspot.com/2008/12/blackbirds-in-imagery.html Nobody else has apparently ever noticed!


XP67_Moonbat

CLEARANCE: Top Secret
Joined
Jan 16, 2008
Messages
2,154
Reaction score
17

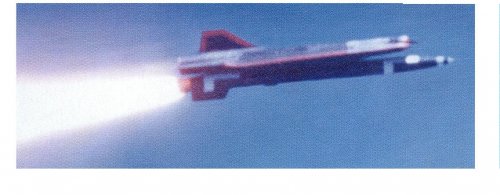

A little something on the D-21's booster.

www.wvi.com/~sr71webmaster/AIAA-2007-5761%20Header%20%20Copyright.pdf

Moonbat


XP67_Moonbat

CLEARANCE: Top Secret
Joined
Jan 16, 2008
Messages
2,154
Reaction score
17
NASA had at one point considered re-using leftover D-21's for research.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20000004765_1999206927.pdf


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,074
Reaction score
30
XP67_Moonbat said:
NASA had at one point considered re-using leftover D-21's for research.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20000004765_1999206927.pdf
2 or 3 were in outdoor storage at Edwards, they should still have them but I have not heard anything about them in a while


The Artist

CLEARANCE: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
563
Reaction score
83
quellish said:
XP67_Moonbat said:
NASA had at one point considered re-using leftover D-21's for research.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20000004765_1999206927.pdf
2 or 3 were in outdoor storage at Edwards, they should still have them but I have not heard anything about them in a while
Or were they dispersed to museums? I've seen a D-21 in the Air Force Museum.


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,740
Reaction score
40
The Artist said:
quellish said:
XP67_Moonbat said:
NASA had at one point considered re-using leftover D-21's for research.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20000004765_1999206927.pdf
2 or 3 were in outdoor storage at Edwards, they should still have them but I have not heard anything about them in a while
Or were they dispersed to museums? I've seen a D-21 in the Air Force Museum.

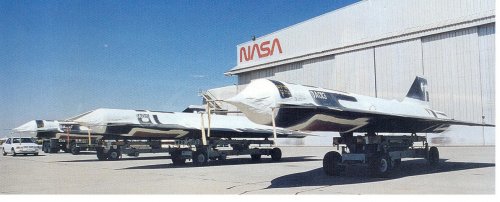

NASA got four D-21s from USAF and returned them in 2006. Two were shipped back to Davis-Monthan (where I think one is on display) the following year, one went to the March ARB museum and the other went to Blackbird Airpark in Palmdale, CA. There are a few others on display, mostly in the West.


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,740
Reaction score
40
Machdiamond said:
There is another one in the Museum of Flight in Seattle.
--Luc

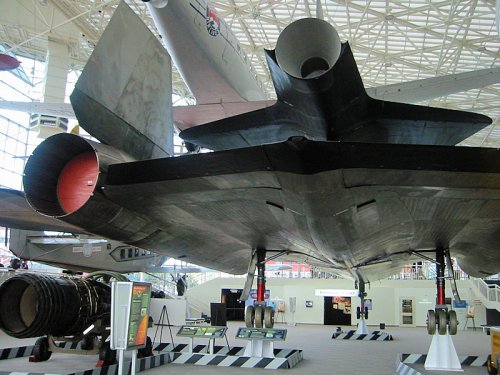

When I gave out my info, I was just referring to the ex-NASA ones. In addition to the ones we've already discussed (the one in Seattle, BTW is displayed on the only surviving M-21), the ones I know about are at:
McMinnville, Oregon
Beale AFB, California
Robbins AFB, Georgia
Grissom ARB , Indiana
Pima Air Museum, Arizona
Davis Monthan AFB, Arizona (1 on display and all the other survivors stored)


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,574
Reaction score
408

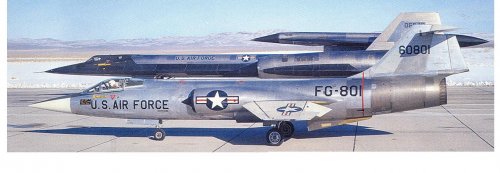

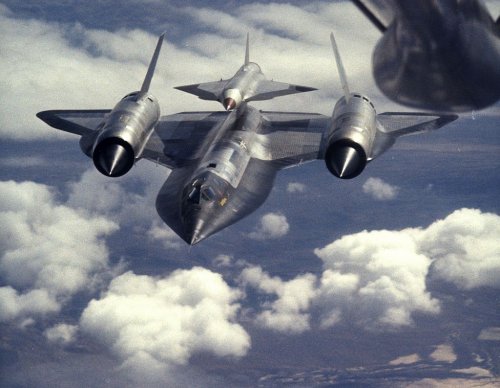

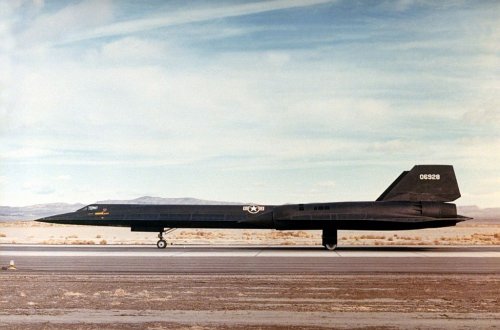

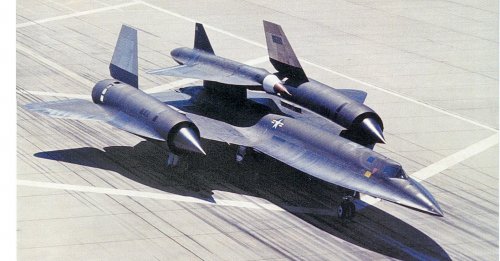

I have found some additional info
From
-Air International-Feb.1978
-Air Power-Jan.2003-Sept.2002-May.2002
-Flight Journal Feb.2000
Post-1


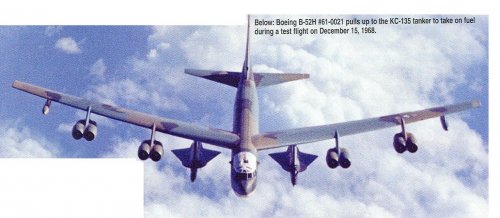

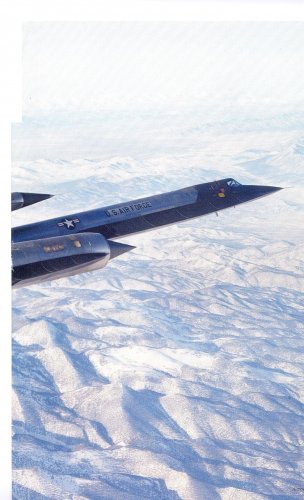

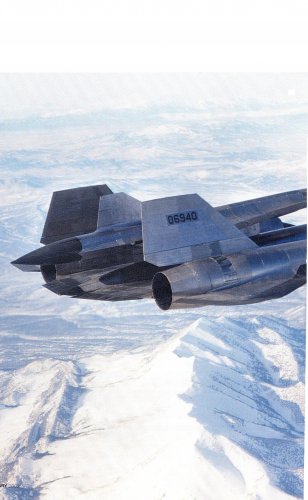

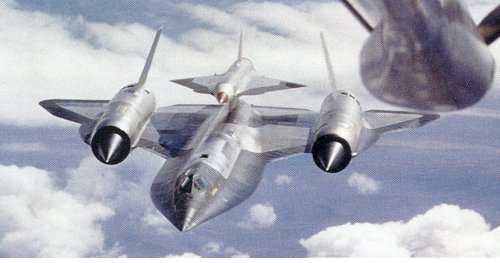

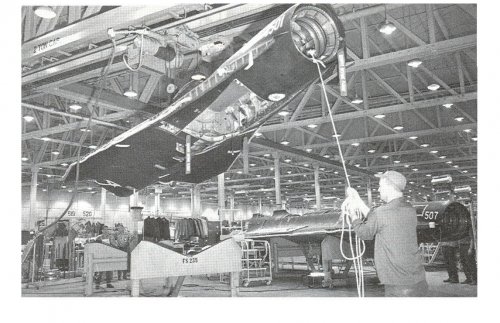

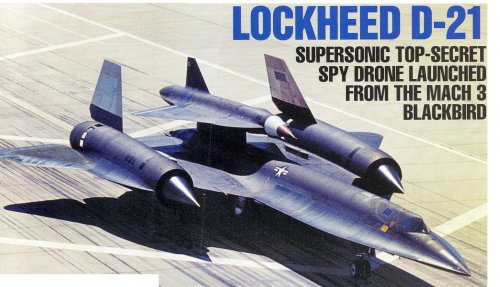

Attachments

Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,574
Reaction score
408

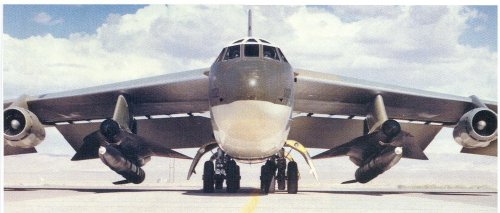

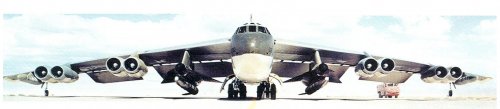

I have found some additional info
From
-Air International-Feb.1978
-Air Power-Jan.2003-Sept.2002-May.2002
-Flight Journal Feb.2000
Post-2


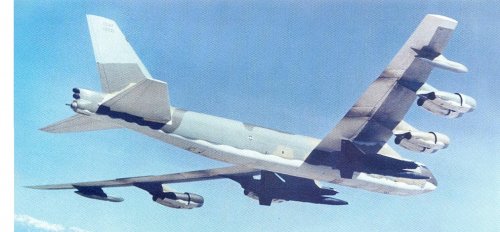

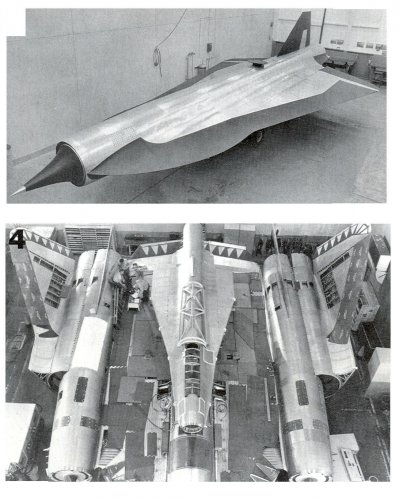

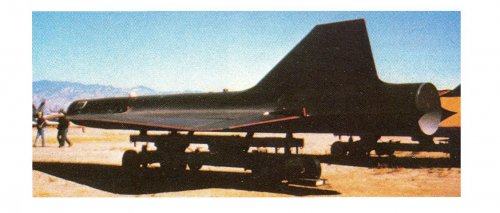

Attachments

Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,574
Reaction score
408
I have found some additional info
From
-Air International-Feb.1978
-Air Power-Jan.2003-Sept.2002-May.2002
-Flight Journal Feb.2000
Post-3


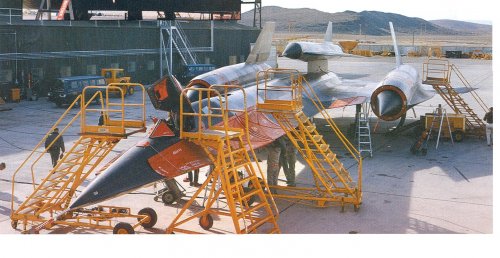

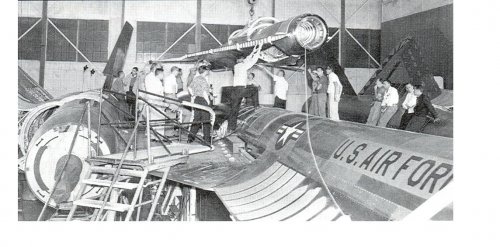

Attachments

Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,574
Reaction score
408
I have found some additional info
From
-Air International-Feb.1978
-Air Power-Jan.2003-Sept.2002-May.2002
-Flight Journal Feb.2000
Post-5


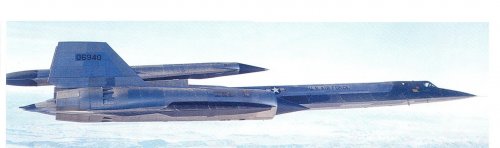

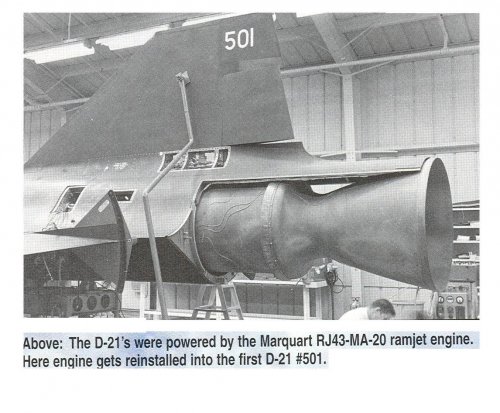

Attachments

Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,574
Reaction score
408
I have found some additional info
From
-Air International-Feb.1978
-Air Power-Jan.2003-Sept.2002-May.2002
-Flight Journal Feb.2000
Post-6


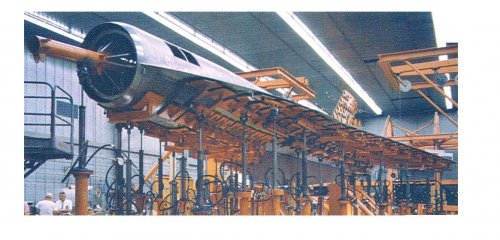

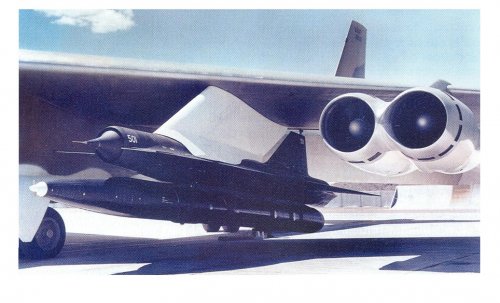

Attachments

fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,183
Reaction score
222
many spectacular Lockheed M-12 and D-21, many unseen before.
http://www.codeonemagazine.com/gallery_slideshow.html?item_id=58


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,074
Reaction score
30

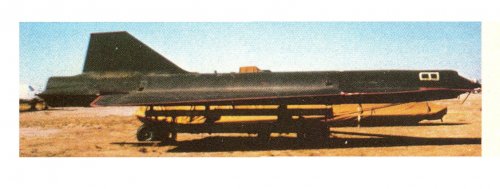

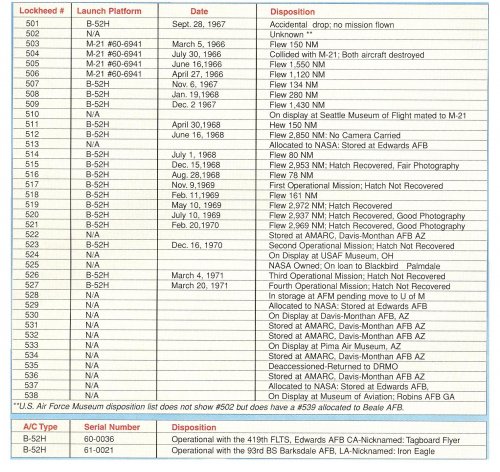

#536 at Davis Monthan, apparently they have 6 in storage:
http://www.amarcexperience.com/AMARCArticleD21Drone.asp

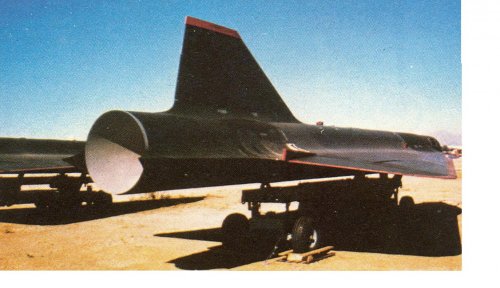

Ramjet removal from #537 and others. Poor thing looks so sad laying there.
http://roadrunnersinternationale.com/d-21_ramjet.html

Some good information on the ramjet, and photos of 2 D-21s in a C-17
http://www.wvi.com/~sr71webmaster/d21~1.htm

Some details on the flights, and other information
http://www.wvi.com/~sr71webmaster/srbowl001.htm


GeorgeA

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
781
Reaction score
41

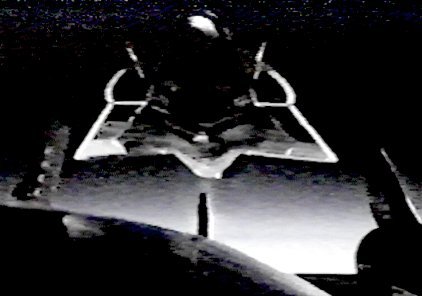

Interesting, albeit short, view of the D-21 launch from the M-12 POV, at about 9:30 in the video. Speaker is Al Romig (Skunk Works) at an AIAA conference (January 2102).


http://livestre.am/1e7SW


_Del_

I really should change my personal text
Joined
Jan 4, 2012
Messages
379
Reaction score
13
quellish said:
#536 at Davis Monthan, apparently they have 6 in storage:
http://www.amarcexperience.com/AMARCArticleD21Drone.asp
There was one (maybe two?) at Pima the last time I was down that way -- which has been a decade or so.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,182
Reaction score
11
George Allegrezza said:
Interesting, albeit short, view of the D-21 launch from the M-12 POV, at about 9:30 in the video. Speaker is Al Romig (Skunk Works) at an AIAA conference (January 2102).


http://livestre.am/1e7SW

Weird. That video clearly shows the lack of leading edge probes on the D-21, yet video showing a later launch attempt shows them on the D-21 (screencap attached). They clearly weren't part of the D-21B modification if the D-21B was simply conversion for B-52 launch. Nobody's ever really explained at what point they were added.


Attachments

GeorgeA

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
781
Reaction score
41

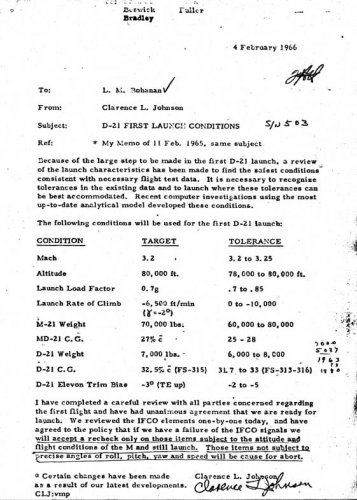

D-21 Tagboard documents declassified by the NRO:

https://www.nro.gov/Freedom-of-Information-Act-FOIA/Declassified-Records/Special-Collections/D-21/


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
1,155
Reaction score
138
The flight was as programed at near nominal: (1)
range, approximately 2950 miles, (2) course, within two
miles of centerline, except for momentary deviations
while in programed turns, (3) altitude i the drone attaining 96,588 feet at termination fuel off, and (4) speed,
approximately 3.3 mach
Look at the numbers guys. Sounds like sex predating puberty ;D


Whisperstream

I really should change my personal text
Joined
Dec 19, 2011
Messages
27
Reaction score
0

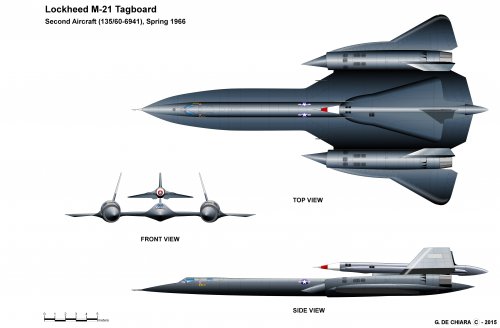

A few items of trivia:

The OXCART/TAGBOARD mothership was indeed called the M-21 despite protestations to the contrary. All official documentation describes it as such.

Article 502 was used as a structural test article for ground-based static testing only. It was scrapped in February 1969.

The D-21B on display at Robins AFB was delivered with paperwork from AMARC identifying the vehicle as Article 538, but when the panels were opened up they were clearly marked 539. The drone allocated to Beale AFB is probably 538.


asiscan

CLEARANCE: Restricted
Joined
Apr 4, 2014
Messages
38
Reaction score
7

Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,792
Reaction score
377
I don't know what became of the idea.
Nothing, unfortunately. It was damn clever idea, incidentally.

In my Big G alternate history, the idea doesn't go to waste: since the D-21B program was halted by Nixon on July 23, 1971, and since the Shuttle is (ITTL ) cancelled in October, D-21B drones are used for high-speed research and flight testing of SERJ and MIPCC.

Last edited:
Top
