Lockheed "Flatbed" transport designs

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,103
Reaction score
1,590
Website
www.aerospaceprojectsreview.com
A late-70's design by Lockheed for how to carry a wide range of unusually sized cargos: get rid of the fuselage, and carry the payload externally. I've sure flying with a bulldozer hanging in the breeze would have been *all* kinds of fun.

More info, including a fat pile of drawings, in the first issue of the new APR at: http://www.up-ship.com/eAPR/index.htm


Attachments

  • FLATBED.JPG
    23.4 KB · Views: 750

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,876
Reaction score
366
Cool, I'm so glad I'll have this on disk now, with excellent drawings and color pictures. One vehicle I would love to see you revisit soon with good drawings in the eAPR is the GRM-29. Also, if you have anymore info on the original ATF (Strike aircraft) like those drawings you posted of the Grumman High-Dive concept would be excellent as well.

Anyway, I've already sent money for two subscriptions, one for me and one for one of my friends.
Thanks. 8)


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,103
Reaction score
1,590
Website
www.aerospaceprojectsreview.com
Sundog said:
One vehicle I would love to see you revisit soon with good drawings in the eAPR is the GRM-29.

One additional change that will be coming along for future issues is that, like the Bomber Projects book, I will make some new drawings. This should help clear up a few things, and the GRM-29 is one that will get drawings. Didn't do that for anything in eV1N1, as the drawings were all pretty clear. But the thought did occur to do a side-view of every design in the issue, and show them all to scale...
[/quote]


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,994
Reaction score
370
Hi all,

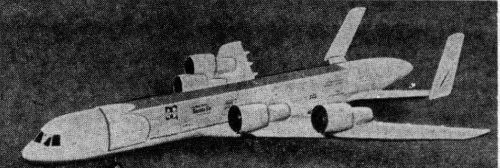

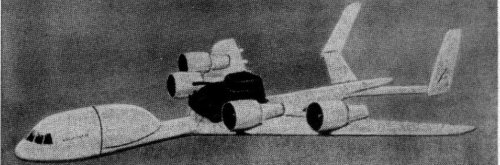

found this two pics in FliegerRevue 1980. This is a Lockheed transport aircraft, but I have no other info. Can anybody help?

Servus Maveric


Attachments

  • lockheed 1.jpg
    lockheed 1.jpg
    99.9 KB · Views: 502
  • lockheed 2.jpg
    lockheed 2.jpg
    106 KB · Views: 497

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
There is a rich NASA CR- report on this, but still unavailable online. Moreover, Lockheed-Georgia did a very extensive series of studies, some with NASA funding, some not, on which the press at the end of 1979 published a lot. It seems that journalist that went to NABA '79 were invited to visit Lockheed-Georgia in Marietta and came back with tons of material (BTW, the very same people went to Grumman, and came back with another ton of paper). If someone can reach someone of them... One is Marc Granger, who published a fairly extensive article on Interavia 12/1979, promising another one on even more advanced concepts he saw, but never appeared... Anyone knows Marc Granger ? Or another of the journalists who went to NABA '79 ?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,148
Reaction score
1,287
Flatbed transport is a subject of fairly good article in Scott's eAPR No.1


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Yep, he has the CR- report.. "Study of an advanced transport airplane design concept known as Flatbed"


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
better pic of the "Flatbed" concept that Maveric posted.


Attachments

  • Lockheed-Flatloader.jpg
    33.9 KB · Views: 486

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,317
Reaction score
245
I was wondering what was the point of making this thing turbofan powered. How fast were they planning to go with a Bulldozer hanging in the wind anyway? Since the engines are mounted on upside down pylons above the wing, there is probably enough room for turboprops.
Does anyone know?


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
552
Reaction score
112
Website
www.avicopress.ru
Hi to all!

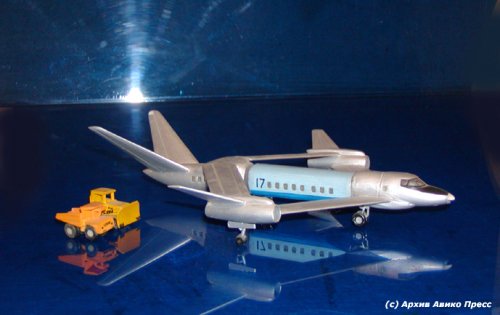

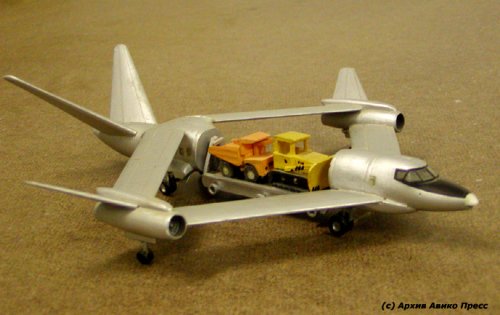

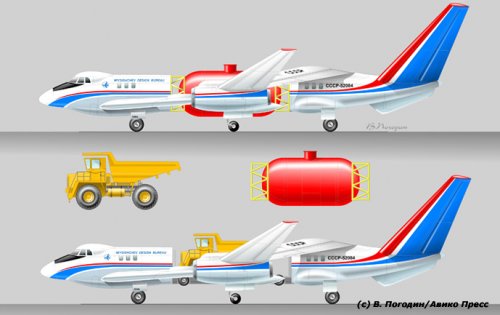

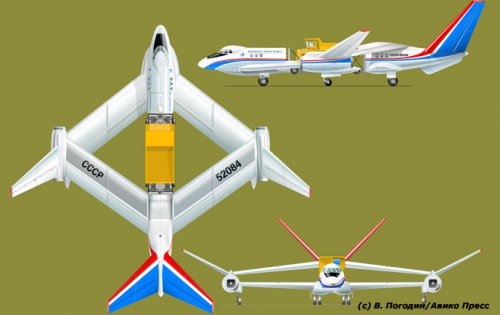

There was soviet equivalent of Lockheed "Flatbed" transport - "Romb" project in Myasishchev DB.
More info see in www.avicopress.ru
Regards


Attachments

  • Romb-1-3.jpg
    297.6 KB · Views: 139
  • Romb-3-2.jpg
    165.8 KB · Views: 158
  • Romb-3-1.jpg
    148.7 KB · Views: 179
  • Romb-2-3.jpg
    361.3 KB · Views: 298

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Yulp, the series of books on the Myasishchev DB seems great stuff. Anybody knowns if they are buy-able somewhere paying with something like PayPal ? Gregory ?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,148
Reaction score
1,287
last edition was published in 2005 and sold out *totally here*, but updated re-issue is quite possible nearest years according to Konstantin Udalov
you can contact him regarding this directly at ucon-2000@mail.ru
AFAIR, 'Romb' wasn't in last edition yet - this is one of almost hudred Myasishchev projects that were discovered recently


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,317
Reaction score
245
:eek: crazy awesome :eek:
The joined wing probably gives a wide cg range...very cool.
Does the book say how they were going to load it?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,148
Reaction score
1,287
AeroFranz said:
Does the book say how they were going to load it?

More info for registered users here http://avicopress.ru/plane.php?id=284
Cargo was moved from the back under the rear pair of wings on mobile powered multi-wheel platform (that was at the same time carry trough lower structure of the fuselage between its two 'halves'), then positioned below the 'breach' and lifted up via built-in elevators.
Kind of Galaxy cargo floor travelling on its own across the airfield collecting M1s and then mating back with the bird.


r16

ACCESS: Secret
Joined
Apr 27, 2007
Messages
377
Reaction score
18
ı guess the forum is Russian , any English translations available ?

( one regrets life is too short and you can't learn enough , in this case Russian .)


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,317
Reaction score
245
flateric said:
Cargo was moved from the back under the rear pair of wings on mobile powered multi-wheel platform (that was at the same time carry trough lower structure of the fuselage between its two 'halves'), then positioned below the 'breach' and lifted up via built-in elevators.
Kind of Galaxy cargo floor travelling on its own across the airfield collecting M1s and then mating back with the bird.

I wonder how many stress analysts at Myasishchev OKB threatened to commit suicide!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
Hi,

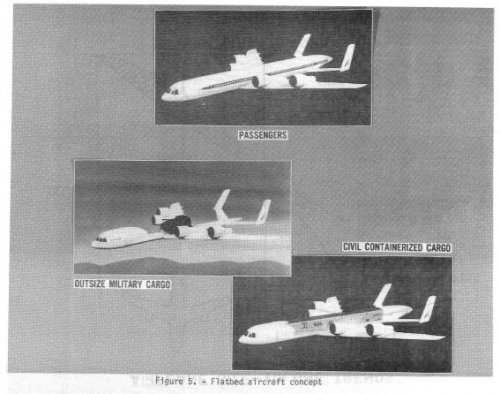

the flatbed concepts.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19800003826_1980003826.pdf


Attachments

  • 1.JPG
    42.7 KB · Views: 422

V8Interceptor

ACCESS: Restricted
Joined
Mar 3, 2009
Messages
30
Reaction score
0
Where Lockheed the only manufacturer proposing this concept? I swear I remember seeing a model of an MD DC-10 based "flatbed" years ago in one of the POPULAR (Science or Mechanics) magazines. Maybe it was L-10-11 based, it obv. would have had the drawback of having to be top loaded due to the conventional tail/engine configuration...


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

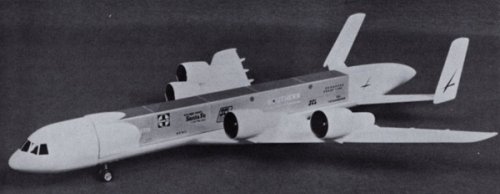

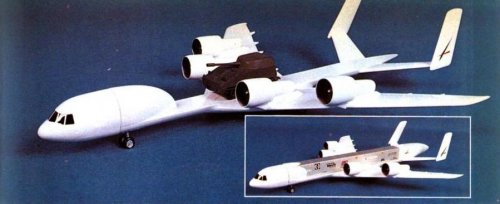

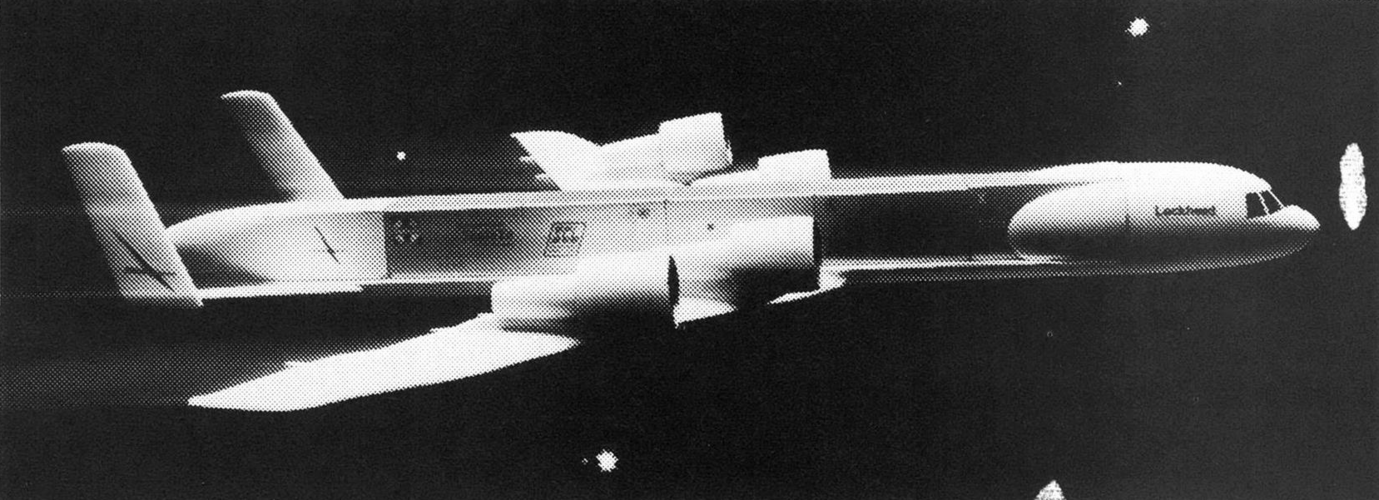

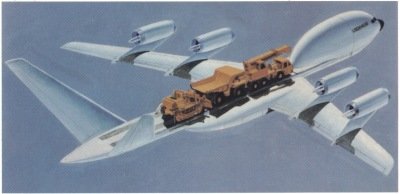

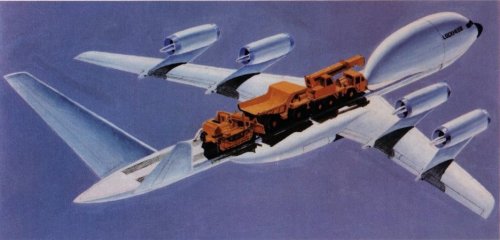

Color images of Lockheed "Flatbed" concept model.

Flat-bed transports could airlift outsize military or civilian cargo. This NASA-sponsored Lockheed-Georgia design has a level loading surface close to the ground. Tanks, such as the 118,500 lb. XMI, or other such cargo could roll on and off. In flight, they would be lashed down, and hauled exposed. A half-cylinder pressurized module could adapt the transport for passenger or freight operation. Or containerized cargo could be loaded aboard and covered with a thin cocoon to provide an aerodynamic fairing.

Source: "New-Technology Monster Transports Will Dwarf Today's Jumbo Jets" by Ben Kovicar, Popular Science, October 1980.


Attachments

  • LockheedFlatbedmodel.JPG
    43.7 KB · Views: 409

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,317
Reaction score
245

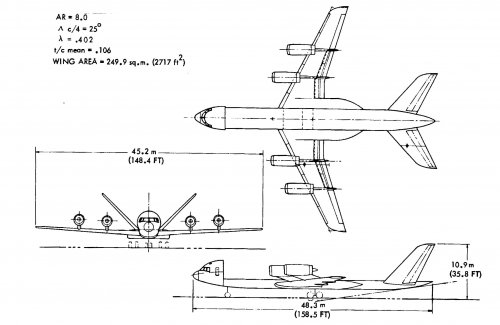

three view from SAWE paper 1343


Attachments

  • Lockheed Flatbed.jpg
    Lockheed Flatbed.jpg
    218.4 KB · Views: 391

taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
326
Reaction score
207
May be I'm missing something but the whole flatbed concept seems flawed to me and I'm surprised it's seen so much study over the years. The possible advantages don't seem to hold water:
Ease of Loading - OK, so you don't have to maneuver cargo inside an aluminum tube - you just have to prepare it for exposure to jet-speed airflows.
Weight Saving - A semi-monocoque fuselage is a pretty efficient structure. The elimination of most of the fuselage envelope would concentrate loads into the much smaller flatbed structure which would have to be correspondingly beefed up. I doubt that much, if any, weight would be saved.
Drag Reduction when Unloaded - The elimination of most of the fuselage means less whetted area, but the transition from cockpit section to flatbed in most of these designs looks draggy. I doubt that they would have significantly less drag than a conventional configuration.
The disadvantages seem more significant:
Aerodynamics - Since the cargo becomes part of the aircraft exterior, wouldn't flight characteristics change with each cargo configuration? Wouldn't testing be required for each?
Cargo Integrity - Unless all cargo is built, maintained and inspected to aircraft standards, there'd be a constant danger of pieces flying off. If you can only carry what are essentially airplane parts, whats the point?

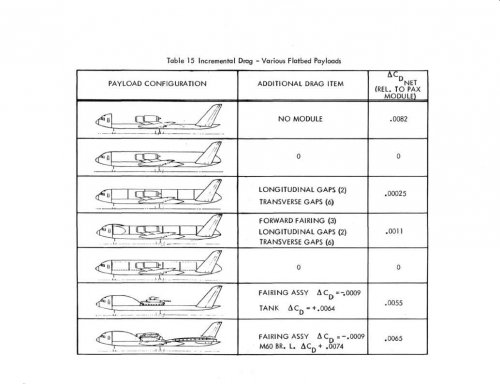

Drag - Almost anything loaded in this fashion would be draggier than a conventional fuselage. For that reason, I don't think the flatbed would offer an advantage in terms of outsized cargo.

Taildragger


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
taildragger said:
May be I'm missing something but the whole flatbed concept seems flawed to me and I'm surprised it's seen so much study over the years. The possible advantages don't seem to hold water

I think you have aptly summed up the flaws of the design. I have always asked the same questions myself, especially the question of drag inherent to the abrupt gap aft of the nose section and the dubious aerodynamics resulting from various types of loaded material. This would be less of a problem at slower speeds, but if the goal of such a transport aircraft is to quickly carry tactical material to combat areas, you want this to be done fast. Besides, showing what you carry in the open air is a dead giveaway for foreign spy satellites... Really wonder what possessed Lockheed designers over this one!


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Well, the open carriage of very large equipment were only one of the possibilities... and the more extreme. The general idea was to use cargo pods. In this, the flatbed concept is a variation of the various pod-carrying planes proposed over the years (XC-120, Miles, SM-105, etc.). And the arguments against podded cargo are more operational (added cost for pods) than techical.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
That pods are extremely useful is an established fact for quite a long time...







I guess top defense deciders never watched Thunderbirds as kids... ;D


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

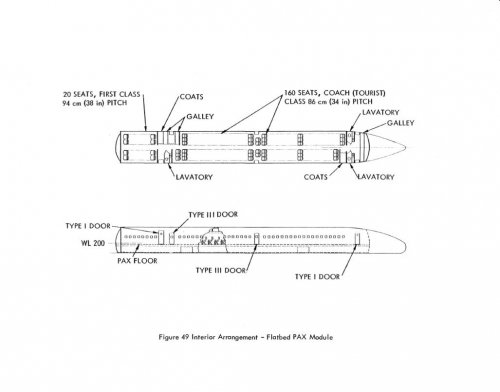

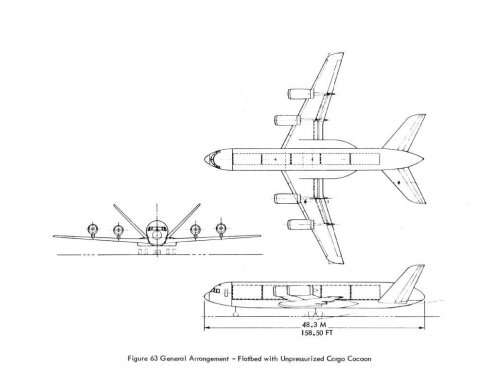

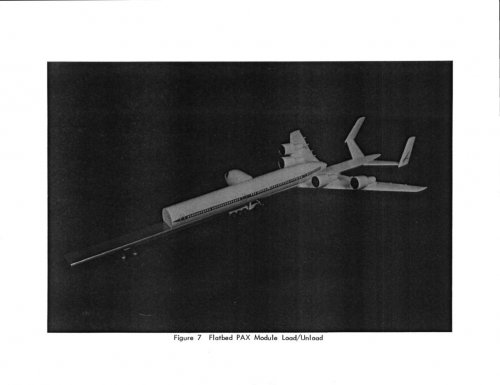

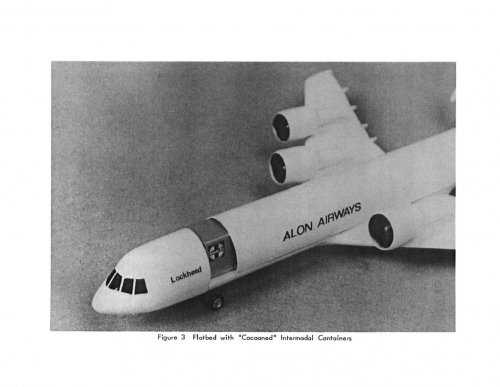

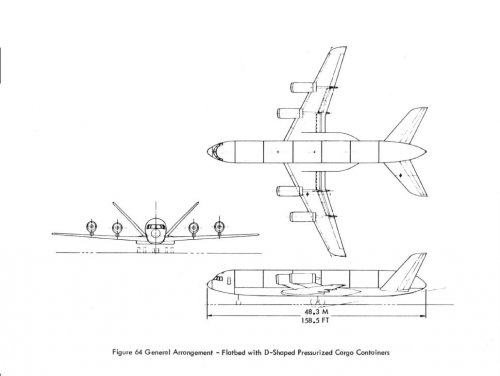

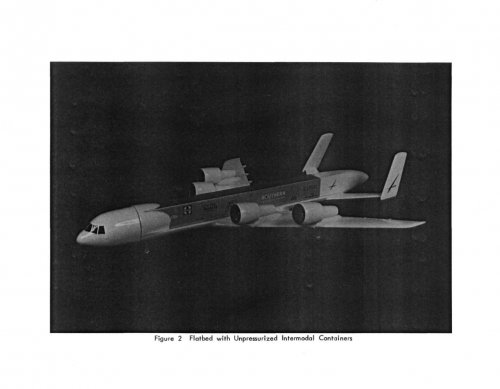

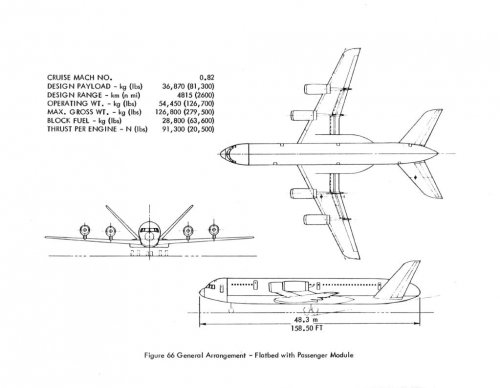

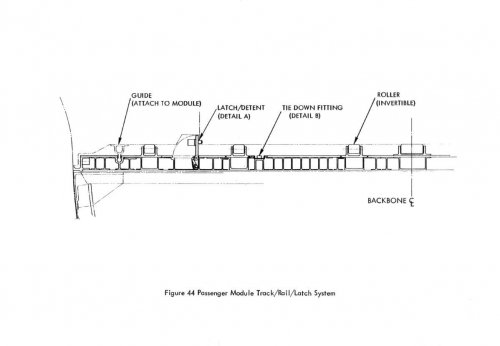

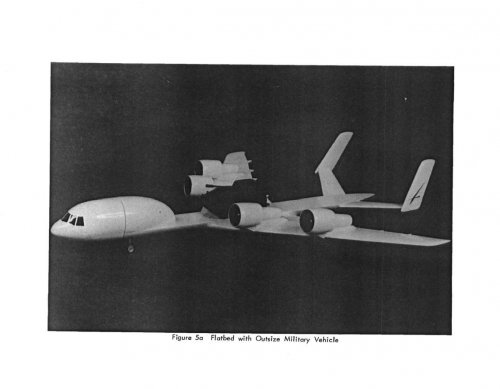

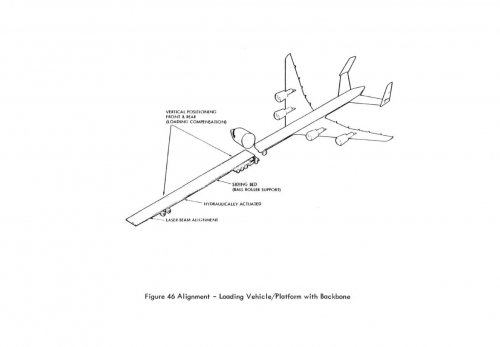

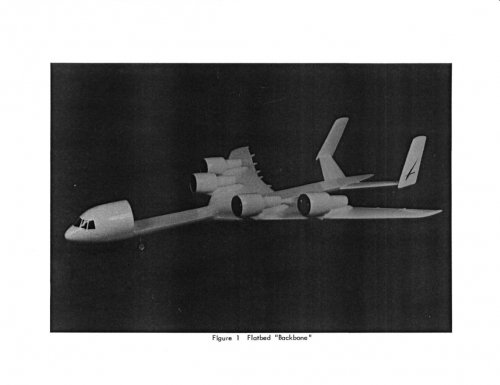

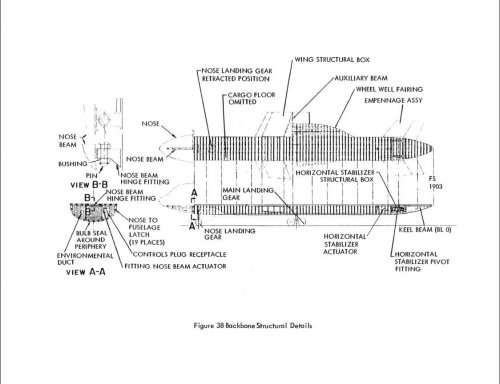

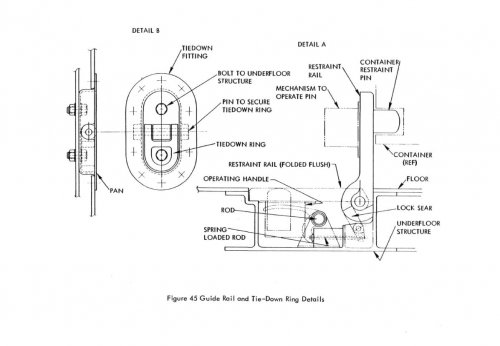

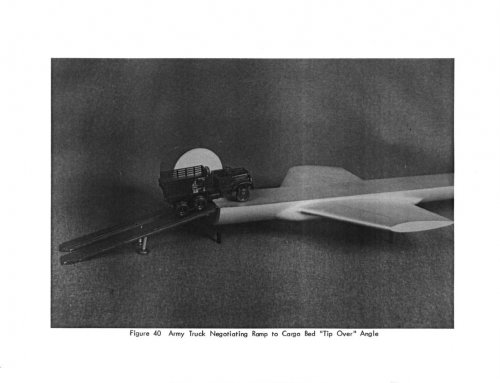

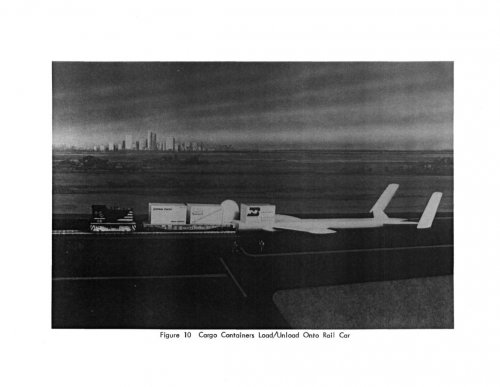

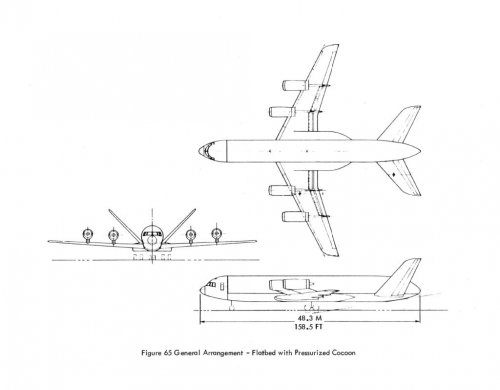

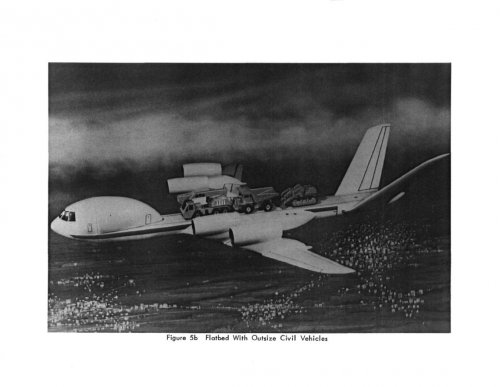

Smethers, R. G.; Caldwell, E. W.; Warnock, W. E.; Wilson, J. M., Jr. Study of an Advanced Transport Airplane Design Concept Known as 'Flatbed' Marietta. Lockheed-Georgia Company Oct 1, 1980
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19800023869_1980023869.pdf

SUMMARY:
FLATBED is a unique aircraft configurational concept (derived by Lockheed-Georgia Company) featuring versatility of payloads which are carried on an open cargo floor - there is no fuselage per se. Flatbed can haul containers, passengers in a removable module, or cargoes and vehicles. Large Army vehicles (tanks and bridge launchers) are literally "carried in the open."

Early assessments of the unusual aspects of the Flatbed concept indicated (a) potential problem areas related to specific technical design details and (b) general concerns related to the overall viability of the concept. Hence, a study was undertaken to assess the feasibility, capability, and economic merit of Flatbed. Such a study has
been accomplished through a non-parametric refinement of a point design. Aspects of the study included refinement of the Flatbed configuration and derivation of three reference aircraft (passenger, cargo, and outsize cargo) for purposes of comparison. The study involved smoke flow studies, optimization of a medium sized aircraft for a range of 4815 km (2600 n.mi.), estimation of weights and performance, prediction of acquisition and operating costs, and recommendations for additional areas of technical study.

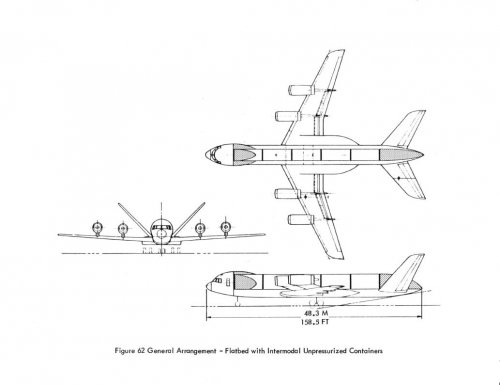

Refinement of the basic Flatbed concept produced a low-winged vehicle weighing 57209 kg (123,429 Ibs.), optimized for cruise speed for the passenger role at M = 0.82 at 10,688m (35,000 ft.). Features include a pressurized cockpit section internally hinged to pivot to starboard for front-loading of cargo. A Vee tail was determined to present the best compromise of drag and weight. Four engines are mounted on pylons above the wing in order to permit the cargo floor to be as low as possible to the ground (2.12m or 83.5 in.). The cargo floor is fitted with roller-rail-track guide systems, powered rollers, and compatible fittings on the passenger and pressurized cargo modules.

Study results indicate the Flatbed concept to be viable from a technical viewpoint. The only unusual structural area relates to provision for adequate stiffness in the fuselage aftbody. In aerodynamic terms, the design process has produced a relatively smaller aircraft to accomplish the specified missions because of a lighter weight fuselage and
lesser systems weight.

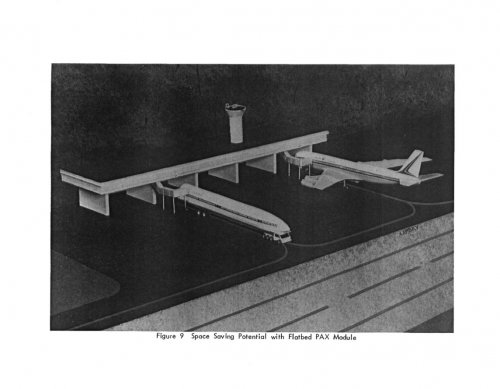

High altitude cruise speed with either unpressurized or pressurized containers is M = 0.82, which is comparable to conventional passenger type airlines hauling cargo and cargo aircraft such as the C-141 or C-5A. The cruise speeds with outsize military vehicles are above M = 0.5 with ranges compatible with the longest distance required without refueling, 4473m (2415 n<,mi.).

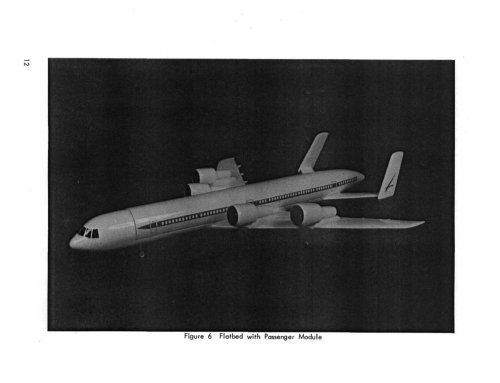

It is specifically noted that Flatbed with the passenger module consumes 11 percent more fuel than a conventional passenger airliner and 14 percent more than an outsize military cargo aircraft. Conversely, Flatbed consumes 6 percent less fuel carrying unpressurized cargo in a cocoon and 8 percent less carrying pressurized cargo — relative to conventionally configured cargo aircraft.

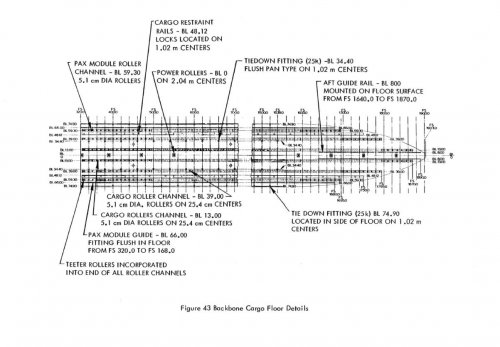

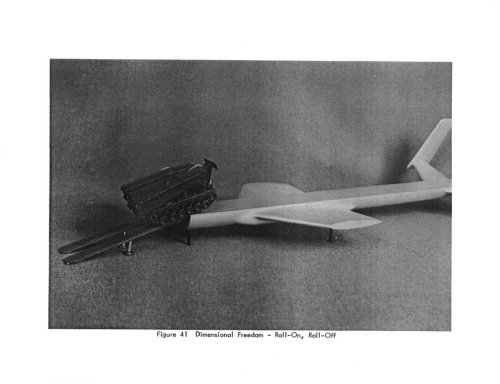

In loadability terms, the 2.12m (83.5 in.) cargo floor height of the Flatbed design is sufficiently low to accommodate loading of containers and roll-on, roll-off of vehicle(s). The lack of dimensional restrictions permits use of shorter and lesser weight ramps (17 degrees vis-a-vis 11 degrees) in comparison with conventional designs. Cargo loading, tie-down, and guide systems appear to be adequate since they are of conventional design. In economic terms, the Flatbed backbone acquisition costs are lower than any of the reference aircraft,, This results, partially, because the RDT&E costs are about 3 percent lower than a comparable conventional cargo airplane, 18 percent lower than an
outsize cargo airplane, and 9 percent lower than a conventional passenger airplane. In the latter case, however, the added RDT&E costs of the passenger module net the Flatbed passenger version about 25 percent higher. Unit production costs of Flatbed, for a comparable production run, are about $1 million lower than a conventional cargo airplane, and $2 million lower than a passenger airliner.

Flatbed DOC's vary between 8 and 26 percent lower than conventional cargo airplanes as a function of production run. (Three cases of varying production runs of Flatbed and the reference airplanes were specified for analysis.) Military life cycle costs are over 30 percent lower than a conventional outsize aircraft. The passenger seat-mile costs
are essentially equal to a conventional airplane except for QC operations which are about 8 percent lower for Flatbed.

Recommendations for additional studies include wind-tunnel tests (particularly of vehicular hauls), possible use of a metal matrix aftbody, and both military and commercial cargo airline operations in realistic scenarios.


Attachments

  • Flatbed01.JPG
    69.1 KB · Views: 50
  • Flatbed07.JPG
    71 KB · Views: 66
  • Flatbed06.JPG
    84.7 KB · Views: 62
  • Flatbed05.jpg
    73.3 KB · Views: 50
  • Flatbed04.JPG
    77 KB · Views: 52
  • Flatbed03.JPG
    98.7 KB · Views: 48
  • Flatbed02.JPG
    73.9 KB · Views: 47

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
Smethers, R. G.; Caldwell, E. W.; Warnock, W. E.; Wilson, J. M., Jr. Study of an Advanced Transport Airplane Design Concept Known as 'Flatbed' Marietta. Lockheed-Georgia Company Oct 1, 1980


Attachments

  • Flatbed15.JPG
    85.7 KB · Views: 71
  • Flatbed14.jpg
    78.9 KB · Views: 68
  • Flatbed13.jpg
    87.8 KB · Views: 67
  • Flatbed12.jpg
    61.2 KB · Views: 255
  • Flatbed11.jpg
    75.5 KB · Views: 253
  • Flatbed10.jpg
    85.2 KB · Views: 255
  • Flatbed09.jpg
    87.1 KB · Views: 271
  • Flatbed08.jpg
    67.1 KB · Views: 280

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

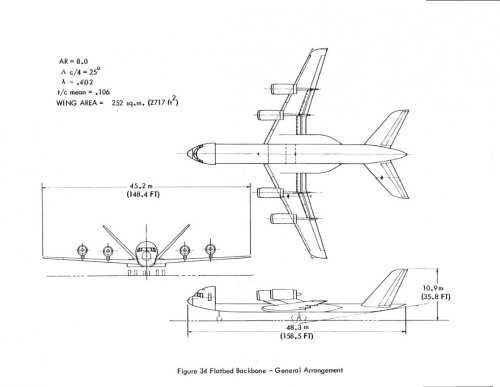

Smethers, R. G.; Caldwell, E. W.; Warnock, W. E.; Wilson, J. M., Jr. Study of an Advanced Transport Airplane Design Concept Known as 'Flatbed' Marietta. Lockheed-Georgia Company Oct 1, 1980


Attachments

  • Flatbed24.jpg
    51.1 KB · Views: 72
  • Flatbed23.jpg
    75.3 KB · Views: 79
  • Flatbed22.jpg
    38.6 KB · Views: 54
  • Flatbed21.jpg
    73.8 KB · Views: 187
  • Flatbed20.JPG
    45.5 KB · Views: 192
  • Flatbed19.JPG
    118.9 KB · Views: 207
  • Flatbed18.JPG
    48.4 KB · Views: 223
  • Flatbed16.jpg
    83.3 KB · Views: 220

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

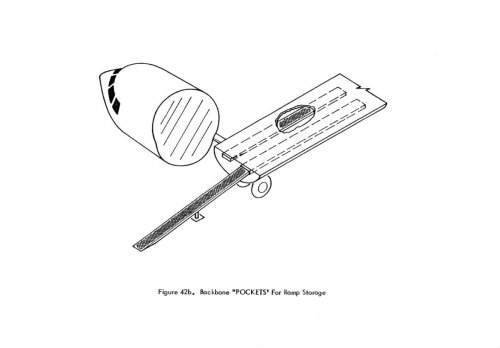

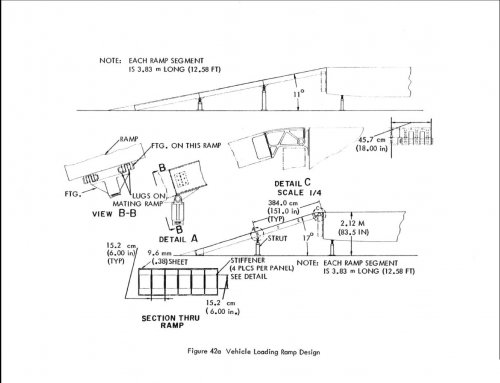

Smethers, R. G.; Caldwell, E. W.; Warnock, W. E.; Wilson, J. M., Jr. Study of an Advanced Transport Airplane Design Concept Known as 'Flatbed' Marietta. Lockheed-Georgia Company Oct 1, 1980


Attachments

  • Flatbed31.jpg
    49.4 KB · Views: 89
  • Flatbed30.jpg
    45.3 KB · Views: 84
  • Flatbed29.jpg
    60.5 KB · Views: 79
  • Flatbed28.jpg
    43.6 KB · Views: 71
  • Flatbed27.jpg
    46.3 KB · Views: 70
  • Flatbed26.jpg
    49.1 KB · Views: 76
  • Flatbed25.jpg
    50.2 KB · Views: 81
  • Flatbed32.jpg
    79.2 KB · Views: 120

RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
934
Reaction score
396
'course if we had these things flying around or available for use one wonders how much "easier" it becomes to make an economic case for Air-Launch Rocket Vehicles :)

Randy


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

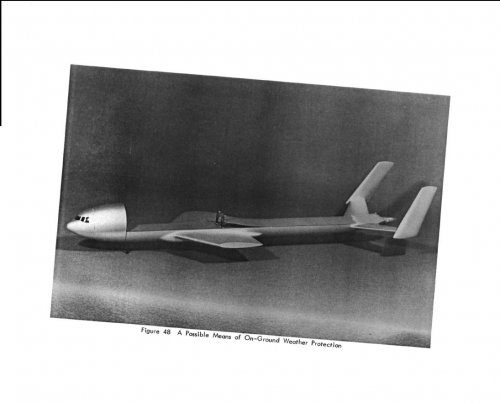

Does the fuselage and fairing assembly adequately protect the load on the flatbed? Or would the crane and the dump truck in the artist's impression arrive with body damage and/or shattered windshields?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Had similar thoughts, when I saw this concept for the first time. I think, the fairing behind
the cockpit may act as a spoiler or windshield, leading the airflow around the load and so
reducing aerodynamic pressure. You can drive in a drop-top, too, without the full airstream
in your face.


Zeppelin

ACCESS: Confidential
Joined
May 29, 2009
Messages
84
Reaction score
11
It seems to me that the concept would also require some specialised loading facilities in the form of ramps and loading cranes. way more expensive kit than the standard way Hercules, Globemaster and Galaxy deliver their cargo.


Ifor

Proselytizing to the great unwashed
Joined
Mar 6, 2013
Messages
44
Reaction score
0
I remember an actual flatbed transport on one of the Gerry Anderson's series. It wasn't Thunderbird two but a flatbed. Science fiction becomes fact.


Similar threads

Top
