As christmas time is coming, I'm looking for angels ... ;) , Lockheed Archangels,
that evetually led to the A-12 and SR-71.
Mainly from Jay Millers "Skunk Works", I have the A-I, A-II, A-6, ...

[images removed - Overscan]


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,452
Reaction score
184
Lockheed's SR-71 "Blackbird" Family. James Goodall and Jay Miller by Aerofax.

You'll find here a pretty comprehensive story of Blackbird origins from CL-325

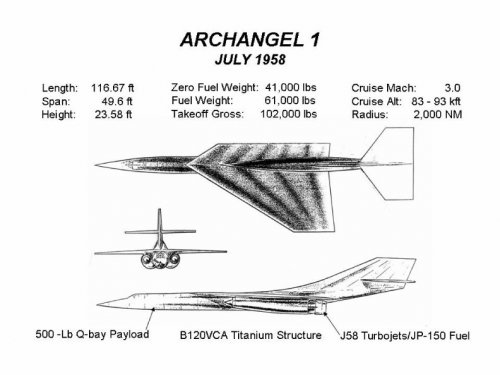

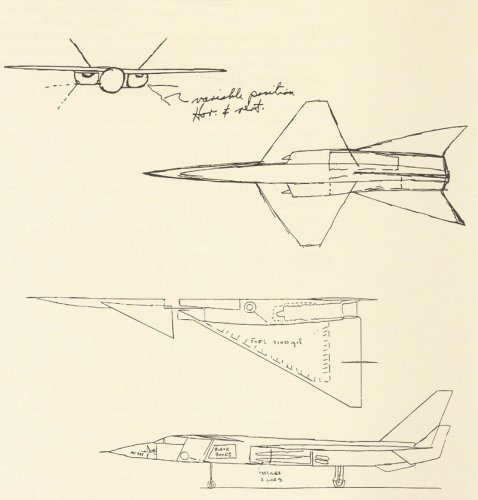

A-1: original hand-made 2 view sketch from Kelly Johnson
A-1 early and late: 3 views from both designs

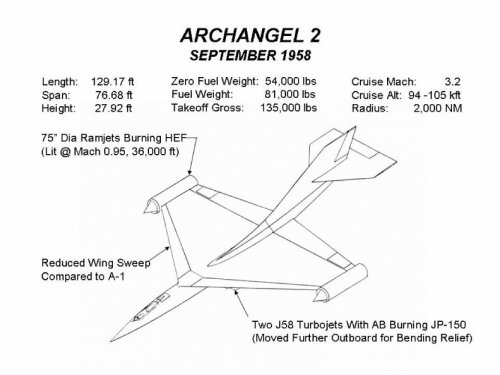

A-2: model
A-3: early study sketch
A-4: preliminary sketch from Kelly Johnson and model
A-5: it seems that no information exists about this study
A-6: model

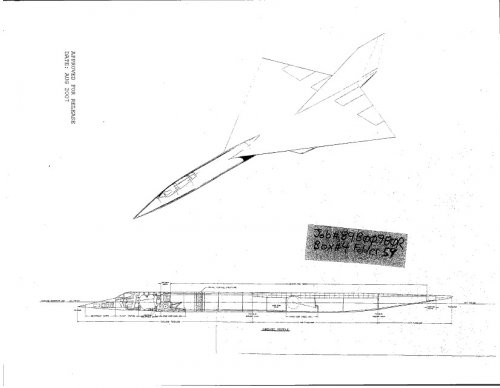

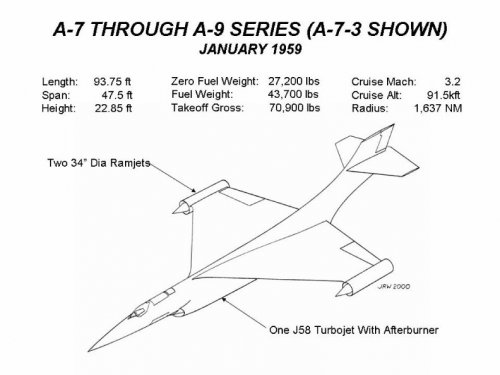

A-7: 3 view drawing
A-8 and A-9: it seems that no information exists related to this studies
A-10: model

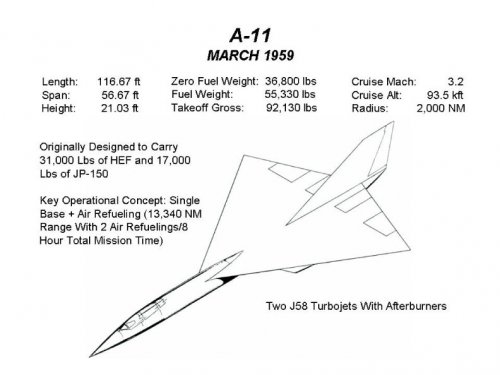

A-11: drawing

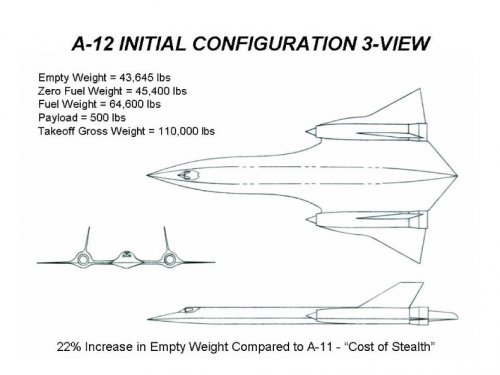

A-12 early: model and drawing
A-12 canard: model


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
I highly recommend the latest edition (2002) of the Aerofax by Goodall & Miller, where these are from. Very nice book, and not expensive.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,194
Reaction score
30
I read somewhere that one of those drawings attributed to the Archangel series was actually mislabebed, and in fact represents Lockheed's F-108 design. I'll see if I can dig up which drawing it was and where I saw that reference.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,344
Reaction score
116
Lockheed's F-108/LRIX entries were totally separate from their Archangel efforts though they did show some aerodynamic similarities. I'll have to see what I can dig up on them and get back to you.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,344
Reaction score
116
Lockheed's F-108/LRIX entries were under the CL-288 and CL-320 study numbers. Since the U-2 derived from CL-282, I rather suspect they were somewhat earlier than the Archangel studies; especially when you consider that the "Suntan" studies were CL-400.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
"This release contains approximately 1,500 pages of material, consisting of about 350 documents, maps, diagrams, and photographs dealing with the A-12 reconnaissance aircraft is occasioned by CIA's acquisition on loan from the Air Force of the eighth A-12 in the production series of 15. Known as Article 128, the aircraft will be on display at the Agency's Headquarters compound in Langley, Virginia. The release also coincides with the publication of CIA's unclassified official history of the A-12, Archangel: CIA's A-12 Supersonic Reconnaissance Aircraft by the Agency's Chief Historian, David Robarge. The newly declassified material will provide researchers on aviation and intelligence with significant additional detail about the design and development of the A-12 -- still the fastest and highest flying piloted operational jet aircraft ever built -- and its use as an intelligence collection platform in East Asia."

http://www.foia.cia.gov/a12oxcart.asp


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375

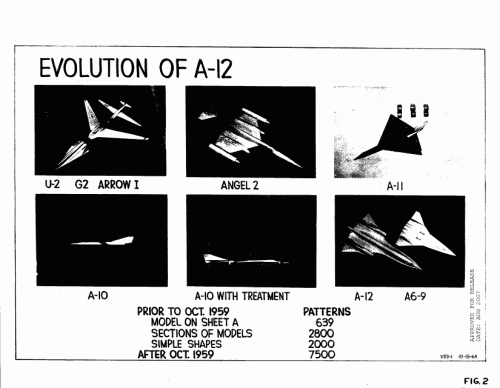

From the declassified A-12 stuff

http://www.foia.cia.gov/browse_docs_full.asp?doc_no=0001465806&title=%28est+pub+date%29+draft+of+inboard+profile&abstract=&no_pages=0002&pub_date=1%2f1%2f1968&release_date=8%2f14%2f2007&keywords=oxcart&case_no=sc%2d2007%2d00001&copyright=0&release_dec=rifpub&classification=u&showpage=0001


Attachments

  • Archangel.jpg
    62.8 KB · Views: 1,405
  • Archangel2.jpg
    91.9 KB · Views: 1,436

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,819
Reaction score
266
still the fastest and highest flying piloted operational jet aircraft ever built

That we know of. ;)

Thanks for the link. BTW, is the book about the A-12 program out, or did they declassify this info to work on the book. I'm a bit confused by that. I've looked for it through Google and Amazon and haven't found any info.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
Dunno, but this page only just went live (AFAIK) so the book might not be out there yet.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
Several files reference an A-11A powered by two J-93 engines, slightly smaller. No drawings though.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,819
Reaction score
266

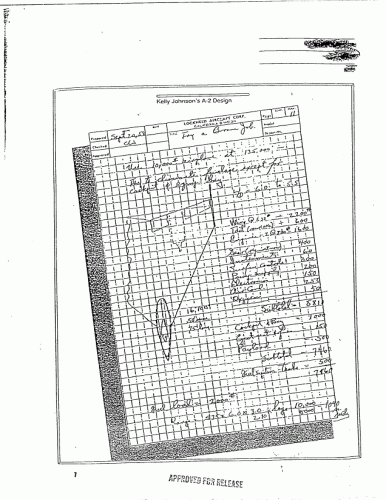

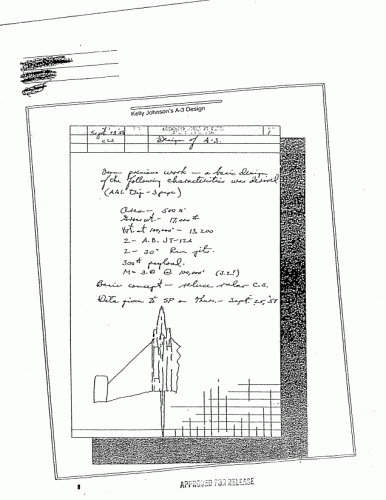

I just found this document which is CJ's history of the program. It's very interesting and informative. I had no idea the afterburners of the Kingfish were plastic! It's really interesting for the details of the problems they had in development, such as manufacturing FOD getting sucked in the engines from stuff left in the inlets. I also notice that they've blanked out the name of a location throughout the document. I wonder where it could be and what it's actual name is? ;)

Edit: If anyone finds out what Project Blackshield was, please post it. I'm guessing it has something to do with operational use of the A-12....NM, I guess those were the missions over North Vietnam.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865

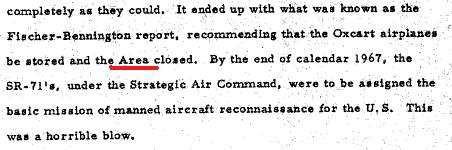

This is, of course, well-known place named [....] in the waist areas of [....]


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
more


Attachments

  • 0000645397_0011.gif
    24.8 KB · Views: 443
  • 0000645397_0008.gif
    34.1 KB · Views: 400
  • 0000645397_0007.gif
    51.1 KB · Views: 684
  • 0000645397_0003.gif
    19.1 KB · Views: 845

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
What else could we expect from the CIA chief historian when the case is about aircrafts? )


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
Shit happens...even with CIA censors...


Attachments

  • 0001458639_0020crop.jpg
    20.8 KB · Views: 442

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
Sundog said:
Edit: If anyone finds out what Project Blackshield was, please post it. I'm guessing it has something to do with operational use of the A-12....NM, I guess those were the missions over North Vietnam.

http://www.wvi.com/~sr71webmaster/kadena.html
http://www.globalsecurity.org/intell/library/imint/pueblo-imagery-1.htm

In short, search of undetected SAM sites in North Viet Nam (initial goal), plus assesing the seizure of the USS Pueblo by North Korean gunboats.

"On 17 May 1967, the first Blackbird support components were airlifted to the island. The mission was called "Black Shield"and was formally sanctioned by President Johnson. The first A12 Article #131 arrived at Kadena on May 22 after a 6 hour, 6 minute flight from Groom Lake, Nevada. A second A12 Article #127 arrived on May 24th and the third aircraft, Article #129 arrived on May 27th after a delay due to INS problems at Wake Island. The Oxcart Detachment unit, with 260 personnel and under the command of Colonel Hugh Slater was declared operationally ready on 29 May 1967. The Black Shield team received authorization for it's first Operational Mission the following day. "


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
They are in "THE CENTRAL INTELLIGENCE AGENCY AND OVERHEAD RECONNAISSANCE; THE U-2 AND OXCART".

http://tinyurl.com/youzxl

Careful with viewing for print - it loads all 390 pages, and nearly crashed my machine.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,901
Reaction score
1,134
Website
www.aerospaceprojectsreview.com
overscan said:
They are in "THE CENTRAL INTELLIGENCE AGENCY AND OVERHEAD RECONNAISSANCE; THE U-2 AND OXCART".

http://tinyurl.com/youzxl

Careful with viewing for print - it loads all 390 pages, and nearly crashed my machine.

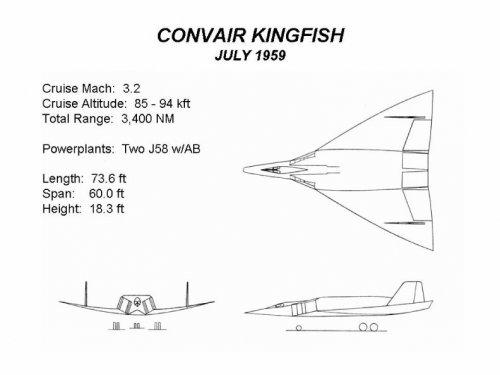

THANKS! Finally, on page 271... actual, verifiable dimensions for Kingfish!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865

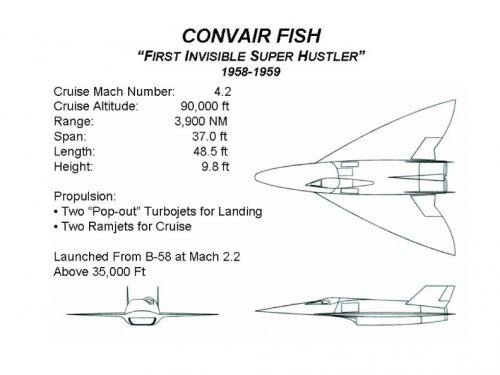

Seems that we soon should expect Fish and Kingfish in 1/72 from PTM...


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,901
Reaction score
1,134
Website
www.aerospaceprojectsreview.com
flateric said:
Seems that we soon should expect Fish and Kingfish in 1/72 from PTM...

You're more right than you might think. I've wanted to do both, but dimensions for Kingfish have been hard to come by, and I didn't want to guess or accept Internet dimensions.

Coupled with Miller's book and drawings, quite a number of the A-series could be done as well, although there'd have to be a lot of guesswork and speculation given that some of them never seemed to go beyond back-of-the-envelope sketches.


PS: I'me currently slowly assembling a 1/72 B-58 model. Make of that what you will...


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
https://www.cia.gov/library/center-for-the-study-of-intelligence/csi-publications/books-and-monographs/a-12/index.html
thanks to Peter Pesavento who monitoring this stuff much often than me


Attachments

  • ch1_9.jpg
    54.5 KB · Views: 407
  • ch1_8.jpg
    53.3 KB · Views: 455
  • ch1_7.jpg
    60.4 KB · Views: 442
  • ch1_6.jpg
    63.2 KB · Views: 447

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
More:


Attachments

  • ch1_10.jpg
    52.4 KB · Views: 423
  • ch1_11.jpg
    57.5 KB · Views: 351
  • ch1_12.jpg
    41.7 KB · Views: 439
  • ch1_13.jpg
    51.8 KB · Views: 440

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375

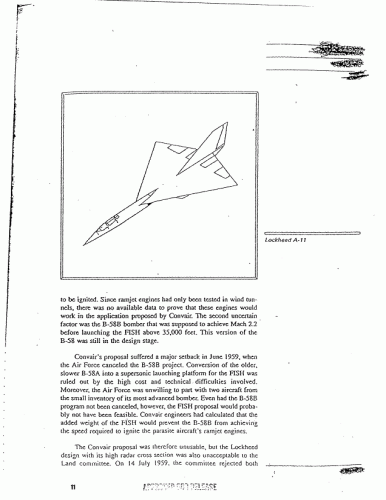

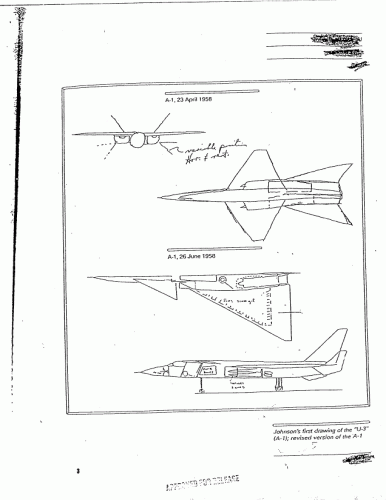

"Pages from Kelly's sketchbook".I think the fighter sketch just happened to be on the same page,hence the confusion.


Attachments

  • ch1_2.jpg
    74.4 KB · Views: 322
  • ch1_3.jpg
    68.7 KB · Views: 363

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,627
Reaction score
508
Just came across this link:

https://www.cia.gov/library/center-for-the-study-of-intelligence/csi-publications/books-and-monographs/a-12/index.html

Enjoy the Day! Mark


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
It's nice to look back on a success story, a "black" program that was managed with efficiency and a total lack of corruption, despite the absence of any real oversight. You have to marvel at the sheer honesty of Kelly Johnson - all of the funds that passed through his private bank account, for purposes of financial secrecy, actually made their way into the project.

For an intelligence agency, the CIA did a terrific job of managing an aerospace project.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
Nice link - but already posted...

http://www.secretprojects.co.uk/forum/index.php/topic,1107.15.html


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,376
Reaction score
1,413
TinWing said:
It's nice to look back on a success story, a "black" program that was managed with efficiency and a total lack of corruption, despite the absence of any real oversight. You have to marvel at the sheer honesty of Kelly Johnson - all of the funds that passed through his private bank account, for purposes of financial secrecy, actually made their way into the project.

For an intelligence agency, the CIA did a terrific job of managing an aerospace project.

To think he actually gave Suntan money BACK. Can't imagine that happening today. More likely you'd have the company sueing the government for some perceived wrong or what have you.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
Mystery is solved - Tony Landis says that AMI/F-108 scetch is made by Johnson after he saw some project documentation at NAR while he was helping with some XB-70 glitches.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,375
Its quite common - in the Hawker P.1103 papers by Ralph Hooper is a drawing of Vicker's rival project which he saw on a visit.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,376
Reaction score
1,413
flateric said:
made by Johnson after he saw some project documentation at NAR while he was helping with some XB-70 glitches.

That in itself would be an interesting story.


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,033
Reaction score
26
Overscan,

That picture of Kelly Johnson's first sketch (which he called the U-3) do oddly have a number of characteristics in common with the YF-23...

-Trapezoidal wings
-V-tail
-Similar engine and duct locations


KJ Lesnick


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,043
Reaction score
865
good point, KJ
