Good Day All -

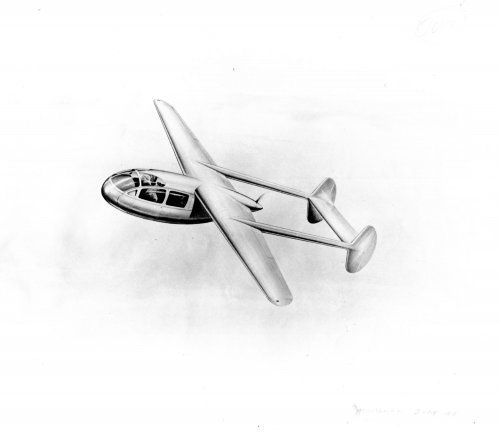

Another set of interesting drawings/artwork from the San Diego Air and Space Museum (SDASM) covering potential 1, 2 and 4 place civilian/general aviation designs for the when the war was over. Interesting to see the Little Dipper referenced as V-305 instead of the more common Model 33 (was that only for the Army model?) and the 4 seat designs are quite nice.

Enjoy the Day! Mark


Attachments

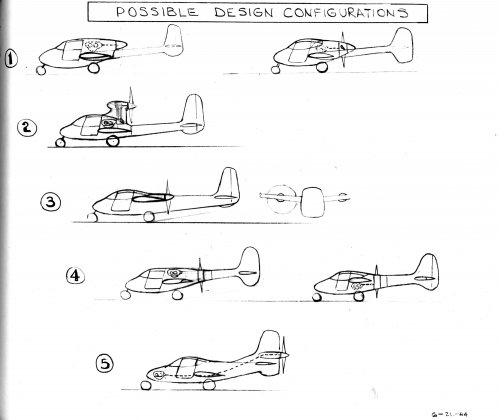

  • zLockheed Design Studies - Possible Deisgn Configurations Jun-21-44.jpg
    zLockheed Design Studies - Possible Deisgn Configurations Jun-21-44.jpg
    292.3 KB · Views: 306

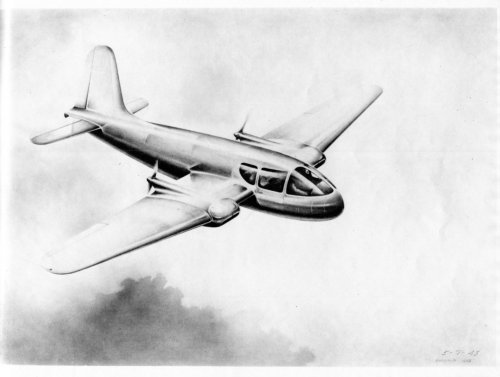

  • zLockheed 4 Place 2 Engine artwork May-7-43.jpg
    zLockheed 4 Place 2 Engine artwork May-7-43.jpg
    233.1 KB · Views: 40

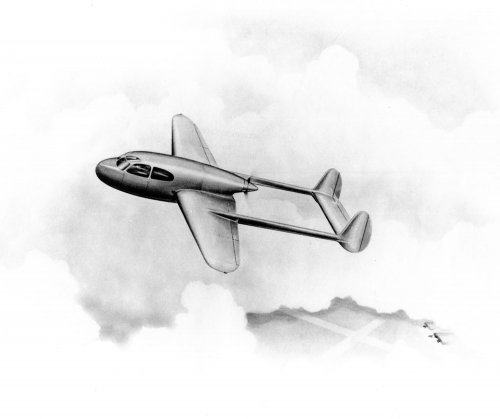

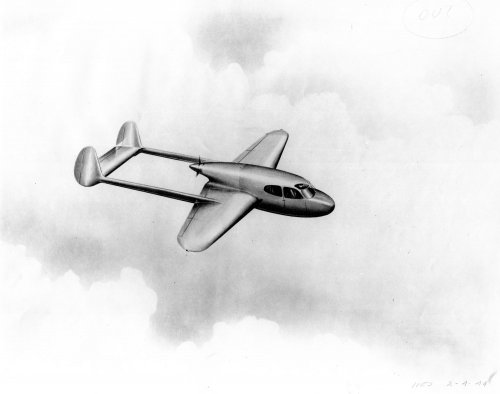

  • zLockheed 4 Place artwork Feb-4-44.jpg
    zLockheed 4 Place artwork Feb-4-44.jpg
    196.3 KB · Views: 36

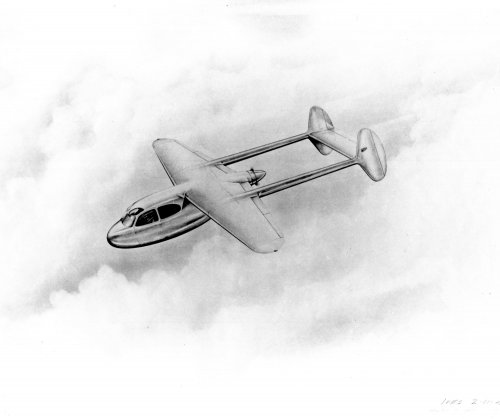

  • zLockheed 4 Place artwork Feb-4-44 - 2.jpg
    zLockheed 4 Place artwork Feb-4-44 - 2.jpg
    213 KB · Views: 38
  • zLockheed 4 Place artwork - 2.jpg
    zLockheed 4 Place artwork - 2.jpg
    187.3 KB · Views: 35
  • zLockheed 4 Place artwork - 1.jpg
    zLockheed 4 Place artwork - 1.jpg
    154.6 KB · Views: 255
  • zLockheed V-302 Inboard Profile Feb-11-44.jpg
    zLockheed V-302 Inboard Profile Feb-11-44.jpg
    209.2 KB · Views: 272
  • zLockheed Little Dipper V-305 3V Jul-14-44.jpg
    zLockheed Little Dipper V-305 3V Jul-14-44.jpg
    242.4 KB · Views: 273

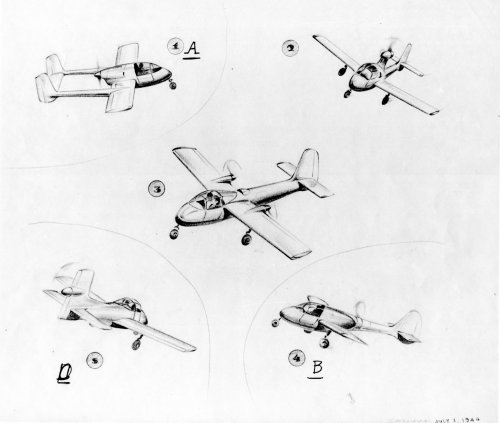

  • zLockheed Design Studies, 1, 2 and 4 place designs Jul-1-44.jpg
    zLockheed Design Studies, 1, 2 and 4 place designs Jul-1-44.jpg
    251.5 KB · Views: 289

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,803
Reaction score
1,241
...and the rest of the designs...

Enjoy the Day! Mark


Attachments

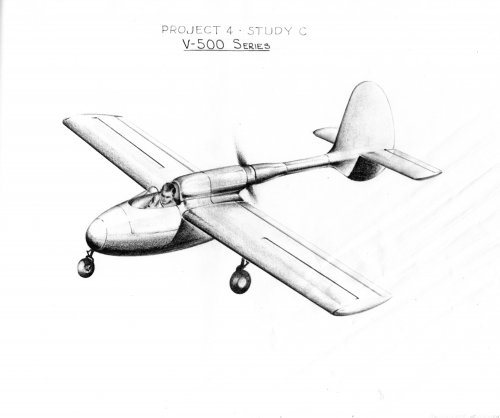

  • zLockheed V-500 Project 4 - Study C.jpg
    zLockheed V-500 Project 4 - Study C.jpg
    244.8 KB · Views: 46

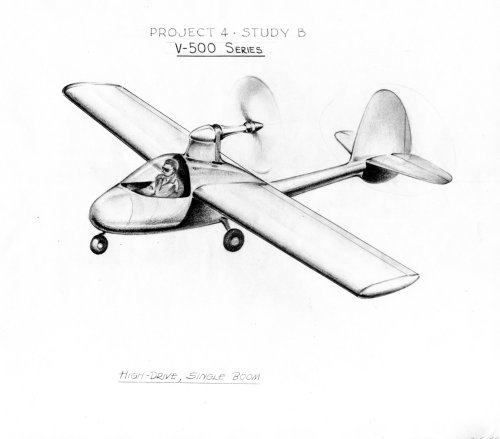

  • zLockheed V-500 Project 4 - Study B.jpg
    zLockheed V-500 Project 4 - Study B.jpg
    332 KB · Views: 41

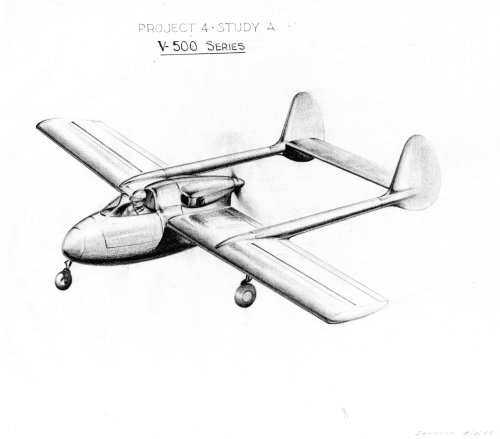

  • zLockheed V-500 Project 4 - Study A.jpg
    zLockheed V-500 Project 4 - Study A.jpg
    322.2 KB · Views: 48

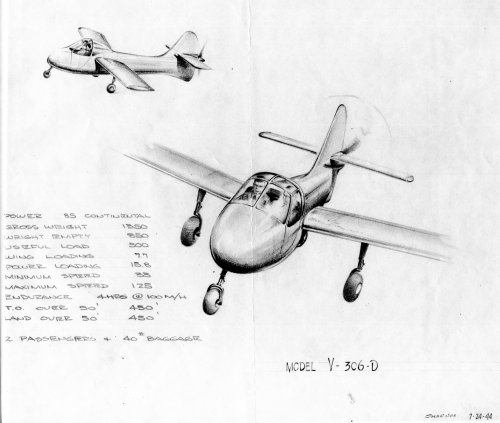

  • zLockheed V-306D Jul-24-44.jpg
    zLockheed V-306D Jul-24-44.jpg
    612.6 KB · Views: 49

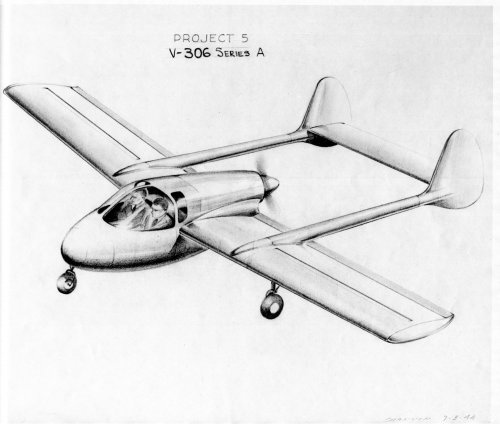

  • zLockheed V-306 Series A Project 5 Jul-3-44.jpg
    zLockheed V-306 Series A Project 5 Jul-3-44.jpg
    297.4 KB · Views: 42

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013
Such a wealth of beautiful designs!!! :p :p :p

Thanks once again Mark for bringing these to our attention. Are they part of the online archive of the SDASM or did you find them there while digging a bit more?

As for the V-305 designation, it was Vega's inhouse design number. As was the case with Lockheed and their L- designations, Vega types could eventually get a Model designation, and in the case of the "Dippers", that was Model 33 and Model 34. Now the tricky thing is that Vega Model Numbers were initially distinct from Lockheed ones, but after a while only one system remained; the "33" and "34" entries were part of Lockheed's list.

V-305 applied to the Little Dipper, described as a a "sport aircraft". V-306 was the Big Dipper. V-308 was a variant of the V-305 called the Flying Infantryman. Now whether the latter was the same as the Air Trooper or a different variant I couldn't say (I have the Air Trooper as another V-305 but it could be a mistake).

The V- list also contains V-309, V-310 and V-311 as "commercial transports" related to the Big Dipper design. My feeling is that these can be found among the beautiful cabin pushers you've shared.

The V-300+ series was considered different enough from the rest of Vega's designs (being mostly commercial oriented) to justify skipping the designations V-211 to V-299 altogether. Although V-301 is not documented, V-300, V-302, V-303 and V-304 were commercial transport projects, likely more conventional. Possibly the twin-boom pushers in your pics were among these?

V-312 and V-313 are only described as "light aircraft" and "liaison aircraft" respectively, but not related to either "Dipper" apparently. V-307 was a "sport helicopter", which you also found (in the other topic) as part of a "package" which Vega tried to sell the Army.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013
Skyblazer said:
Although V-301 is not documented, V-300, V-302, V-303 and V-304 were commercial transport projects, likely more conventional. Possibly the twin-boom pushers in your pics were among these?

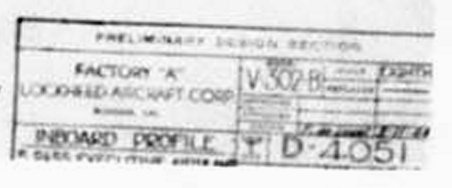

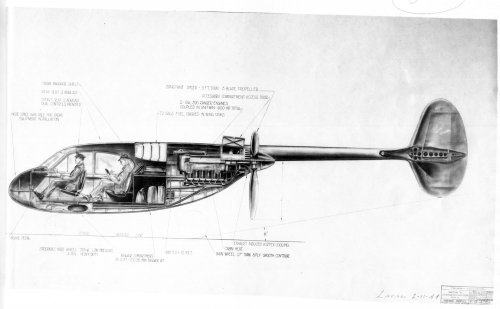

Confirmed. By zooming into the cutaway drawing of the 5-seat cabin pusher designed by a Mr. Laval, one can clearly see the designation V-302-B.


Attachments

  • 'V-302-B'.jpg
    34.2 KB · Views: 21

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
2,103
Reaction score
1,543
General question: over the last century, hundreds of pod-and-boom pusher prototypes have been built, but very few were manufactured in significant numbers (Cessna 337 Skymaster and Republic Seabee).
Why?
Was it a problem with airflow around the aft edge of the pod?
Was it a problem with airflow around the wing root?
Was it a problem with airflow into the pusher propeller?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013
riggerrob said:
very few were manufactured in significant numbers (Cessna 337 Skymaster and Republic Seabee).

:eek: :eek: :eek:

Very interesting question... but where did you get the notion that the Republic Seabee was a twin-boom design?!


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
3,230
Reaction score
1,439

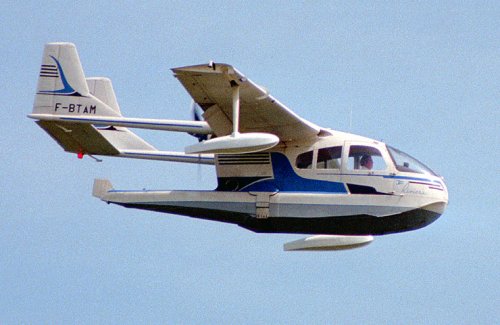

Possibly somebody confusing the Nardi FN.333 Riviera and the Republic Seabee.
Image found here http://www.seabee.info/


Attachments

  • Nardi FN.333 Riviera.jpeg
    Nardi FN.333 Riviera.jpeg
    381.3 KB · Views: 29

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032
Amazing find my dear Mark,
specially V-500.
