Lockheed’s unbuilt C-141 Starlifter variants

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
Lockheed’s other proposed C-141 Starlifter variants?

Many years ago I came across a big and beautiful book that had many full-spread coloured artwork / drawings of Lockheed’s proposed C-141 Starlifter, that would serve in other roles.
From my memory these included-
· Airborne Command Post variant
· An Airborne Ballistic Missile Launch platform variant
· A Anti-Submarine Warfare variant
· A Airborne Refuelling Tanker variant
I am sure that there were others, but again it was many years ago, and unfortunately the book was out side my price range ($200 over 10 years ago)

Does anyone have any information on these C-141 proposed variants
For with hindsight I should have sold my shoes and the cloths of my back to get that book.

Regards
Pioneer


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com
The "Warbird Tech Series" of books from Specialty Press recently did the C-141 Starlifter (it was Volume 39 and the author is Frederick Johnsen) and it's much more affordable- I got my copy via Amazon for less than $20. It covers some of those proposed variants in Chapter 3 "What Might Have Been".

In addition to looking at the proposed civil cargo version (Lockheed Model 300A and the 300B Super Starlifter for the stretched version) there was:

-Three versions of an air defense missile platform- all had an enlarged nose for the radar. The first version used a retractable ventral tray to launch missiles housed in the cargo hold, the second carried 22 missiles fired out the back, and the third had an elongated tail cone (another radar?) and a pneumatic "revolver" that fired missiles out the back.

-Bomber version with three tandem bomb bays (proposed last half of the 1960s as a "bomb truck")- load is quoted as 54000 lbs of bombs which could be accurately dropped from as high as 45000 feet.

-SAR version using equipment and technology from the HC-130H, including the Fulton rescue forks.

-Three tanker versions- the first was a minimal change that still retained cargo capability (two fuel tanks in the hold, hose reel in the aft cargo door, the second was a dedicated probe/drogue tanker with a hose reel mounted just forward of the aft cargo door meant to replace the KC-130F, and a third version with a flying boom that was partially retracted into the aft cargo door area.

-A version that acted as a mobile communications station-mobile vans in the cargo hold that could be used in flight by 10 additional personnel with a 10.7 hour loiter time and 500 nm mission radius. There was also a version to act as a tactical air command post similar to what the EC-130 ABCCC aircraft performed.

-AWACS version

-Missile range tracker similar to the ARIA/C-18/EC-135 family of aircraft for support of range telemetry and support of the Apollo program.

-Navigation trainer with an enlarged nose radome and trainee stations in cargo hold.

-Weather reconaissance version with a fuel tank in cargo hold plus meteorology equipment. It would have had an endurance of 17.5 hours.

-Air photographic and charting version to replace the RC-130As.

-Defoliage version with three tanks for herbicide and a retractable spray boom.

-Flare launcher- this was before the days of practical night vision systems. In Vietnam this role was filled by "Blind Bat" C-130As, the Starlifter version would have carried 768 flares and had an endurance of 12 hours.

-Tactical support/rough field version- this one had enlarged main landing gear sponsons to house a six-wheel main bogie unit.

I don't have a scanner as there are some nice schematics and artwork in the book to go along with the narrative.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
Pioneer said:
Many years ago I came across a big and beautiful book that....

What is the title? You'd be amazed by what I can find.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,997
Reaction score
495
Website
beyondthesprues.com
I'd definitely be interested in seeing pics of those variants - especially the ASW and air defense missile platform variants.

Regards,

Greg


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,347
Reaction score
117
The nose of those air defense missile platforms sound a lot like what was fitted to the NC-141A operated out of Wright-Patterson AFB. It was used for radar testing and, with appropriate adapters as required could test the B-1, F-15, or F-16 radars.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,213
Reaction score
1,739
An exotic variant of the C-141 was the Belfast hybrid proposed to the RAF for ASR-364 in the 60's ;)


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,347
Reaction score
117
Archibald said:
An exotic variant of the C-141 was the Belfast hybrid proposed to the RAF for ASR-364 in the 60's ;)

yep, modified Belfast fuselage with the wings, engines, and, I think, tail surfaces of the C-141. As I remember, it made for a rather attractive aircraft.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com
elmayerle said:
Archibald said:
An exotic variant of the C-141 was the Belfast hybrid proposed to the RAF for ASR-364 in the 60's ;)

yep, modified Belfast fuselage with the wings, engines, and, I think, tail surfaces of the C-141. As I remember, it made for a rather attractive aircraft.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
elmayerle said:
Archibald said:
An exotic variant of the C-141 was the Belfast hybrid proposed to the RAF for ASR-364 in the 60's ;)

yep, modified Belfast fuselage with the wings, engines, and, I think, tail surfaces of the C-141. As I remember, it made for a rather attractive aircraft.

Keep in mind that the original Belfast mated the Bristol Britannia's wings with a new, larger fuselage. Of course, the Belfast was inferior to the competing Handley-Page Victor derived airlifter, but sustaining employment in Northern Ireland was the deciding factor.


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
Another variant of the C-141 that was actually used was a Flying Astronomical Observatory used, I believe, by NASA.

Chuck
cbakiteskites@yahoo.com
University Place, Washington


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com
GTX said:
I'd definitely be interested in seeing pics of those variants - especially the ASW and air defense missile platform variants.

Regards,

Greg
Here you go, Greg- breaking in a new scanner today!









Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
Thanks Sentenel Chicken

The new scanner has already payed off - well for me anyway!

Yes these were the sort of drawings that were in the book all those years ago, that I was talking about for this forum - but only they were in colour. Yet your effort are great

Regards
Pioneer


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,347
Reaction score
117
I've always wondered if Lockheed ever looked at re-engining the C-141 along the lines of the DC-8, Series 70, or KC-135R aircraft? I keep thinking that CFM56s would look good under C-141 wings.


Iranian F-14A

ACCESS: Restricted
Joined
May 11, 2006
Messages
34
Reaction score
1
What about other countries buying C-141s? I know at one point Canada wanted to buy some,but budget problems got in the way.Were any other countries looking at buying them? Also,would it be possible to sell some of the retired C-141Bs or give them away like has been done with C-130A and B models?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Is there someone who knows more of the proposals made by
Boeing , Convair and Douglas
in the competition who produced the Lockheed C-141 ?
(Support System SS 476-L)

Drawing ,info or sources...
Much thanks in advance.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,997
Reaction score
495
Website
beyondthesprues.com
SC,

Thanks - nice scanning. Did you also have the ASW version details?

Regards,

Greg


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com
lark said:
Is there someone who knows more of the proposals made by
Boeing , Convair and Douglas
in the competition who produced the Lockheed C-141 ?
(Support System SS 476-L)
The Warbird Tech book on the C-141 Starlifter had a simple three-view of the Boeing submission, I'll try to scan it sometime this week. Basically imagine a 707 with the wing mounted above the fuselage and main undercarriage fairings on the lower fuselage.


Iranian F-14A

ACCESS: Restricted
Joined
May 11, 2006
Messages
34
Reaction score
1
The Warbird Tech book on the C-141 Starlifter had a simple three-view of the Boeing submission, I'll try to scan it sometime this week. Basically imagine a 707 with the wing mounted above the fuselage and main undercarriage fairings on the lower fuselage.
[/quote]


I've always wondered about doing something like that with a 747.Say,if the wing had been mounted above the fuselage and maybe a T-tail.I'm thinking this would have been a bit more useful as an airlifter when the air force was thinking of buying the 747 as its strategic airlifter.Either way,the C-5 could carry more,so thats a mute point,still,a 747 in that configuration would have been a good airlifter.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
57
Website
theavgeeks.com
Boeing's submission had a conventional low-set horizontal tailplane and if I remember right, both Dougas and Boeing submissions to the CX-HLS competition also had low-set horizontal tailplanes.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
Iranian F-14A said:
I've always wondered about doing something like that with a 747.Say,if the wing had been mounted above the fuselage and maybe a T-tail.I'm thinking this would have been a bit more useful as an airlifter when the air force was thinking of buying the 747 as its strategic airlifter.Either way,the C-5 could carry more,so thats a mute point,still,a 747 in that configuration would have been a good airlifter.

Just about every civilian jet transport has had a low wing configuration. I can only assume that there are aerodynamic and weight penalties associated with high mounted wing.

There are exceptions like the BAe 146 - but I don't want to get off topic.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,347
Reaction score
117
With the exception of aircraft designed for possible rough field operations (BAE 146, for example), most civilian jets are low wing because it allows you to cleanly take the main gear loads into the aircraft structure and, too, the low wing provides volume to store the main landing gear in. High wing aircraft with separate sponsons for the main landing gear are almost always going to be heavier and "drag-ier" than a low-wing version of the same configuration. For military transport roles, though, high-wing makes a great amount of sense.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Is there someone who haves an illustration of the Boeing contender
in the C-141 competition ?

Many thanks in advance...


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Dear all,

I'm still looking for a drawing and some information about the Boeing contender
in the C-141 competition.
Is there someone who can help ?

Thanks.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126

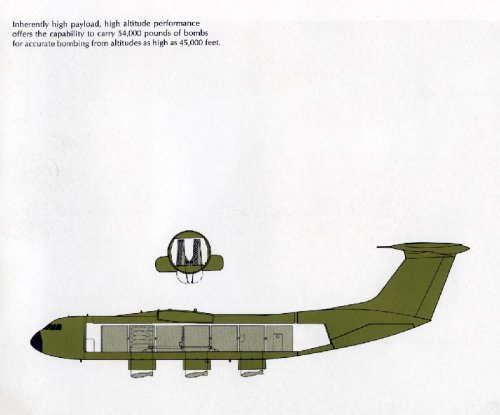

A Starlifter bomber, wooo, B) and much more in the site I posted in the Useful Links section...


Attachments

  • versatility_018w.jpg
    54 KB · Views: 646
  • versatility_019w.jpg
    48.3 KB · Views: 801

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126

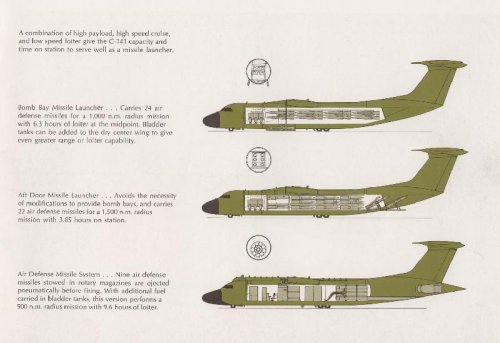

And missile launcher(s)


Attachments

  • versatility_020w.jpg
    56.7 KB · Views: 609
  • versatility_021w.jpg
    56.7 KB · Views: 832

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
Sentinel Chicken said:
GTX said:
I'd definitely be interested in seeing pics of those variants - especially the ASW and air defense missile platform variants.

Regards,

Greg
Here you go, Greg- breaking in a new scanner today!








Great to see that you good gents are still researching and finding info for older forums!!!!
But I can not see any of the picture you have posted SC!

Regards
Pioneer


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Pioneer, no problem. I've found the original brochure from which the WarBirdTech book illustrations were taken, so I'll post them piecemeal.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
870
Marco, looks like it goes from Lockheed Horizons?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126

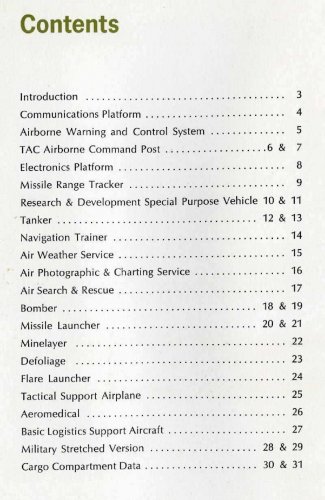

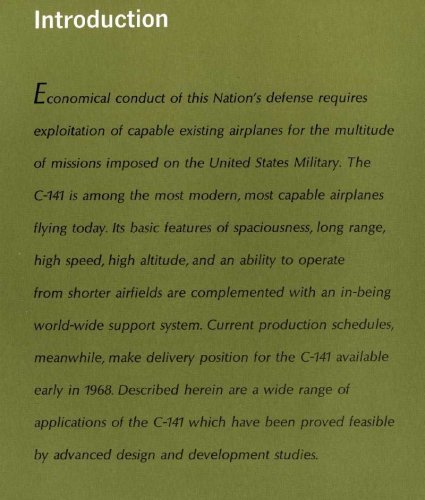

Grigory, no, it is a brochure entitled "Lockheed C 141: Versatility" from circa 1965. Can be found on the site I posted in the Useful Links section. It is possible the same or similar info is included in some Horizons issue (not in those I own in paper or electronic form). I attach the first three pages of the brochure.


Attachments

  • versatility_003w.jpg
    61.1 KB · Views: 134
  • versatility_002w.jpg
    77.1 KB · Views: 176
  • versatility_001w.jpg
    45.1 KB · Views: 226

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
13
I haven't really looked at the site, but as versatile as it's made out to be, I wonder if a Gunship AC-141 was ever in the works. I like the bomber idea. Being from the last half of the '60s, I wonder if the plan was for it to free up the B-52s for their strategic role back home, or to supplement them in the bombing of Vietnam jungles, or just be another bomber. I don't see any defensive weapons in the drawing either. I wonder if they'd have come under SAC or TAC, too.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
870
Marco - thanks, I really should have been check it! Great site, hands off


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Frank, the C-141 bomber was a real bomb truck, like B-52Ds after modifications, and its use was intended for mission as Arc Light, not Linebacker II. The idea was the same as the VC-10 bomber derivatives. SO, really no need for defensive weapons, because the AA menace was zero (and air superiority absolute). Don't be misguide by the art, the C-141 bmber would have operated from mid-to-high altitude, tending to high (like Arc Light's B-52Ds). As for a gunship, no hint in the brochure and personally I think the C-141 woudn't have been the right aircraft, characteristics-side, even not considering cost.


RavenOne

ACCESS: Secret
Joined
Jun 18, 2008
Messages
316
Reaction score
369
;D Don't forget the special operations variant SOLL II (Special Operations Low Level) with the 16th AS, which had FLIR, enhanced EW suite and self protection.

http://www.specialoperations.com/USAF/SOLLII/C141/


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202

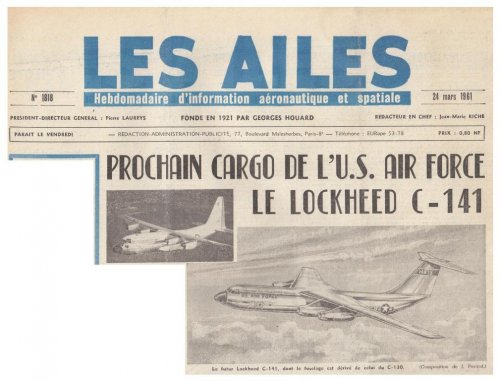

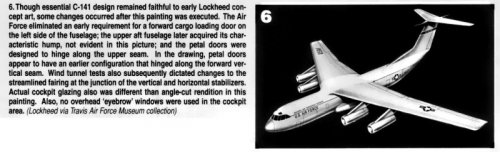

Dear Boys and Girls, a bit off-topic; here is an artist's impression with a caption in French showing how similar the Starlifter must/could have been (at one time) to the Hercules......

The picture comes from the 24th March 1961 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Lockheed C-141 artist's impression - Les Ailes - No. 1,818 - 24 Mars 1961.......jpg
    Lockheed C-141 artist's impression - Les Ailes - No. 1,818 - 24 Mars 1961.......jpg
    126.4 KB · Views: 1,238

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Interesting. Back in the 1970s, Lockheed was proposing an L-100-50 version of the Hercules and one idea was to fit the C-141 nose.

http://www.flightglobal.com/pdfarchive/view/1978/1978%20-%202862.html


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

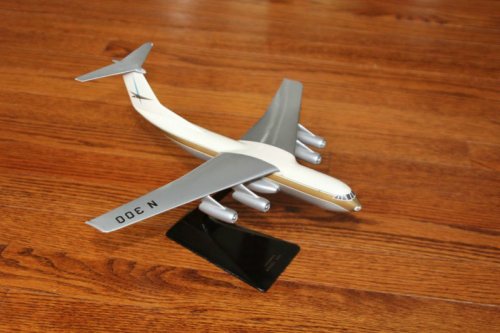

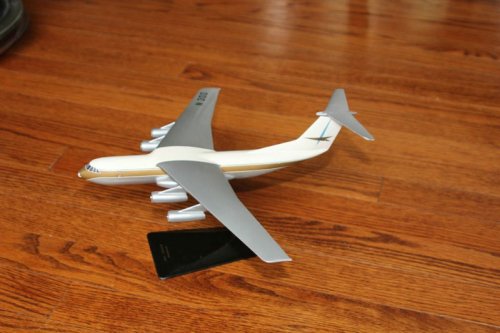

Civilian Lockheed L-300 possibly manufactured by Verkuyl found on eBay.

Seller's description:
This auction is for a Lockheed C-141/L-300 vintage metal airplane model - a civilian proposal that never made it to production. This is a super rare model that is different from the L-500 (C-5 proposal) that is relatively common. The model, I believe is a Verkuyl manufacture (definitely not a Pacmin) - note there is variance in size and details compared to the Topping I have listed separately. Overall very good condition and only flaw I can see is some paint that rubbed off the tip of the nose. Scale is approximately 1/144, size is 12" wingspan by 12" length on original metal stand.

URL:
http://www.ebay.com/itm/Vintage-Metal-Airplane-Airline-Model-L-300-proposal-Lockheed-/200661629568?pt=LH_DefaultDomain_0&hash=item2eb85d7a80


Attachments

  • $(KGrHqYOKpcE5k09ncR4BOkjL8g,5Q~~60_3.jpg
    75.7 KB · Views: 632
  • $(KGrHqUOKp!E5(4bOqlBBOkjM!GreQ~~60_3.jpg
    73.4 KB · Views: 621

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,


here is a Liquid Hydrogen Fueled C-141 aircraft drawing.


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19740003630_1974003630.pdf


Attachments

  • C-141 with LH2.JPG
    C-141 with LH2.JPG
    39 KB · Views: 903

Spark

ACCESS: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
19
Hi,
Any one know the C-141 costs including unit costs????

lark said:
Is there someone who knows more of the proposals made by
Boeing , Convair and Douglas
in the competition who produced the Lockheed C-141 ?
(Support System SS 476-L)

Drawing ,info or sources...
Much thanks in advance.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688
An artist painting showing a early Lockheed C-141 Starlifter.

Source: Wings Magazine October 2005 (Vol.35 No.10), page 43


Attachments

  • Lockheed_C141_early_painting_Wings_10_2005_page43.jpg
    78.1 KB · Views: 708

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
lark said:
Is there someone who knows more of the proposals made by
Boeing , Convair and Douglas
in the competition who produced the Lockheed C-141 ?
(Support System SS 476-L)

Drawing ,info or sources...
Much thanks in advance.

G'day Lark
As far as I'm aware the USAF sent a Request for Work and Request for Proposal to Boeing, Douglas and Lockheed. I not aware of Convair being involved???

Regards
Pioneer

Top
