Hi,

V.14 Binz was float plane of 1922.

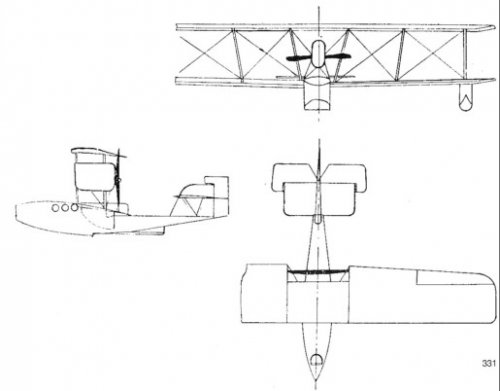

V.15 Sellin was flying boat with enclosed cabin for passengers.
V.16 was an airliner biplane.
V.17 was float plane and powered by Benz engine.
V.23 Anklam was a low-wing monoplane powered by one Siemens
Sh 4 engine,a high wing also planned.
V.25 Rugen was a strange twin-engined flying boat,powered by
Maybach Mb IVa engines.

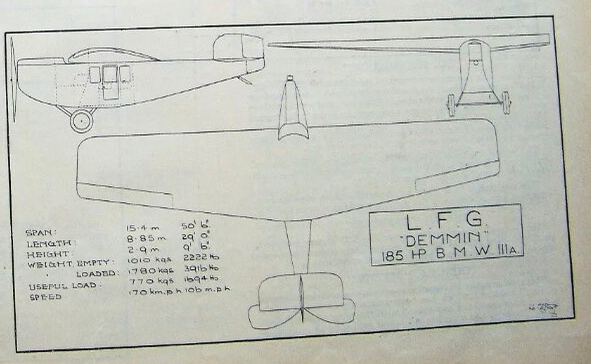

V.27 Demmin was a Project for an airliner with BMW IIIa engine.
V.28 Dunholm was a seaplane Project of 1923.
V.360 was a Project for a two engined airliner. Two versions a and b.
G.1 was a Project for 12-passenger flying boat.
Stettin was a Project for 10-seat twin-engined float plane.



Attachments

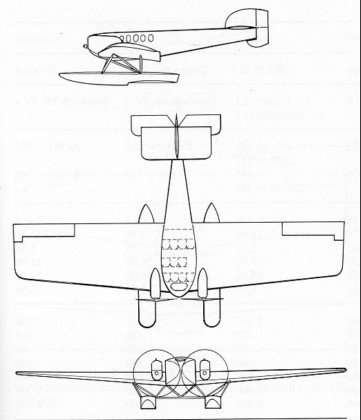

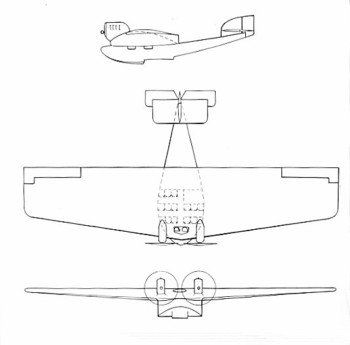

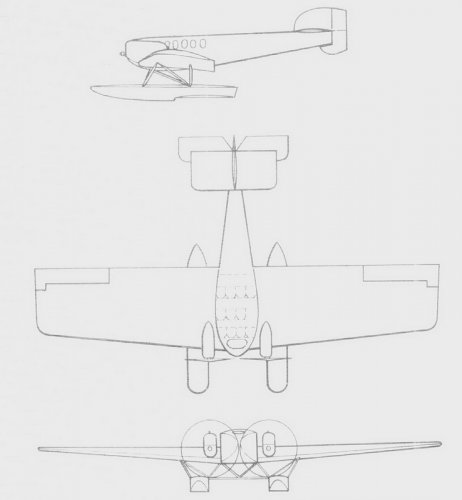

  • LFG_V_15_3-view_515x402.jpg
    24.4 KB · Views: 782

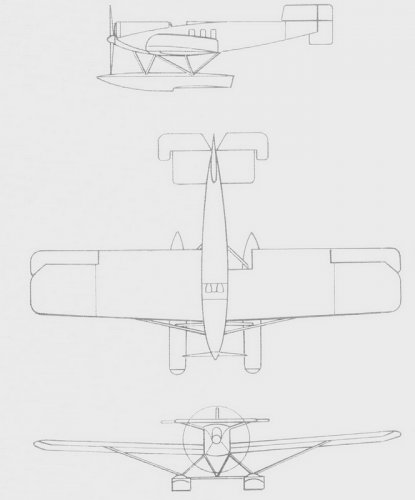

  • LFG_V.25 Rugen_3-view_350x345.jpg
    LFG_V.25 Rugen_3-view_350x345.jpg
    13.4 KB · Views: 754

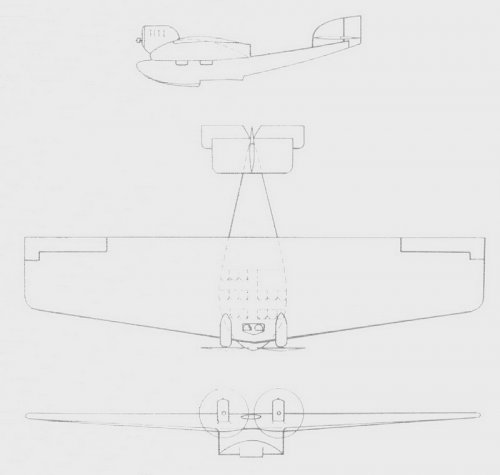

  • LFG_G_1_3-view_839x441.jpg
    38.5 KB · Views: 744

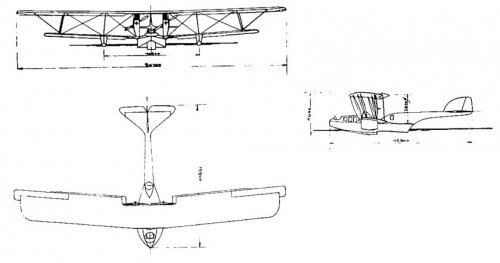

  • LFG_Stettin_3-view_361x420.jpg
    25 KB · Views: 706
Last edited:

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
Some civil projects from the LFG, which was founded in 1908 (The names often given to their a/c and
projects were taken from well-known german baths, or islands and peninsulas):

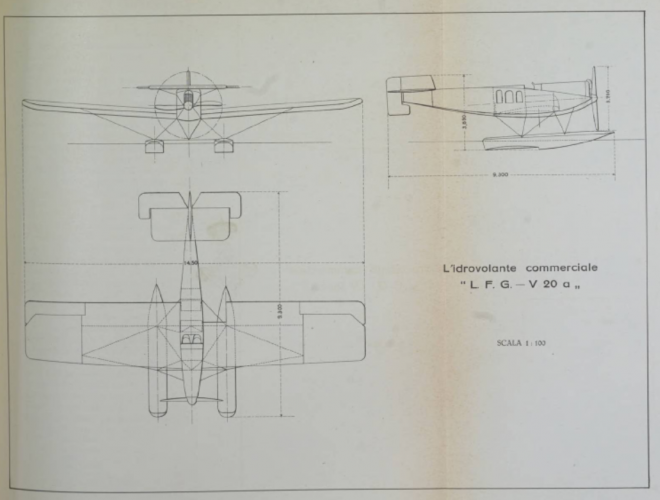

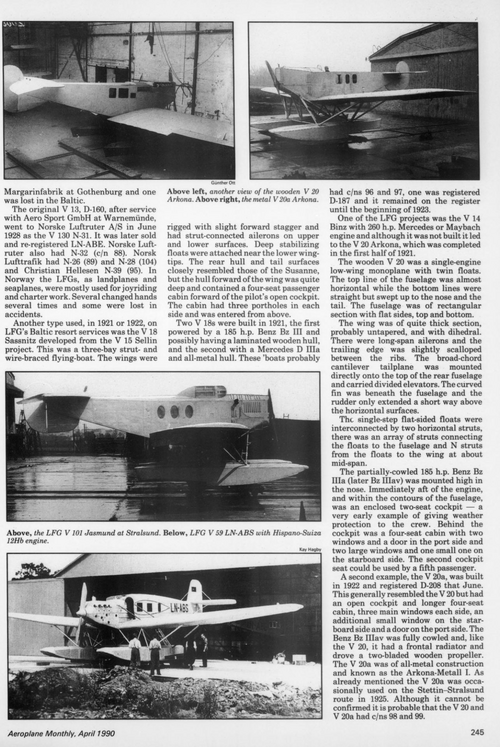

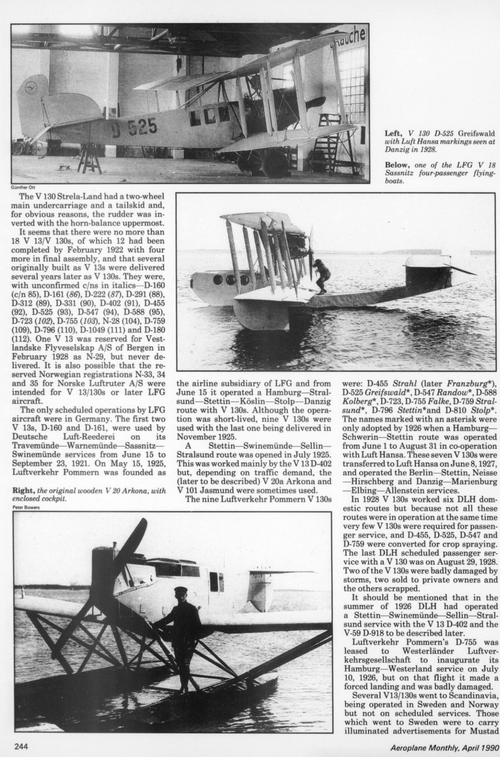

V 14 Binz : Pre-study from 1922 for the later realised V20 Arkona, mixed-construction low-wing aircraft.
Length 11 m, span 17 m, empty weight 1.400 kg, payload 650 kg, one Maybach Mb IVa with 260 hp.

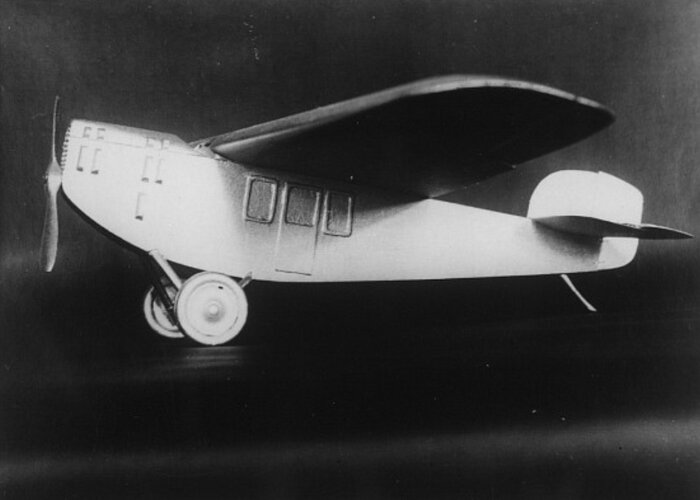

V 27 Demmin: Wooden construction for two pilots and four passengers. Length 8.85, one BMW IIIa engine
with 185 hp. Regarded as too small (compared to the Junkers F 13) and so not proceeded with.

LFG Stettin: Project for a twin eingined floatplane for two pilots and ten passengers, principally an enlarged
version of the V20 Arkona with a widened fuselage (for 4 pax abreast), powered by two Benz Bz IIIa engines
with 185 hp each.

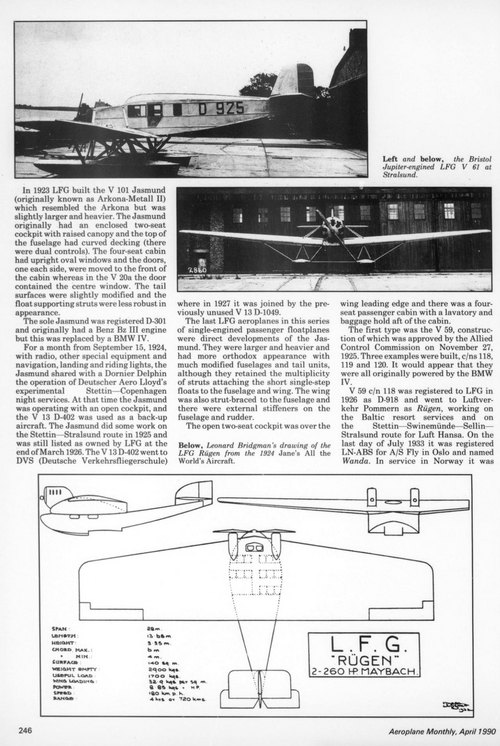

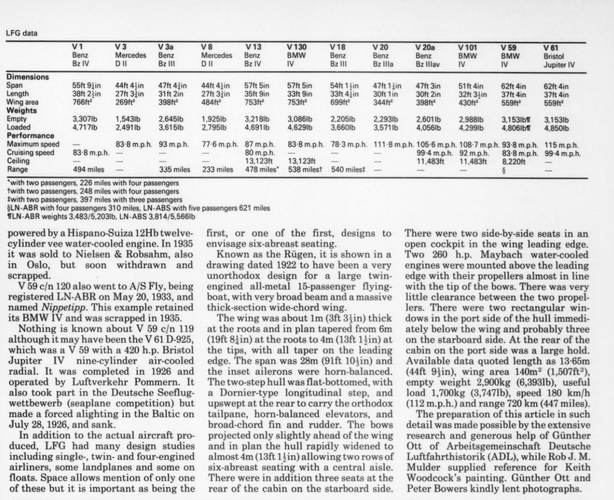

LFG Rügen: Project for a large flying boat for two pilots and fifteen passengers, Length 13.65 m, span 28 m,
empty weight 2.900 kg, payload 1.700 kg, two Maybach Mb IVa with 260 hp.
The question remains, how this project would have achieved a payload 24% better (or double the number of
passengers) with the same engines, as the proven Dornier Gs.I.

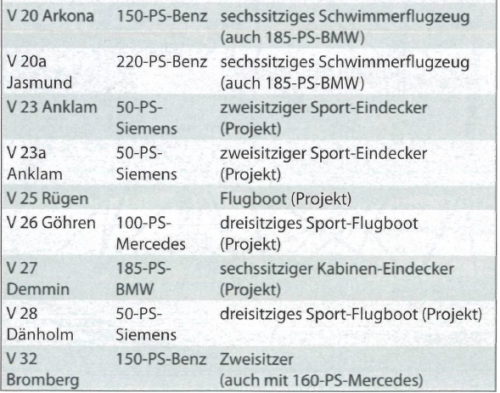

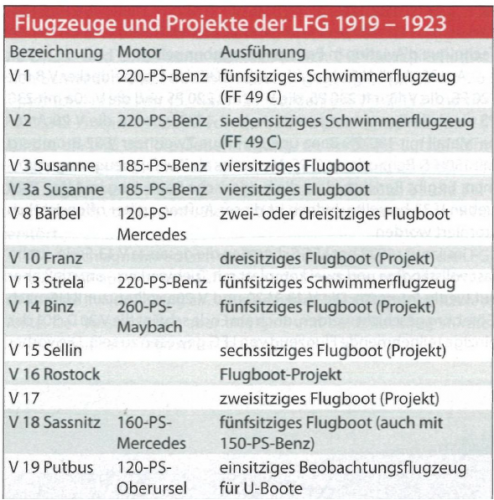

(pictures and data from Wolfgang Wagner, "Der deutsche Luftverkehr - Die Pionierjahre 1919 - 1925" )


Attachments

  • LFG_Rügen_01.jpg
    40.3 KB · Views: 179
  • LFG_Stettin_01.jpg
    45.3 KB · Views: 174
  • LFG_V-27_01.jpg
    39 KB · Views: 178
  • LFG_V-14_01.jpg
    46.3 KB · Views: 663

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
My dear Jemiba,


http://www.secretprojects.co.uk/forum/index.php/topic,10889.msg102490.html#msg102490


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545

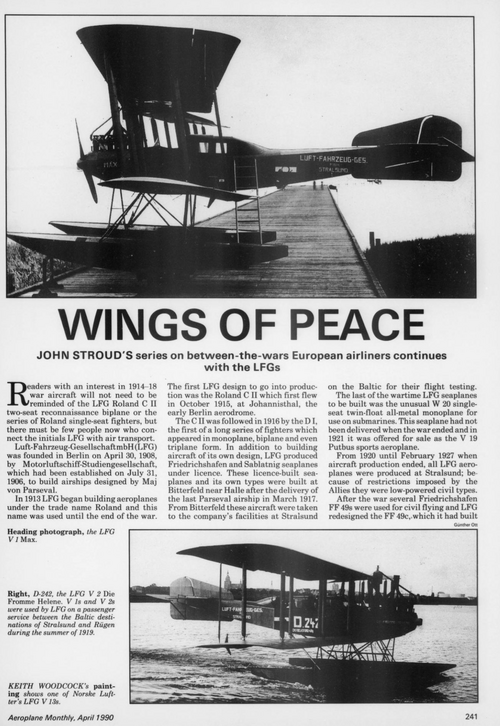

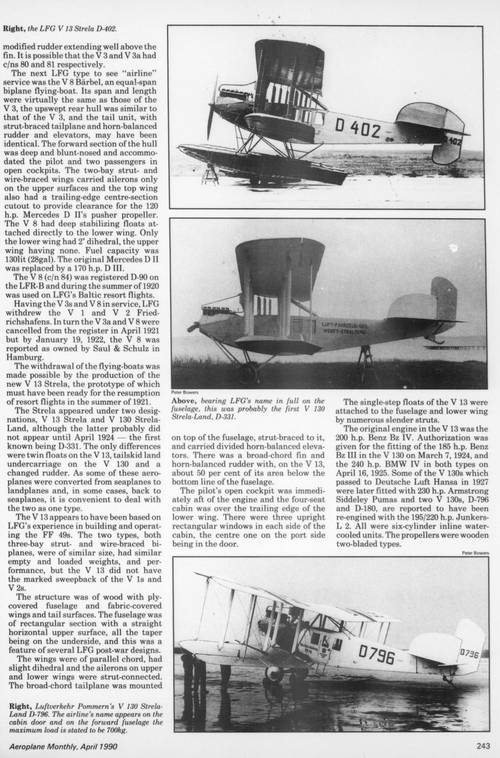

As mentioned before, the FFG was founded in 1906 and was building blimps of the Parseval type
at first. 1909 the Flugmaschinen-Wright-Gesellschaft (Flight apparatus Wright company) in Berlin-
Adlershof was bought and the construction of modern aircraft was started in 1912 under the label
"Roland". Apart from theses teypes other types were produced under license. So, maybe for the
search for projects, "Roland" could be a useful keyword. In the mentioned book only civil aircraft
from 1919 are dealt with, but there may well be projects from the time before.

@ hesham: Thanks, have merged those topics, maybe another glitch of our search function, or an
occasional absentmindeness from my side ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
From Aviatik magazine,

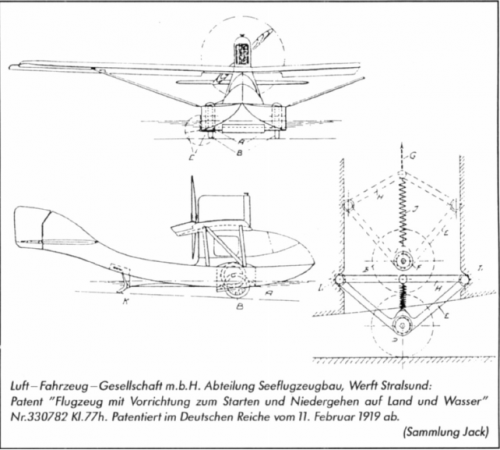

here is a patent to LFG amphibian aircraft,with retractable landing gear.


Attachments

  • LFG.png
    137.5 KB · Views: 145

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Hi,


the LFG V.10 Franz was three seat flying boat project,and the V.32 Bromberg was two seat
aircraft project,powered by one 150 hp Benz or 160 hp Mercedes engine.


Flieger Revue Extra


Attachments

  • 1.png
    519 KB · Views: 98
  • 2.png
    422.8 KB · Views: 96

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

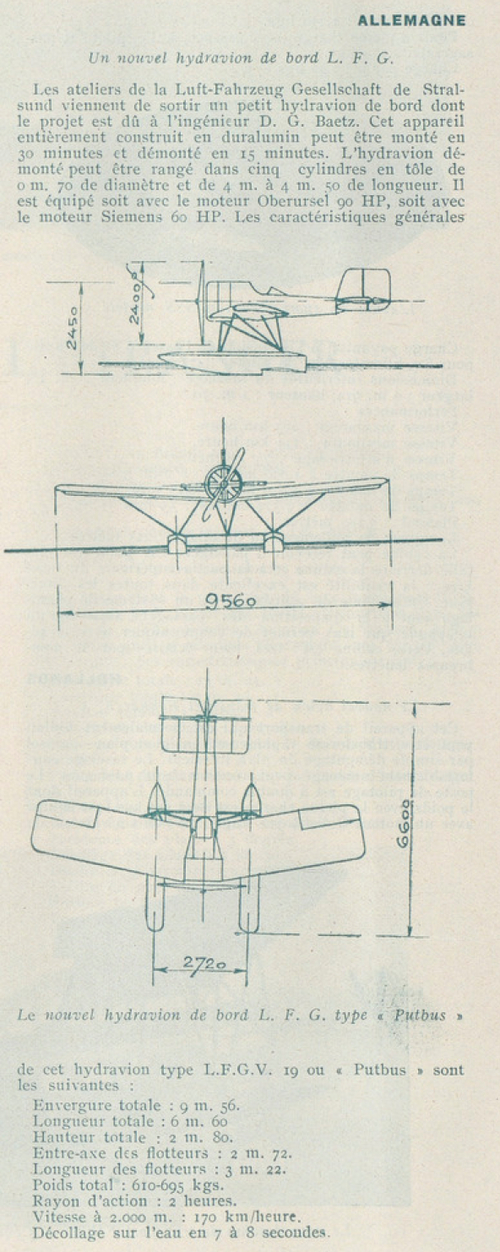

From l'Aeronautique May 1923,

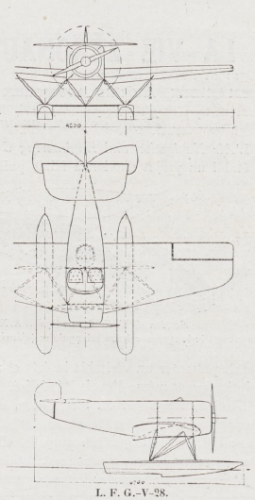

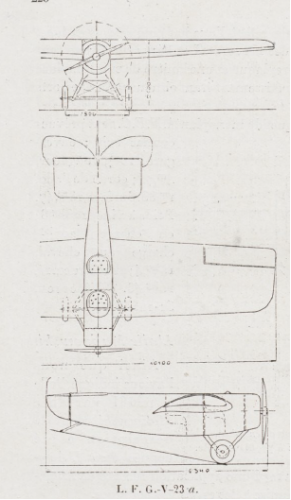

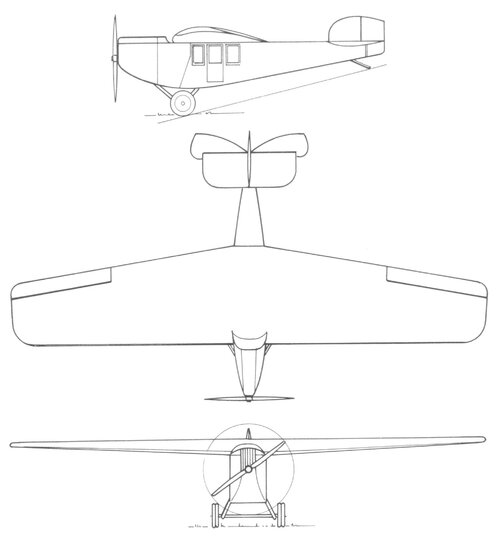

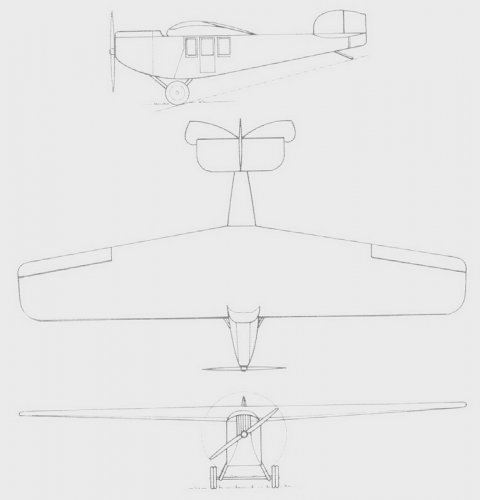

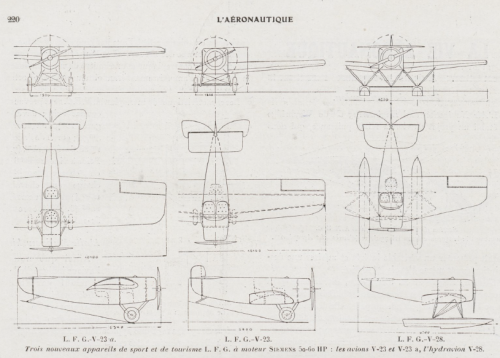

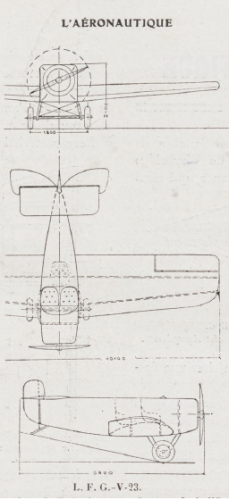

here is the LFG V.23,V.23a & V.28 drawings.


Attachments

  • LFG.png
    611.5 KB · Views: 106
  • V.28.png
    185.8 KB · Views: 90
  • V.23a.png
    200.6 KB · Views: 88
  • V.23.png
    191.3 KB · Views: 93

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

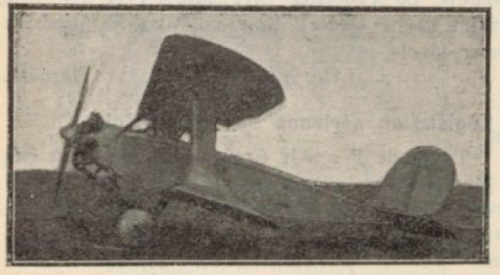

A rare picture to LFG V.58;

http://gallica.bnf.fr/ark:/12148/bpt6k97675232.r=document%20aeronautique?rk=21459;2


Attachments

  • V-58.png
    383 KB · Views: 115

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

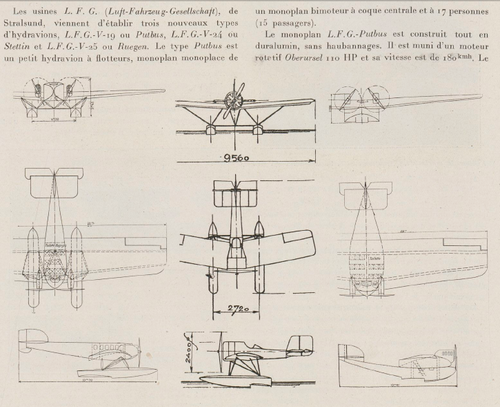

From L'Aeronautique 1922,

the first time to know the LFG Stettin was given the designation V.24 ?.


Attachments

  • D.png
    534.1 KB · Views: 105

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

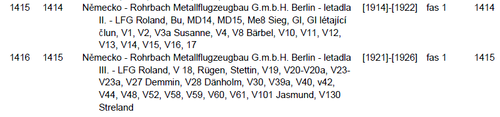

From Czech Museum,

there was also some unknown LFG Projects,V.4,V.11.V.12,V.30 & V.48,anyone heard about
them before ?.


Attachments

  • 1.png
    22.9 KB · Views: 77

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

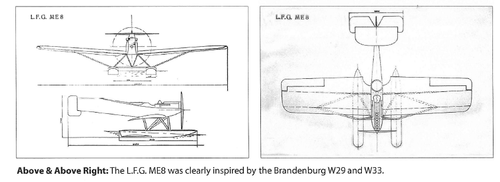

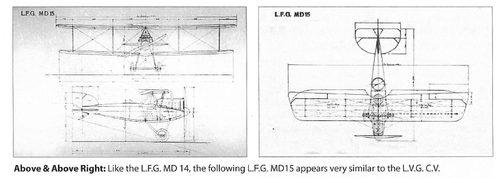

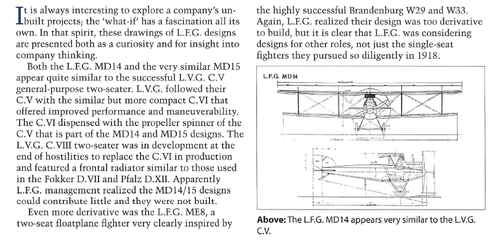

From the book, Roland Aircraft of WWI,

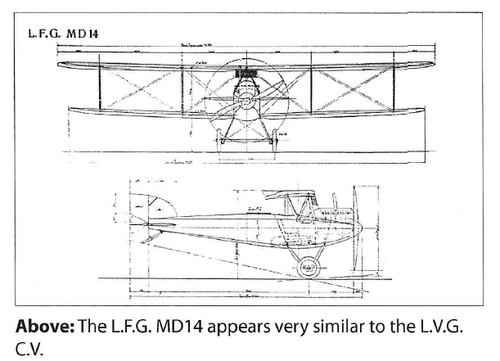

I never heard about those Projects before,MD-14,MD-15 & ME-8,and what was this series ?.


Attachments

  • 1.png
    116.1 KB · Views: 60
  • 2.png
    199 KB · Views: 61
  • 3.png
    135.4 KB · Views: 58
  • 4.png
    213 KB · Views: 68

Tuizentfloot

ACCESS: Secret
Joined
May 9, 2010
Messages
256
Reaction score
93
The projects MD14, MD15 and ME8 were mentioned in Heinz Nowarra's 1959 Die Entwicklung der Flugzeuge 1914-1918 (pp. 34-35), with the following details:

MD14

Engine: Benz, 195 hp
Dimensions:
span: 13,55 m
length: 8,12 m
height: 3,20 m
Max. speed: 160 km/h
Range: 770 km

MD15

Engine: Mercedes, 260 hp
Dimensions:
span: 11,95 m
length: 7,49 m
height: 3,35 m
Weights:
empty: 950 kg
loaded: 1385 kg
Max. speed: 165 km/h
Climb: 5500 m in 30 min
Range: 580 km

ME8

Engine: BMW, 200 hp
Dimensions:
span: 13,50 m
length: 9,35 m
height: 3,10 m
Weights:
empty: 1000 kg
loaded: 1470 kg
Max. speed: 165 km/h
Climb: 3000 m in 35 min
Range: 660 km

Attention: details in this over 60 years old book are not always reliable!

MD and ME were certainly factory designations (probably Militär Doppeldecker and Militär Eindecker). No other are known in this series.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108
Thank you my dear Tuizentfloot,

and as I know there was LFG W and W1,what is the difference ?.


Tuizentfloot

ACCESS: Secret
Joined
May 9, 2010
Messages
256
Reaction score
93
Quick answer.

The 1916 W was essentially a modified Roalnd D.I on floats. One built, Marine Nr. 750.
The 1915 W1 was an Albatros C.Ia (built by LFG Roland) on floats. One built. Marine Nr. 509.
