Hi,

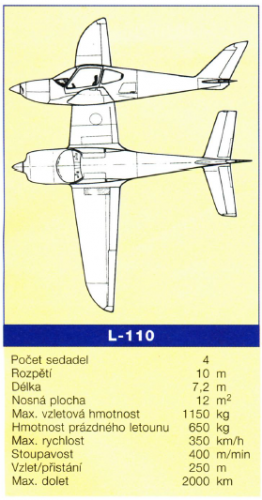

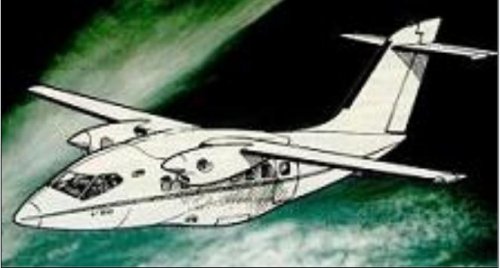

here is the new Let projects by FAR23,such as L-110,L-430,L-450,
L-510,L-420E,L-420XXL,L-539,FL-710FX and BoxBird.


(Thanks of that interests and possibility of artist view of technical
problems, I helped to Preliminary design group with new LET projects.
Before Velvet revolution I moved to this department and last seven
years spent in LET I have been working as a Head of preliminary design.
I leaded groups of five to twenty members, established for projects of commuters L-430, L-450, L-510, L-420E, general aviation 4-seat Family
Air or special cargo plane FL-710FX for 6 or 8 LD3 containers,
redesigned for Fairchild-FEDEX from L-610 subassemblies. Along
that work, I have made some own studies for marketing group
and LET management. Thanks of that works I have met all
development needs from basic studies and marketing analysis
to finishing of technological processes, flying proofs and
certification).


Attachments

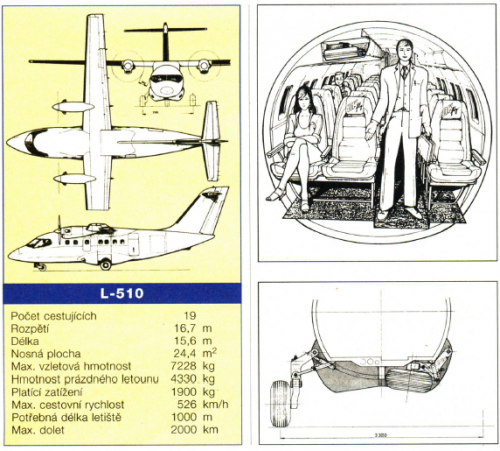

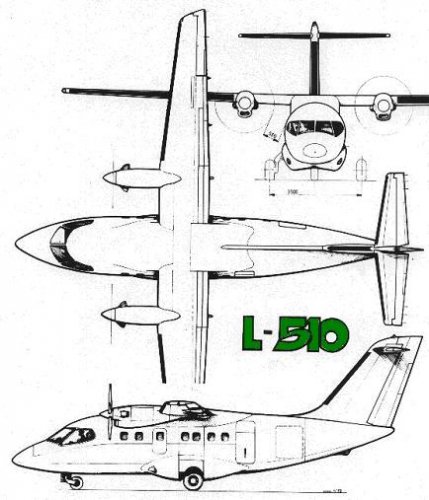

  • L-510.jpg
    29.7 KB · Views: 742
  • L-510_2.jpg
    41.5 KB · Views: 686

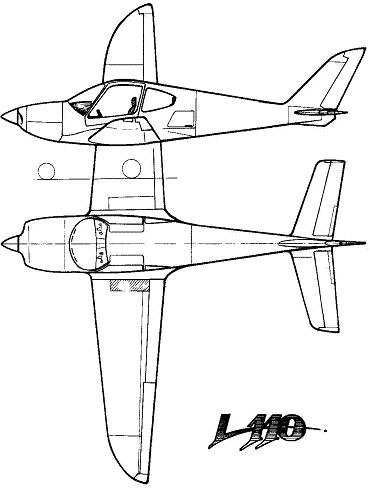

  • L-110_2.jpg
    24.9 KB · Views: 639
  • L-420XXL.jpg
    5.7 KB · Views: 1,158

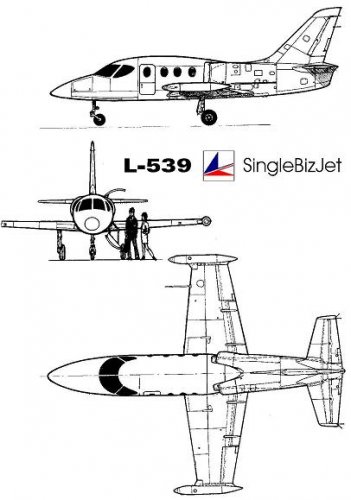

  • L-539_2.jpg
    34.9 KB · Views: 659

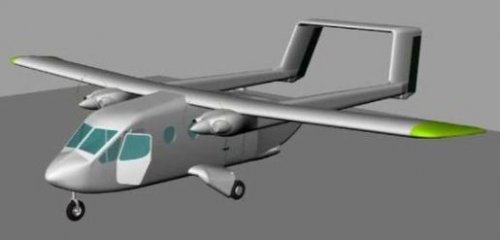

  • BoxBird_1.jpg
    34.4 KB · Views: 660
  • BoxBird_2.jpg
    9.8 KB · Views: 113
Last edited:

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
210
Website
www.hitechweb.genezis.eu

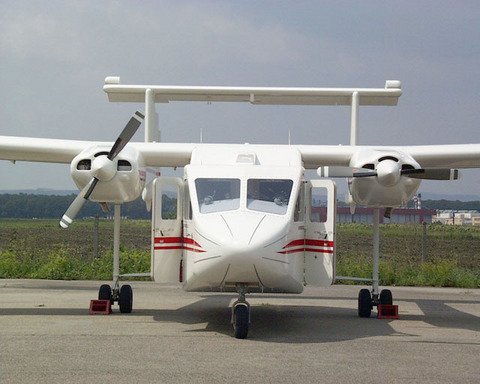

This "boxbird" already flown and is named Wolfsberg Raven 257, later renamed to Wolfsberg Corvus 1F. Two prototypes exist, built in late 90s.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128
Matej said:
This "boxbird" already flown and is named Wolfsberg Raven 257, later renamed to Wolfsberg Corvus 1F. Two prototypes exist, built in late 90s.

My dear Matej,

obviously in the site,they spoke about it as anther aircraft,
look to its front view and BoxBird,there is two main diffrent,
the rear landing gear and the tail fins.


Attachments

  • Raven 257.jpg
    Raven 257.jpg
    64.6 KB · Views: 88
  • boxbird_retract.jpg
    20.2 KB · Views: 79

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
210
Website
www.hitechweb.genezis.eu
Believe me hesham, this IS the same project initiated by Alex Norman Clark. But even the two flying demonstrators doesnt look the same. As the design progressed, there was applied bigger wingspan, different wing profile, small winglets, different position of the fuel tanks, single piece aft ramp door replaced by the two pieces door, there were modifications in the front and aft landing gear, the fuselage was shorter by 34 cm, there was different shape of the cockpit glass, redesigned tail with the 55 cm shorter beams, etc, etc, etc...

keyword: same, only in different stages of the development


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128
Some info about L-430,

as there is no more info about it in the Internet;

L-430 was a stretch version of L-410 powered by two P&W
PT-6 turboprop engines,it was the higher weight of all
L-410 versions.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128
Hi,

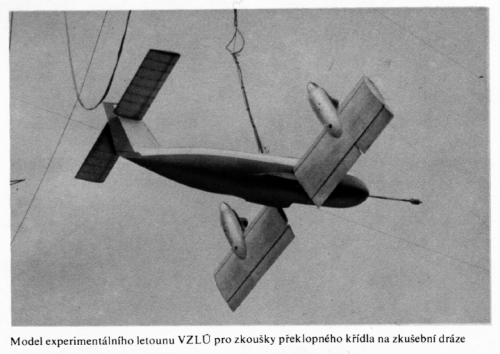

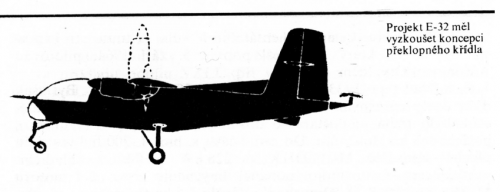

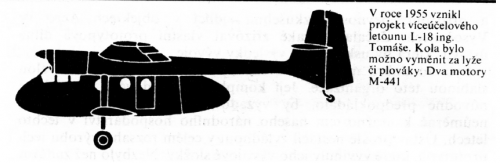

here is also some Letecky Narodni Podnik Projects,in 1955 appeared the L-18,it was a gigh-wing
twin-boom multi-purpose and medium transport aircraft,powered by two M-441 engines,followed
by E-31,an experimental or research aircraft which powered by two M-208BI engines,very similar
the E-32,but a tilt-rotor research aircraft of the end of 1950s.

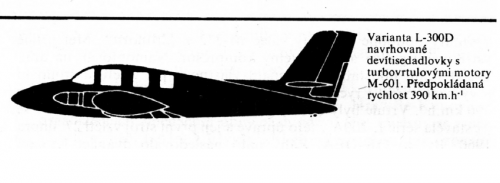

The L-300 was a low-wing twin engined light aircraft,led to developed L-210,and powered by
two M-601 engines,the E-33 was improved L-210 with T-tail and an engine in the rear cabin

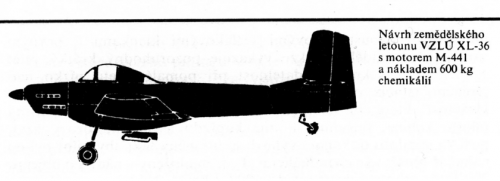

for boundary layer expriments,the XL-36 was an agricultural low-wing aircraft,with a belly-
mounted hopper.

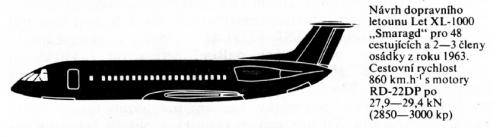

A large series of sporting aircraft,XL-510,XL-520,XL-540 & XL-550 were appeared during 1962
up to 1965,powered by different engines,also a two jet airliner Projects,the XL-600 and XL-1000,
which powered by a rear mounted turbojets.

Nemecek Vaclav Ceskoslovenska letadla 2


Attachments

  • 0.png
    128.3 KB · Views: 80
  • 1.png
    361.3 KB · Views: 67
  • 3.png
    133.3 KB · Views: 71
  • 4.png
    110.3 KB · Views: 61
  • 5.png
    109.8 KB · Views: 55

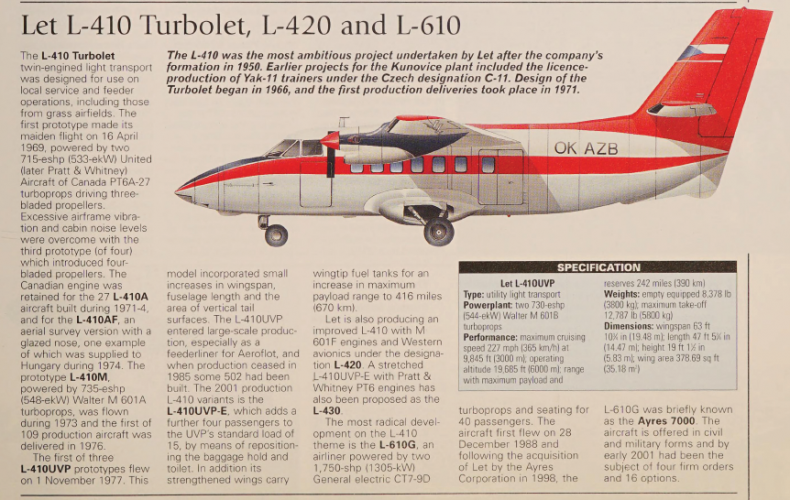

  • 6.png
    107.9 KB · Views: 59
  • 7.png
    141.7 KB · Views: 72

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128
And;


Attachments

  • 9.png
    104 KB · Views: 93
  • 8.png
    103.8 KB · Views: 89

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128
Hi,

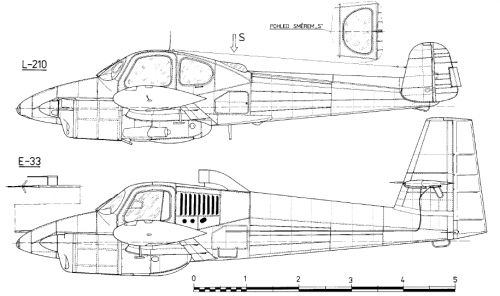

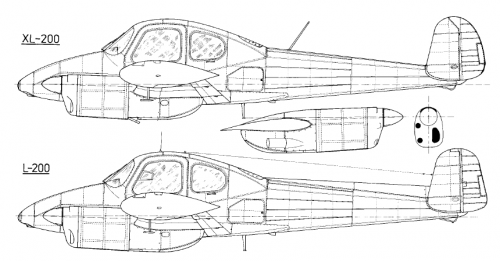

here is a drawings to XL-200 compared with L-200,and the E-33,it was experimental Morava with
T-tail or mid-rear-wing and an engine in the rear cabin for boundary layer experiments.

Zlinek 05 1993


Attachments

  • 1.png
    60.1 KB · Views: 80
  • 2.png
    67 KB · Views: 87

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,640
Reaction score
1,110
L-18, Raven, Boxbird, Arava, etc. all remind me of Fairchild C-119 "Flying Boxcar's" baby brother. I wonder about the weight and drag penalties of a pod-and-twin-booms versus tail ramps under modern single-fuselage military transports.

Remember that C-119 and Nordatlas needed to leave their tail cones on the ground if they wanted to drop heavy cargo.
I wonder ho w much drag was created by the missing tail cone?
How much did the missing tail cone affect range?

On a side note, the Pink Skyvan is my all time favourite jump-plane. The ceiling is just slightly taller than me, so is perfectly positioned for stability as the airplane bounce during jump-run. Skyvans are not quite as economical as Twin Otter, but far better-sized for skydiving than bigger ramped military transports (Buffalo, Cariboo, Hercules, Chinook, etc.)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128

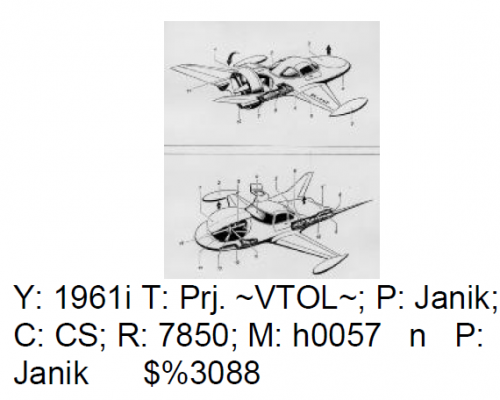

Hi,

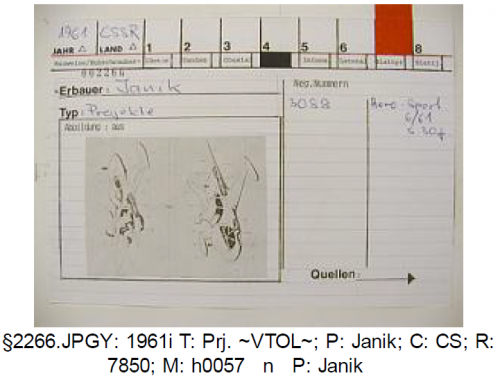

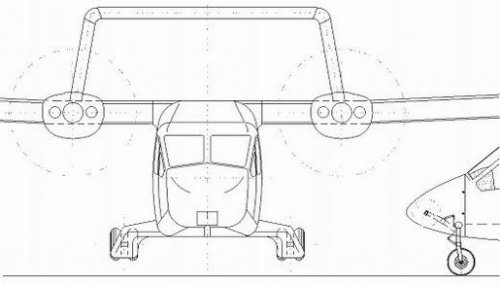

there is a Project,which I displayed it before,but I think it was from Let design,and
called Janik,it was a VTOL aircraft of 1961;

http://kulturserver-nds.de/home/hubtest/medien/Typenkartei3953xGUN7x9T3Z7.pdf

http://kulturserver-nds.de/home/hubtest/medien/Neg.Nr.GUN.pdf page 311


Attachments

  • 2.png
    279.3 KB · Views: 56
  • 1.png
    69.1 KB · Views: 69

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128

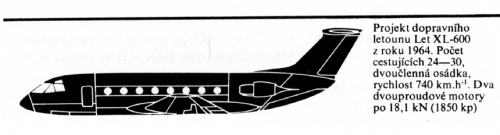

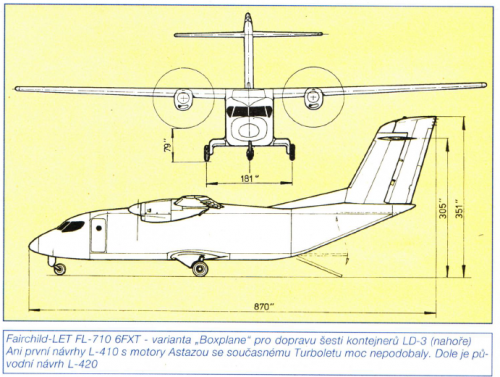

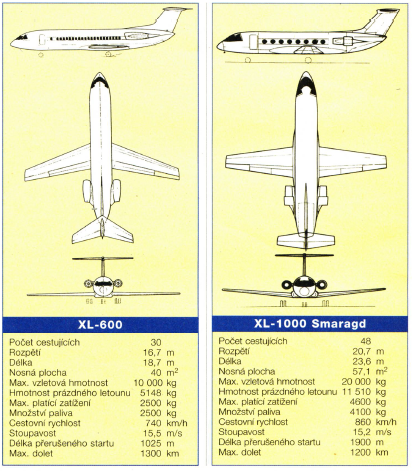

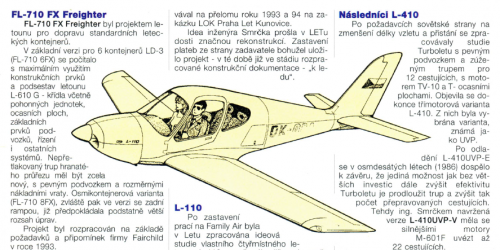

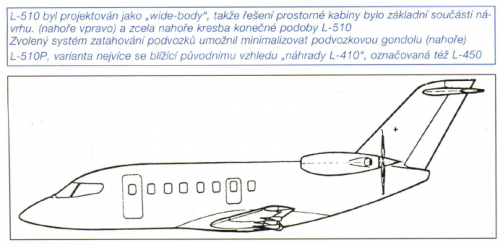

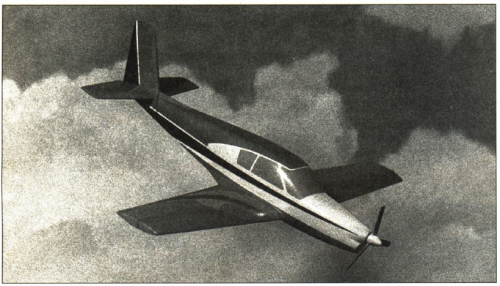

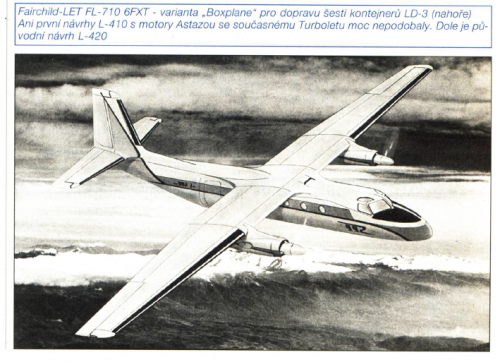

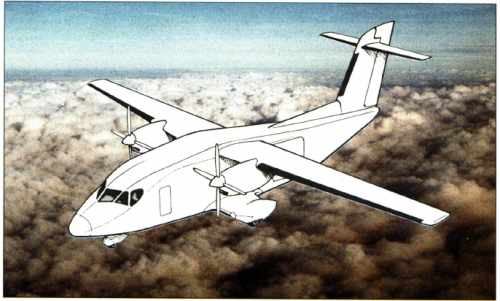

And from L + K 6/1998,

please note LET/Fairchild L-710.


Attachments

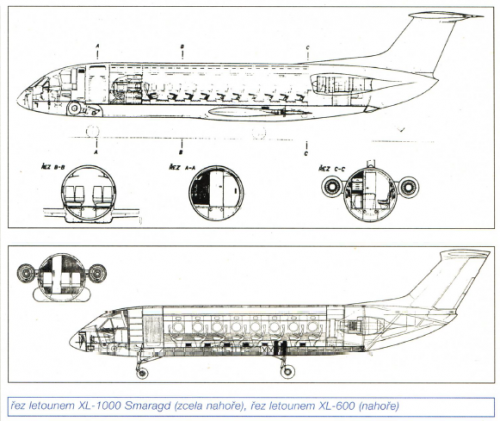

  • XL-600 & XL-1000  II.png
    XL-600 & XL-1000 II.png
    351.9 KB · Views: 76
  • L-500 & L-540.png
    L-500 & L-540.png
    563.5 KB · Views: 72
  • L-500.png
    773.5 KB · Views: 64
  • L-420.png
    673.8 KB · Views: 60
  • L-110  II.png
    L-110 II.png
    243.6 KB · Views: 57
  • L-110.png
    496.4 KB · Views: 55
  • b.png
    310.8 KB · Views: 64
  • a.png
    493.3 KB · Views: 73
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128
And;


Attachments

  • XL-600 & XL-1000.png
    XL-600 & XL-1000.png
    258.3 KB · Views: 80
  • L-710  II.png
    L-710 II.png
    590.7 KB · Views: 82
  • L-710.png
    649.4 KB · Views: 67
  • L-510P.png
    207.2 KB · Views: 71
  • L-510.png
    482.1 KB · Views: 70

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128
Also from this site;

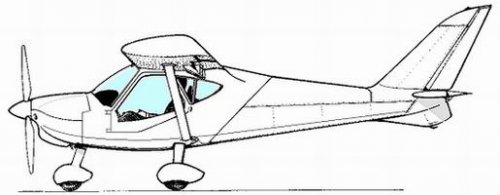

ULM-1,Iterplan,Shark,MD1,MD2,MD3,MD4,MD5,MD6,MD7,MD9,P.27 & P.32.



Attachments

  • Gryf.jpg
    16.8 KB · Views: 44
  • Interplan.jpg
    22.4 KB · Views: 41
  • Shark.jpg
    13.4 KB · Views: 42
  • MD1.jpg
    18.3 KB · Views: 38
  • MD2.jpg
    13.9 KB · Views: 31
  • MD3.jpg
    16.9 KB · Views: 29
  • MD4.jpg
    7.6 KB · Views: 29
  • MD5.jpg
    21.4 KB · Views: 29
  • MD6.jpg
    10.7 KB · Views: 30
  • MD7.jpg
    17.3 KB · Views: 31

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128
And


Attachments

  • MD9.jpg
    18.2 KB · Views: 35
  • P.27.png
    214.7 KB · Views: 39
  • P.32.jpg
    13.8 KB · Views: 38

Aubi

ACCESS: Secret
Joined
Aug 31, 2009
Messages
259
Reaction score
368
Website
www.armedconflicts.com
I must warn you that LET, Letov and Wolfsberg are different, mostly unrelated companies.
Letov is one of the first Czech aircraft factories (Letov=LEtecká TOVárna, Aircraft Factory) from the 1920s, until the war owned by the army. After the war, Letov lost its inedependence and its design team (same for all other nationalized companies) and manufactured few prototypes for the design teams centered at Prague-Letňany, then it was used as sub-factory for the Aero enterprise (then Středočeské strojírny, Central Bohemian Machine Factory) and produced MiG-15s. After that, it only manufactured parts for the other enterprises, flight simulators etc. After the Velvet revolution it was privatized and in 1997 split into several subsdiaries, which beame independent in 1998 after the bankrupcy of the main company. Of those subsidiaries, the main one was Letov Letecká výroba s.r.o. (Letov Aviation Manufacturing JSC) continues parts manufacturing as part of the Latecoere Group. There seems to be no projects or machines designed by this company cited here. For production and stuff:

Letov Air a.s., another subsidiary dealing with ultralight machines, was bought out by the Britih designer Alex N. Clark, one of the guys who worked on Britten-Norman Islander. He started negotiating with the Letov in 1992 about development and construction the aforementioned BoxBird, for which he founded Wolfsberg Aircraft Corp. in England and after the financial trouble of his Czech partner he bought Letov Air and renamed it Wolfsberg Letecká továrna s.r.o. Another partner in this development was another czech light plane manufacturer, Evektor-Aerotechnik. In 2014, when they introduced Wolfsberg Sparrow ML pusher ultralight and it seems that the company changed its owner and also name (to Wolfsberg Aircraft, s.r.o.).

LET is an old company, founded in 1950 on the premises of secondary factory of the Avia company in Kunovice, Moravia. Its main products were aerotaxis and training planes, so the "old" factories could focus on military production. By the way, in the 1950s it had wonderfully communist name Machine Factory of the First Five-year Plan. this is the company where originated most projects mentioned here. Since 1969 it produced L-410 Turbolet, their only product today. After a many close bancrupcy calls and ownership changes, few years ago they were bought by some Russian company and part of the production is now completed in Yekaterinburg, with fears of transfering all production there. Current name: Aircraft Industries s.r.o.
Production and stuff:

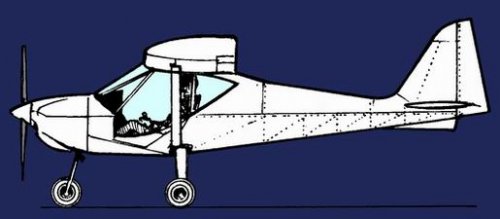

Your first and last post are about the Gryfair "company". that originated in the 1980s as a group of aviation enthusiansts led by Jaroslav Dostál who decided to privately develop an ultralight aicraft. It was built by this guys in the LET Kunovice workshops, where they worked at the time, "serial" production of their Gryf (Griffin) UM-1 run in small firm named TIB and later in their own club, UL klub Gryf Uherské Hradiště. It seems that they later transformed into this Gryf Aircraft, spol. s r.o. (Gryfair) , which doesn't build anything but develop planes for others.

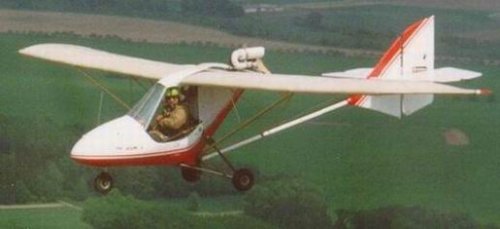

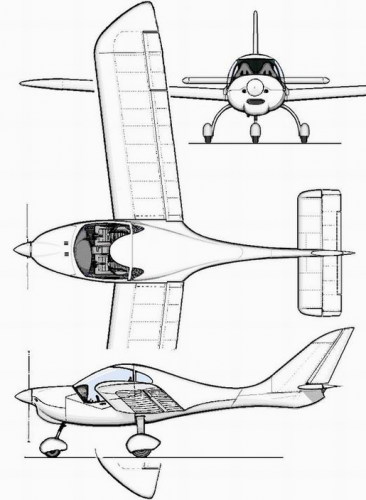

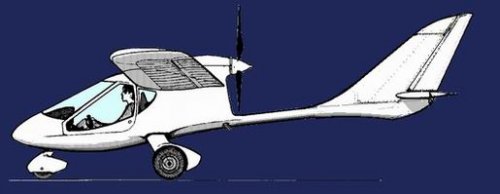

Skyboy - development of Gryf ULM-1 from 1993, built in series by Interplane sro. Czechia.

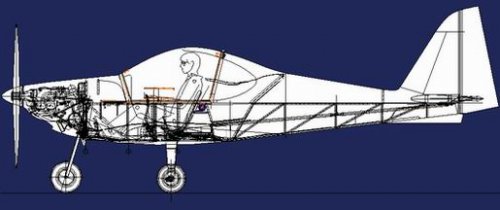

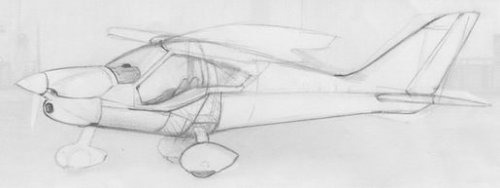

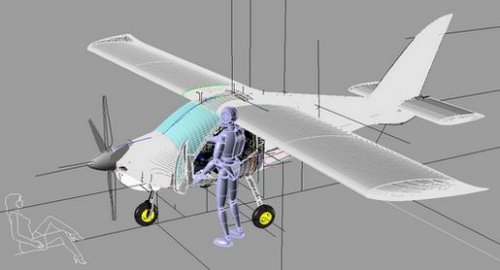

MD line - composed of several projects of all-metal ultralight airplanes:
MD1 crossBLADE - low wing, project only
MD2 crossTRAINER - project only
MD3 Rider - shoulder wing, manufactured by Flyitalia srl, later by Next Aircraft
- MD3 Rider SL - without wing struts
- MD3 Rider RG - without struts, retractable gear
MD4 Crossfire - project, low-wing development of Rider SL

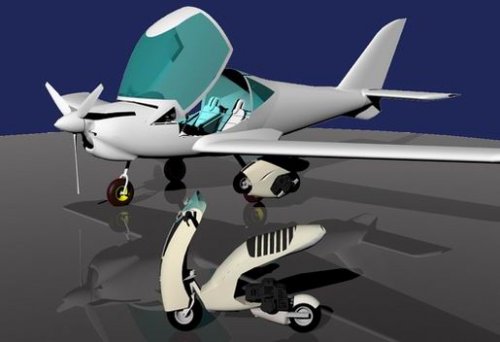

MD5 Crossblade - project, higher power, capability to carry a foldable scooters under the wing...
MD6 Corsair - project, simpler MD3
MD7 Skyrider - project, larger MD3
MD9 Metík - study using all that was developed for previous three studies.

Shark - composite UL plane capalble of FAR23, built in series by Shark Aero sro., Czechia.
P27 and P32 are another projects of Dostál, same for L-430, L-450, L-510 and L-420E.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128
From L+K 11/1991,

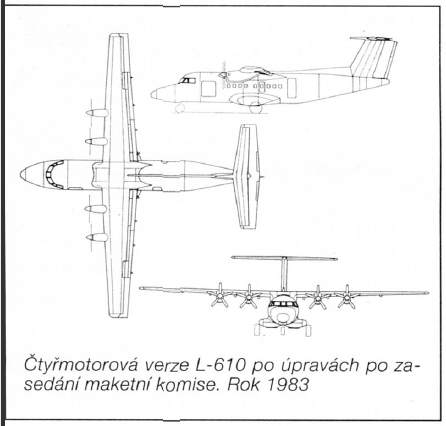

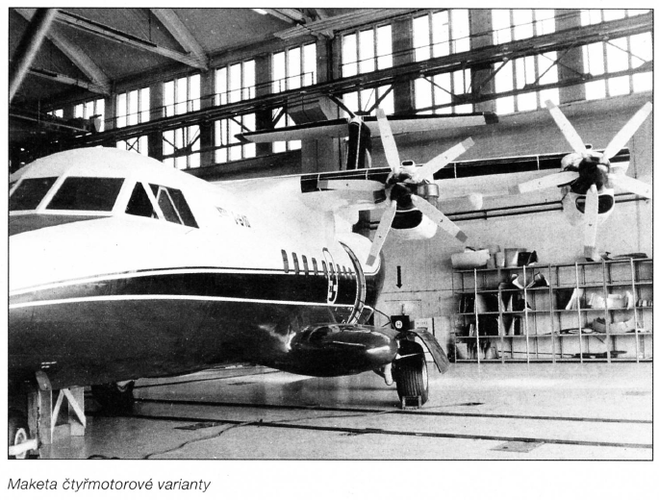

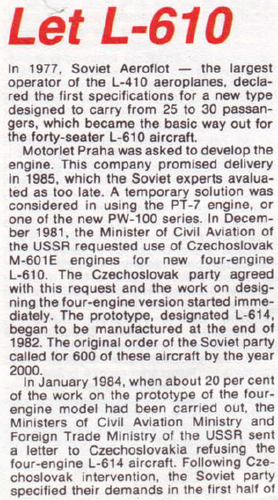

the first time to hear about L-614,it was a four engined Project version of L-610.


Attachments

  • 1   11-1991.png
    1 11-1991.png
    416.4 KB · Views: 34

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128

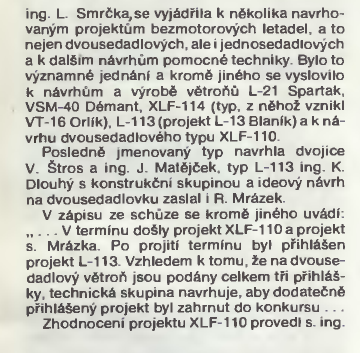

From L+K 17/1983,

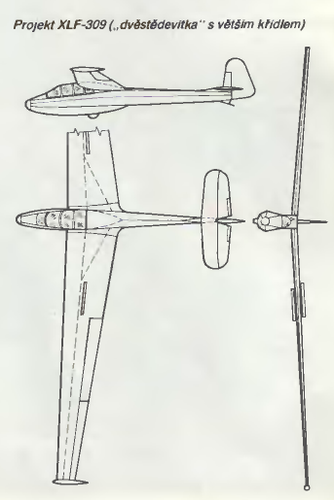

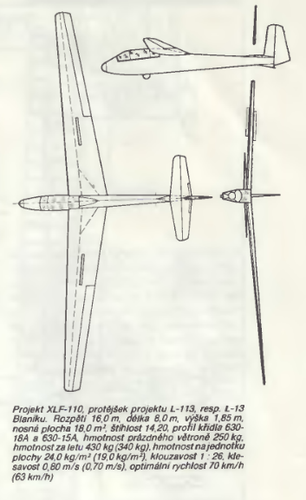

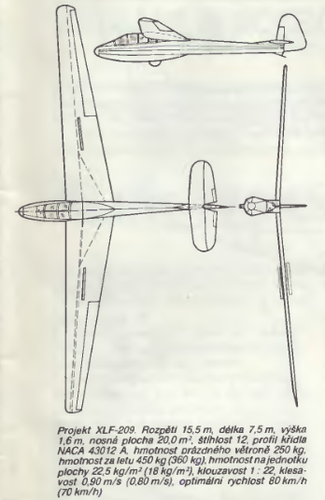

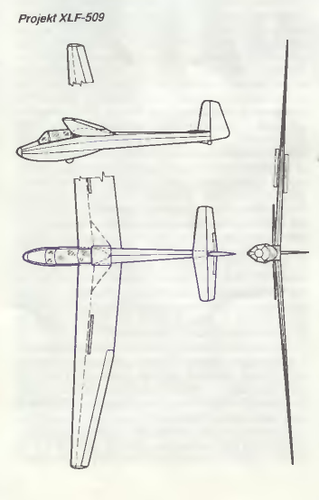

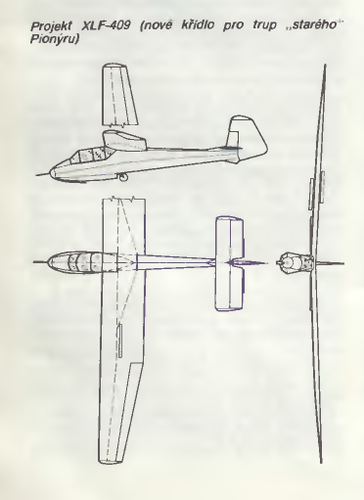

here is some Let glider Projects,XLF-209,XLF-309,XLF-409,XLF-509,XLF-110,XLF-113,XLF-114 & XL-113.


Attachments

  • 1   17-1983.png
    1 17-1983.png
    80.7 KB · Views: 25
  • 2   17-1983.png
    2 17-1983.png
    139.6 KB · Views: 23
  • 3   17-1983.png
    3 17-1983.png
    145.2 KB · Views: 23
  • 4   17-1983.png
    4 17-1983.png
    92.1 KB · Views: 21
  • 5   17-1983.png
    5 17-1983.png
    87.9 KB · Views: 23
  • 6   17-1983.png
    6 17-1983.png
    96.7 KB · Views: 49

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,469
Reaction score
6,128

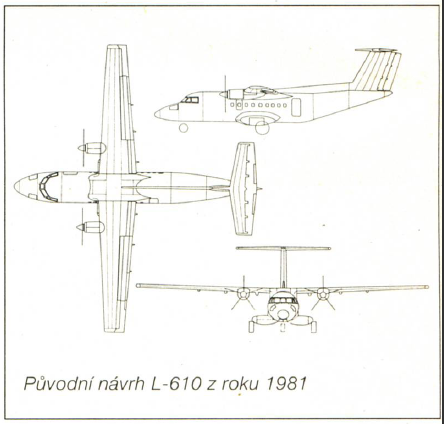

From L+K 1/1996,

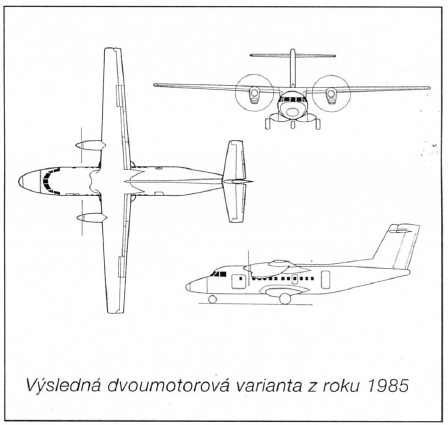

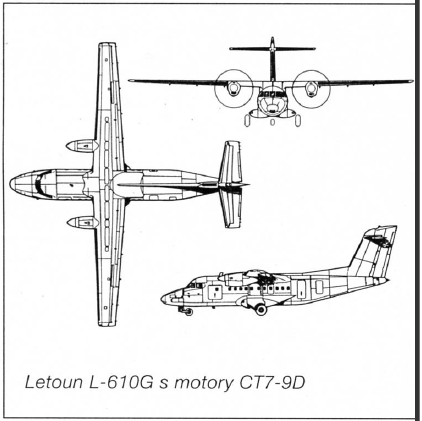

the L-610 variants and Projects.


Attachments

  • 1.png
    121.1 KB · Views: 40
  • 2.png
    83.1 KB · Views: 42
  • 3.png
    73.9 KB · Views: 40
  • 4.png
    77.1 KB · Views: 45
  • 5.png
    364.1 KB · Views: 43

Sarastro

ACCESS: Confidential
Joined
Aug 19, 2009
Messages
111
Reaction score
473
Hi,

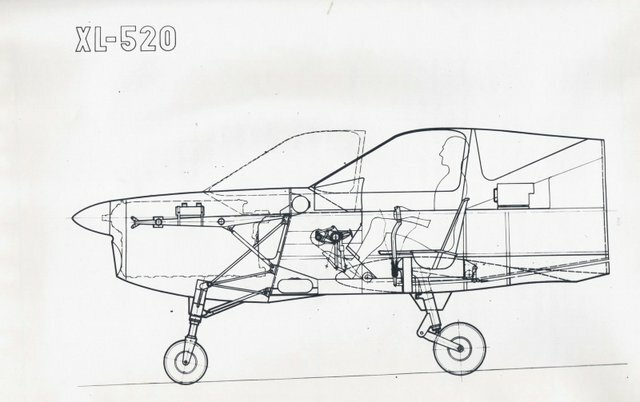

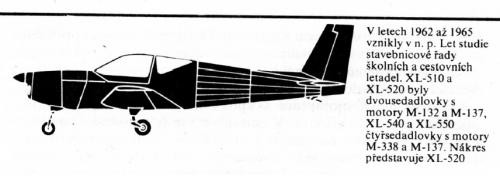

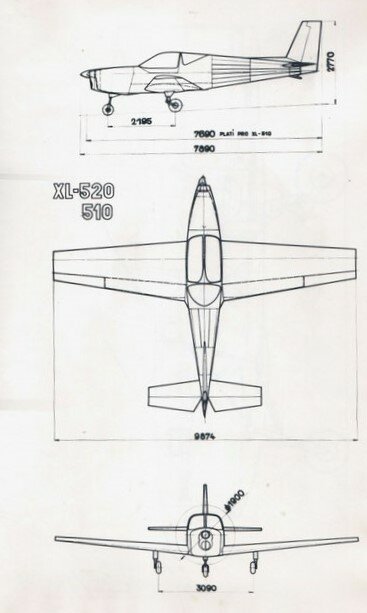

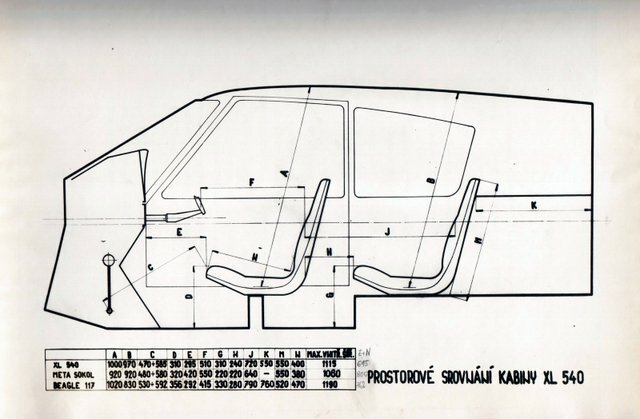

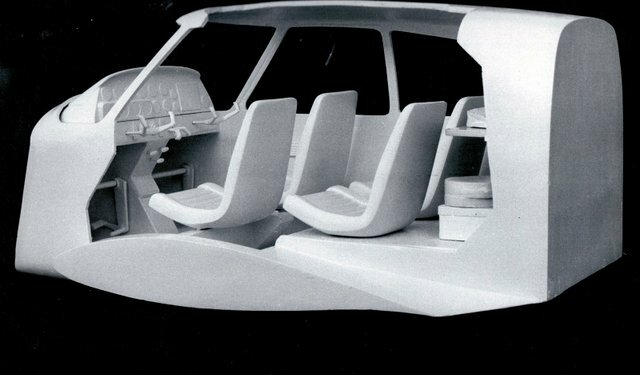

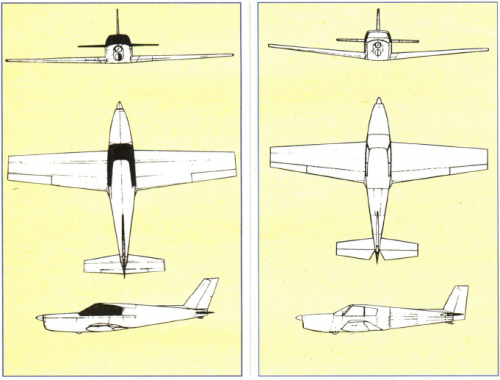

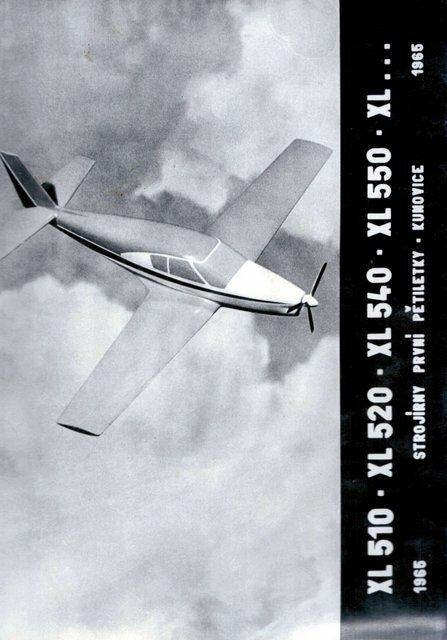

a few words about the LET XL-500 project. The original study from 1962 assumed the construction of several types, using a number of unified structural elements, including a twin-engine XL-542. A more detailed project from 1965 included four types.
XL-510, two-seater aircraft for elementary training and acrobatics training. To keep the price low, it was equipped with a fixed chassis and a Walter M-132 engine (120 hp) without a compressor.
XL-520, two-seater sports aircraft with Walter M-137 engine (180 HP).
XL-540, a four-seater sports aircraft with a Walter M-338 engine (235 HP) with a retractable landing gear, equipped with instruments for IFR flights.
XL-550, a four-seater sports aircraft with a Walter M-137 engine (180 HP) with a fixed landing gear, equipped with instruments for VFR flights.
Unlike the Zlin Z-42, Z-43 ... aircraft, these aircraft were aerodynamically clean with slender trapezoidal wings and tail surfaces and a finely shaped fuselage.
From: L+K
Let XL-540_4.jpg LET XL-510_1.jpg LET XL-510_2.jpg Let XL-540_5.jpg Let XL-540_6.jpg
