Lavochkin Early Jet Fighter Projects and Prototypes

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308
Hi,

I know that there is anther Lavochkin La.160 powered by two
Jumo-004 engines mounted in underwing pylons as a heavy
fighter project of 1945,and may be the project continued
until 1946,does anyone hear about it ?.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308

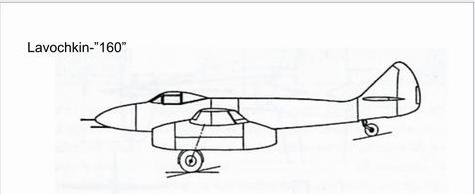

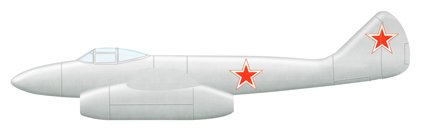

Oh my God,

I found a topic and my dear Borovik spoke about this aircraft
before;

http://www.secretprojects.co.uk/forum/index.php/topic,6226.msg51380/highlight,lavochkin+15.html#msg51380


Attachments

  • La.160 early.JPG
    La.160 early.JPG
    9.8 KB · Views: 1,061

Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
325
Reaction score
174

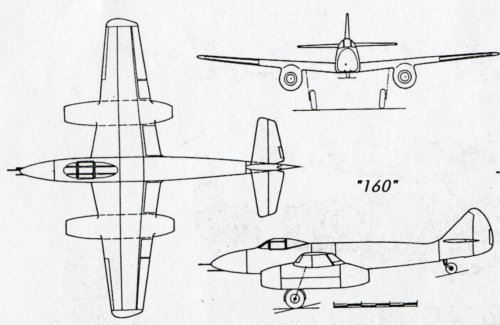

Thanks Borovik!

The wing shape is very similar to the Mustang wing...

My WIP drawing:


Attachments

  • Lavochkin-project-160.jpg
    26.9 KB · Views: 865

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

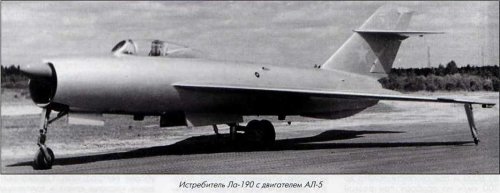

Hi! La-190.
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Falternathistory.com%2Fopytnyi-vysotnyi-perekhvatchik-la-190-sssr&sandbox=1


Attachments

  • la-190-09.gif
    270.1 KB · Views: 847
  • la-190-23.gif
    321.4 KB · Views: 806
  • la-190-04.jpg
    58.2 KB · Views: 316

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
Hi!

http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Falternathistory.com%2Ftrudnyi-pervenets-pervye-reaktivnye-semena-lavochkina&sandbox=1


Attachments

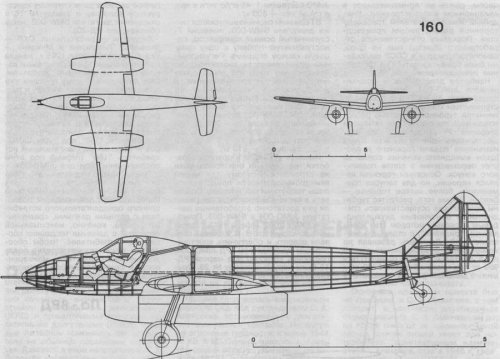

  • 160.jpg
    68.2 KB · Views: 175

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

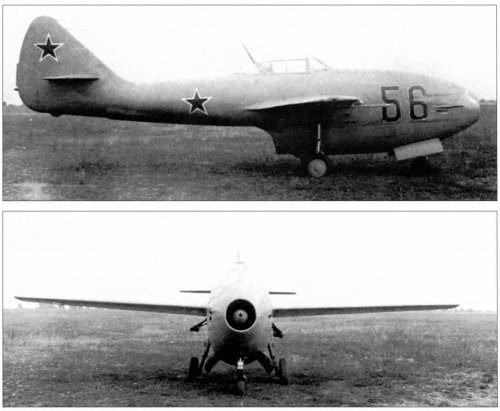

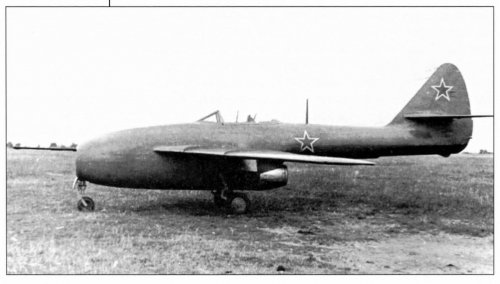

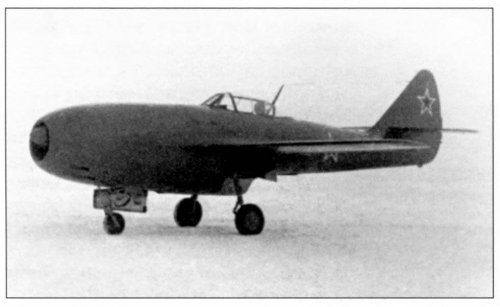

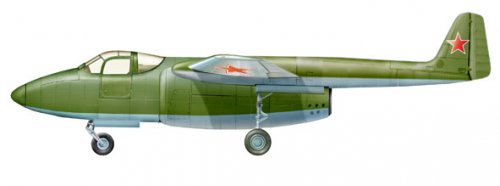

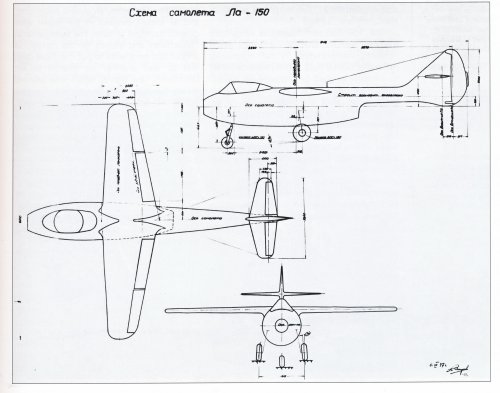

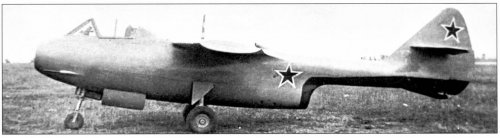

Hi! La-150, 152, 154, 156, 160, 174 and 162 rocket fighter.

http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Faviator.guru%2Fblog%2F43629034544%2FReaktivnyie-perventsyi-Lavochkina&sandbox=1


Attachments

  • 162.jpg
    88.6 KB · Views: 164
  • The plane 174 with a thin wing and engine Derwent-V.jpg
    The plane 174 with a thin wing and engine Derwent-V.jpg
    68 KB · Views: 105
  • La-160.jpg
    93.6 KB · Views: 91
  • La-156.jpg
    117 KB · Views: 112
  • La-154.jpg
    47.4 KB · Views: 132

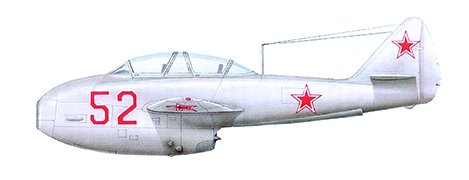

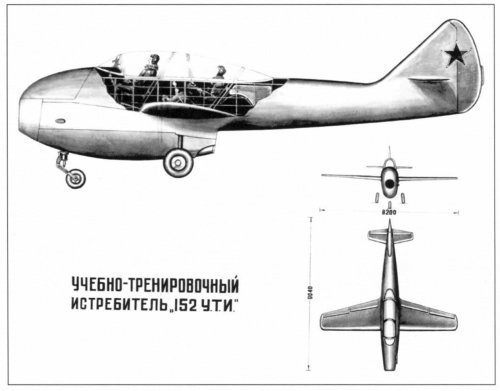

  • Training fighter La-152UTI.jpg
    Training fighter La-152UTI.jpg
    92.4 KB · Views: 144
  • La-152.jpg
    52.7 KB · Views: 141
  • The final version of La-150 with a larger vertical tail surfaces and deflected downward winglets.jpg
    The final version of La-150 with a larger vertical tail surfaces and deflected downward winglets.jpg
    51.7 KB · Views: 138
  • 1387989745_4.jpg
    48.5 KB · Views: 196
  • 150.jpg
    463.2 KB · Views: 130

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

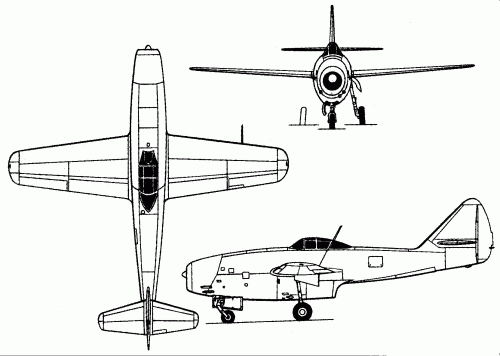

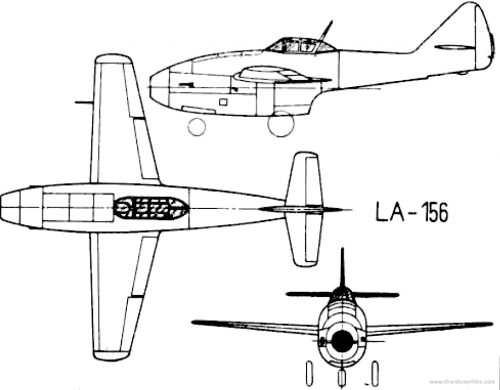

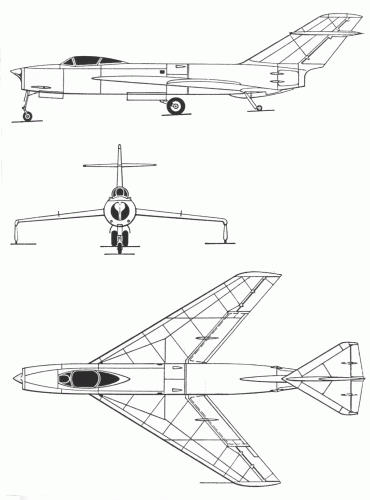

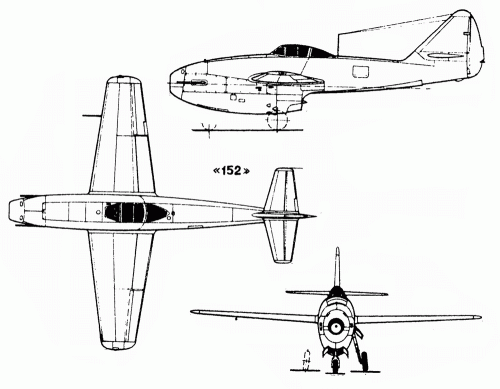

Hi Three side view drawings.

https://forum.warthunder.com/index.php?/topic/279610-lavochkin-la-152-and-la-156/


Attachments

  • la-174tk.gif
    28.2 KB · Views: 114

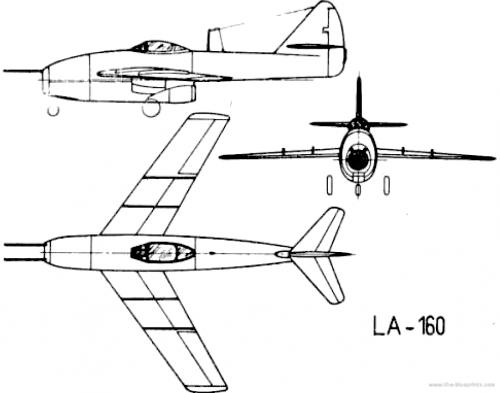

  • lavochkin-la-160.png
    70.9 KB · Views: 108
  • lavochkin-la-156.png
    77.9 KB · Views: 110
  • la152-1.gif
    125.2 KB · Views: 120

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

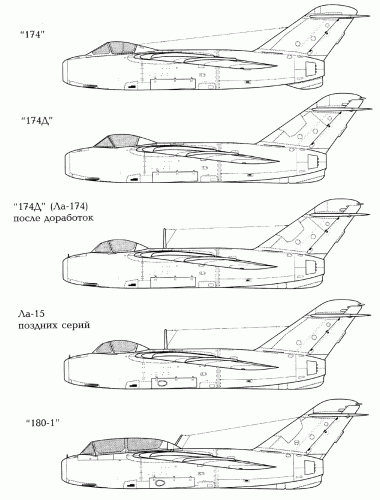

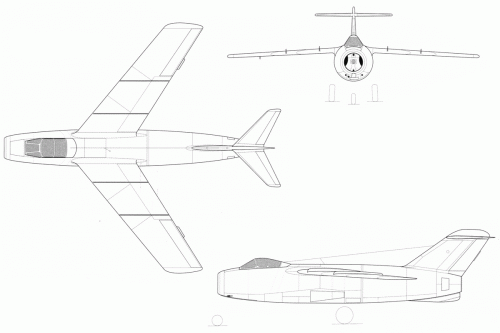

Hi! La-168. Ancestor of La-174, La-176 and La-15.
https://en.wikipedia.org/wiki/Lavochkin_La-168

Design and development
Aircraft 168 was preceded by the Lavochkin La-160 jet fighter which was the first to utilize swept wing surfaces first researched by the Germans, but it moved the engine from the nose to behind the pilot. It resembled the Mikoyan MiG-15 and used the same cannon-armament and the Rolls-Royce Nene II engine. Unlike the MiG-15, the La-168 had shoulder mounted wings and a t-tail layout. Due to Lavochkin's decision to wait with La-168 development for the Nene II engine, the MiG-15, first flown with the less powerful Nene I, was available four months earlier, giving it a crucial advantage.
Aircraft 168's first flight was on April 22, 1948, with I. E. Fedorov at the controls. Trials continued until February 19, 1949, when testing of the cannons at high altitude caused the canopy to collapse, resulting in a nearly fatal crash. In the end, the Lavochkin fighter lost out to the competing MiG-15. Another 168 derivative was the La-176, the first Soviet plane to achieve supersonic flight (in a shallow dive) on December 26, 1948.
A scaled down version of this aircraft powered by a Rolls-Royce Derwent, was produced as Aircraft 174, prototype of the production La-15, which although well liked and having superior performance, was more expensive and harder to mass-produce than the MiG-15.[1]
Variants
Aircraft 176 - One Aircraft 168 produced with 45° swept wings and tailplane. Believed to be first Soviet aircraft to exceed Mach 1.0 albeit in a dive. Crashed whilst supersonic when canopy collapsed.
Aircraft 174 - A 0.9 scale version of aircraft 168 which was productionised as the La-15.

Russian site.
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Fwww.airwar.ru%2Fenc%2Ffighter%2Fla168.html&sandbox=1

http://rufor.org/showthread.php?t=25337
http://propjet.ucoz.ru/forum/11-40-3


Attachments

  • la168-1.gif
    113.8 KB · Views: 139
  • la15-2.gif
    258 KB · Views: 156
  • La-15 and La-168.jpg
    La-15 and La-168.jpg
    126.2 KB · Views: 162

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
Hi! La-176.
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Fwww.airwar.ru%2Fenc%2Ffighter%2Fla176.html&sandbox=1

"Flying "176-th" held at the end of 1948 at the airport Saki with the presence of a strong side wind from the sea. Test pilots and Igor Fyodorov O.Sokolovsky engrossed in risky missions. They were delivered almost mystical task - to overcome the speed of sound. No one at the time to do so has not been able to. The flights were made from 10,000 m with a reduction and subsequent conversion into the horizon. For the first time the speed of sound in the La-176 reached the December 26, 1948-th. Until January 1949, such flights were repeated six times. Officially, the Commission registered the result of 1105 km / h at an altitude of 7000 m in the official test report stated:. "This speed of the aircraft in the Soviet Union received the first aircraft flight test materials." 176 "represent a exceptional value for our aircraft."

While the speed of 1105 km / h exceeded the targets set best jets foreign aircraft registered FAI. After replacing the RD-45 engine with a more powerful VK-1 V.Klimova design, the aircraft has reached a ceiling of 15 km. Thus, the creation of La-176 was the most important stage in the development of Russian fighter aircraft. La-176 opened its Mission to Lavochkin prospect of further work on the follow-fighters - La-190 and La-200. Still, the main merit of the La-176 -preodolenie sound barrier. It was interesting to learn about this exciting moment from the test pilot I.Fedorova. Ivan Evgrafovich recalls, "it has become clear that the guarantees of survival after him, no Nobody knew almost what it is and whether the aircraft element design head stand, but it tried not to think before flying to overcome the sound barrier... "


Attachments

  • la176-1.gif
    95.8 KB · Views: 159

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
174

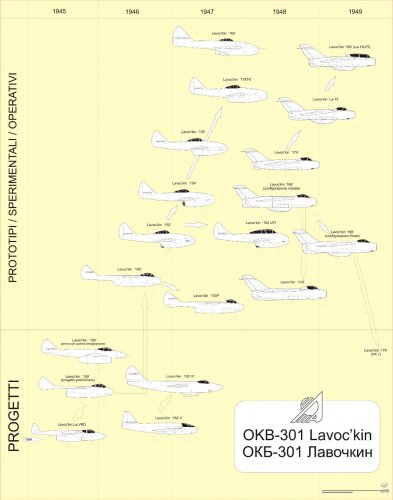

(from book - Alberto Trevisan "Storia ed Evoluzione dei Caccia Sovietici a Reazione,1945-1955"


Attachments

  • Jet fighters La I.jpg
    2.3 MB · Views: 182

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
Oh this is what I want. Thanks a lot as usual borovik-san. :D


Attachments

  • Jet fighters La I.jpg
    Jet fighters La I.jpg
    205.1 KB · Views: 205

Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
325
Reaction score
174
La-162-I rocket fighter project based on Boroviks great drawing!


Attachments

  • 162-I.jpg
    616.1 KB · Views: 150

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
Oh!!!!! :eek:
This one? Wind shield shape is different? ???
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Fwww.airwar.ru%2Fenc%2Fxplane%2Fla162.html&sandbox=1

"weapon : six ODP-82."


Attachments

  • la162-1.jpg
    32.9 KB · Views: 123

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308
Amazing drawings my dear Borovik,

and we forget La.172;
http://www.airbase.ru/sb/russia/lavochkin/planes-t.htm

And great work Zizi,for La.162;

http://www.secretprojects.co.uk/forum/index.php/topic,10526.msg99574.html#msg99574


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
Zizi6785 said:
La-162-I rocket fighter project based on Boroviks great drawing!

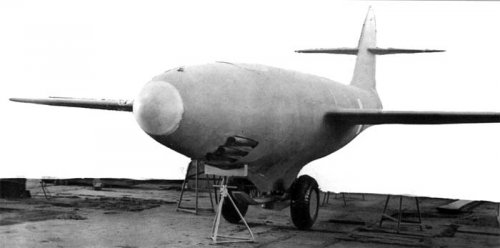

Zizi-san, please check this image. Mock-up or wind tunnel test model?
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=11489.0;attach=574468;image


Zizi6785

ACCESS: Secret
Joined
Dec 20, 2006
Messages
325
Reaction score
174
Zizi-san, please check this image. Mock-up or wind tunnel test model?

This is a mock-up of the La-162II straight wing version.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308
My dear Borovik,

in your drawing,there was a Project maybe,called La.178,what was it ?.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
174
La-178, "178" - is La-168, a VK-1 engine.
In 1949, the MAP (Ministry of Aviation Industry) initiated the issue of taking a world speed record for distances 3 and 100km ...
Only project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308
Thank you my dear Borovik,

and can I ask you if there was a drawing survivor to La.172 ?.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
174
hesham said:
Thank you my dear Borovik,

and can I ask you if there was a drawing survivor to La.172 ?.
I do not have any photos or any scheme La-172 (airplane with swept wing equipped with an engine RD-500, Derwent-V) ((


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308
OK my dear Borovik,

and I think that I have a real picture to it,but where ?.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
694
Reaction score
260
Have several speculative cutaways of various Lavochkin jet fighter, will soon share them if you can?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308
Motocar said:
Have several speculative cutaways of various Lavochkin jet fighter, will soon share them if you can?

OK my dear Motocar.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
694
Reaction score
260

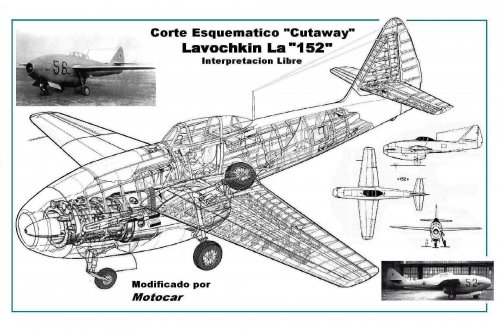

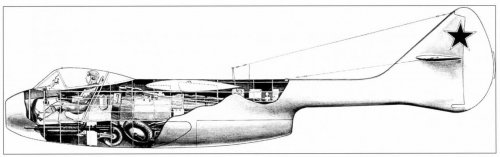

Cutaway Lavochkin La-152


Attachments

  • Cutaway Lavochkin 152.jpg
    Cutaway Lavochkin 152.jpg
    521.3 KB · Views: 257

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
694
Reaction score
260

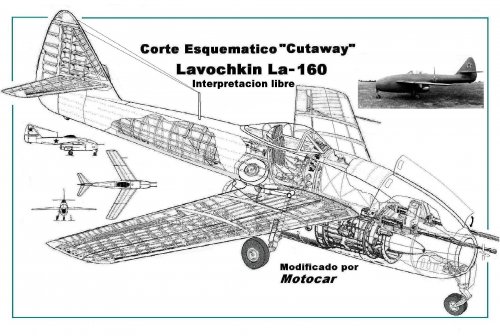

Cutaway Lavochkin La-160


Attachments

  • Cutaway Lavochkin 160.jpg
    Cutaway Lavochkin 160.jpg
    492.2 KB · Views: 243

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
694
Reaction score
260

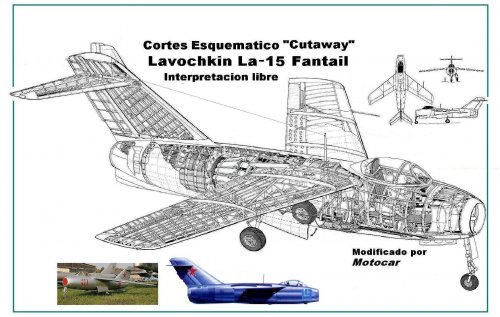

Cutaway Lavochkin La-15 "Fantail"


Attachments

  • Cutaway Lavochkin La-15.jpg
    Cutaway Lavochkin La-15.jpg
    483.6 KB · Views: 1,003

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
694
Reaction score
260

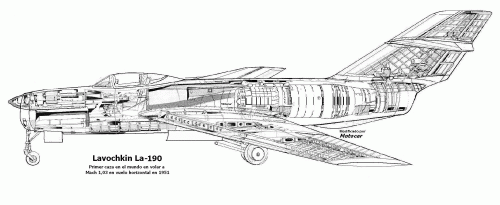

Cutaway Lavochkin La-190, first jet plane in the world to fly horizontally faster than sound or Mach 1.03 in March 1951.


Attachments

  • Cutaway Lavohkin La-190.jpg
    Cutaway Lavohkin La-190.jpg
    570.3 KB · Views: 946

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
694
Reaction score
260
Preparing the cutaway of the two-seater version of the La-152UTI


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
694
Reaction score
260
Now I work on the cutaway of this model


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

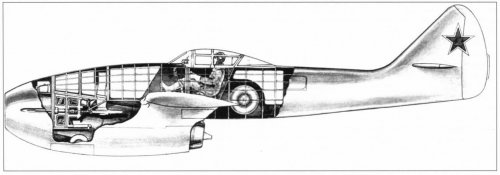

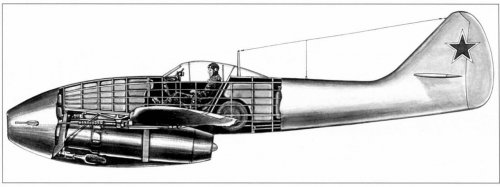

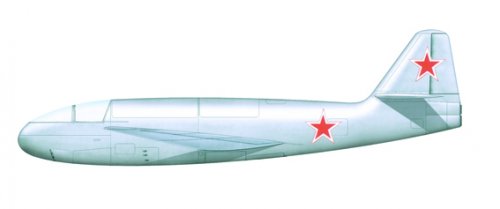

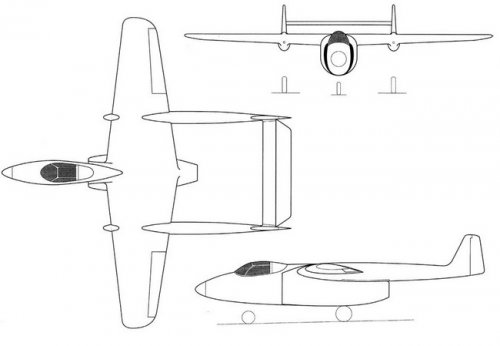

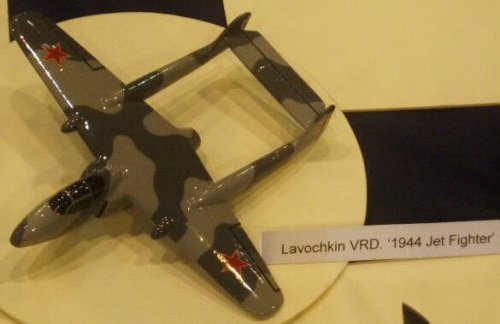

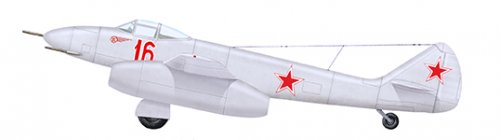

Hi! La-VRD.
https://military.wikireading.ru/7361
https://forum.il2sturmovik.com/topic/7178-russian-competition-me-262/
http://xn--80aafy5bs.xn--p1ai/aviamuseum/aviatsiya/sssr/istrebiteli-2/1940-e-1950-e-gody/istrebiteli-kb-lavochkina/istrebitel-la-vrd-proekt/
http://xplanes.free.fr/lavo/arl-2.html

http://www.secretprojects.co.uk/forum/index.php/topic,2473.msg20634.html#msg20634


Attachments

  • La-VRD.jpg
    41.8 KB · Views: 128
  • post-15670-0-76791000-1402839347.jpg
    31.1 KB · Views: 477
  • 421088_15_i_073.jpg
    34.2 KB · Views: 517

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308
From Le Fana 211.


Attachments

  • 3.png
    246 KB · Views: 112

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,308

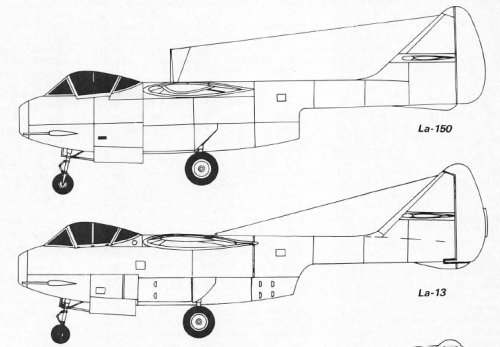

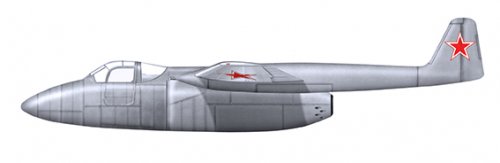

In my files,

the early Lavochkin La-150 Project had a different fuselage shape,I am sure
about the Info,but maybe no drawing is survivor,could be a longer than the
built one.
