Large tank carrier from Ukraine

Stargazer

ACCESS: USAP
Senior Member
Joined
25 June 2009
Messages
13,619
Reaction score
2,619
AIRCRAFT

FIELD: transport, aviation.

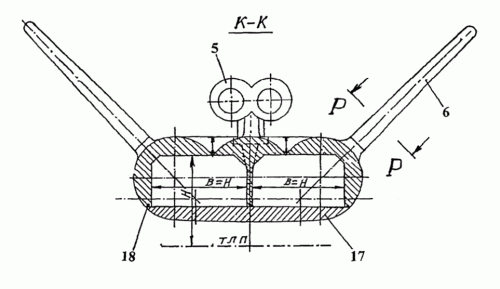

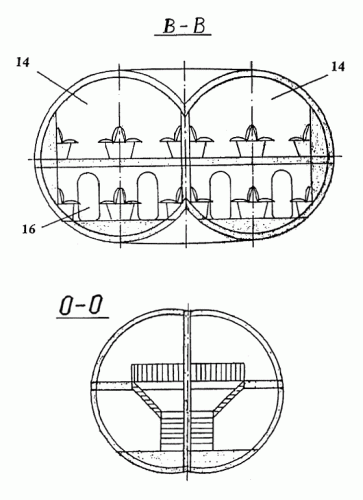

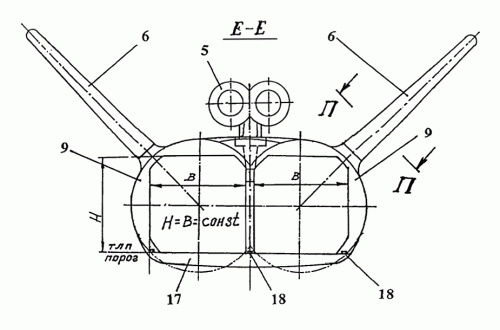

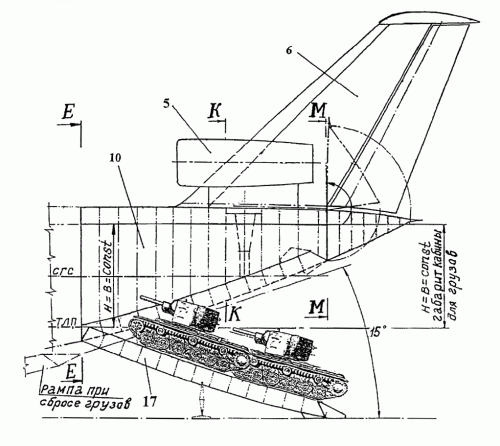

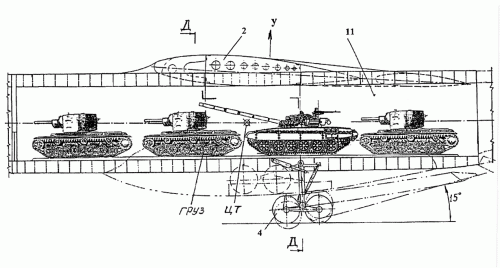

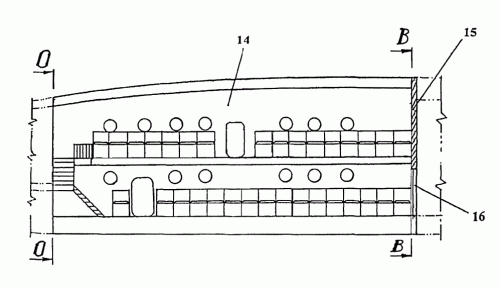

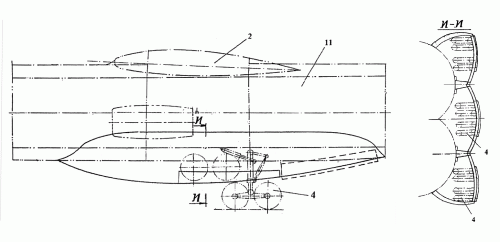

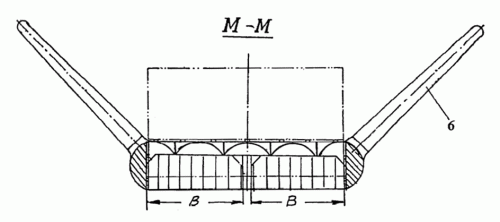

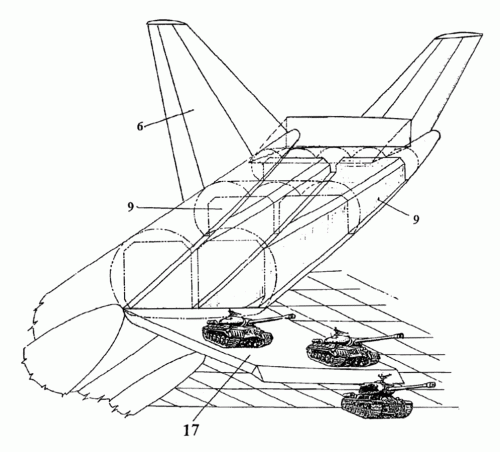

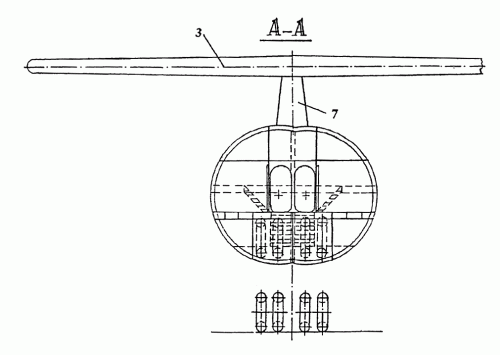

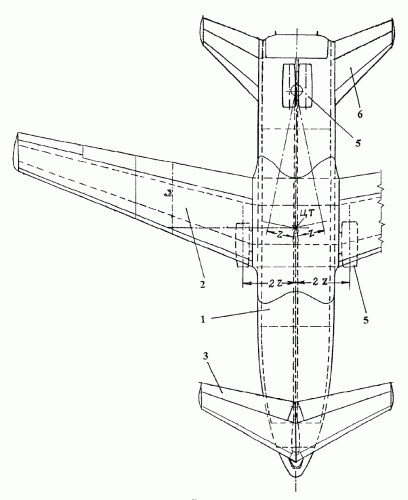

SUBSTANCE: proposed aircraft comprises horizontal tail arranged above the cockpit while the vertical tail features a 45°-inclination and is made up of two planes with their front and rear edges turn in step towards the same side. The fuselage is made up of two symmetric parts. The central part accommodates large-size cargoes for which the fuselage rear part is furnished with a hatch closed with one wing (ramps). The fuselage front part is a passenger's compartment. The engines are fitted to sustain the moments originating at the 50%-failure. The main three-leg landing gear ensures required cross-country properties.

EFFECT: higher power efficiency, safety, ruling out aircraft spin.



Inventor(s): Babkin Vladimir Mikhajlovich (UA), Babkin Mikhail Evmenovich (UA), Barashkin Jurij Alekseevich (UA), Bondarenko Aleksandr Viktorovich (UA), Vasil'ev Vitalij Evgen'evich (UA), Zholobov Vitalij Mikhajlovich (UA), Krivonos Igor' Anempodestovich (UA), Lopatin Mikhail Alekseevich (UA), Mikhajlenko Jurij Vasil'evich (UA), Tkachuk Dmitrij Petrovich (UA), Frolov Valerij Fedorovich (UA)

Proprietor(s): Babkin Mikhail Evmenovich (UA)


Application: 2007127060/11, 16/07/2007
Effective date for property rights: 16/07/2007
Date of publication: 20.04.2009 Bull. 11
Mail address: 04128, Ukraina, g. Kiev-128, ul. Akademika Tupoleva, 26/16, kv.40, M.E. Babkinu


Attachments

  • 2352496_0506.gif
    83.8 KB · Views: 201
  • 2352496_14.gif
    159.6 KB · Views: 32
  • 2352496_13.gif
    183.4 KB · Views: 28
  • 2352496_10.gif
    62.3 KB · Views: 160
  • 2352496_07.gif
    65.1 KB · Views: 171
  • 2352496_1516.gif
    101.4 KB · Views: 179
  • 2352496_04.gif
    49.1 KB · Views: 190
I strongly suspect an Antonov connection here but I have no proof other than the fact it's a design from Ukraine...


Attachments

  • 2352496_24.gif
    155.5 KB · Views: 16
  • 2352496_21.gif
    56.3 KB · Views: 7
  • 2352496_20.gif
    84.6 KB · Views: 6
  • 2352496_19.gif
    65.1 KB · Views: 6
  • 2352496_14.gif
    159.6 KB · Views: 7
  • 2352496_1211.gif
    68.5 KB · Views: 6
  • 2352496_09.gif
    42.7 KB · Views: 10

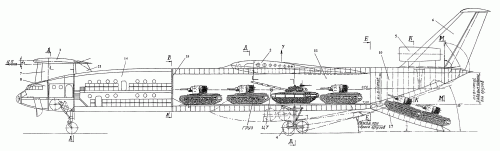

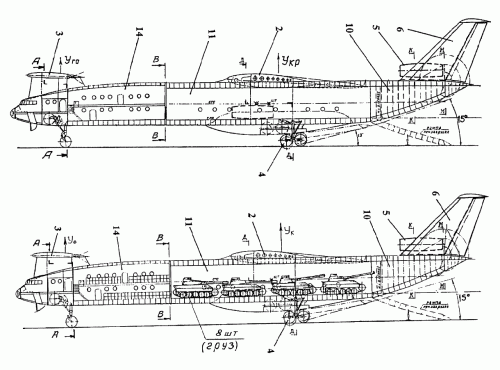

  • A reconstruction of the detailed inboard profile from four separate images
  • The original PDF of the patent (note that the images I posted were reworked/cleaned for publication here)


Attachments

  • 2352496_reconstructed.gif
    424.8 KB · Views: 48
  • patent-2352496.pdf
    1.1 MB · Views: 8
Weird selection of 'generic' tanks... I guess they were in a rush to file?
