Kayaba autogyros

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,802
Reaction score
286

Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85

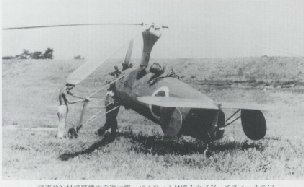

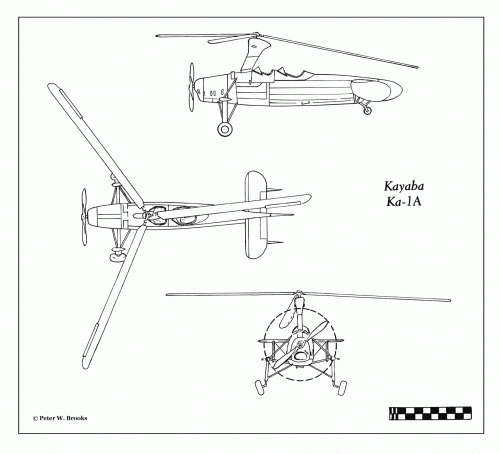

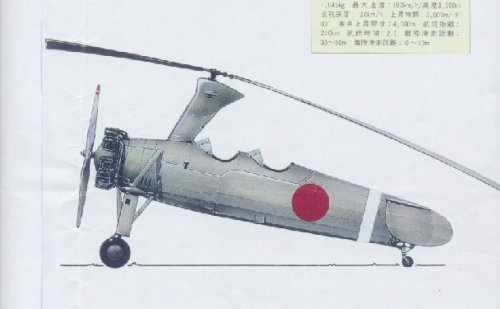

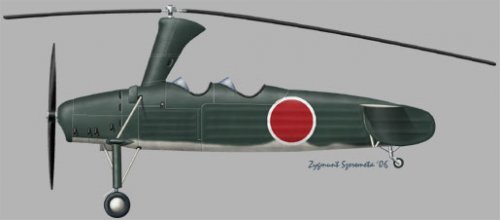

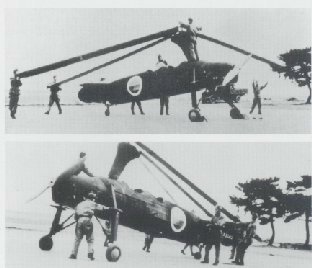

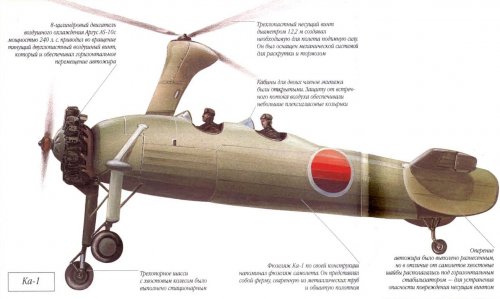

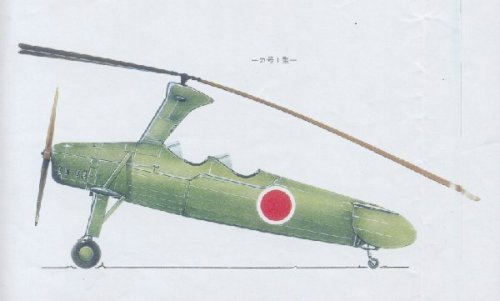

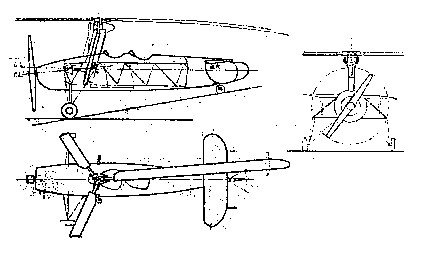

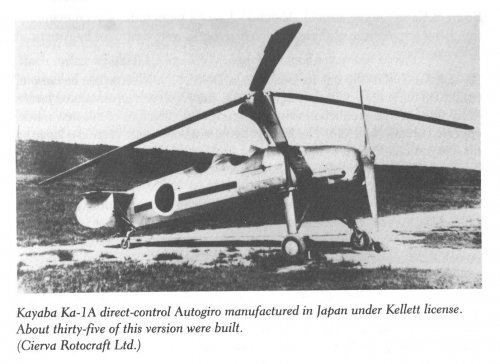

More on the Kayaba Ka-1 (which derived directly from the American Kellett KD-1) in both the radial- and inline-engined versions:


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,802
Reaction score
286

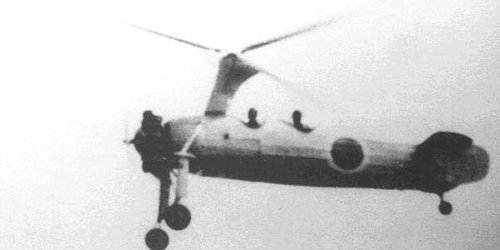

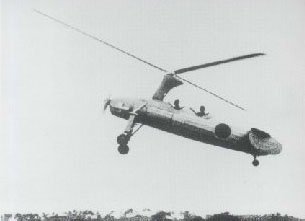

Thanks Star! I was surprised very much by her STOL performance through this video.
She could hover while angle of attack was 15 degree.
The autogyro is a wonderful vehicle.
Number of production:98(1941 to 1945)(1 gata were only 20,because Argus engine had over heat problem,nevertheless low drag.)

The Army Ka-go Observation Autogyro 1 gata
Engine:Argus As10,Air cooling inverse V type 8 cylinders, take off power ; 250HP
Rotor diameter:12.2m, Empty weight:750kg, Gross weight:1,170kg, Max speed: 165km/h,
Cruising speed:120km/h, Climb time to 3,000m:15minutes, Service ceiling:4,000m, Range:360km,
Endurance:3hours, Take off run:30 to 60m, Landing run:0 to 10m

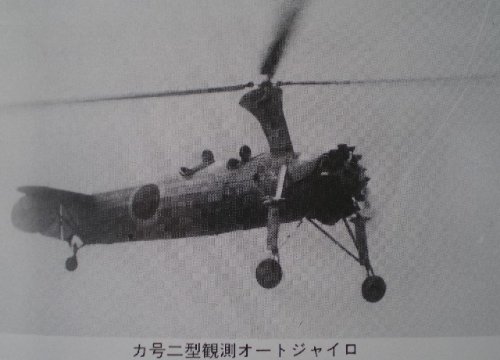

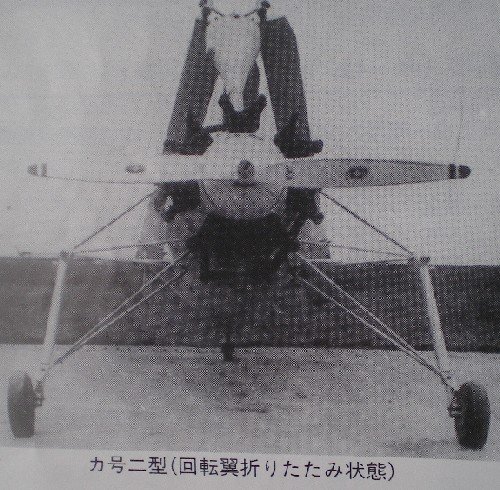

The Army Ka-go Observation Autogyro 2 gata
Engine:Jacobus L-4MA-7, Air cooling radial 7 cylinders, take off power ; 240HP
Rotor diameter:12.2m, Empty weight:745kg, Gross weight:1,020kg, Max speed: 180km/h,
Cruising speed:120km/h, Climb time to 3,000m:15minutes, Service ceiling:4,000m, Range:240km,
Endurance:2hours, Take off run:30 to 60m, Landing run:0 to 10m


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
85
New topic split from the old "Japanese Projects before 1945" thread...
