Kawasaki KH-7

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
From http://www.helis.com/70s/

Kawasaki KH-7 was the name for a middle class helicopter with hinge-less rotor system, which was projected by Kawasaki in early 1970s.
At the same time, in Europe, MBB has project a same class helicopter named bo107.
By 1975, MBB offered Kawasaki to cumulate their projects. Both companies agreed in this international joint development, and their new project will result in the BK-117 in the 80s

Has anybody seen a three-view drawing (or artwork/display model) of this Japanese BK-117 predecessor?


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,060
Reaction score
145
boxkite said:
From http://www.helis.com/70s/

Kawasaki KH-7 was the name for a middle class helicopter with hinge-less rotor system, which was projected by Kawasaki in early 1970s.
At the same time, in Europe, MBB has project a same class helicopter named bo107.
By 1975, MBB offered Kawasaki to cumulate their projects. Both companies agreed in this international joint development, and their new project will result in the BK-117 in the 80s

Has anybody seen a three-view drawing (or artwork/display model) of this Japanese BK-117 predecessor?

No joy, though this pdf seems to indicate planning for the KH-7 started in 1965 (Showa 40, by the Japanese calendar).

www.sjac.or.jp/toukei/50nennoayumi/4_7_2_nihonnokoukuki_kakuron2.pdf

Starviking


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
238
Reaction score
6
Remember seeing a drawing of a proposed transport heli utilising the Lockheed rigid rotor system by Mitsubitshi on the website of the Japanese Chapter of the AHS. Anyone have anymore info on that?


VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
316
Reaction score
510
I'm currently perusing through a bunch of Air Enthusiast International magazines. In the May 1974, mention is made of the Kawasaki KH-7. For further details see attached copy of text from this magazine


Attachments

  • Kawasaki kh7.pdf
    44.7 KB · Views: 33

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,557
Japanese wikipedia says that...

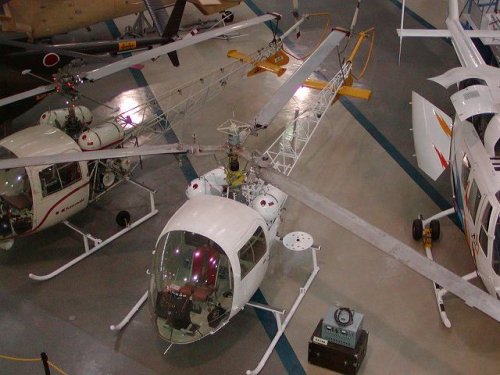

"Kawasaki developed the KHR-1 as a non-articulated rotor test machine based on KH-4, and used it for research.
KHR-1 started the experiment in 1968, and based on the experiment, seven seater KH-7 mass production was planned, but the plan was interrupted by the influence of the oil crisis.
The KH-7 project became BK117 by joint development with Germany MBB Company in 1977. The results of KHR-1 were kept alive in BK117 and later OH-1."

KH-7 was a twin engine muti purpose helicopter. It's very difficult to find artistic impression or specification for KH-7 in Japanese internet site. (Almost same as BK117? ;D)

KHR-1
http://oh1ninja.la.coocan.jp/details/KHR1/KHR1.html

Kawasaki failed to develop rigid rotor for KH-7 at the day.
http://dtcn-wisdom.jp/yoshiwaka/HELI-4-KHI-herikoputa-kennkyuu-noekishi.pdf

OH-1
https://en.wikipedia.org/wiki/Kawasaki_OH-1

"The OH-1 is powered by a pair of Mitsubishi TS1 turboshaft engines, equipped with Full Authority Digital Engine Controls (FADEC), which drives a four-blade composite main rotor with a bearingless rotor hub along with a Fenestron-type anti-torque tail rotor (an enclosed tail-fan unit). The Fenestron uses eight asymmetrically-spaced blades to reduce both noise and vibration."

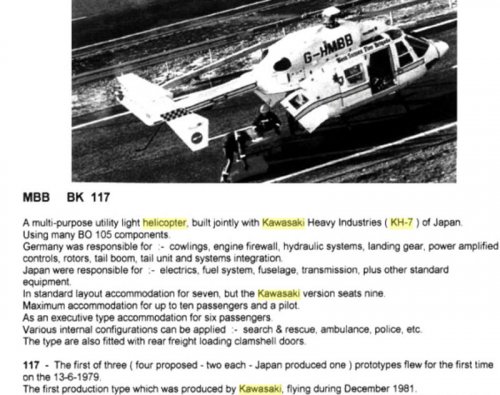

Kites, Birds & Stuff - Aircraft of GERMANY - I to M, P. D. Stemp
https://books.google.co.jp/books?id=_5-fBQAAQBAJ&pg=PA864&lpg=PA864&dq=Kawasaki+KH-7+helicopter&source=bl&ots=JfuE-_nAyM&sig=kAPfnORxGnNg9axDZS6fNyjaVC4&hl=ja&sa=X&ved=0ahUKEwjl3MrM0ajUAhUEmpQKHb-tBmYQ6AEIazAN#v=onepage&q=Kawasaki%20KH-7%20helicopter&f=false


OH-1 Ninja
https://www.youtube.com/watch?v=3WilrMw8ZwQ


Attachments

  • 021130_KHR1_01a.jpg
    58.4 KB · Views: 231
  • BK117.jpg
    110.7 KB · Views: 219

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,557

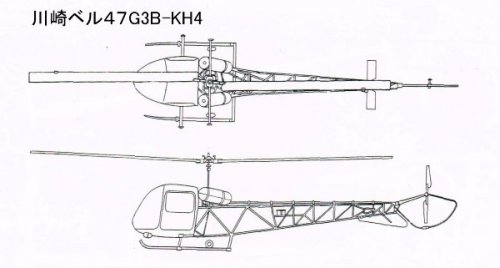

Hi! KH-4.
http://www.zuroku.net/meiki100/html/vr/081VR/08100_1_sp.html

After the first flight of the first knockdown of the Bell 47D type in December, Kawasaki KH-4 was a helicopter with four seats based on three seats Bell 47G-3B, and improved flight performance by turbocharger.


Attachments

  • CL-Bell47G3B-KH4-plan.jpg
    28.4 KB · Views: 143
