Kaman Aerospace Spyglass UAV

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
978
Spyglass UAV based on intermeshing "synchro-lift" rotor technology. The aircraft has counter-rotating main rotors and no tail rotor, with all engine power going directly to the rotors for lift (Courtesy of Kaman Aerospace Corp.).


Attachments

  • 3_spyglass.jpg
    44.1 KB · Views: 199

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,570
Reaction score
1,586

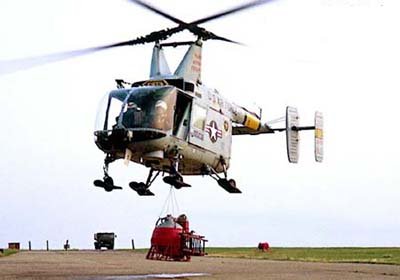

Use to see "egg-beaters" all the time when I was a kid. :)


Attachments

  • HH43FSK.jpg
    37.1 KB · Views: 169

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
978
Kaman stealthy UAV project from 1992

artwork by famous A. Hedja


Attachments

  • kamanstealthuav1992.jpg
    433.2 KB · Views: 191

royabulgaf

ACCESS: Secret
Joined
Dec 29, 2008
Messages
491
Reaction score
59
Re: Kaman stealthy UAV project from 1992

Can anyone advise me here? It would seem that there is no way to hide the rotor. Is there any real point in making a "stealth" coptor?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
Re: Kaman stealthy UAV project from 1992

Looks a little bit like a navalized UCAR, or more appropriate, as it better fits the timescale, that's
one of the seeds of the Kaman UCAR proposal.

"Is there any real point in making a "stealth" coptor?"

Why not ? The aim is, to enhance survivability, so to decrease the range, at which the UAV
can be detected, the same as with Raptor, B2 or F117. Modern rotors can be made of composites,
so having a low RCS, what's still needed then, is to decrease the RCS of the fuselage and then,
you'll have an UAV, that can maybe halve the save distance between itself and the target. In this
case, the rotor looks conventionally, so maybe not treated to any attempt to reduce the noise
signature, but at sea that may not be an important point either.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,733
And its story,it was called VLAR;

http://www.flightglobal.com/pdfarchive/view/1993/1993%20-%201783.html


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
131
Website
www.hitechweb.genezis.eu
Re: Kaman stealthy UAV project from 1992

It can be one of the Kaman Spyglass concepts, studied since 1991.

http://www.flightglobal.com/pdfarchive/view/1993/1993%20-%201783.html


Attachments

  • 3_spyglass.jpg
    44.1 KB · Views: 152

quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,174
Reaction score
203
Re: Kaman stealthy UAV project from 1992

royabulgaf said:
Can anyone advise me here? It would seem that there is no way to hide the rotor. Is there any real point in making a "stealth" coptor?

There are features unique to the Kaman designs that make it easier to reduce the RCS of the rotor hubs, which in other designs are primary reflectors.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Re: Kaman stealthy UAV project from 1992

It's tough enough to make a rotor stealthy... but what about TWO intermeshing rotors? Doesn't look too good an idea if you're to keep the RCS low.


Vivisector

ACCESS: Restricted
Joined
Jul 19, 2008
Messages
1
Reaction score
0
Re: Kaman stealthy UAV project from 1992

Seems to me it could be an advantage. Instead of four blades on one angle, you have two on two angles. To me it seems to follow the same faceted stealth idea as the body.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: Kaman stealthy UAV project from 1992

Sure. Also if you can use composites for the rotor they may be largely radar transparent.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,282
Reaction score
169
Re: Kaman stealthy UAV project from 1992

Wouldn't the same apply to props? One of the guys at work said even the most transparent of composites materials is only 90% RF transparent. I think you would still have to shape the blades, and the ideal LO shape is far from the ideal aero shape...


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,570
Reaction score
1,586
Re: Kaman stealthy UAV project from 1992

overscan said:
Sure. Also if you can use composites for the rotor they may be largely radar transparent.

Maybe if it's made out of fiberglass. I'm fairly certain radar can't see through carbon fiber.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
88
Re: Kaman stealthy UAV project from 1992

Could one of you enlightened fellows explain to me why they don't simply use a larger fuselauge and ducted fans? I assume they would be less efficient due to the higher air velocity (and also perhaps the inlet design?), but they would still be much more efficient than lift jets. The UAV would be less maneuverable in a hover, but it could also potentially have lower drag in forward flight.


hole in the ground

ACCESS: Secret
Joined
Aug 6, 2008
Messages
237
Reaction score
3
Re: Kaman stealthy UAV project from 1992

It would depend on what is roles are. If you are expecting to spend a considerable amount of time in hover/low speed flight then big disk area i.e. rotors is what you want. If you are planning to go fast then you can look at ducted fans/lift jets.


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
8
Re: Kaman stealthy UAV project from 1992

I think ducted fans are really heavy for the lift they produce.
It's kinda counterintuitive how you get high T/W either with open rotors, because they effect a large mass of air, or afterburning turbojets (high fuel consumption in the latter case though, even higher T/W and higher fuel consmuption with rockets btw) because their exhaust velocity is high, but there's a "valley" in between. Or so I think.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,843
Reaction score
288
Re: Kaman stealthy UAV project from 1992

mz said:
I think ducted fans are really heavy for the lift they produce.
It's kinda counterintuitive how you get high T/W either with open rotors, because they effect a large mass of air, or afterburning turbojets (high fuel consumption in the latter case though, even higher T/W and higher fuel consmuption with rockets btw) because their exhaust velocity is high, but there's a "valley" in between. Or so I think.

Indeed, if you have something accelerating a larger mass of airflow at a lower velocity, it will be more efficient then moving a smaller mass of air at a higher velocity.

From Kohlman, page 23, for powered lift;

L=M.*Ve (eq. 2.15)

Pi=M.*((Ve2)/2) (eq. 2.16)

dividing (2.15) by (2.16) yields

L/Pi=2/Ve

Therefore, lift per unit of induced power is inversely proportional to wake/exhaust velocity.


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
8
Re: Kaman stealthy UAV project from 1992

Yeah but mass of the propulsion system is not directly related to power (fuel consumption more directly is)... large fans manipulating low speed air flows can be heavy for their thrust, when you compare to compact high speed jets...


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,282
Reaction score
169
Re: Kaman stealthy UAV project from 1992

which is why if you don't need to hover for a long period of time you end up with high discloadings (harrier jet) and if hover is a significant fraction of your mission you end up with a low discloading (helicopter). I think UCAR requires enough low speed flight and hovering that anything smaller than a large ducted fan (a la X-22) could never be considered. Whatever you gain in installed engine weight using high discloading engines is swallowed by increased SFC, fuel flow, and ultimately required fuel weight for the mission.
OTOH, if on top of VTOL higher speeds are required, lower discloading become more appealing once again.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Problem is, the VLAR UAV does not look one bit like it:

The tipjet/CC concept emerged from CDRKNSWC, previously known as David Taylor Naval Research Center (DTNRC), based on extensive research and development of stopped rotor VTOL concepts, CC airfoils, and airflow management systems over the past 30 years. (...) The DTNRC's tipjet concept is 12,000 pound Vertical Launch and Recovery (VLAR) Unmanned Aerial Vehicle (UAV), and its success may provide a breakthrough in ship-based aircraft capabilities because it is designed to carry a 2,000 pound payload at 35,000 feet altitude for 12 hours. Investigations into critical aerodynamic and pneumatic issues have been performed using subscale wind tunnel model of the rotor/wing system. These tests were done primarily for hover, and they included performance assessment of the Circulation Control rotor, the reaction drive system performance, and the integrated lift/drive system performance.

Source: http://www.asdl.gatech.edu/publications/phd_theses/tai.pdf


Attachments

  • VLAR.gif
    8.6 KB · Views: 463

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,733
Hi,

Kaman Early Spyglass.

http://books.google.com.eg/books?id=4-MDAAAAMBAJ&pg=PA15&dq=X-wing+popular&lr=&cd=3#v=onepage&q&f=true


Attachments

  • Kaman Spyglass.JPG
    Kaman Spyglass.JPG
    24.7 KB · Views: 209

antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
737
Reaction score
74
As I clean and trash some archive here is somme additional stuff...


In the early 1990s, a UAV JPO (Joint Project Office) was actively running its program(s). Up untill FY93: as of FY93, there was no successor in FY94 request. As of late august / early september 1993, it was reported that Kaman Corp offered its stealthy surveillance Spyglass UAV based on the company's prior in-house design called MMIRA (Multi-Missison Intermeshing Rotor Aircraft) which, incidentally, could also be engeneered as a MMIRA UAV variant. One possible JPO UAV project contender for shipboarding was Bell's Eagle Eye titrotor, etc. (AD:9/3/93:384)


antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
737
Reaction score
74
Stargazer2006 said:
MMIRA was simply the first name of the K-1200 or K-MAX.
Thanx alot Stargazer.
I just looked back at my very old notes, and highly specialized newsletters reporting back here.
