Dating from slightly later than Auberns Jupiter Orbiting Vehicle for Exploration (JOVE), this Jupiter orbier was the product of the NASA-Cornell Doctoral Design Trainee Group, which ran from 1967 to 1970.

The Jupiter Orbiting Spacecraft (JOSÉ), was designed with the Saturn V INT-20/Centaur as the launch vehicle, with a weight of around 4,319 lbs (around 2.2 tons (metric)) would have been powered by 2 RTGs providing 600w.

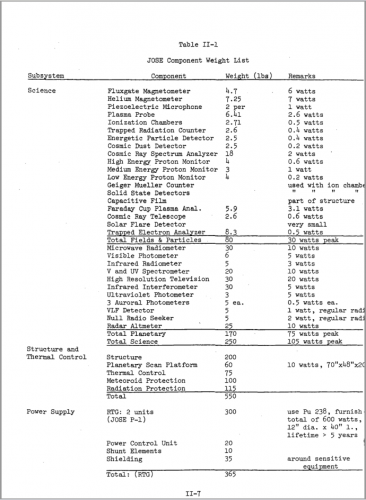

The instrumentation fit, like the earlier spacecraft was biased towards particles and fields (See attached) with Jupiter itself being the main focus of study.


JOSÉ - Jupiter Orbiting Spacecraft: A Systems Study, Volume 1 & 2 (Published 1971)

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720026204.pdf


Attachments

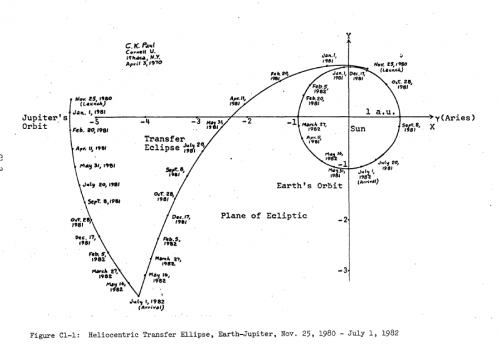

  • JOSETV.png
    55.9 KB · Views: 131

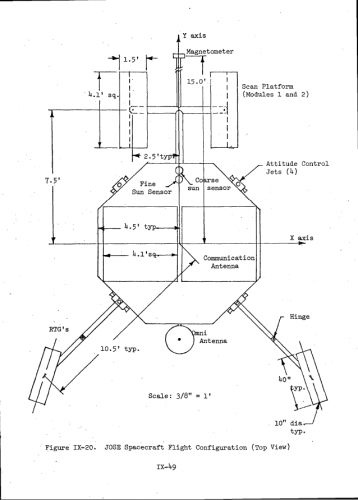

  • JOSEFP.png
    56.2 KB · Views: 129
  • JOSEINST.png
    165.3 KB · Views: 122
