Hi,

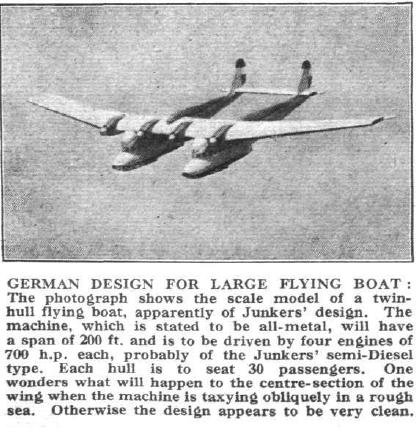

http://www.flightglobal.com/pdfarchive/view/1922/1922%20-%200430.html?search=aircraft

and http://www.ww2incolor.com/forum/archive/index.php/t-10685.html


Attachments

  • untitled.JPG
    44.3 KB · Views: 174
  • junkeris.jpg
    18.1 KB · Views: 62

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
Here's a 3-view of this project from F.Gütschow "Die Deutschen Flugboote",
showing, that there were plans for a land plane, too :


Attachments

  • Junker_twin.JPG
    25.2 KB · Views: 206

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,991
Reaction score
5,274
Great my dear Jemiba,

but I think the aircraft did not mention in the Junkers site.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
112
hi all
Some time ago, I've see this plane on "The Junkers home page"
but as i want to return I've see it don't exist more.
This plane was referenced as " JUNKERSSIME"
The same photo as above.
Studies by ZINDEL in 1920.Two designs : seaplane and landplane
Engines : 4 X 515kw.
sea lengh 33.20 m land 31.20 m
Span ( the two) 62.80 m
seats. sea 7 + 60 land 7+56
Speed sea 180 km/h Land 200 km/h
Range sea 1900 km land 2200 km
bye


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108
In fact , it must be 'Junkerissime' ( Junker issime)
See : Junkers big ones on this chapter.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
112
dear iark.
Yes, the two word are writed in my article.
I only choise the one which is write two time !!!! ??
bye


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
"Junkerissime" probably was meant as a superlative form of "Junkers", as
the ending " -issime" in latin language is the highest form of an intensification.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
108
Yes indeed Jens,
from the Latin :issimus - means superlative.

Now back to the aircraftprojects :)


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
607
Reaction score
146

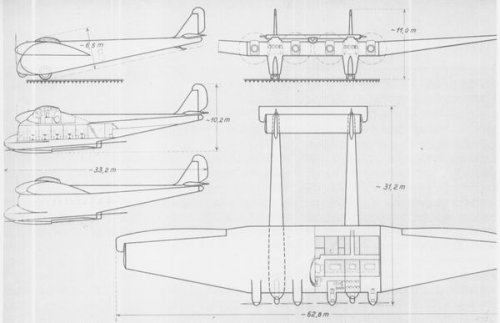

Another 3-view drawing of the land-version of the Junkers "Junkerissime" project.

From the book "Prof. Junkers nannte es DIE FLIEGE" by Hermann Pohlmann.
Motorbuch Verlag Stuttgart, 1983.


Attachments

  • Junkerissime.jpg
    183.1 KB · Views: 195

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
"Now back to the aircraftprojects :)"

Was just my answer to touras questions, if it has to be written in
one or two words.
And ...why not show, that this is really a cultivated forum ? :D


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,322
"Errare humanum est, perseverare diabolicum..."

.. and Seneca also said :"It is better to know useless things, than to know nothing"

But sorry for that, now really back to aviation ! ;D


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
112
dear Jemiba
Yes, you'r right...and a good new year...
Bye


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
45
Website
cmeunier.chez-alice.fr
Hesham first picture was dated 1922. Jemiba's and Retrofit's have no date, are they also of the 1920s? Engines of 700hp suggest that (1,000hp and above was standard in the 1930s). Thanks if you can confirm.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
607
Reaction score
146
Tophe said:
Hesham first picture was dated 1922. Jemiba's and Retrofit's have no date, are they also of the 1920s? Engines of 700hp suggest that (1,000hp and above was standard in the 1930s). Thanks if you can confirm.

Taking into account information from Pohlmann's book, the first studies on the "Junkerissime" (60 pax) project seems to have started in 1921, along with the construction of the Junkers G-1 (9 pax) prototype. Construction of the latter was stopped and the prototype destroyed following Allied Comission decision.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
45
Website
cmeunier.chez-alice.fr
An article nicely sent to me by Borovik confirmed the date 1921 for a project close to Jemiba's picture. Before the canard twin-boomer J.1000 of 1923-24 (I have the Unicraft model* of this one, to be built, maybe in 2010...)
* : http://www.geocities.com/unicraftmodels/j1000.htm
