Hi everybody!

I read a article about the Ju52 with only one engine!

http://de.wikipedia.org/wiki/Junkers_Ju_52/1m

Maybe someone knows more about this Ju52-variant?


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
414
Reaction score
258
I don't have my references to hand, but I believe this is the original--the 3m was the variant. The Ju52 was powered by a liquid-cooled Junkers L-5 engine in the 300-500 hp range. While the Ju52 was quite successful as a bush plane in Canada and Australia, the L-5 did not provide much power for an aircraft of that size. Three 700+ hp Pratt and Whitney Hornet radials (license-built by Bramo) greatly improved the airplane, particularly for airline and military use.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,725
Reaction score
1,173
According to Turner & Nowarra, five "Ju-52/1m"s were built:

- Ju-52ba c/n 4001 D-1974 (first flight 13 Oct 1930), 800 hp Junkers L88
-- became Ju-52be with 755 hp BMW VIIau
- Ju-52d ? c/n 4002, 800 hp Junkers L88
-- possibly re-engined as Ju-52do, 750 hp Junkers Jumo 204 diesel
- Ju-52di ? c/n 4003 D-2133, 750 hp A-S Leopard radial
- Ju-52ce c/n 4004 D-2317/SE-ADM, 755 hp BMW VIIau
- Ju-52cai c/n 4005 D-2356, 750 hp BMW IXu
- Ju-52cao c/n 4006 CF-ARM, BMW VIIa then 825 hp RR Buzzard

Airframes differed slightly from the later Ju-52/3m. The Ju-52's vertical tail was smaller and horn-balanced and the Ju-52di was flown for a time with a shortened rear fuselage.


Attachments

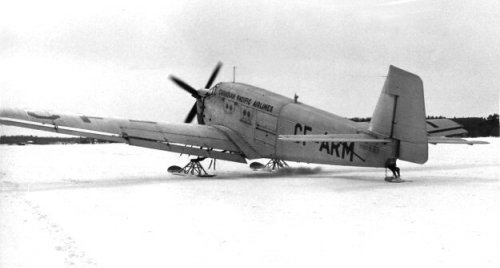

  • CF-ARM-skiis.jpg
    28.1 KB · Views: 215

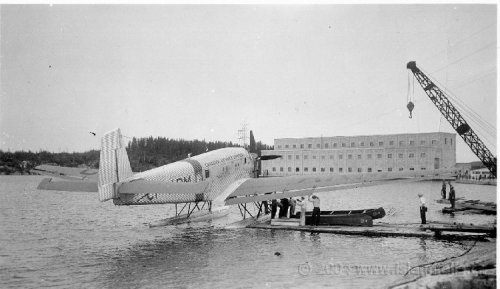

  • CF-ARM-floats.jpg
    60 KB · Views: 194

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,725
Reaction score
1,173
Forgot to mention, the Australian aircraft. Perhaps you were thinkng of the Junkers W 33? The G 31 was also flown Down Under but, of course, that was a trimotor.

Some detail images of the original CF-ARM http://www.wcam.mb.ca/junkers-archive.html


baja

ACCESS: Restricted
Joined
Feb 23, 2009
Messages
32
Reaction score
10
Thank you! That's really interesting!

Maybe somebody know a model kit of this Ju52/1m?


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
136

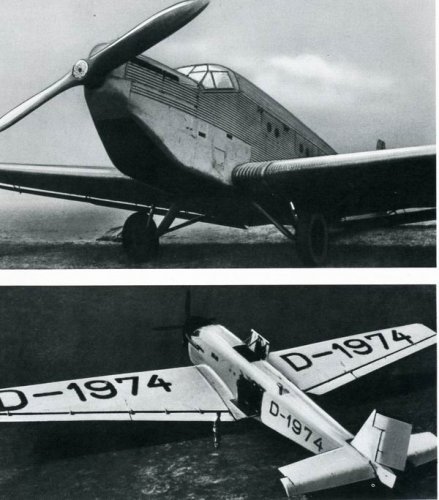

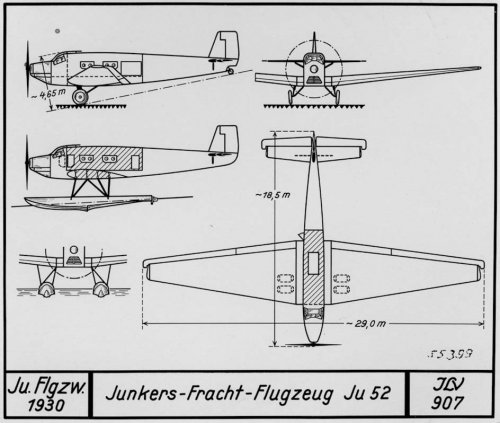

Photo and 3v. from book Gunter Schmitt's "Hugo Junkers und seine Flugzeuge" VEB Verlag 1986


Attachments

  • Ju 52-3m f..jpg
    Ju 52-3m f..jpg
    65.3 KB · Views: 185
  • Ju-52-1m.jpg
    57 KB · Views: 224

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
17
I've known about the /1m & of course the /3m, but was there ever a /2m?


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,994
Reaction score
370

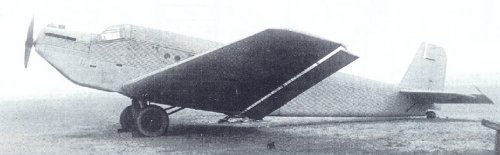

...some pics...

(Source: Jet&Prop 1997-04)

Maveric


Attachments

  • Jet & Prop 1997-04-3.jpg
    Jet & Prop 1997-04-3.jpg
    209 KB · Views: 62
  • Jet & Prop 1997-04-2.jpg
    Jet & Prop 1997-04-2.jpg
    253.2 KB · Views: 59
  • Jet & Prop 1997-04-1.jpg
    Jet & Prop 1997-04-1.jpg
    375.8 KB · Views: 182

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,195
Reaction score
898
Website
beyondthesprues.com
It's not a Ju-52/1m, but in lieu of starting another thread, I figured it could go here (perhaps the mods can change this to be a more generic Ju-52 thread?).

This appears to be a inline engined Ju-52/3m. Any ideas/information?

Regards,

Greg


Attachments

  • inline ju523b.jpg
    inline ju523b.jpg
    136.3 KB · Views: 44
  • nline ju523.jpg
    nline ju523.jpg
    173.4 KB · Views: 52

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,821
Reaction score
697

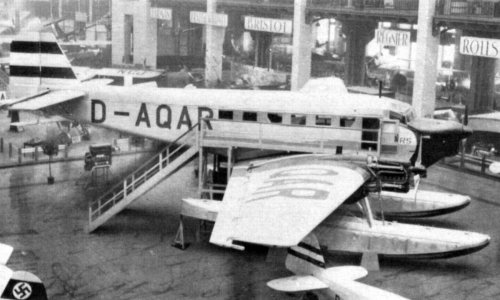

It is a Ju 52/3mho, powered by three Jumo 205 C 600hp opposed-piston diesel engines.
Two were built and used by Lufthansa as D-AIYR and D-AQAR.


baja

ACCESS: Restricted
Joined
Feb 23, 2009
Messages
32
Reaction score
10
http://www.flugzeug-lorenz.de/index.php?id=88

I found there some more information about the Ju 52/1m.


Attachments

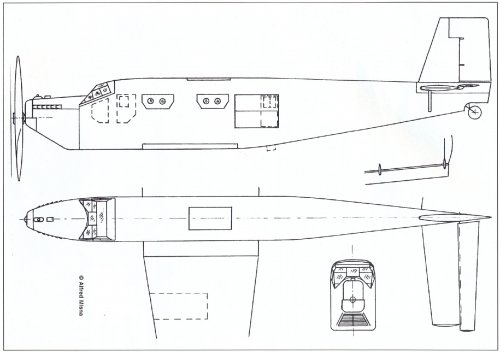

  • Zeichnung_Ju52.jpg
    97.6 KB · Views: 71

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
SaturnCanuck said:
frank said:
I've known about the /1m & of course the /3m, but was there ever a /2m?
No.

Although it is correct to say there wasn't a twin-engine Ju 52, I must add though that one was studied under the EF 49 program in 1933.
