JSF Engine Weights

LowObservable

ACCESS: Top Secret
Senior Member
Joined
17 October 2006
Messages
2,356
Reaction score
997
http://www.aviationweek.com/aw/blogs/defense/index.jsp?plckController=Blog&plckScript=blogScript&plckElementId=blogDest&plckBlogPage=BlogViewPost&plckPostId=Blog%3a27ec4a53-dcc8-42d0-bd3a-01329aef79a7Post%3a00ebc3ee-116e-4c02-97df-bb460fe7e001


Attachments

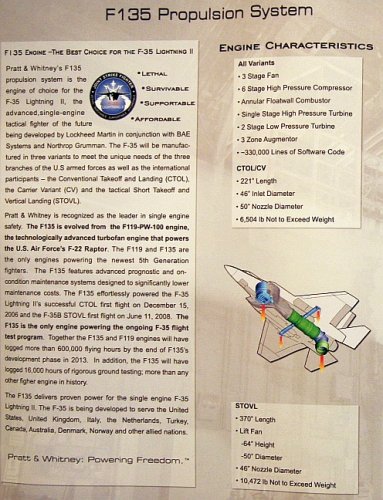

  • F135 brochure 1.jpg
    F135 brochure 1.jpg
    221.3 KB · Views: 37

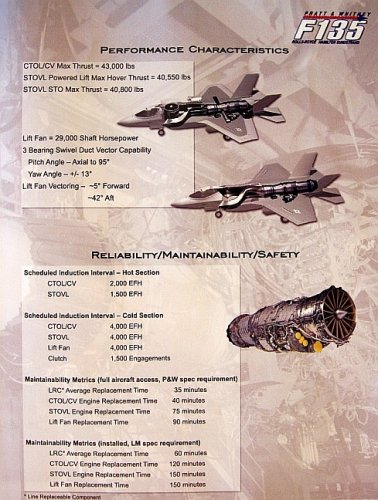

  • F135 brochure 2.jpg
    F135 brochure 2.jpg
    239.8 KB · Views: 32
You've only got one engine there and then it's not the actual weight but the "Not to exceed weight".

regards,

Greg
