Hi,

the Johansen Aircraft Company was formed in 1934,by W.E. Johansen,designed JA-1,
it was low-wing two-seat light monoplane,followed by JA-2,which was developed from it,
and powered by one 40 hp engine.

The JA-3 maybe remained a Project,it was also a two-seat low-wing monoplane,but
powered by one 65 hp Lycoming engine.

http://www.aerofiles.com/_j.html
http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201940%2002.pdf


Attachments

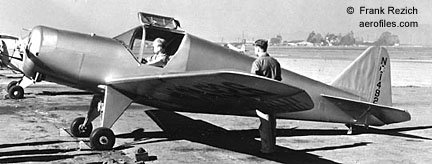

  • johansen JA-2.jpg
    johansen JA-2.jpg
    22.7 KB · Views: 242

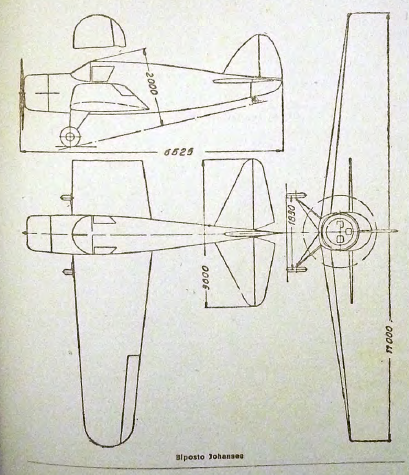

  • JA-3.png
    304.7 KB · Views: 245

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,913
Reaction score
1,618
Thanks Hesham. That Johansen JA-2 (c/n 201, NC14926) engine was a Church Marathon J-3 air-cooled inline 4-cylinder -- with a power rating up to 46.5 hp. The Marathon J-3 was a larger-capacity development of the Heath-Henderson B-4 motorcycle engine (the Marathon J-3 being enlarged to 1.77 L capacity vs the B-4's 1.4 L).

According to Jack Erickson, the JA-3 was offered with a 40 hp Continental A-40-5 horizontally-opposed 4-cylinder. No mention of a 65 hp Lycoming.

http://www.enginehistory.org/HOAE/Continental1.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,635
Reaction score
6,483
Thank you my dear Apophenia,

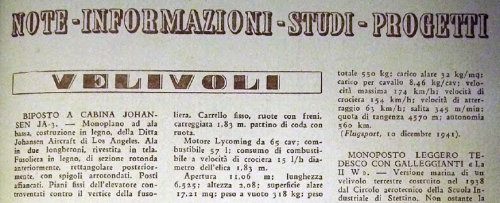

but they wrote that,please see.


Attachments

  • 1.png
    742.7 KB · Views: 188

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,913
Reaction score
1,618
Thanks Hesham. My comment wasn't a challenge ... I just meant that Jack Erickson hadn't mention the JA-3 under his Lycoming listings.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,635
Reaction score
6,483
Alright my dear Apophenia,

I just wanted to explain,and I think JA-3 remained a Project ?.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,913
Reaction score
1,618
hesham said:
... and I think JA-3 remained a Project ?.

Maybe. But, as mentioned in the Aerofiles listing, "Speculation with some historians is that only one plane was built by Johansen, [NX14926], and was JA-1, -2, and finally -3 during its evolution."

By that reasoning, Walter Johansen revised and re-engined the same, single airframe several times. That evolution may have been something like this:

Johansen JA-1 -- The original airframe powered by a 40 hp Continental HO4
-- JA-1 powerplant may have been the same 40 hp A-40-5 that shows up later.

Johansen JA-2 -- JA-1 airframe re-engined with a cheaper Church Marathon J-3 inline.
-- JA-2 offered unsuccessfully by Walter Johansen Aircraft Co. with an optional Continental A-40.

Johansen JA-3 -- JA-2 re-engined with 40 hp Continental A-40-5* (from JA-1 incarnation?).
-- JA-3 offered unsuccessfully by Walter Johansen Aircraft Co. with optional 65 hp Lycoming.**

_____________________________________

* As per Jack Erickson's Continental (Part 1) listings.

** As per l'Ala d'Italia. Presumably this 65 hp Lycoming was the O-145-B model.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,635
Reaction score
6,483
Brilliant Info my dear Apophenia.
