Jet-Craft and other DH Vampire executive jet projects

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,115

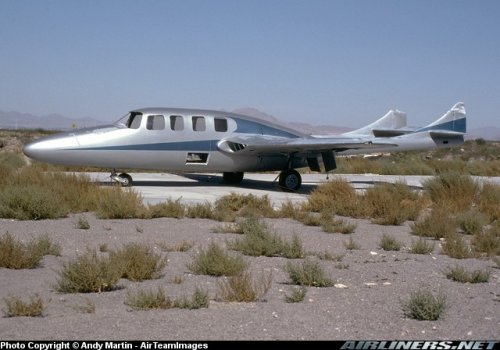

Someone in another Forum came up with the Jetcraft Mystery Jet, a conversion of the
DH Vampire into an executive jet. The caption to the photo in Airliners.net
( http://www.airliners.net/open.file?id=196893) says, that on was built, a fact
I'm not sure about, as somewhere else I read, that it was only a mock-up . From an

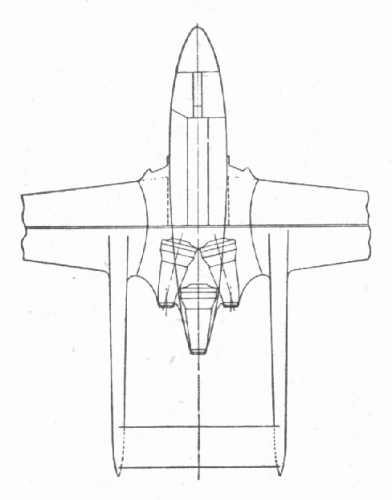

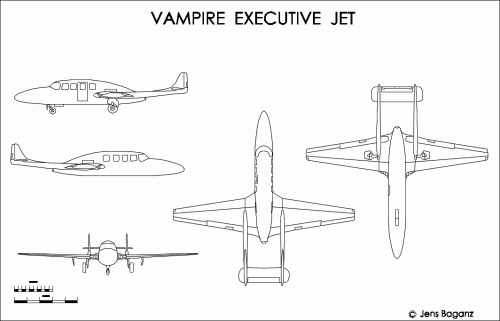

unknown source, I have a drawing, ,showing the engine arrangement of a proposal for a
three engined executive jet, based on the Vampire, but I think, that's not identical to the
Mystery Jet.
Anybody, who has more infos, please ?


Attachments

  • vampire_ex_jet.jpg
    79.3 KB · Views: 847
  • vampire_ex_jet.GIF
    34.3 KB · Views: 744
  • De Havilland (TL-Verk.-fl.-proj. auf Vampire-Basis).gif
    De Havilland (TL-Verk.-fl.-proj. auf Vampire-Basis).gif
    70.6 KB · Views: 630

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
80
Jemiba,

The 3 engined design is in fact the first -end of 1943- of the design studies
which materialised into the Comet.
It was based on the Vampire but with a span of 80ft. and powered
by 3 early Halford H2 turbojets grouped in the rear of the fuselage.
This aircraft would fly London-New York with 2000lb plus six passengers
or a 1400-mile stage with 1500lb plus 9 or 12 passengers cruising
at 500 m.p.h.

sources : De Havilland Gazette No.103 February 1958 or 59
Air International-April 1977.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,525
Reaction score
279

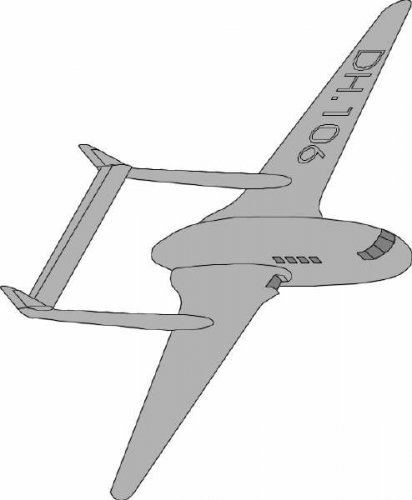

Some years ago, Tophe produced this sketch from Lark and Pometablava research


Attachments

  • DH106 first configuration.jpg
    DH106 first configuration.jpg
    20.9 KB · Views: 549

zebedee

ACCESS: Confidential
Joined
Mar 18, 2007
Messages
193
Reaction score
185
Website
www.flickr.com
I've been mildly intrigued by this bird for a long time, ever since I saw a photo of the "nearly complete" prototype in Air Pictorial when I was a kid.

Now after doing a little digging this morning there would appear to have been 2 projects based around this idea. The first was a British project lead by a former Handly Page designer, with engineering input from Aviation Traders and Marshalls. A mock up, or static test example was built which ended up at North Weald and being burnt around 10 years ago... theres a couple good threads on the Key forums here...

http://forum.keypublishing.co.uk/showthread.php?t=21759&highlight=mystery+jet
http://forum.keypublishing.co.uk/showthread.php?t=54340

The american project seems similar, if a slightly bigger design. However from reading between the lines over the years I have a funny feeling that this project was never more than a scam. From what I can gather the prototype and design rights changed hands 3 or possibly more times, each time a new set of investers being shown the nearly complete prototype as proof of the projects viability... the only snag being that the "prototype" was little more than a fibreglass shell...

Zeb


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
12
zebedee said:
The american project seems similar, if a slightly bigger design. However from reading between the lines over the years I have a funny feeling that this project was never more than a scam. From what I can gather the prototype and design rights changed hands 3 or possibly more times, each time a new set of investers being shown the nearly complete prototype as proof of the projects viability... the only snag being that the "prototype" was little more than a fibreglass shell...

Zeb

It doesn't necessarily have to be a scam per se, but a lot of projects are prone to sink from the dishonesty and greed of even a single individual. This seems to happen quite a bit in the aviation industry especially, and the more "wild" the project, the more prone it is to these unfortunate pitfalls - ATG seems to be experiencing this right now.

Hi,

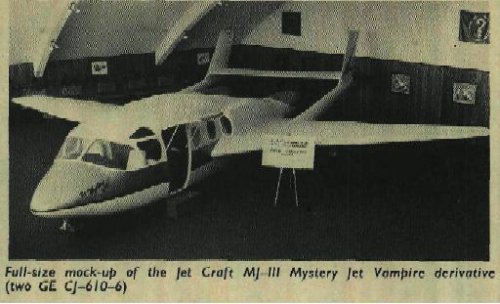

the Jet Craft Ltd designed the MJ-III Mystery,jet Vampire derivative,
it was accommodated a six-seat and powered by two GE CJ-610-6
engines.[/img]

That seems to be a rather extreme "reeingineering" of the Vampire - almost seems more worth it to design something from scratch!


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
80
See also :
www.vintage wings.ca
( Vampires of Las Vegas)
Scroll down for the complete story..


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540

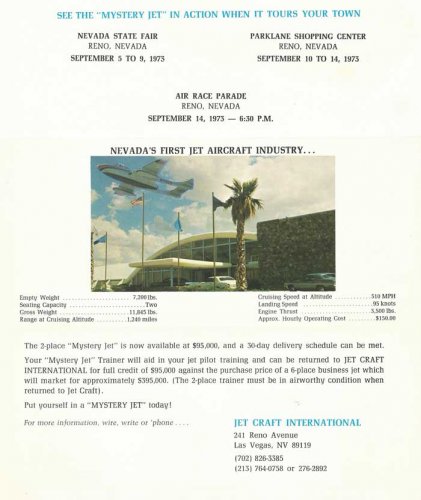

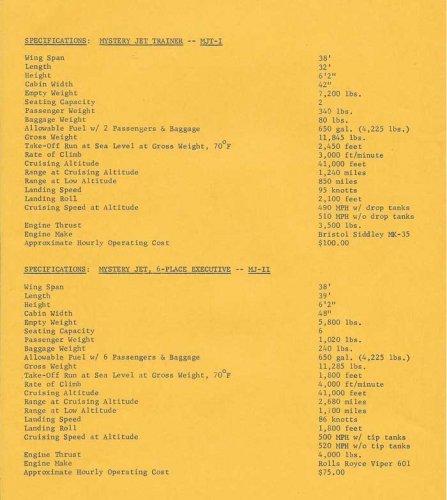

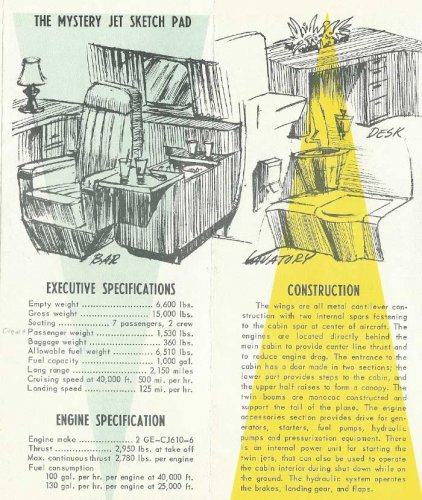

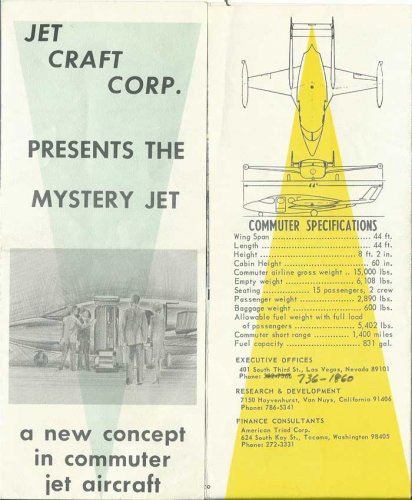

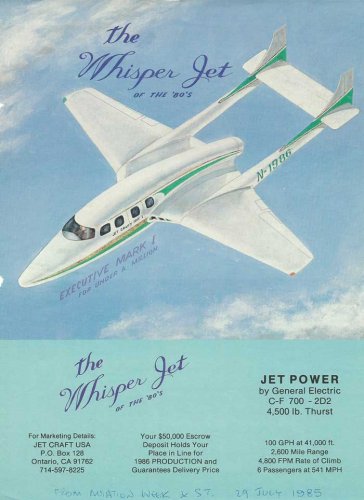

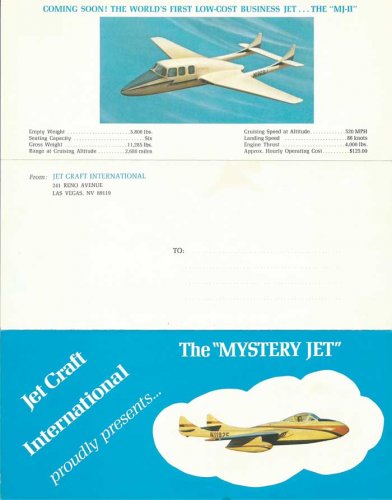

Original company brochure and ad:


Attachments

  • MysteryJet52.jpg
    58.7 KB · Views: 108
  • MysteryJet47.jpg
    55.5 KB · Views: 90
  • MysteryJet46.jpg
    45.9 KB · Views: 90
  • MysteryJet45.jpg
    52.5 KB · Views: 88
  • MysteryJet44.jpg
    122.8 KB · Views: 85
  • MysteryJet43.jpg
    89.6 KB · Views: 99
  • MysteryJet42.jpg
    95.8 KB · Views: 102
  • MysteryJet41.jpg
    69.5 KB · Views: 128

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
648

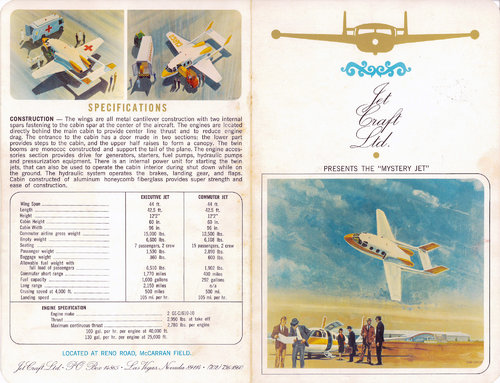

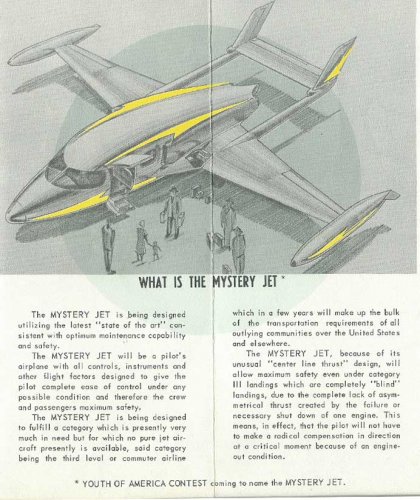

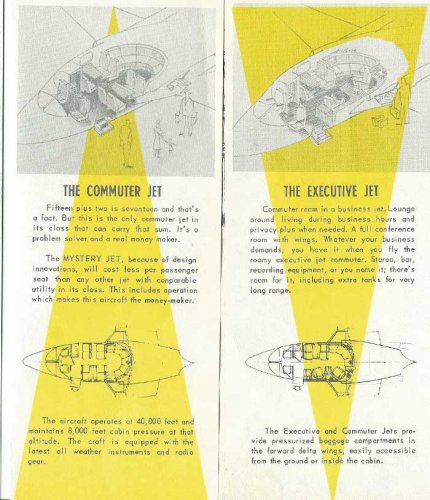

With thanks to RAP for coming across the brochure on EPay, my fingers could not resist the "Buy Now" button.

Not the two different exhause layouts - two somewhat separate engine exhausts and the other with an exhause reminiscent of the F7U-3 with a pen nib type fairing between more closely spaced exhausts.

Enjoy the Day! Mark


Attachments

  • zJetcraft Ltd Mystery Jet Brochure - 1.jpg
    zJetcraft Ltd Mystery Jet Brochure - 1.jpg
    1.2 MB · Views: 77
  • zJetcraft Ltd Mystery Jet Brochure - 2.jpg
    zJetcraft Ltd Mystery Jet Brochure - 2.jpg
    980.3 KB · Views: 74

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,288
Reaction score
682
It would have suffered yaw stability problems as proposed.
With all that extra lateral area forward of the wings, it would need much larger vertical tails than the original military Vampires.
We also wonder how much the large cabin cross-section would "blanket" the horizontal tail.
