Hi,

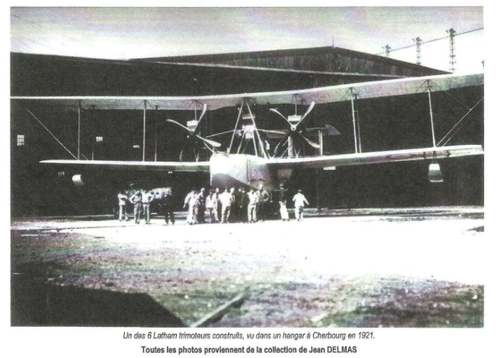

Mr. Jean Latham began construction a Levy flying boat in 1917/18 after formed Societe Latham & Cie,his first design was
H.5,it was a three engined (two tractor and one pusher) high seas biplane flying boat,powered by three 340 hp Panhard-

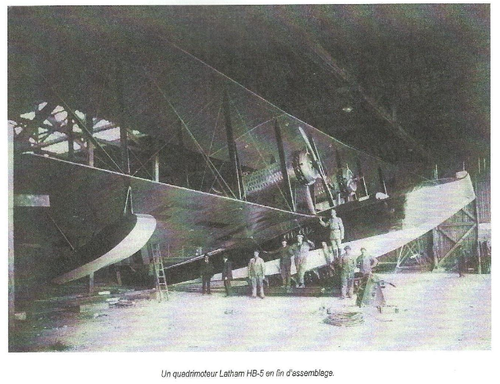

Levassor P1-12CB engines in 1918,the HB-5 was a civil derivative version of previous design,but powered by four 260 hp
Salmson 9Z engines in 1921,anther Project for this year,HB.3/I was a three engined flying boat,powered by three 350 hp Sumbeam engines.

For Schneider Trophy 1922/23,he created L-1 & L-2,they were a single seat biplane flying boats,powered by two tandem
400 hp Lorraine 12Db engines,also the C-1 was a biplane flying boat with a beautifully streamlined wooden hull of 1923,
and in HB.3 category,he built a three-seat bomber biplane flying boat,powered by one 300 hp Renault 12 Fe engine in 1925,the E-5 was a four engined recce biplane flying boat,with two tandem pairs of 400 hp Lorraine 12Db engines.

The Type-42 was a three-seat bomber biplane flying boat of 1924,powered by two 370 hp Lorraine 12 Da engines,the

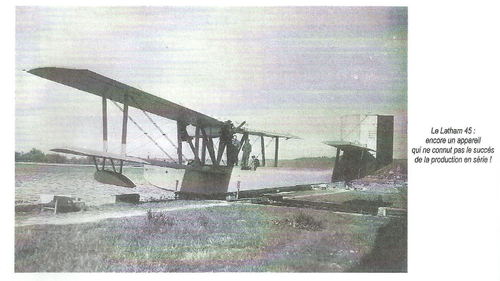

Type-43 was developed from it,but powered by two 380 hp Gnome-Rhone 9A Jupiter engines,the Type-45 was intermediate design,based on 43,with some improvements and same engines,the most notable was Type-47,it was intended as long range transatlantic sesquiplane flying boat for bombing and recce,powered by two 500 hp Farman 12W engines,the Type-49 was a Project two tractive engines mounted between the two sesquiplane wings,equipped with a nose turret and a rear one.

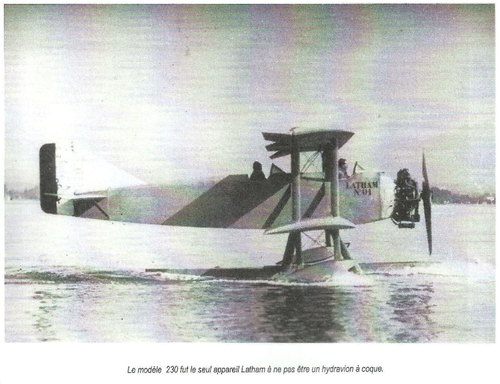

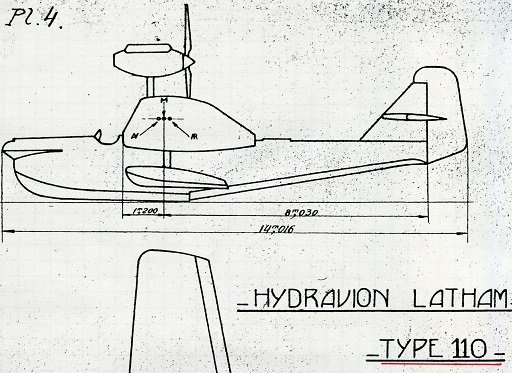

The Type-230 was two-seat recce biplane,with single main float and two auxiliary wing tip floats of 1928,powered by one 230 hp Salmson 9Ab engine,the Type-110 was a three-seat high wing recce/observation monoplane flying boat,powered by one 650 hp Hispano-Suiza 12Nbr engine,1930/31,later developed by Amiot after amalgamating with it.

In Onera Archive,they mentioned Type-63,as a seaplane or flying boat Project of 1929 ?.


Attachments

  • 300.png
    848.7 KB · Views: 61
  • 230.png
    925.3 KB · Views: 58
  • H-5.png
    528.9 KB · Views: 53
  • E.5.png
    842.7 KB · Views: 52
  • HB.5.png
    851.9 KB · Views: 49
  • L.png
    285.8 KB · Views: 73
  • 43.png
    185.8 KB · Views: 79
  • 45.png
    714 KB · Views: 74
  • 47.png
    768.4 KB · Views: 60
  • 110.jpg
    32.3 KB · Views: 59
Last edited:

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
3,129
Reaction score
1,909
There was also the two Latham 47P (Postal variants powered by 500 hp HS 12Hbs instead of Farman 12We engines. Except a reduced crew of 3, I believe otherwise unchanged.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,203
Reaction score
7,164

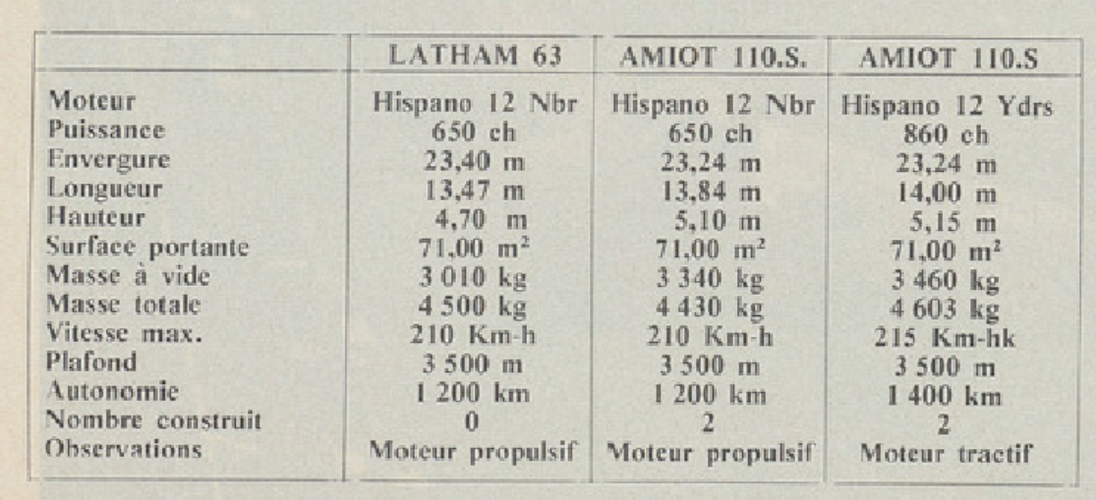

In Onera Archive,they mentioned Type-63,as a seaplane or flying boat Project of 1929 ?.

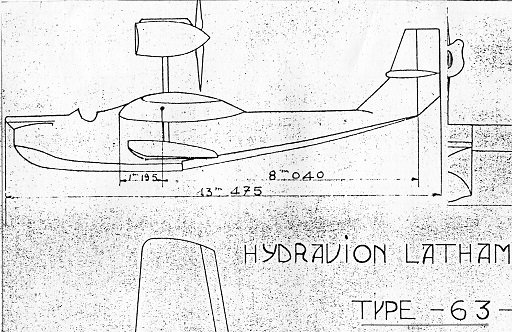

From TU 218,the Latham Type-63 was a three-seat recce and coast guard seaplane,with a high-
wing monoplane shape,and powered by one 650 hp pusher engine,mounted above the wing,
it remained a Project,but later developed with some improvements into Type-110.


Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
252
Reaction score
297

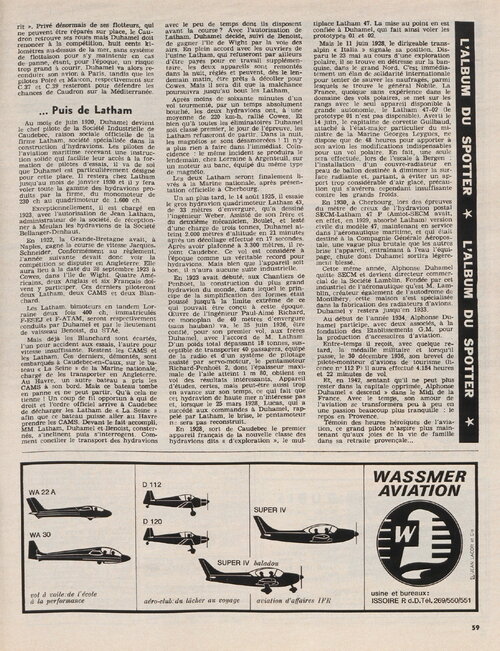

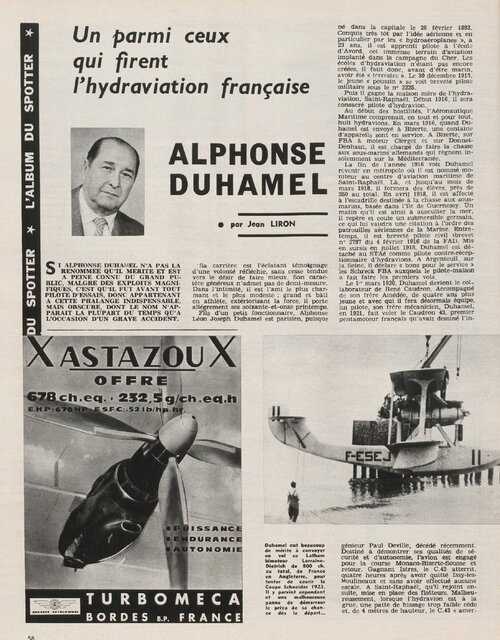

Some about Latham....Designer Alphonse Duhamel from 1965 Aviation Magazine


Attachments

  • 1965 Aviation Magazine 20200321-011.jpg
    1965 Aviation Magazine 20200321-011.jpg
    433.4 KB · Views: 11
  • 1965 Aviation Magazine 20200321-010.jpg
    1965 Aviation Magazine 20200321-010.jpg
    342.9 KB · Views: 14

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
252
Reaction score
297

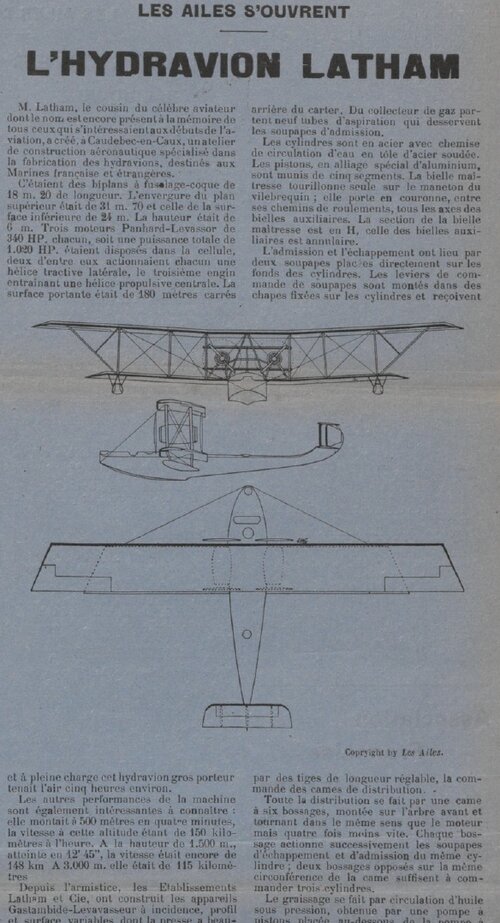

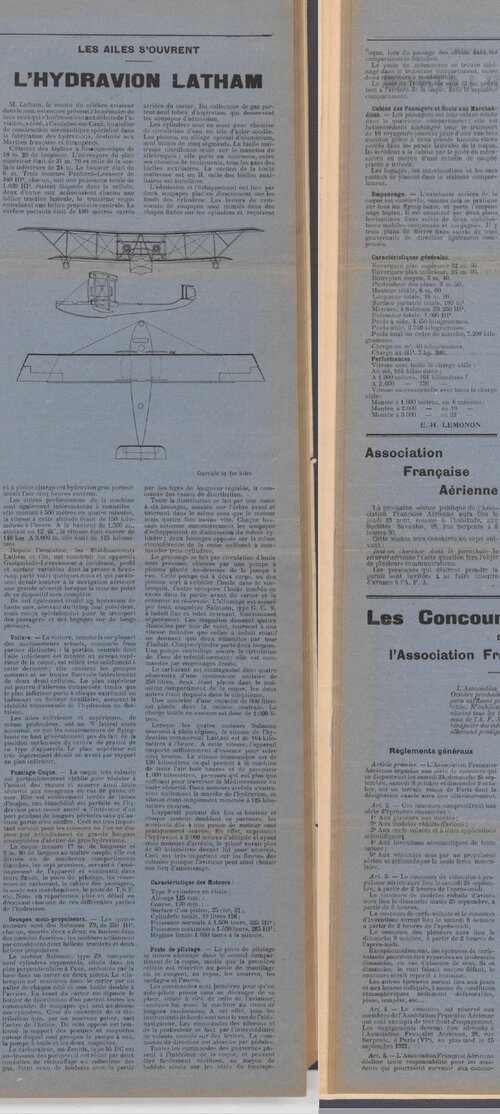

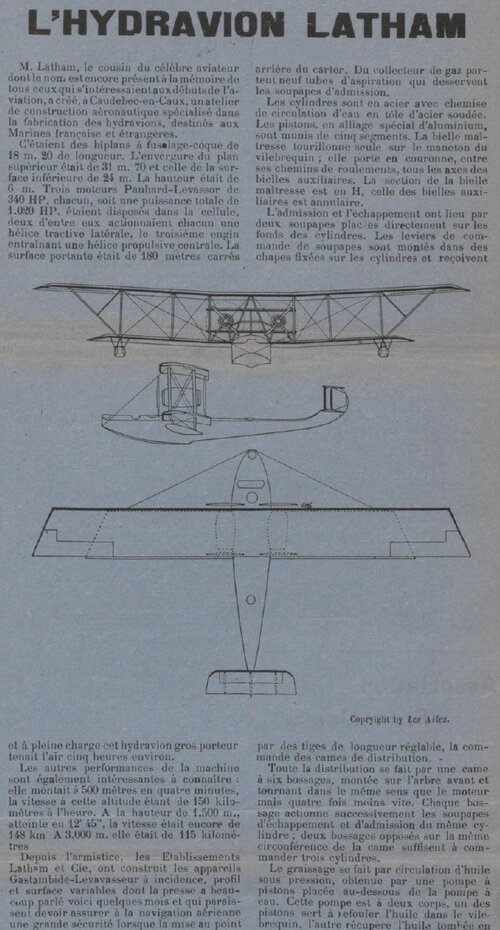

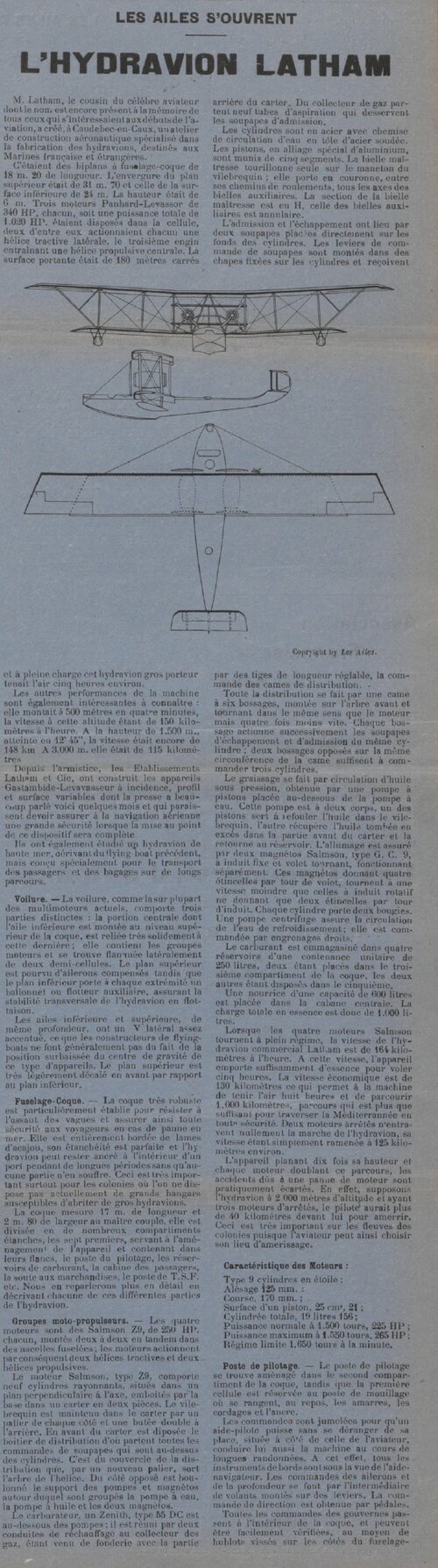

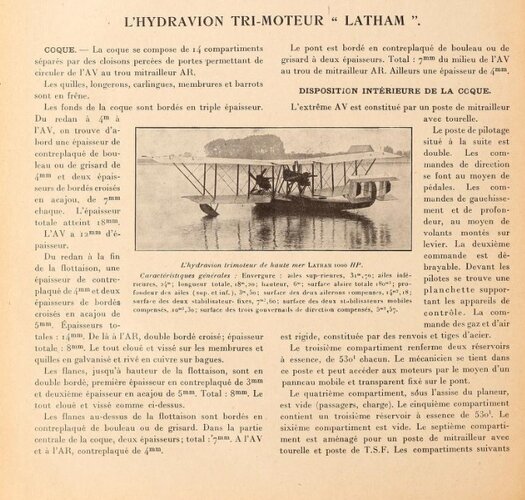

The only way to determine which planes are mentioned in Latham articles is to look at their engine specs. First the 1918 3x340hp Panhard H.5 seaplane


Attachments

  • 1920 Aeronautique-20190129-016.jpg
    1920 Aeronautique-20190129-016.jpg
    386.1 KB · Views: 9
  • 1920 Aeronautique-20190129-017.jpg
    1920 Aeronautique-20190129-017.jpg
    476.7 KB · Views: 9
  • 1921 Les Ailes 20200314-008.jpg
    1921 Les Ailes 20200314-008.jpg
    910.7 KB · Views: 8
  • 1921 Les Ailes 20200720-002.jpg
    1921 Les Ailes 20200720-002.jpg
    1.2 MB · Views: 8
  • 1922 Les Ailes 20190530-006.jpg
    1922 Les Ailes 20190530-006.jpg
    478.5 KB · Views: 9
  • 1922 Les Ailes 20190530-007.jpg
    1922 Les Ailes 20190530-007.jpg
    533 KB · Views: 9
  • 1922 les ailes 20190531-022.jpg
    1922 les ailes 20190531-022.jpg
    481.5 KB · Views: 9
  • 1922 les ailes 20190531-023.jpg
    1922 les ailes 20190531-023.jpg
    591.1 KB · Views: 8

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
252
Reaction score
297

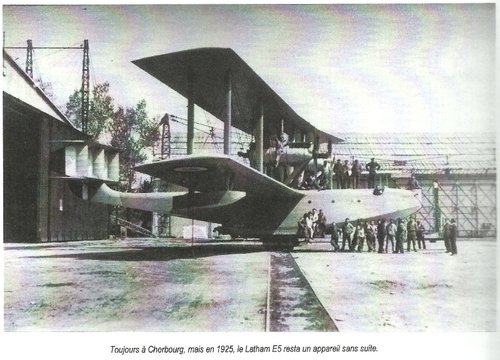

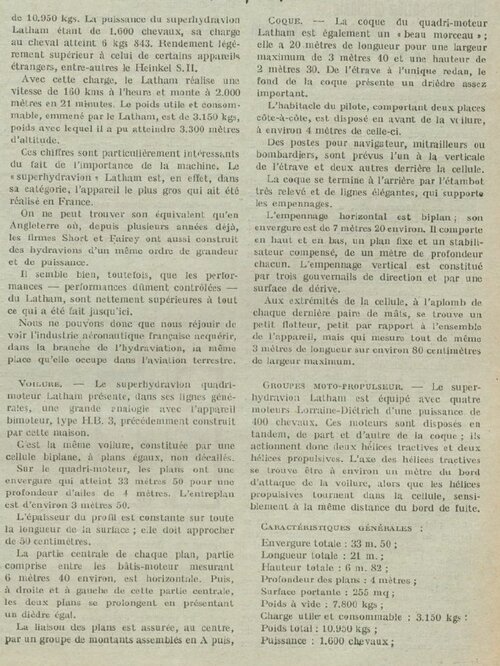

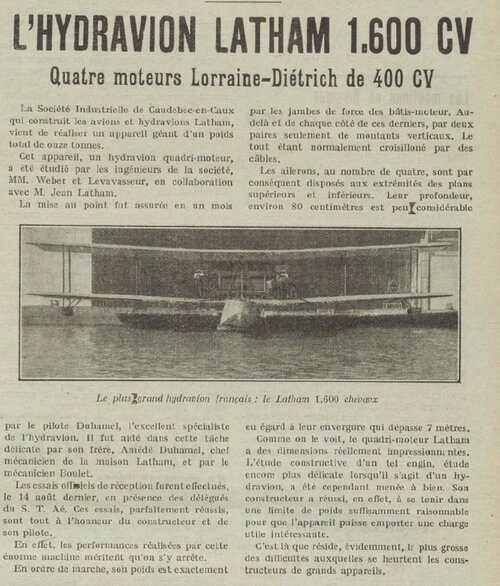

Then the 1925 4x400hp Lorraine E-5 seaplane


Attachments

  • 1925 Les Ailes 20190713-038.jpg
    1925 Les Ailes 20190713-038.jpg
    475.4 KB · Views: 10
  • 1925 Les Ailes 20190713-039.jpg
    1925 Les Ailes 20190713-039.jpg
    292.6 KB · Views: 10
  • 1925 Les Ailes 20190713-040.jpg
    1925 Les Ailes 20190713-040.jpg
    537.2 KB · Views: 10

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
252
Reaction score
297

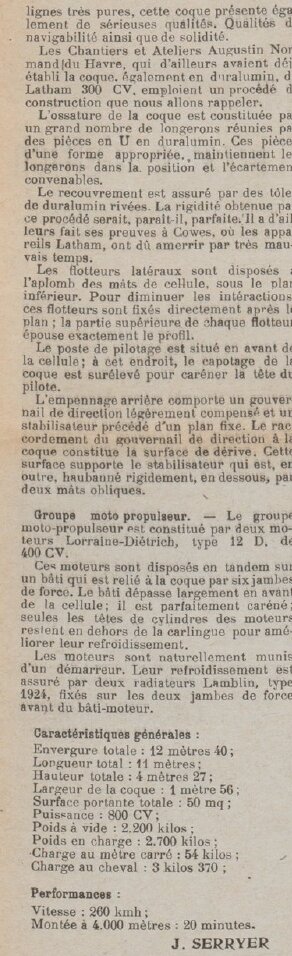

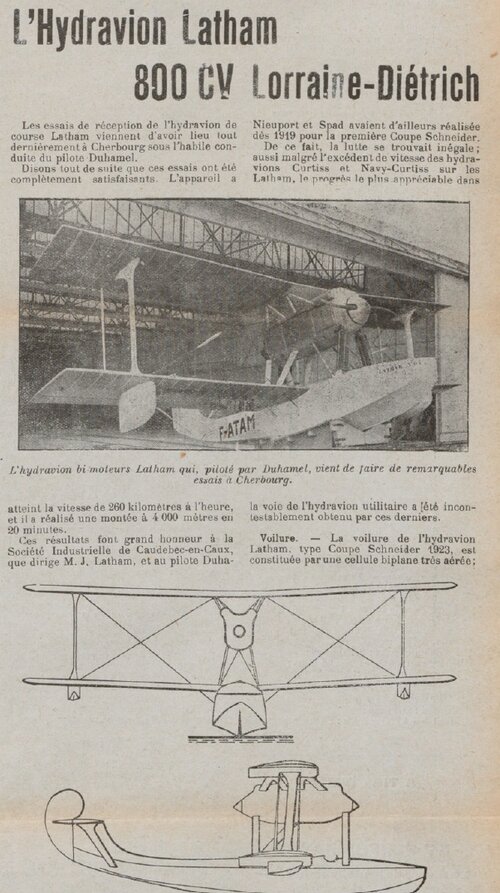

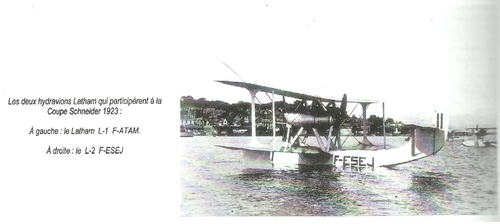

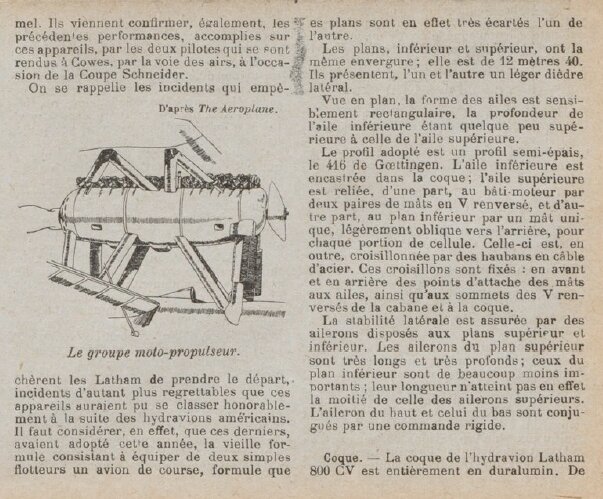

And the 1922 2x400hp Lorraine L-1+2 Schneider racers


Attachments

  • 1923 Les Ailes 20190624-099.jpg
    1923 Les Ailes 20190624-099.jpg
    513.3 KB · Views: 8
  • 1923 Les Ailes 20190624-100.jpg
    1923 Les Ailes 20190624-100.jpg
    336.8 KB · Views: 8
  • 1923 Les Ailes 20190624-101.jpg
    1923 Les Ailes 20190624-101.jpg
    284.8 KB · Views: 8
  • 1923 Les Ailes 20190624-102.jpg
    1923 Les Ailes 20190624-102.jpg
    276.7 KB · Views: 6

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
252
Reaction score
297

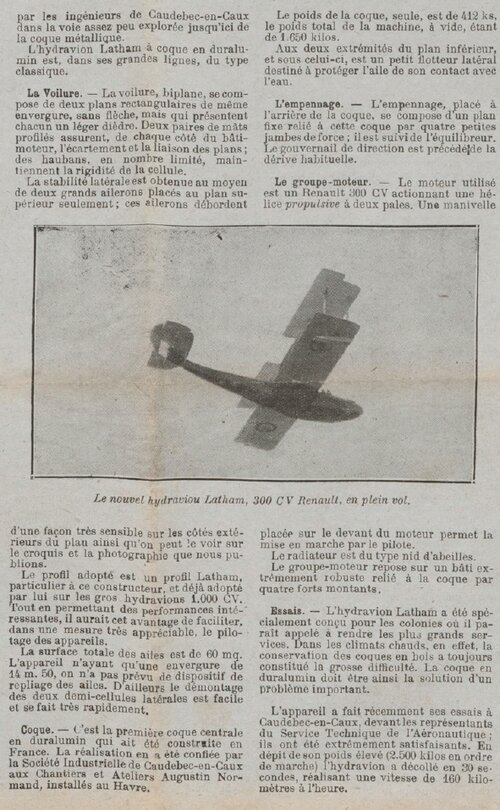

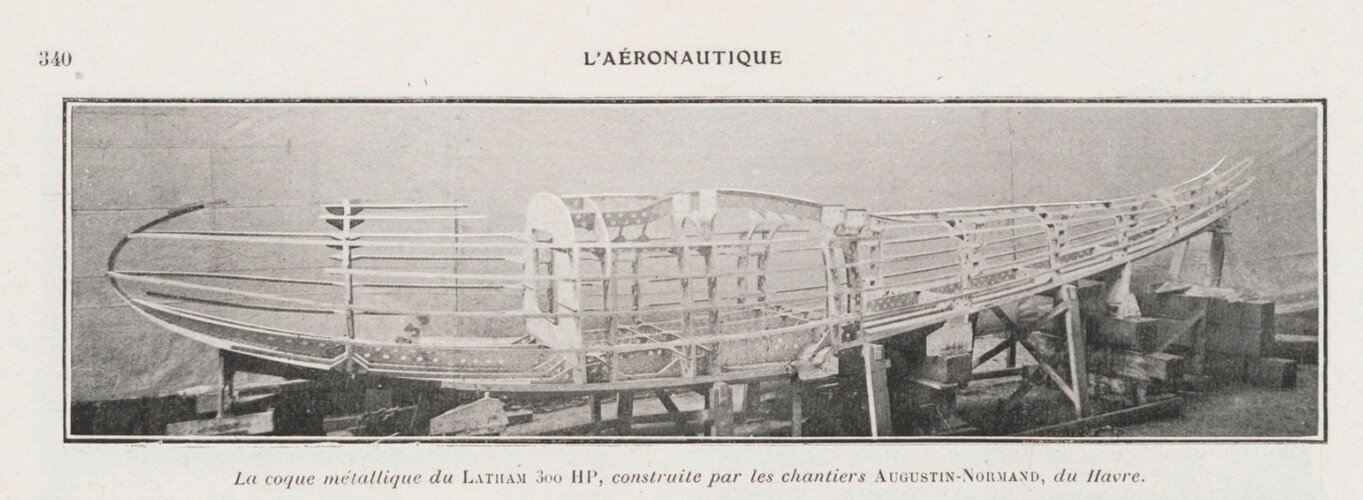

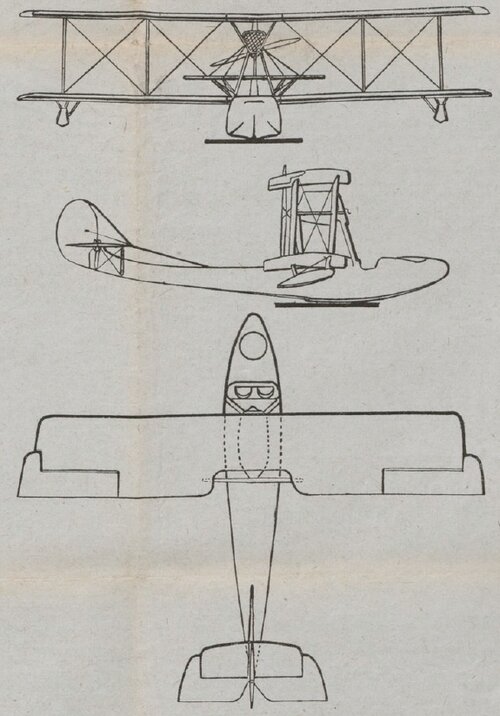

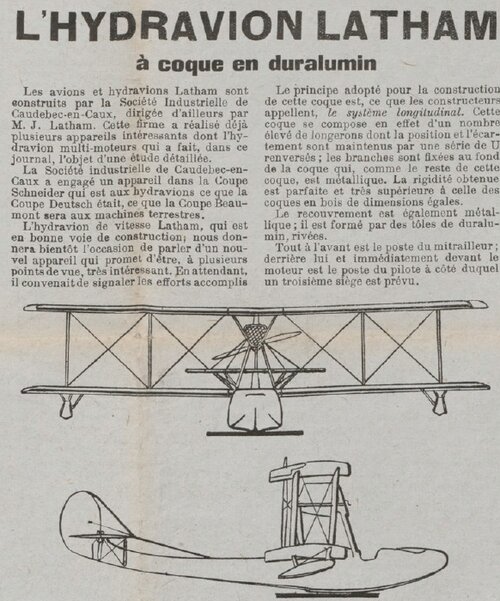

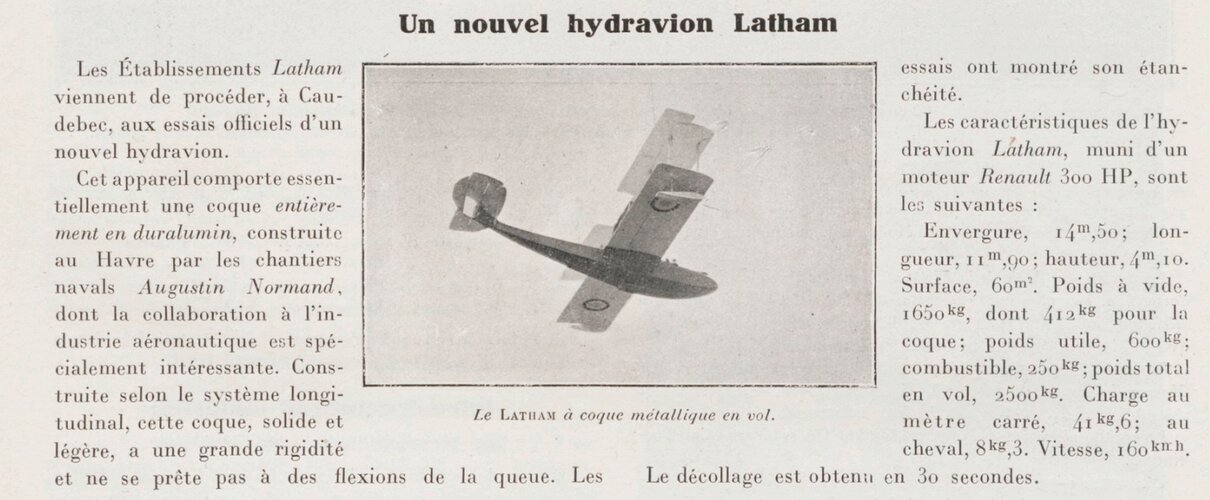

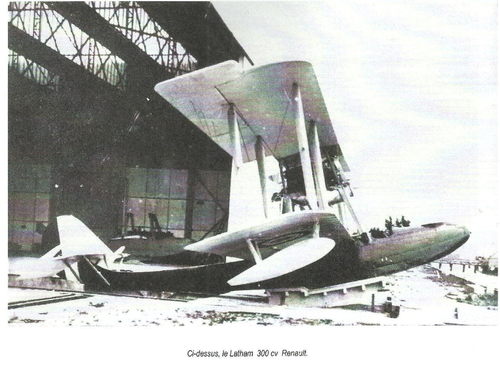

And the 1923 1x300hp Renault seaplane for which I could not find any designation


Attachments

  • 1923 Aeronautique-20190131-043.jpg
    1923 Aeronautique-20190131-043.jpg
    529.5 KB · Views: 7
  • 1923 Aeronautique-20190131-044.jpg
    1923 Aeronautique-20190131-044.jpg
    601.3 KB · Views: 8
  • 1923 Les Ailes 20190624-065.jpg
    1923 Les Ailes 20190624-065.jpg
    338.7 KB · Views: 9
  • 1923 Les Ailes 20190624-066.jpg
    1923 Les Ailes 20190624-066.jpg
    302.8 KB · Views: 10
  • 1923 Les Ailes 20190624-067.jpg
    1923 Les Ailes 20190624-067.jpg
    509.9 KB · Views: 9

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
252
Reaction score
297

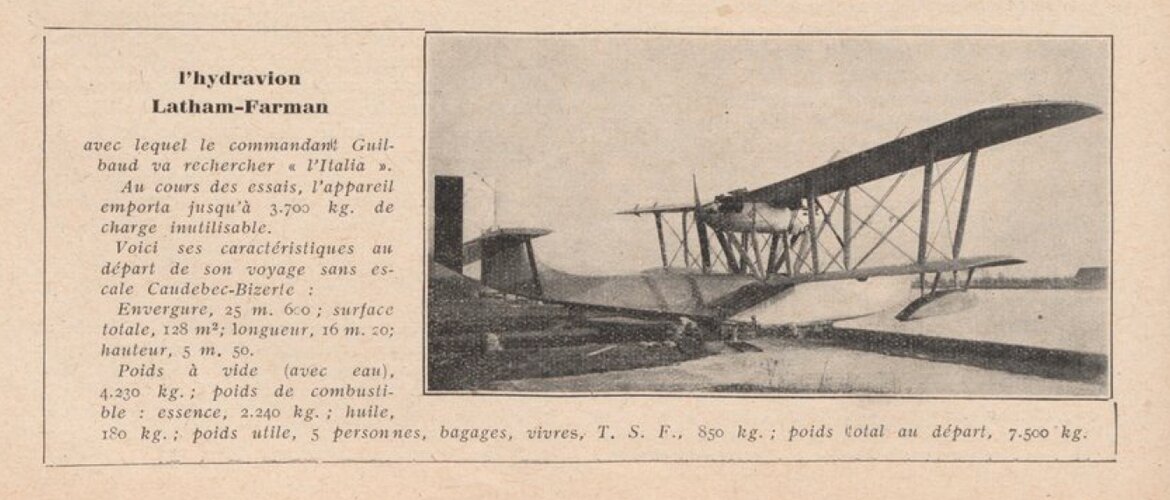

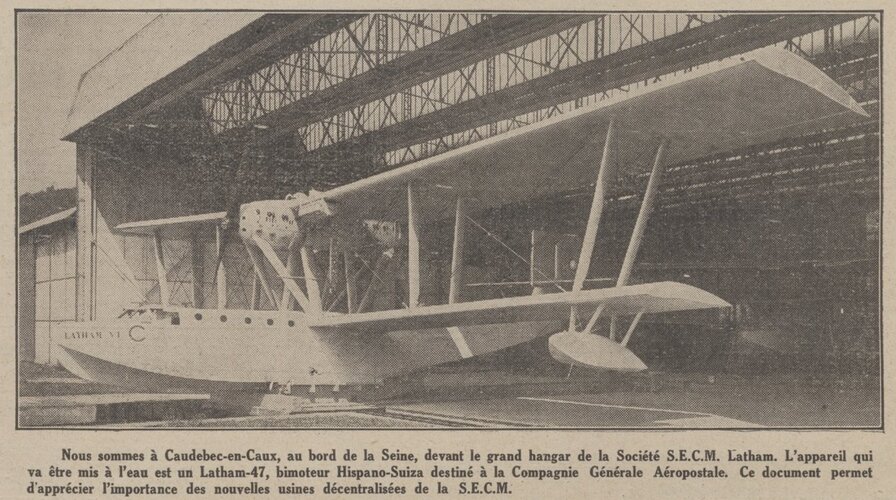

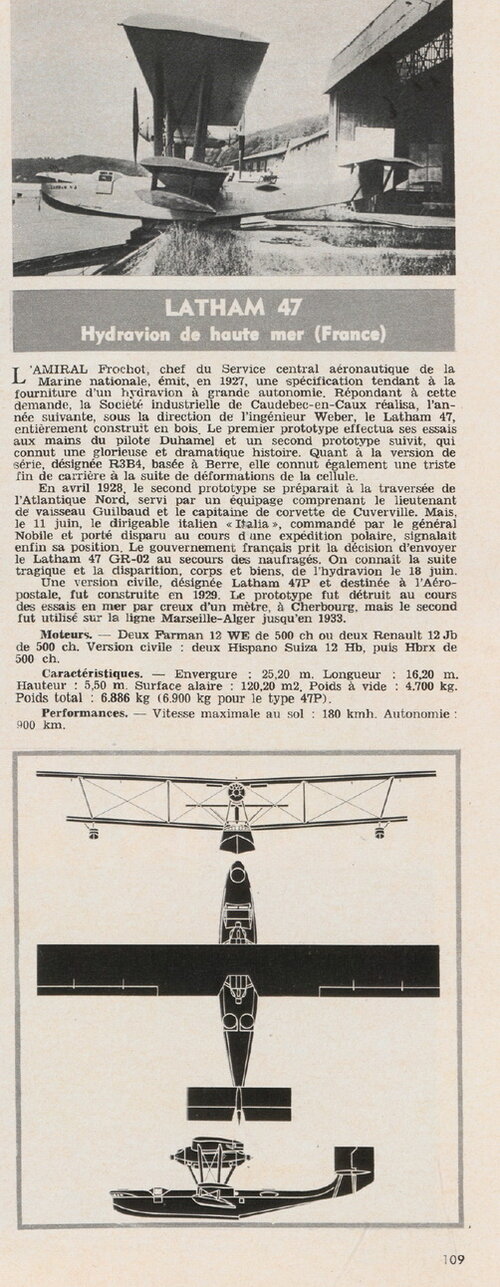

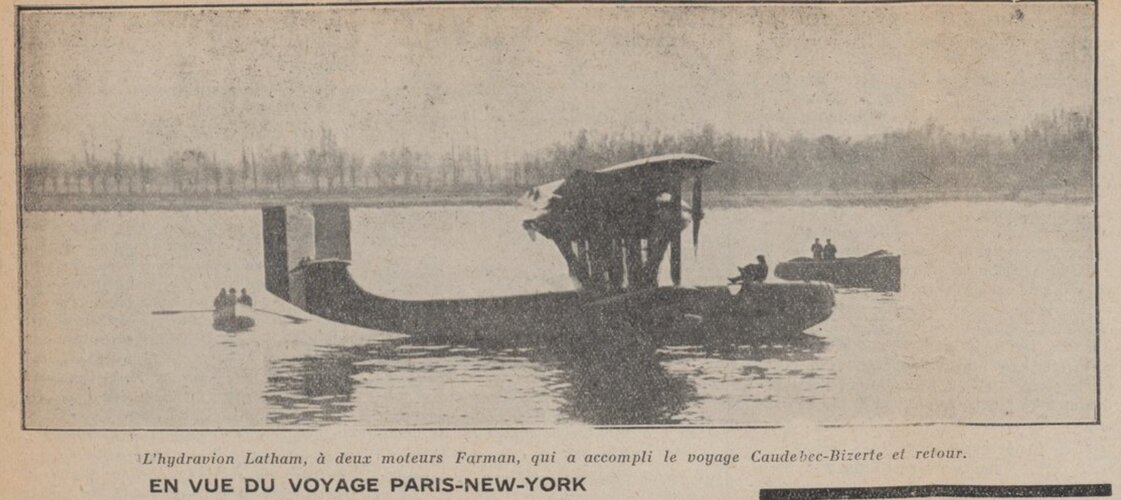

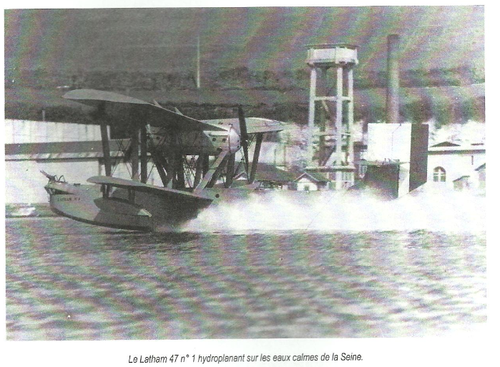

And finally the 1928 2x500hp Farman 47 seaplane


Attachments

  • 1928  Les Ailes 20191011-020.jpg
    1928 Les Ailes 20191011-020.jpg
    1 MB · Views: 5
  • 1928 Aeronautique-20190404-037.jpg
    1928 Aeronautique-20190404-037.jpg
    535.5 KB · Views: 5
  • 1928 L'Aérophile 20200123-037.jpg
    1928 L'Aérophile 20200123-037.jpg
    457.2 KB · Views: 5
  • 1930 Les Ailes 20200117-015.jpg
    1930 Les Ailes 20200117-015.jpg
    1.7 MB · Views: 7
  • 1970 Aviation Magazine 20200329-151.jpg
    1970 Aviation Magazine 20200329-151.jpg
    278.7 KB · Views: 9

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
252
Reaction score
297

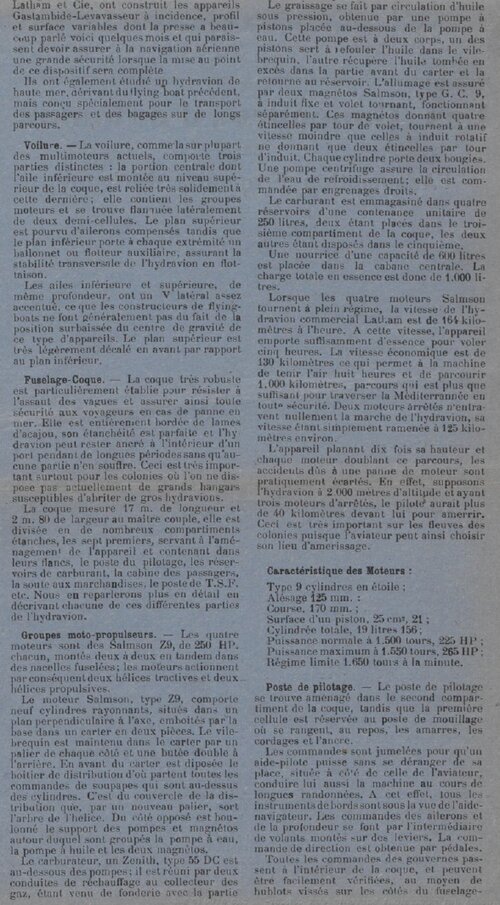

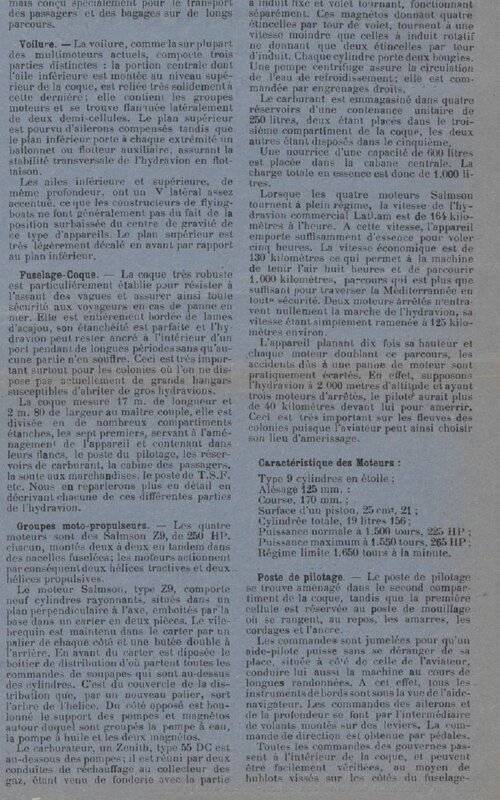

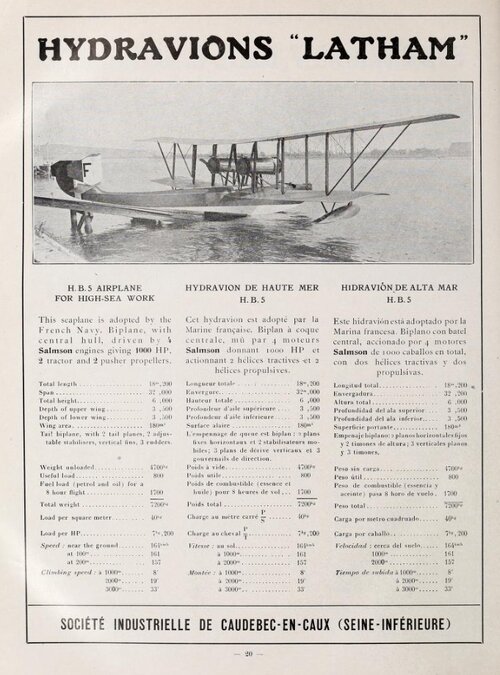

1921 4x260hp Salmson HB.5 seaplane


Attachments

  • 1922 Aeronautique-20190129-059.jpg
    1922 Aeronautique-20190129-059.jpg
    441.9 KB · Views: 8

Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
252
Reaction score
297

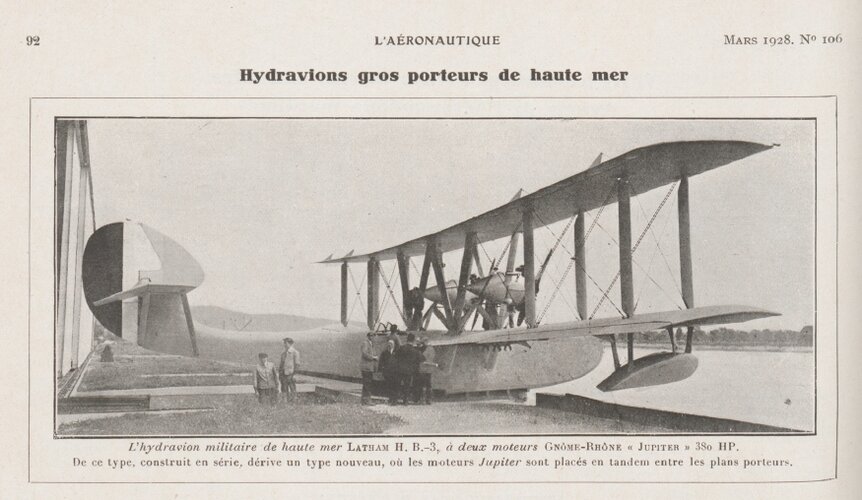

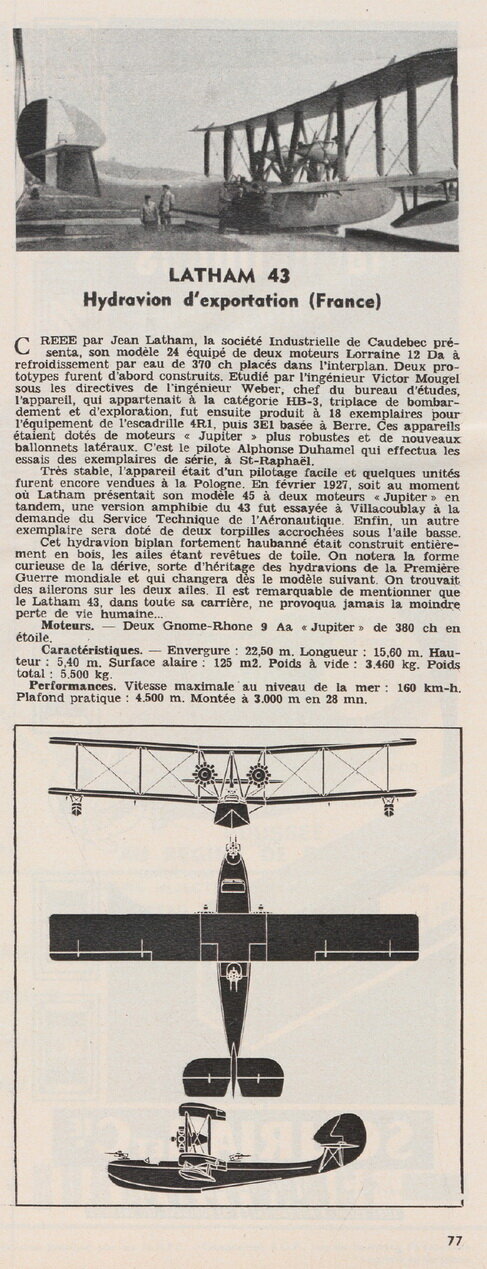

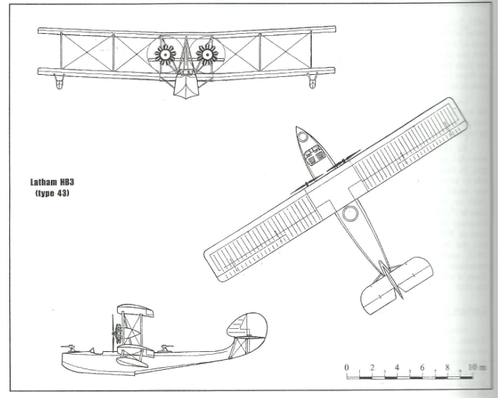

1921 2x380hp Gnome HB.3+43 seaplane


Attachments

  • 1928 Aeronautique-20190403-045.jpg
    1928 Aeronautique-20190403-045.jpg
    316.7 KB · Views: 7
  • 1970 Aviation Magazine 20200329-300.jpg
    1970 Aviation Magazine 20200329-300.jpg
    267.1 KB · Views: 7
