James Joseph Murray Variable Incidence Wing of 1918

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,598
Reaction score
580
Hi,

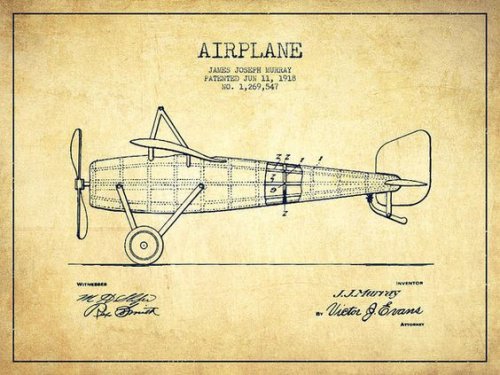

I can't ID this shape,maybe it had incidence wing.

https://www.pinterest.com/pin/316377942564721322/
https://patentimages.storage.googleapis.com/ff/fd/ad/9e5d98a431fbae/US1269547.pdf
https://patentimages.storage.googleapis.com/6e/8d/ec/2b65629d9736dc/US1290843.pdf


Attachments

Dynoman

CLEARANCE: Top Secret
Joined
Jul 29, 2009
Messages
759
Reaction score
29
Re: James Joseph Murray Biplane of 1918

This is a variable incidence design from the Murry and Willat Aeroplane and Motor Company. Murry developed a rotary engine of 1912 that is in the NASM. The Murry rotary is interesting because it represents one of the earliest concepts in supercharged aircraft engines.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,598
Reaction score
580
Thank you my dear Dynoman.
