Jagdente J 47

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,064
Reaction score
4,164
Website
www.amazon.com

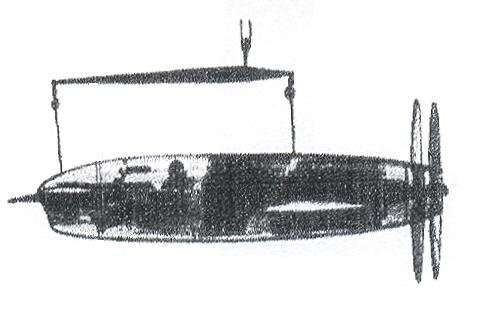

This is a very unusual case of a Swedish canard fighter without tailfin.
24 cylinder engine, 2x2 blades contraprop and single cannon.
It looks like a de Schelde S.21 without tailbooms.
Designer: Sixten Sason

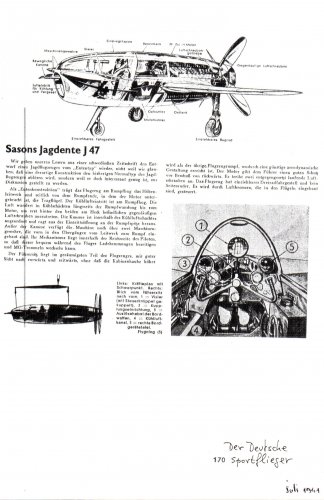

Source:Der Deutsche Sportflieger , Juli 1941
Does anybody have any additional information?


Attachments

  • Escanear0001.jpg
    100.8 KB · Views: 1,031
  • Escanear0002.jpg
    19.4 KB · Views: 800
  • Escanear0003.jpg
    114 KB · Views: 752

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
20
Justo, this is designer- SIXTEN SASON – Swedish industrial design genious


Attachments

  • saxon.jpg
    118.9 KB · Views: 433

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,340
Reaction score
1,497
Justo Miranda said:
... and single cannon.

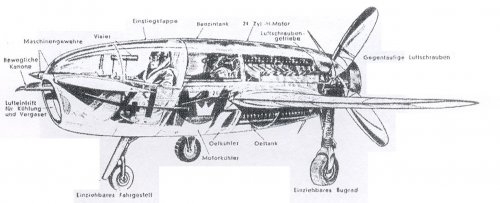

In the cut-away one flexible gun and two machine guns are shown and mentioned. ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,344
Reaction score
5,980
Hi,


never seen this beast before,thank you my dear Justo.


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
678
Reaction score
218
Dear Justo!


Thanks for sharing! Could you be more specific - what's the information source, that Saxon, later famous SAAB' car designer is the author of the aircraft picture?
Despite, that this concept (in my humble opinion) is a "flight of fantasy", not possible in real life - lack of vertical empennage, unrealistic size of engine and whole aircraft - I really appreciate it.
My guess, that "47" means possible year of appearance of such advanced fighters.


By the way, SAAB J-21 has some common features with this drawing: pusher engine, twin-boom, undercarriage with nose wheel.


Vladimir, thanks for mentioning the Saxon - I found interesting details about this person


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,299
Reaction score
2,261
Hi Justo, Long time not seen

on German Text
so that about the "Sasons J 47"
They called it "Jagtente" or "ententyp" and mean Canard configuration way back in 1941.
as source they mention a Swedish magazine, the author not beliefe this will replace the traditional Fighter, but concept is worthy to discuss.

next to canard wing in the bows, have the main wings "Airbrakes" to replace the rudders.
in the bows is air intake for cooler and one 24 cylinder engine over gearbox drives the contraprop
That air intake split up in two shafts running alongside the cockpit to engine
also in the bows air intake is mounted a flexible small Cannon (the text differs between Guns as Machine guns and Cannon)

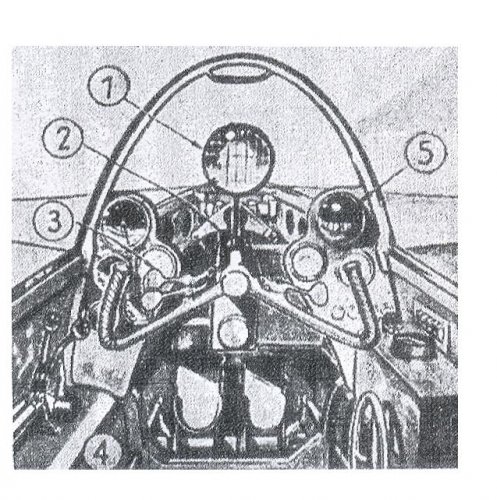

interesting is that Cannon and Machine guns end in Cockpit were pilot can handle them in case they jam or need replace ammo.
the author praise the the engine configuration as elegant way to protect the Pilot from enemy fire from behind.

for my part it nice and elegant Swedish design for a fast interceptor, but unpractical in dog fight do missing rudders...


T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
24
the nose remins me from the stillborn Dutch design the Schelde S-21,


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
678
Reaction score
218
There were some details, that prevents me to threat this very interesting and well-minded concept as useful for construction.
1) very small wings and forward horizontal stabilizer - even with canard layout they, IMHO, too small and without proper flaps couldn't provide good take-off and landing. Note, that size of wings and empennage and it's area didn't depicted on drawings?
2) 24-cylinder engine - very provisional in terms of size, weight, power - and necessary size of cooling system
3) undercarriage layout - looks that angle between main wheel and propeller down point is too small, as a ground clearance
4) pilot accommodation is too tight and required some serious safety measures (propellers' drop-off or ejection seat) to bail-out
5) very small size of fuel tanks


However, this design looks to me very advanced, as a provision for future jets: tricycle gear, canard-layout, power plant behind the pilot (providing both good forward view and some 'armor"), sideway channels for airstream.


Some of these features resemble me Heinkel He-178, Gloster E.28/39 - and SAAB twin-boom fighters!
I'm curios, if there any detailed story of J-21 development? And was Sason somehow connected with it?


TsrJoe

ACCESS: Secret
Senior Member
Joined
Jan 2, 2006
Messages
459
Reaction score
375
drawing by Sixten Sason ...


https://www.flightglobal.com/FlightPDFArchive/1943/1943%20-%202575.PDF


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
678
Reaction score
218
TsrJoe - thank you for the link!


This is 3-page article, covering the project of 42-cylinder engine, developed by Folke Mannerstedt, famous designer of bike engines of Husqvarna company.
Could this engine be build and successfully put into production? My guess - no.


But Sweden demonstrate their ability to good build aircraft and do it today :cool:


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
20

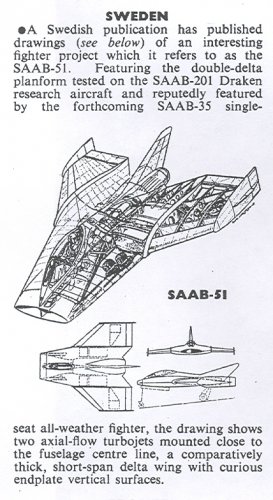

Justo, here is what i faund...Of corse it's not Saab J 47- its better! Its Saab-51! Looks like a Alexander Lippish design it...


Attachments

  • HfX2lGO.jpg
    207.1 KB · Views: 100

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
20
Justo Miranda said:
This was already posted at

http://www.secretprojects.co.uk/forum/index.php/topic,683.15.html

Oops..i did not see that topic..Sorry
