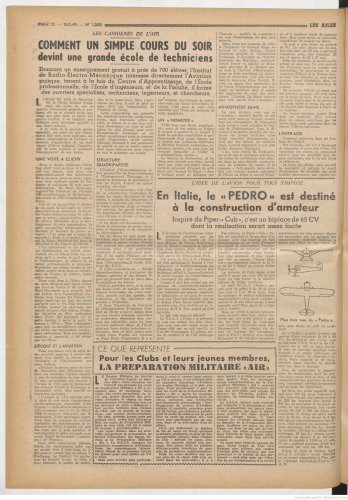

From Ailes 2/1949,

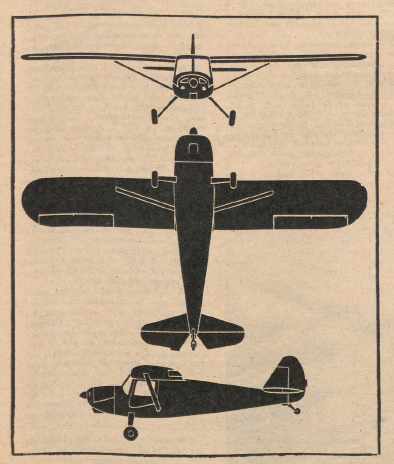

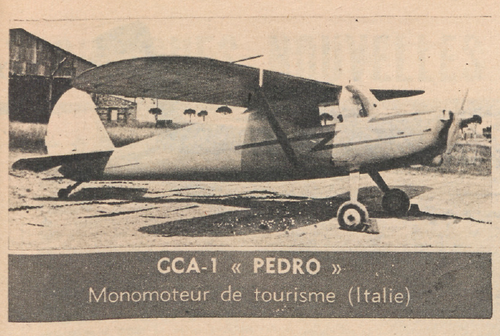

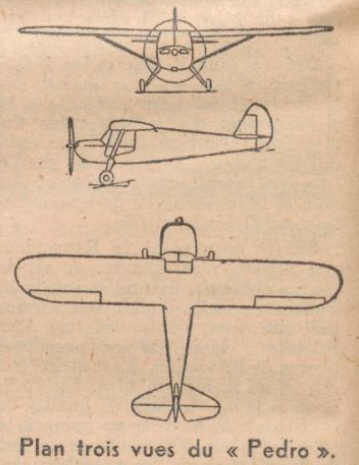

here is a small Info about Grupo Construzione Aeronautiche GCA.1 Pedro
light aircraft,by the way,the firm also designed GCA.2 Dumbo and GCA.3
Etabeta airplanes.


Attachments

  • 1.png
    285.2 KB · Views: 262
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k32014386_12.jpeg
    1.7 MB · Views: 173
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
It was just the beginning my dear Cluttonfred.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
114
Website
cluttonfred.info
Sorry, I guess I wasn't clear. The 3-view is of a light, single-engine, land-based aircraft from Italy, the article is about a twin-engine, amphibian concept from the UK. Those two images don't go together and the second one doesn't belong in this thread.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
Sorry for this mistake,I correct it,

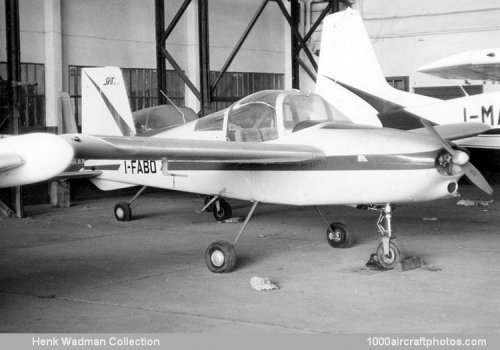

and the Bucciero Svit was a two-seat mid-wing trainer and touring
light monoplane,with fixed landing gear,and powered at first by 85 hp Continental 85C engine,later powered by 100 hp Continental O-200-A
engine,it was little known aircraft and design in 1966.


Attachments

  • 1.jpg
    66.8 KB · Views: 138
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

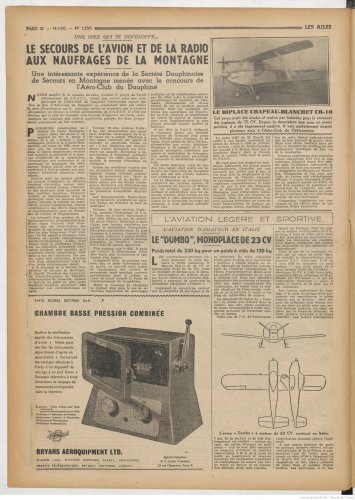

From Ailes 1/1950,

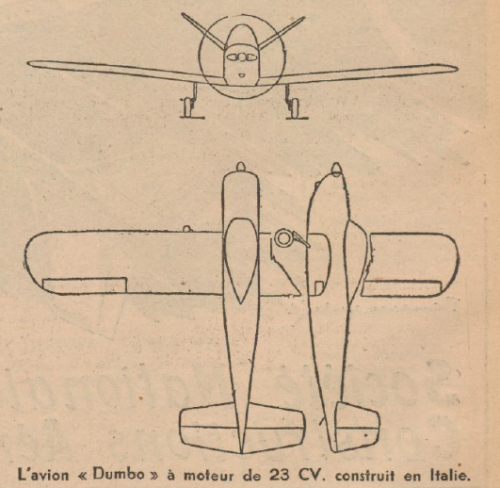

here is a Grupo Construzione Aeronautiche GCA.2 Dumbo.


Attachments

  • 1.png
    447.6 KB · Views: 89
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k32003070_12.jpeg
    1.6 MB · Views: 100

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
From Ailes 15/1/1955,

here is a two light aircraft,the first was a single seat low-
wing monoplane,designed by Mr. Lawrence Farnham,

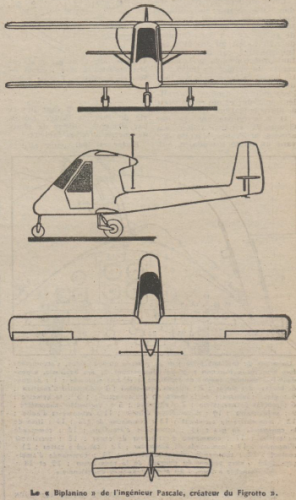

and the second was a single seat biplane,maybe a Project,
designed by well known inventor,Mr. Luigi Pascale.


Attachments

  • 1.png
    467.6 KB · Views: 43
  • 2.png
    336.6 KB · Views: 53
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

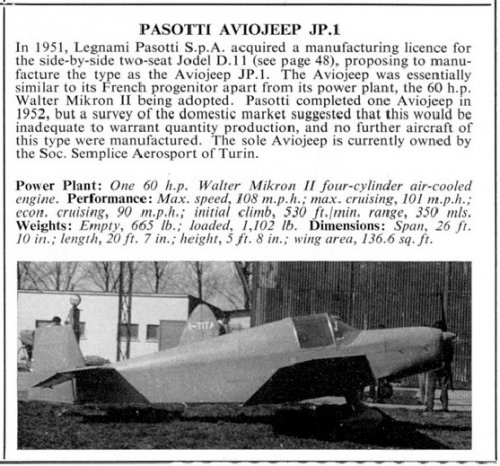

Here is the Pasotti Aviojeep JP.1,a licence built Jodel D.11.

The Aircraft of the World,William Green


Attachments

  • 1.jpg
    140.9 KB · Views: 43

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112

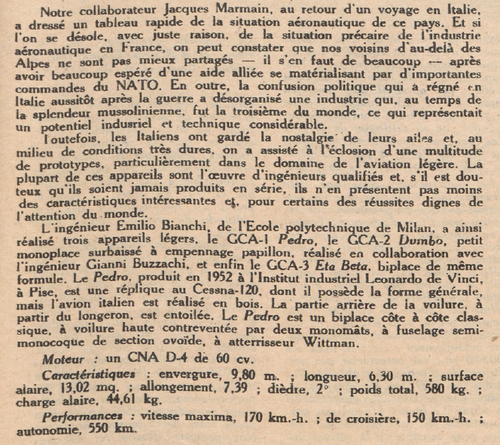

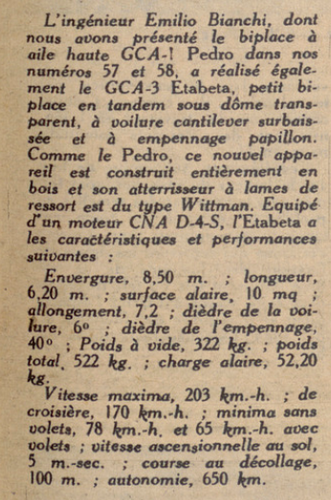

From Aviation Magazine 1953,

a more info about Emilio Bianchi airplanes.


Attachments

  • Bianchi.png
    415.6 KB · Views: 22
  • Bianchi  I.png
    Bianchi I.png
    556.4 KB · Views: 22
  • Bianchi  II.png
    Bianchi II.png
    876.6 KB · Views: 20
  • Bianchi  III.png
    Bianchi III.png
    351.6 KB · Views: 31

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
103
Hi Hesham,
attached a photo of the Pascale P-54 Biplanino. Almost certainly the construction was not completed and he aircraft never flew.
Some details:
single-seat sport
one 22hp Ambrosini piston engine
wingspan 19.685ft; length 16.306ft; height 6.037ft
DETAILS: The P-54 Biplanino was an original design light plane of Mr. Luigi Pascale. A prototype was under construction 1954, but almost certainly never completed or flown. The aircraft was fitted with one 22hp Ambrosini engine.
Production: 1


Attachments

  • Pascale P-54 Biplanino.jpg
    Pascale P-54 Biplanino.jpg
    66.9 KB · Views: 42

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,750
Reaction score
456
Biplanino ha some point of contact with the previous P-53 aeroscooter. I had the immense privilege to have prof. Pascale as my mentor, a true genius and a real gentleman. unnamed.jpg


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,750
Reaction score
456

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,328
Reaction score
4,112
From JAWA 2007/2008,

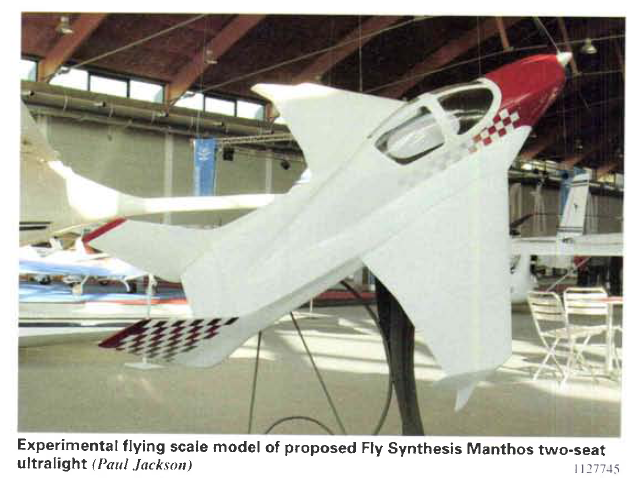

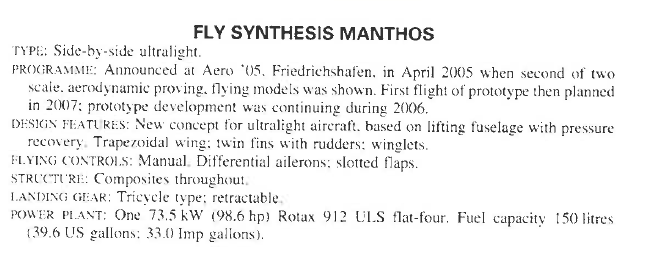

here is a Fly Synthesis Manthos,a two seat ultra-light Project.


Attachments

  • 1.png
    503.3 KB · Views: 27
  • 2.png
    43.4 KB · Views: 26
  • 3.png
    33.6 KB · Views: 14
