Hi,

There was anther old escape concept from the 1970s,the Fairchild Model-616
AERCAB aircrew escape rescue capability for combat aircraft,the purpose of
AERCAB was to permit recovery of aircrew who eject from their aircraft over
enemy territory and to provide capability to fly the ejection seat up to 43nm
(50 miles;80 km)at up to 100 knots (115mph;185 km/h) prior to vertical descent
by personal parachute.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
A note,

the AERCAB had small straight wing and small V-tail.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
685

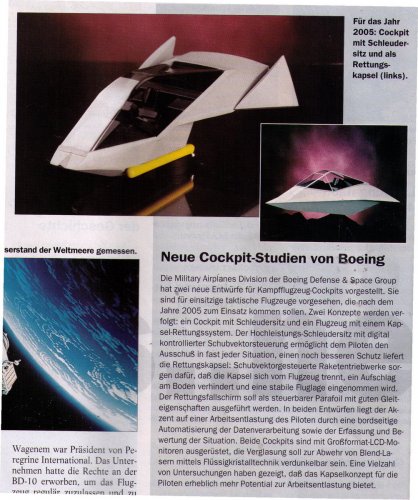

This two interesting escape concepts are from Boeing from mid 90's.
Published in FLUG REVUE March 1995.

I might translate the article later. :-\


Attachments

  • Boeing_Schleudersitz01.jpg
    463.3 KB · Views: 1,864

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931
"The military airplanes division of the Boeing Defense & Space Group
introduced two new designs for fighter cockpits, intended to be usd for
tactical fighter aircraft commissioned after 2005. There are two concepts:
A cockpit with an ejector seat and an aircraft with a rescue capsule.
The high-performance ejector seat would have digitally thrust vector
control, enabling ejection nearl in every attitude. An even better
protection for the pilot has the rescue capsule :Thrust vector
controlled rocket motors separate the capsule from the aircraft with-
out hitting the ground and providing a stable attitude. A controllable
parafoil with a good gliding performance would replace the conventional
parachute.
Both designsshall lessen the pilots workload by automatic processing of
a lot of data and by assessing the situaton. Both cockpits will have large
LCD displays, the cockpit glazing will automatically protect against
blinding lasers. Many analysis showed, that this concept would reduce
workload considerably."

At least the german version probably wasn't the best piece of information,
I think. " ..separate the capsule from the aircraft with-
out hitting the ground" That's the least, what I would expect it to do ! ;D


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,820
Reaction score
266
I saw that article, regarding the Boeing concepts, in Aviation Week.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146
http://www.combatreform2.com/escape.htm

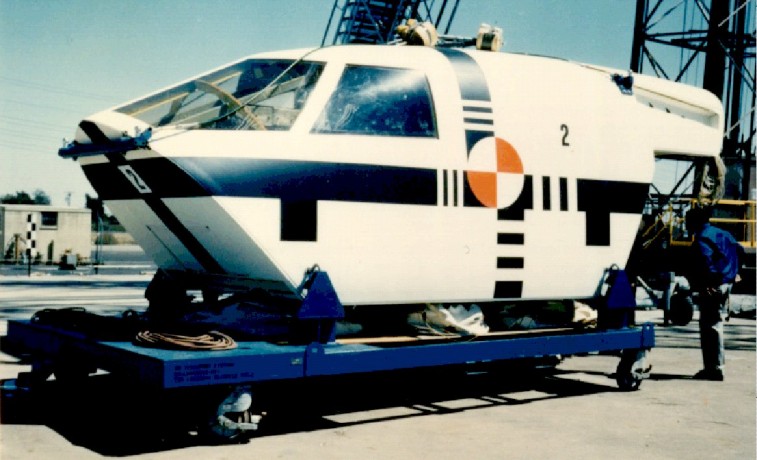

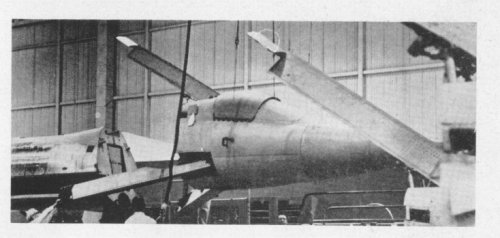

There was another mock-up(?) for a rescue capsule, not shown in the above mentioned website. Published in aero 12/1962. I've seen this before as an artist's impression, but now I have to realize it left this 'paper stage'.


Attachments

  • 249.JPG
    187.9 KB · Views: 1,423

minoslas

ACCESS: Restricted
Joined
Jan 29, 2008
Messages
34
Reaction score
1
Interesting photos for B-1A escape capsule




Other escape capsule concepts and mockups



cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,382
Reaction score
98
Website
cluttonfred.info
The Miles M.52 had the pilot in jettisonable escape capsule because of the uncertainty about bailing out at high speeds, especially with the annular air intake just behind the cockpit. IIRC from MILES AIRCRAFT SINCE 1925, the idea was to jettison the capsule with explosive bolts and then bail out normally from the capsule.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Hi,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19890010487_1989010487.pdf


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,905
Reaction score
1,139
Website
www.aerospaceprojectsreview.com
boxkite said:
http://www.combatreform2.com/escape.htm

There was another mock-up(?) for a rescue capsule, not shown in the above mentioned website. Published in aero 12/1962. I've seen this before as an artist's impression, but now I have to realize it left this 'paper stage'.

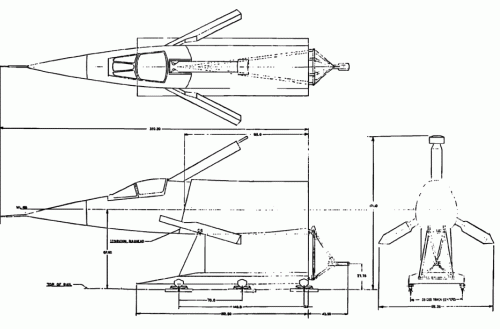

I've got a fairly detailed Lockheed report on that laying around here somewhere (bought it for a buck at a used book sale at a library... along with some "Weltraum" magazines from 1939-1942... muahahahahaaaa!). Anyway, I'll see if I can dig it up. Photos and detailed drawings of the several units that were built and, IIRC, rocket-sled tested.

In the mean time, here's what I have immediately to hand...


Attachments

  • cl-361.gif
    64.2 KB · Views: 204

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

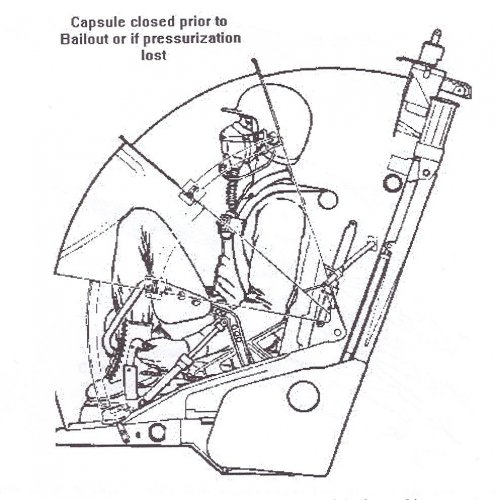

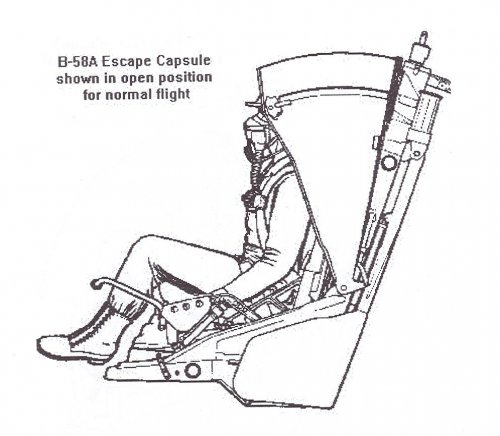

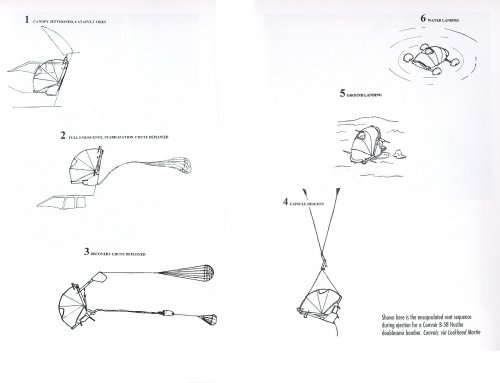

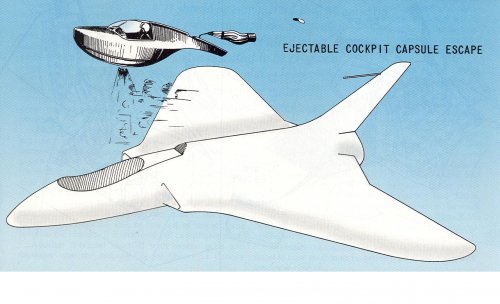

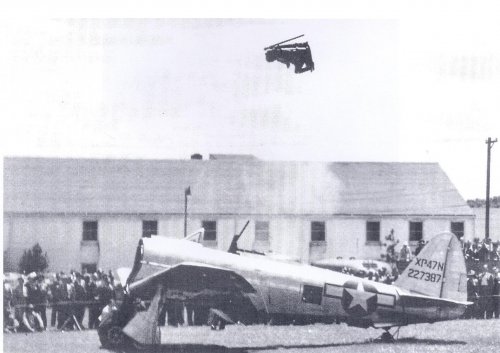

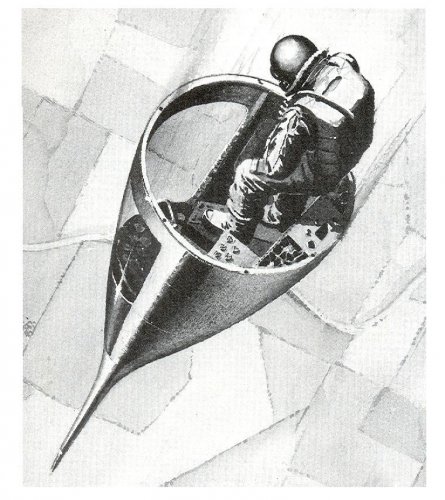

Found some escape stuff (post-1)


Attachments

  • B-58-1.jpg
    106.9 KB · Views: 124
  • B-58-2.jpg
    96.7 KB · Views: 124
  • B-58-3.jpg
    134 KB · Views: 136

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

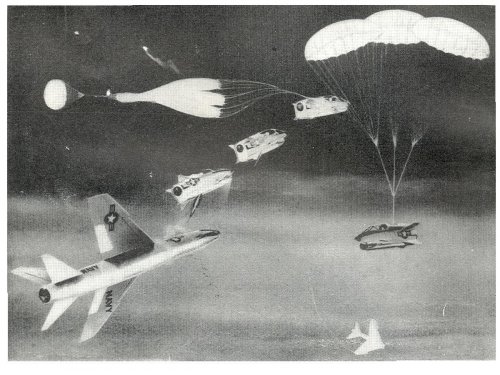

Found some escape stuff (post-2)


Attachments

  • Crusader.jpg
    333.3 KB · Views: 210
  • B-58-5.jpg
    103.3 KB · Views: 171
  • B-58-4.jpg
    177.3 KB · Views: 161

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

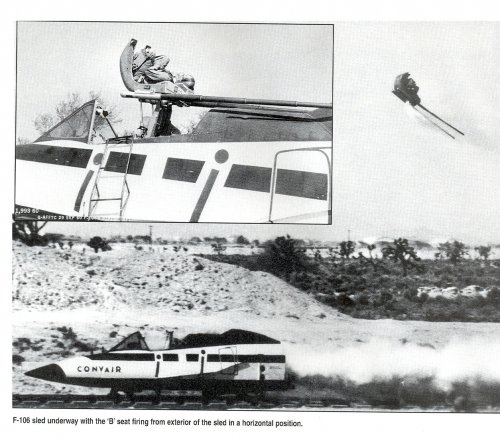

Found some escape stuff (post-3)


Attachments

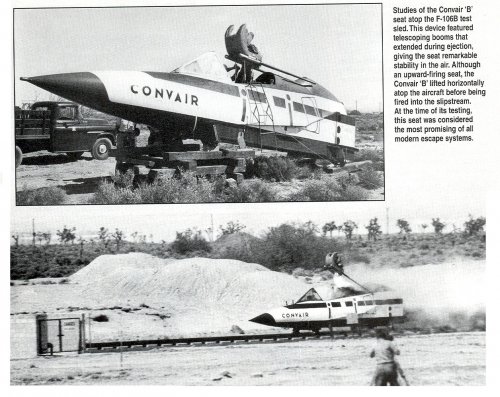

  • Convair B-seat-1.jpg
    Convair B-seat-1.jpg
    498.4 KB · Views: 186
  • Convair B-seat-2.jpg
    Convair B-seat-2.jpg
    501.1 KB · Views: 202

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

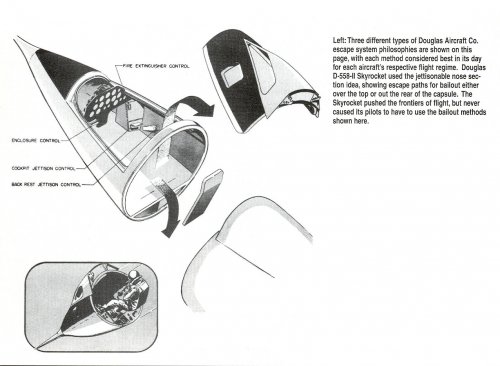

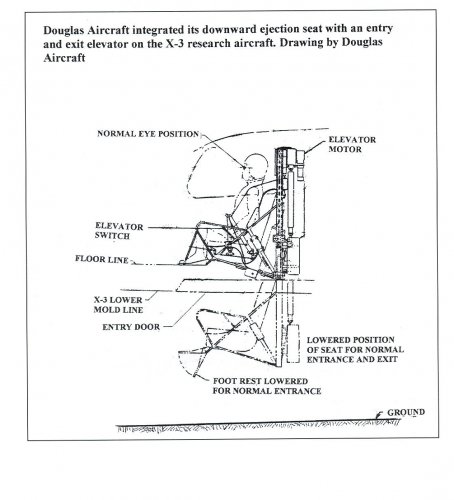

Found some escape stuff (post-4)


Attachments

  • Douglas 1952.jpg
    Douglas 1952.jpg
    550.6 KB · Views: 459
  • Douglas 1956.jpg
    Douglas 1956.jpg
    343.9 KB · Views: 422

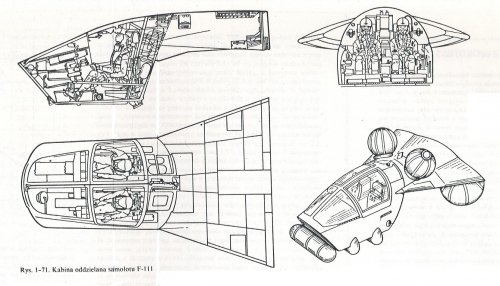

  • f-111.jpg
    255.2 KB · Views: 487

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868
Found some escape stuff (post-5)


Attachments

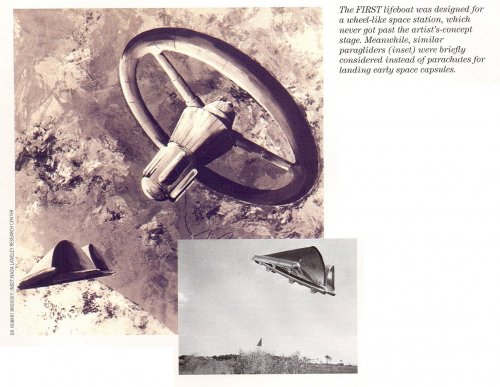

  • Rogallo.jpg
    378.2 KB · Views: 245

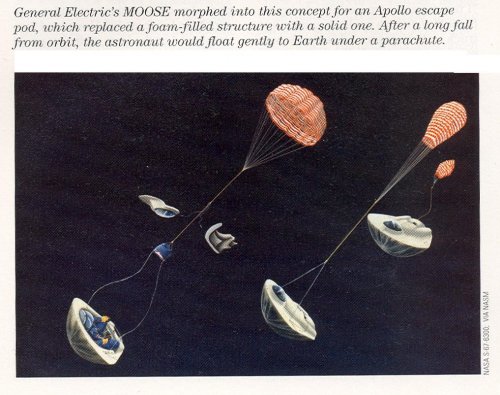

  • MOOSE.jpg
    160.5 KB · Views: 452
  • Martin-Baker.jpg
    417 KB · Views: 446

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868
Found some escape stuff (post-6)


Attachments

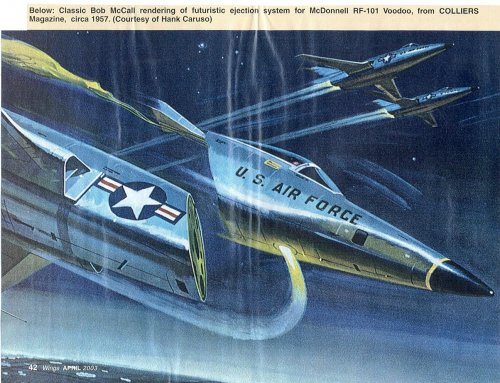

  • RF-101.jpg
    310.6 KB · Views: 242

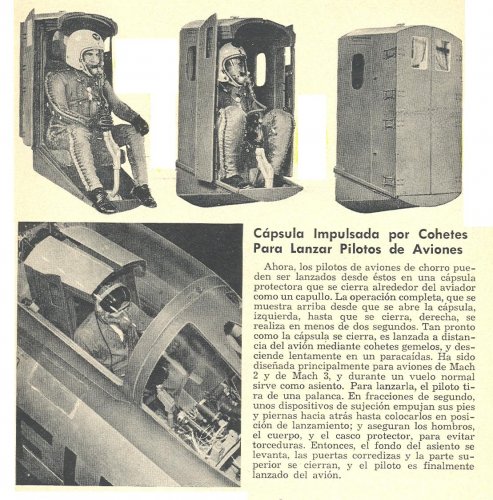

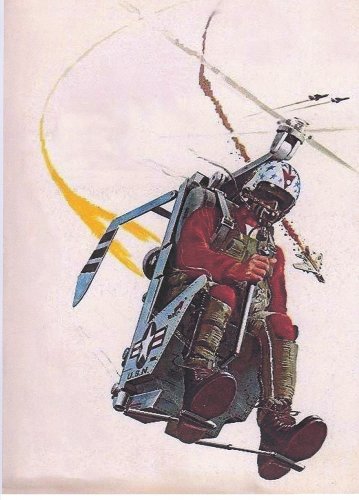

  • Popular Mechanics-1.jpg
    Popular Mechanics-1.jpg
    377.5 KB · Views: 228
  • Popular Mechanics-2.jpg
    Popular Mechanics-2.jpg
    211.1 KB · Views: 164

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868
Found some escape stuff (post-7)


Attachments

  • Phone Booth.jpg
    Phone Booth.jpg
    315.8 KB · Views: 185

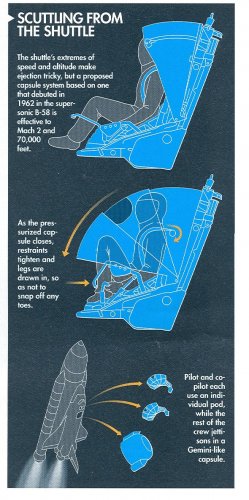

  • Shuttle.jpg
    234.7 KB · Views: 260

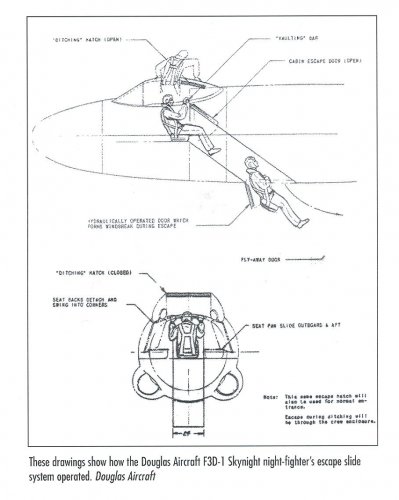

  • Skynight.jpg
    97.2 KB · Views: 280

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868
Found some escape stuff (post-8)


Attachments

  • Skyrocket-2.jpg
    202.9 KB · Views: 182
  • Skyrocket-1.jpg
    162.6 KB · Views: 172
  • Skyray ESCAPAC.jpg
    Skyray ESCAPAC.jpg
    286.1 KB · Views: 127

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868
Found some escape stuff (post-9)


Attachments

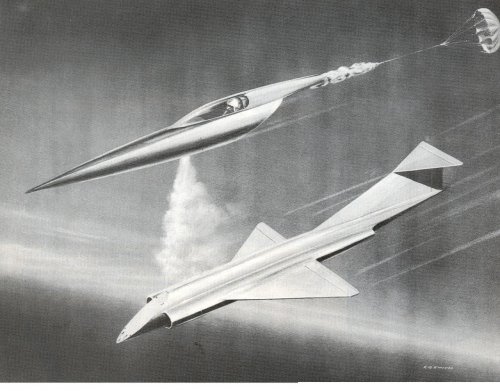

  • Stiletto.jpg
    124.6 KB · Views: 147
  • XB-70.jpg
    413.1 KB · Views: 181

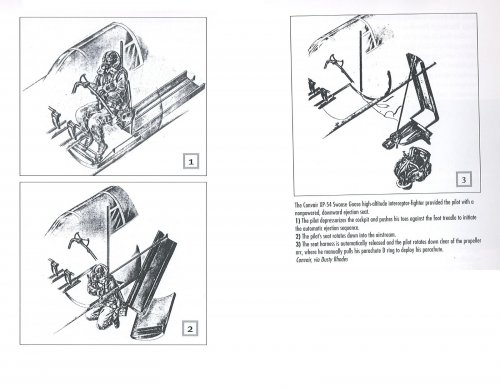

  • XP-54.jpg
    215 KB · Views: 178

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,649
Reaction score
667
wonderful collection, justo

here from my collection

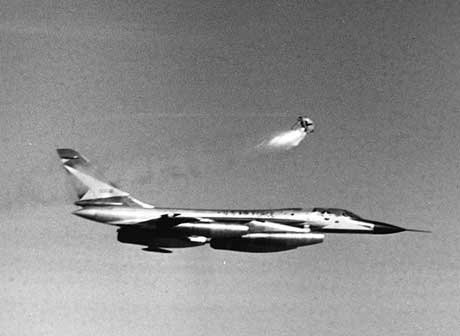

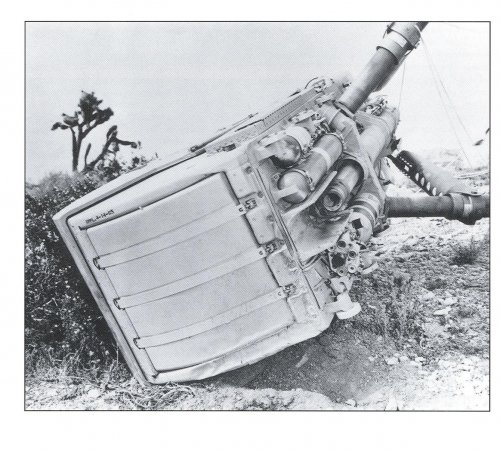

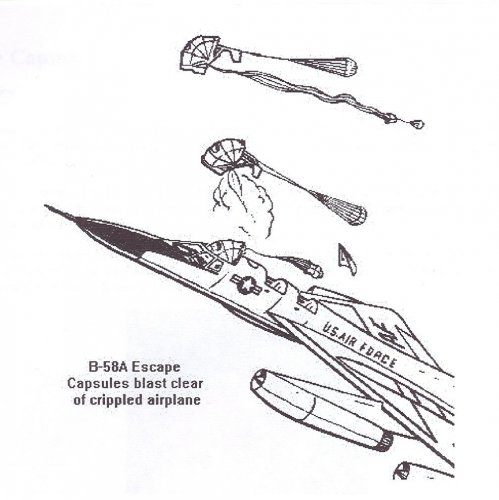

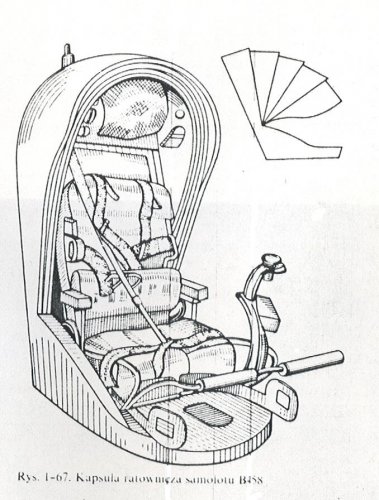

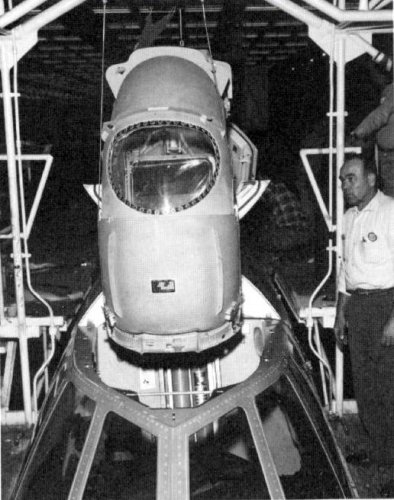

The B-58 Escape Pod
source: Convair
the Test were made with stunned Bears
over White Sand Testside, New Mexico


i heard that some Prototypes like Boeing 747 or XB-70
had Escape Pods during test phase. true or Internet legend ?


Attachments

  • b58_Capsule_01.jpg
    71 KB · Views: 133
  • B58-004.jpg
    12 KB · Views: 144

RLBH

ACCESS: Secret
Joined
May 5, 2007
Messages
321
Reaction score
150
I don't know about the 747, although it seems unlikely to me. Certainly the YB-70 was intended to have escape pods, which would later be used on the service aircraft, but these weren't available for the XB-70. The prototypes did have conventional ejection seats, though.


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
RLBH said:
I don't know about the 747, although it seems unlikely to me. Certainly the YB-70 was intended to have escape pods, which would later be used on the service aircraft, but these weren't available for the XB-70. The prototypes did have conventional ejection seats, though.

...Nope. The Valkyrie prototypes all had the pods. From

http://xb70.interceptor.com/

16 seconds after the impact, the XB-70 started a slight roll. Al White corrected the roll -- and instantly recognized the Valkyrie's peril as she began a snap roll to the right. Ramming the number six engine's throttle to maximum afterburner, he tried to save AV/2 -- but after 2 slow rolls, the plane broke into a sickening spin, taking any hopes of recovery with it. White pushed his seat back into the eject position, but caught his arm in the ejection pod's clamshell doors (see inset photo at left) as they closed. Unable to communicate with the struggling Carl Cross, and unable to eject until getting his arm clear, White could only watch his co-pilot fail to get into his pod for ejection. Finally, with the realization that he needed to get out now, Al White worked his arm clear and ejected just moments before AV/2 slammed into the ground a few miles north of Barstow, California.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

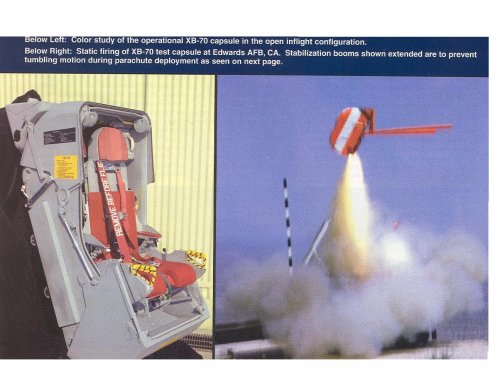

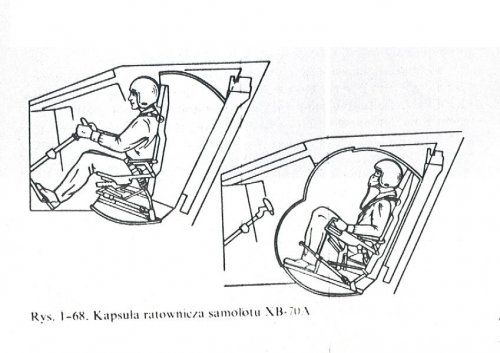

XB-70 escape pod here...


Attachments

  • Escanear0001.jpg
    63 KB · Views: 127
  • Escanear0002.jpg
    405.4 KB · Views: 150

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,382
Reaction score
98
Website
cluttonfred.info

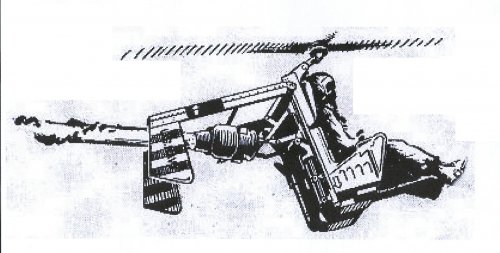

Not a concept, but a limited-production ejection system for aerobatic aircraft, the Zvezda SKS-94 combining a lightweight rocket-launched seat on a telescoping pole with a rocket-deployed parachute to pull the pilot away from the airframe. Nothing much seems to have come of this over the last decade or more, though, so it may already be in the realm of failed projects. Only 50 lbs weight but a hefty US$40k price, the seats were installed in some Sukhoi aerobatic aircraft.



Manufacturer's page in Russian or in English via Google Translate.

Air Racing Ejection Seats: Part 1 - Are We Ready

Air Racing and Ejection Seats: Part 2 - Can it Work?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931

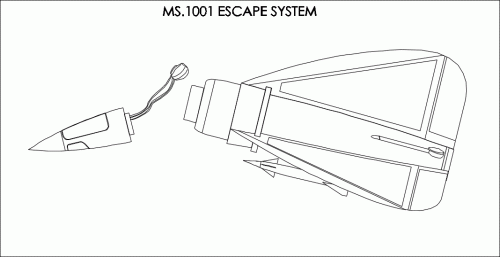

The escape capsule, in the form of a detachable nose, was a concept
asked for in France , too, in the specification from 1954 for a supersonic
VSTOL interceptor. In the case of the MS.1001, it could have looked like this :


Attachments

  • MS-1001_escape-system.GIF
    34 KB · Views: 99

Lauge

ACCESS: Secret
Joined
Jan 30, 2008
Messages
435
Reaction score
7
Mole said:
....a lightweight rocket-launched seat on a telescoping pole with a rocket-deployed parachute to pull the pilot away from the airframe....

Get those straps right, or we're talking The Wedgie From Hell ;D

Regards & all, and enjoy the Easter

Thomas L. Nielsen
Denmark


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

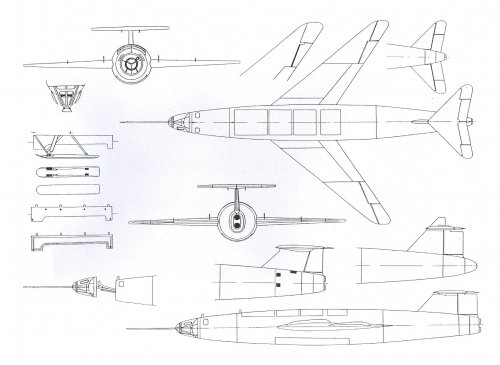

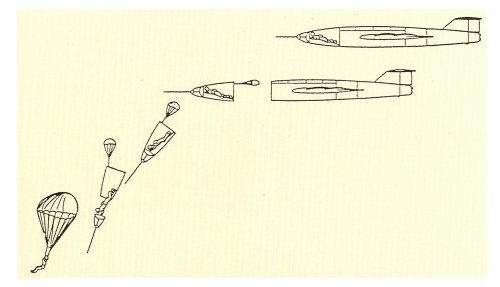

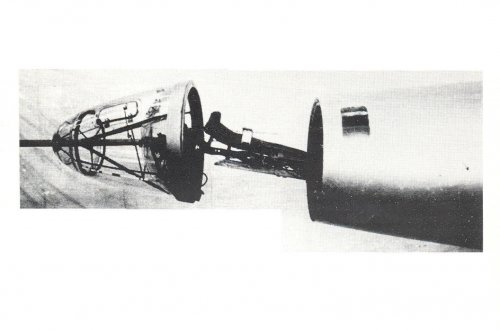

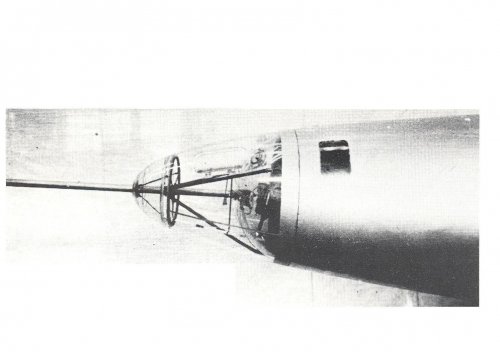

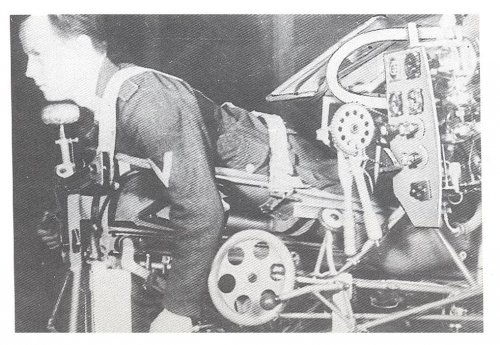

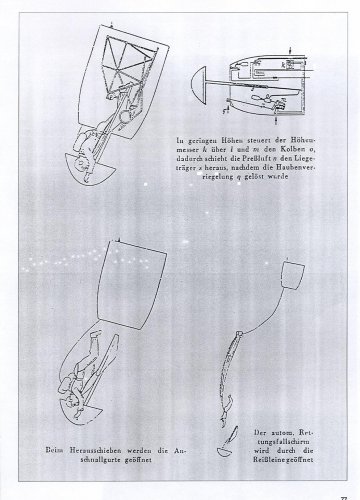

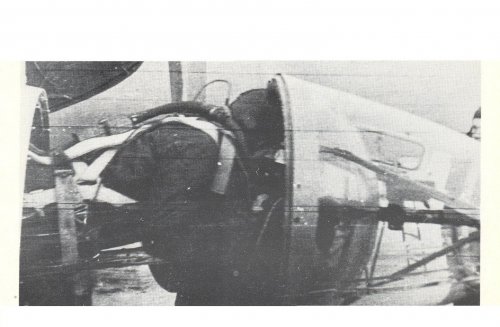

DFS 228 escape system


Attachments

  • DFS-228-4.jpg
    222.7 KB · Views: 111
  • DFS-228-3.jpg
    157.5 KB · Views: 109
  • DFS-228-2.jpg
    277 KB · Views: 120
  • DFS 228-1.jpg
    DFS 228-1.jpg
    520.5 KB · Views: 126

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

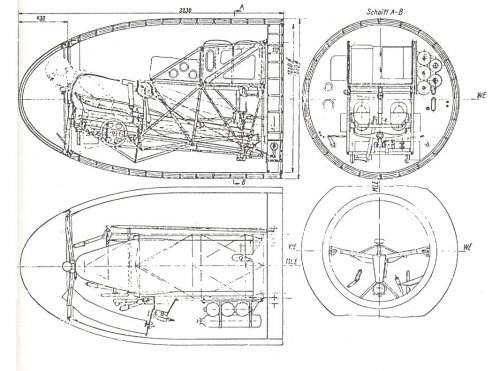

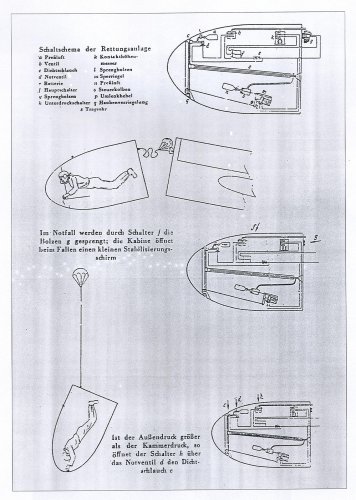

DFS 346 escape system


Attachments

  • DFS 346-1.jpg
    DFS 346-1.jpg
    122.1 KB · Views: 449
  • DFS 346-2.jpg
    DFS 346-2.jpg
    162 KB · Views: 432
  • DFS 346-3.jpg
    DFS 346-3.jpg
    223.2 KB · Views: 392
  • DFS 346-4.jpg
    DFS 346-4.jpg
    227.3 KB · Views: 359
  • DFS 346-5.jpg
    DFS 346-5.jpg
    374.5 KB · Views: 339

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

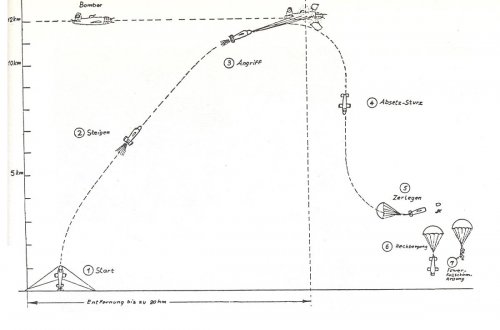

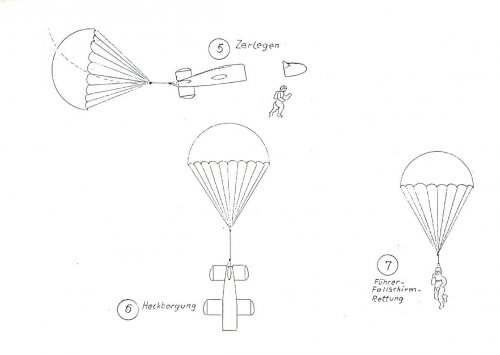

Natter escape system


Attachments

  • Natter-4.jpg
    244.9 KB · Views: 153
  • Natter-3.jpg
    49.8 KB · Views: 103
  • Natter-2.jpg
    51.7 KB · Views: 109
  • Natter-1.jpg
    55.4 KB · Views: 103

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

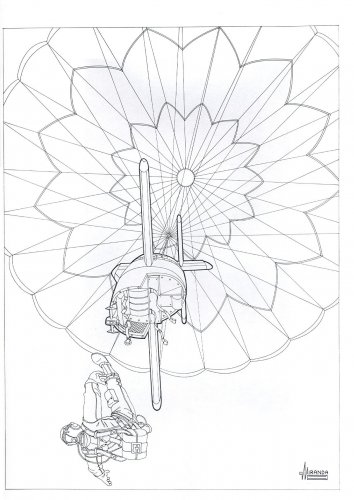

Bill Barnes (fiction)
"Philippine Gold"
Air Trails
September 1937


Attachments

  • Escanear.jpg
    166.2 KB · Views: 128

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

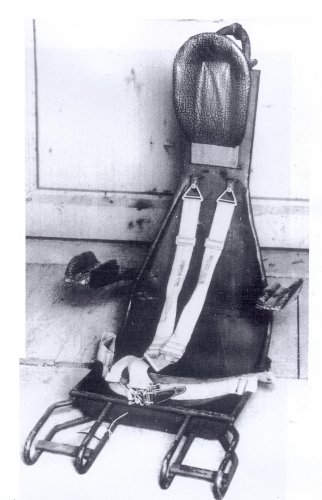

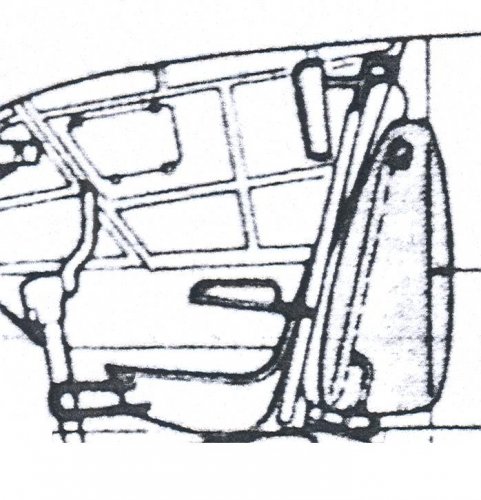

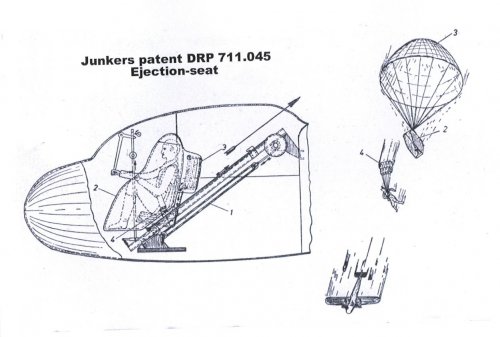

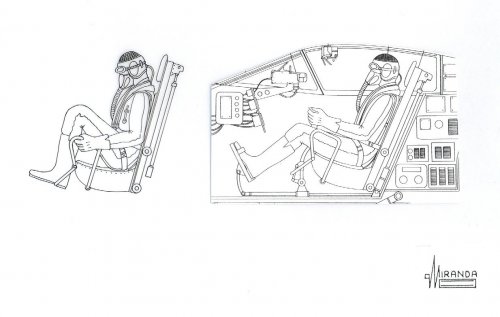

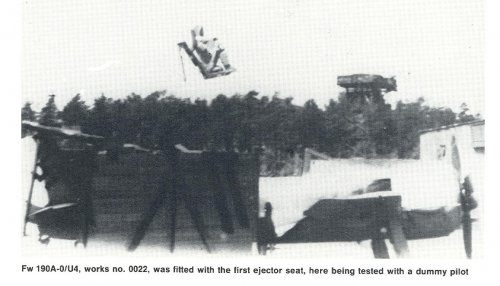

Junkers wartime ejection seat


Attachments

  • Junkers.jpg
    94.8 KB · Views: 130

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

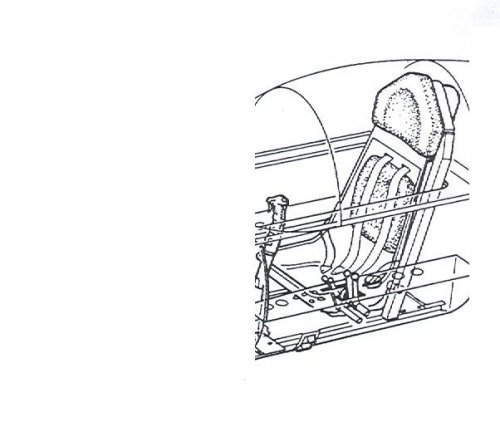

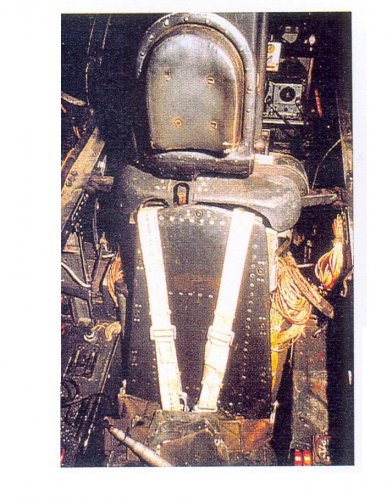

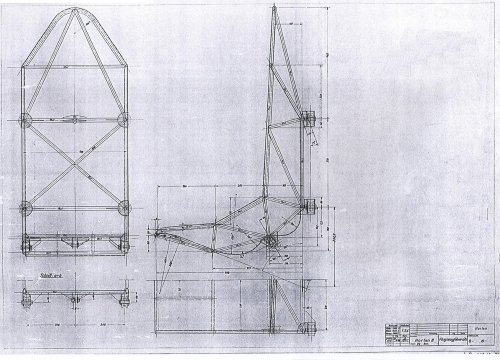

Do 335 ejection seat


Attachments

  • Do 335-3.jpg
    Do 335-3.jpg
    79.4 KB · Views: 80
  • Do 335-2.jpg
    Do 335-2.jpg
    137.4 KB · Views: 87
  • Do 335-1.jpg
    Do 335-1.jpg
    252.5 KB · Views: 84

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,221
Reaction score
1,868

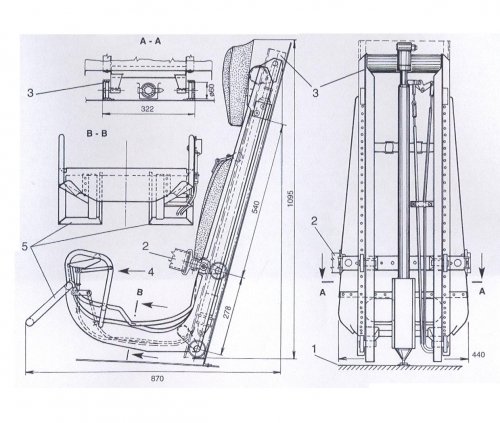

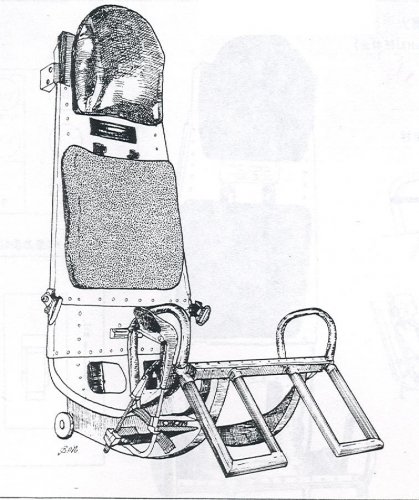

Heinkel "Kartusche" ejection seat
He 162 and Gotha P.60


Attachments

  • Heinkel-1.jpg
    93 KB · Views: 131
  • Heinkel-2.jpg
    180.9 KB · Views: 135
  • Heinkel-3.jpg
    125.5 KB · Views: 113
Top
