Imagine for wide body jets

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,019
Reaction score
3,715
Hi,

http://www.irc.umbc.edu/pdfs/WBJETS.pdf


Attachments

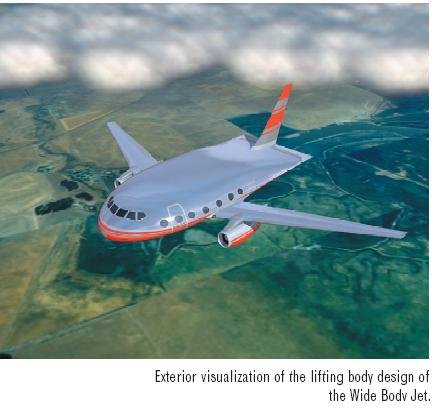

  • wide body.JPG
    wide body.JPG
    26.6 KB · Views: 39

KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,036
Reaction score
30
I think at that point it would be better just to blend the fuselage in with the wings...

The BWB is a great idea in my opinion actually


KJ


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,915
Reaction score
257
i think the main problem with this concept, and with BWB aircraft, is the difficulty of resizing them, to vary passenger capacity. with a conventional airliner, if you want to add seats, it's a fairly simple matter to stretch the fuselage, likewise to reduce capacity, it's not to difficult to shrink the plane.
i think it would be much harder to to this with a BWB, the whole fuselage would need re-shaping.
just my two bobsworth.

cheers,
Robin.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,467
Reaction score
2,735
I think it's little difficult to design non circular cross section pressurized cabin without weight increase. This fuselage must have pillar or wall in the cabin to keep pressure tight strength and skin thickness is larger than cylindrical fuselage. Elevator is located tail of the fuselage to reduse drag same as JAXA's SST.
