Hi all.
Locking in "google images" I've found this 3 views
It's write that this is a ILYUSHIN IL 28 Swep wing projects ??
Who know more ?
Thanks
paul


Attachments

  • images.jpg
    5.6 KB · Views: 610

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
IN Wikipedia I see :
IL 28 S / Proposed swept wing version with Klimov VK 5 engines
Bye


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125
In 1949-1950. at OKB-240 design works were carried out to further enhance IL-28. Greater speed and range setting was supposed to achieve in the IL-28S new swept wing with a sweep angle of the line-fourths of the chords of 35 °. We considered two options - powered by the VK-1 and VK-5. The calculations showed that in the first embodiment will not exceed the maximum speed 950 km / h at an altitude of 5000 meters, and range will be 2700 km, a ceiling - 13,000 m, and the run-825 meters.
In the second version of the VK-5 engines, bomb load of 1,000 kg (maximum 2000 kg) and the fuel capacity of 7,000 kg take-off weight of IL-28S increased to 23,930 kg. If this is the maximum speed at an altitude of 5000 meters was estimated at 1,000 km / h, range 2,700 km with 1,000 kg of bombs and the ceiling above the target - 13500m. Takeoff run 750 meters was obtained. However, analysis of the design studies showed that IL-28S with a swept wing has no advantages over the conventional IL-28, while the installation of a swept wing is associated with significant alterations of the IL-28 and the increasing complexity of production. In this regard, the work on IL-28S have been stopped.
Two years later, the idea of ​​a swept-wing tried to revive the project with the IL-28M engines AM-11 (later P11-300) swept wing 35 °, the maximum speed of 1050 km / h, ceiling 15 km, the run-600m.
Nikolay Yakubovich - Ilyushin Aircraft


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
HI Borovik.
I thank you very much for your complet answer.
If my 3 views is a good one, I have all I want to know.
THANKS AGAIN, Bye
Paul


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,569
Reaction score
3,000
Hi!
http://wp.scn.ru/ru/ww3/f/10/4/0

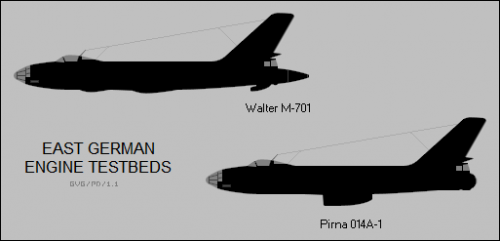

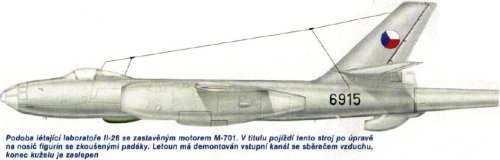

"The flying Laboratory for the M-701 engine test. The aircraft was also used to test different configurations of brake-parachute containers. The engine under test had a special separate intake."


Attachments

  • M-701 engine test bed.jpg
    M-701 engine test bed.jpg
    46.5 KB · Views: 202

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,569
Reaction score
3,000
Hi!
http://aviadejavu.ru/Site/Crafts/Craft22318.htm
Former flying laboratory for turbojet "014"

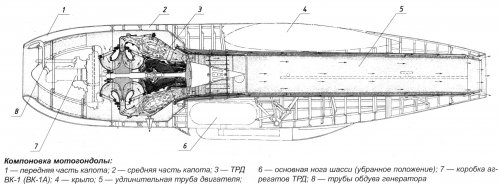

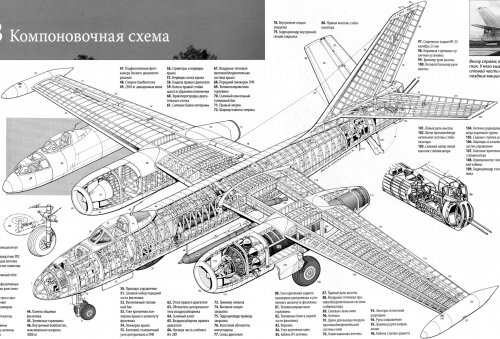

And main engine layout.

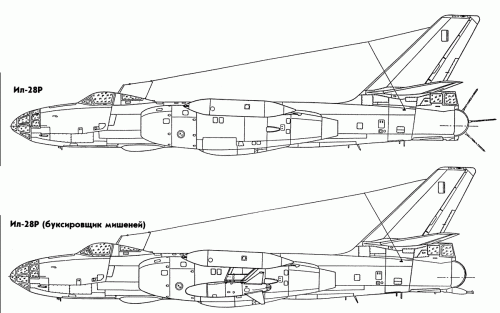

Il-28P scout.
http://www.airwar.ru/enc/spy/il28r.html

Ilyushin Il-28
Published: May 14th, 2016 Aircraft Publications
Author: Yefim Gordon and Dmitriy Komissarov
http://web.ipmsusa3.org/content/ilyushin-il-28

http://www.airvectors.net/avil28.html


Attachments

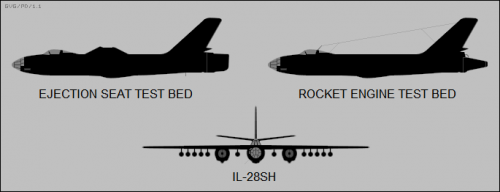

  • avil28_07.png
    10 KB · Views: 35
  • avil28_05.png
    12.1 KB · Views: 35

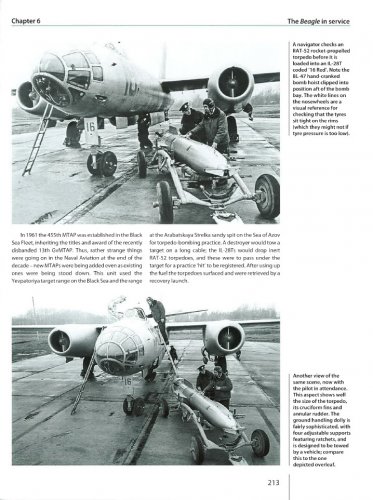

  • specialty_press_fra_ilyushin_il-28_page_213.jpg
    167.4 KB · Views: 46

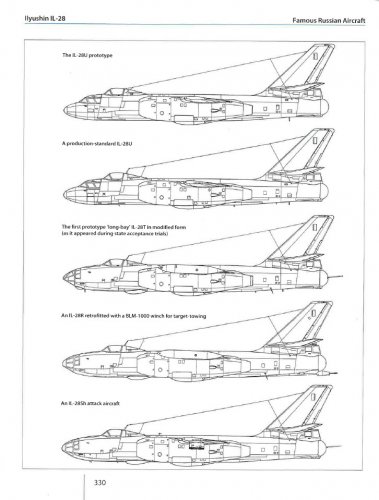

  • specialty_press_fra_ilyushin_il-28_page_330.jpg
    115.7 KB · Views: 58

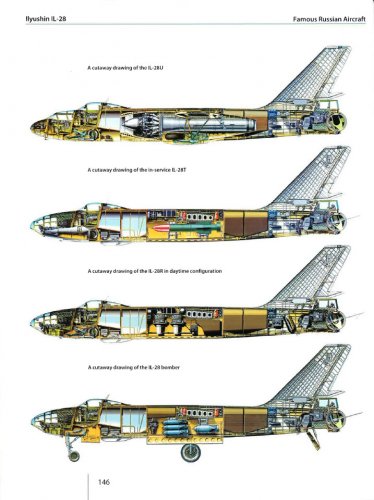

  • specialty_press_fra_ilyushin_il-28_page_146.jpg
    160.3 KB · Views: 54

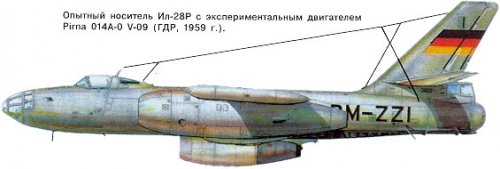

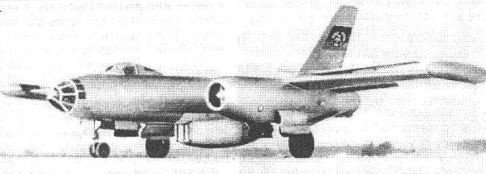

  • Il-28P with experimental engine Pirna 014a-0 v-09.jpg
    Il-28P with experimental engine Pirna 014a-0 v-09.jpg
    26.8 KB · Views: 46
  • il28r-1.gif
    130.8 KB · Views: 189
  • 4ebb23d3f4b8.jpg
    318.4 KB · Views: 194
  • 11-3.jpg
    23.5 KB · Views: 194
  • 0245-02-2-13.jpg
    788.3 KB · Views: 50
