Hypersonic Interceptor Technology Testbed (HITT) 1997-2000

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,731
Reaction score
97
In 1998, SMDC commissioned the Hypersonic Interceptor Technology Testbed program
which was designed to fly between Mach 8 and 9 (project 29). This program spawned hardware which deflected
canted carbon-carbon fins into full Mach 9 airflows in under 4.5ms with piezoelectric elements. This
demonstrated that not only were these actuators capable of inducing large moments to counter the Mach 9 flows,
but they are among the world’s fastest (if not the fastest) proportional missile fin actuator ever developed.

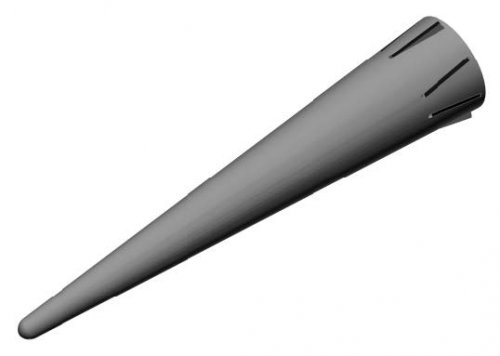

Figure 5 shows the HITT test vehicle configuration and different fin deflections corresponding to various types
of maneuvers.


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,529
Reaction score
67
Very interesting. (Did Barrett Arms come up with the idea? ??? )


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,077
Reaction score
28
sferrin said:
Very interesting. (Did Barrett Arms come up with the idea? ??? )

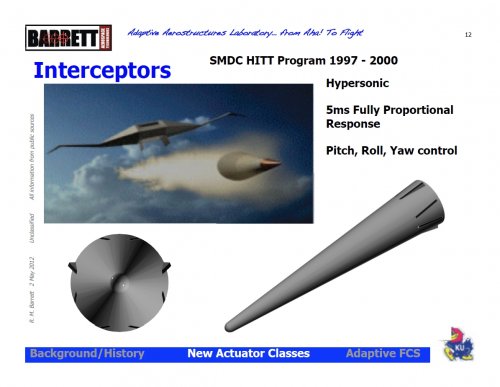

Nope. Barrett Aerospace Technologies looks like a small consultancy run by Ronald Barrett, an Aerospace Engineering professor at Kansas University (hence the KU logo on the slide). He's Director of KU's Adaptive Aerostructures Laboratory, whihc explains his interest in this project.

https://ae.engr.ku.edu/ron-barrett


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,529
Reaction score
67
TomS said:
sferrin said:
Very interesting. (Did Barrett Arms come up with the idea? ??? )
Nope. Barrett Aerospace Technologies looks like a small consultancy run by Ronald Barrett, an Aerospace Engineering professor at Kansas University (hence the KU logo on the slide). He's Director of KU's Adaptive Aerostructures Laboratory, whihc explains his interest in this project.

https://ae.engr.ku.edu/ron-barrett
Wonder how the Barrett Arms log ended up on it.


Attachments

TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,077
Reaction score
28
It's slightly different? Three crosshairs instead of one, and not on the A.

More seriously, it looks like they stole a version of the Barrett Firearms logo. That's embarrassing.


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
2,202
Reaction score
14
In their defense, the PI had worked on a guided round for the Barrett .50 cal.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,077
Reaction score
28
marauder2048 said:
In their defense, the PI had worked on a guided round for the Barrett .50 cal.
Oh, I hadn't seen that. Quite a coincidence of names, isn't it?
