Hycore. (South Korean Hypersonic Cruise Missile)

TomS

ACCESS: Above Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
5,666
Reaction score
3,828
The AvWeek subhead writer needs a technology refresher course. That's not a glider.


Josh_TN

ACCESS: Top Secret
Joined
Sep 4, 2019
Messages
1,572
Reaction score
1,140

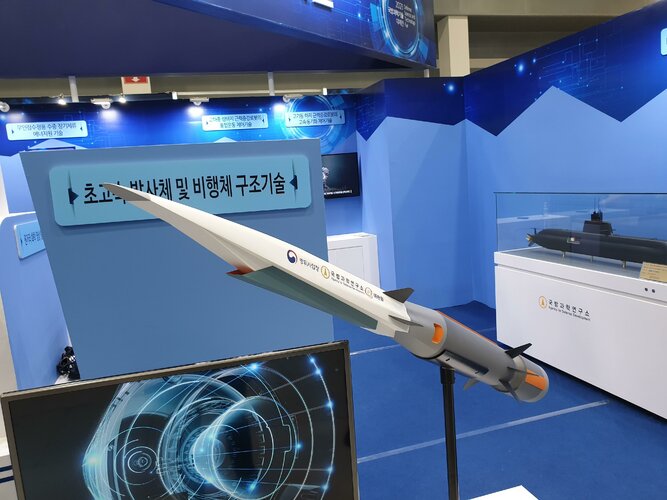

Is it just me or does that look exactly like the X-51 with a different booster arrangement?


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
15,349
Reaction score
4,665
Is it just me or does that look exactly like the X-51 with a different booster arrangement?
Pretty close. As does Zircon and Brahmos 2 (or whatever it's being called).


Josh_TN

ACCESS: Top Secret
Joined
Sep 4, 2019
Messages
1,572
Reaction score
1,140

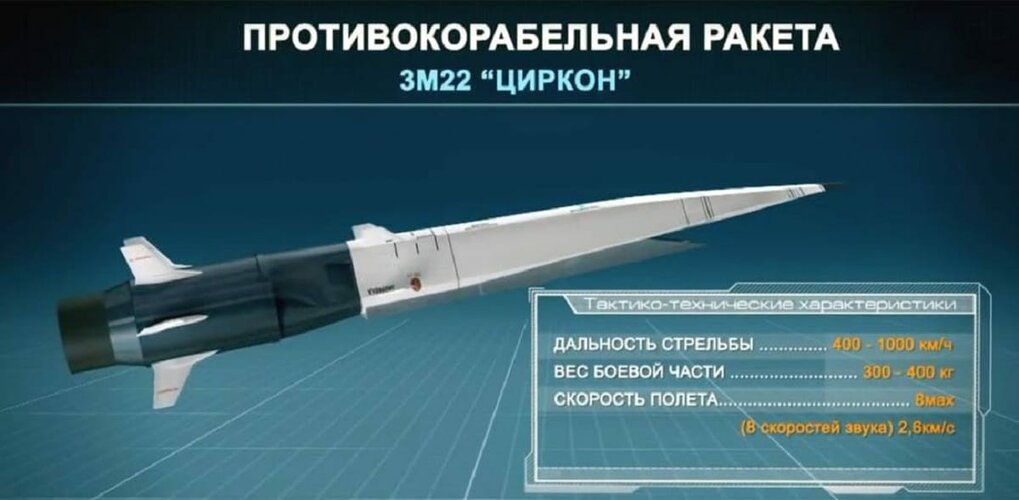

I wonder if the X-51 imagery isn't perhaps just a placeholder and not truly representative of any of the missiles. Zircon for instance I can't imagine being a pure scramjet given its rough dimensions and surface launch mode; the booster would have to be rather energetic for it to be a pure wave rider. The Russians have never explicitly described it as a scramjet; I suspect it is ramjet/scramjet hybrid that changes its intake geometry.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
15,349
Reaction score
4,665
Wouldn't surprise me. As for Zircon I read somewhere that it might not even be a scramjet but just a conventional ramjet. If so that would certainly be a record for ramjet speed.

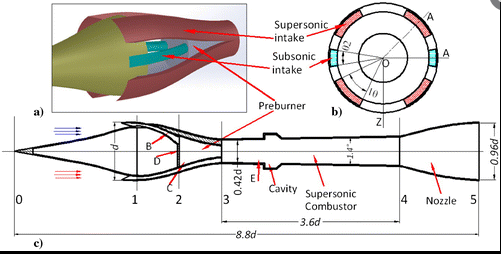

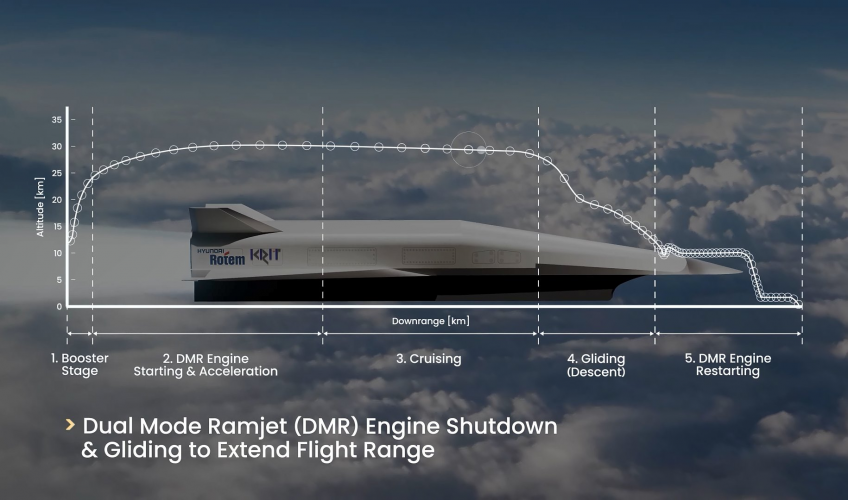

For a dual-combustion ramjet (ramjet/scramjet) HyFly would be a good example. Didn't have VG intakes but completely separate flow paths as I recall.
