HWK series AFVs

smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
48
In "Encyclopedia of Tanks" by Crow and Icks, there are brief details of a series of AFVs on a common chassis. The picture is clearly of the small turret 20mm cannon version, though it is captioned by the arrow as having a 90mm recoilless rifle. Has anyone a picture of the 90mm variant, please? Date in the 1950s I think.


Attachments

  • hwk.jpg
    40.2 KB · Views: 558

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
296
Reaction score
111
Only know of the HWK-11 a german APC used by Mexico


JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
296
Reaction score
111
Not to many photos around of these beasts


Attachments

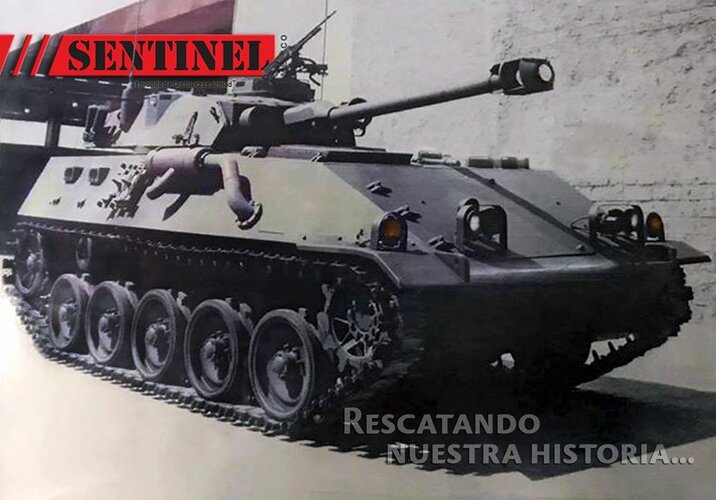

  • GER- Henschell HWK-11_002.jpg
    GER- Henschell HWK-11_002.jpg
    136.2 KB · Views: 388

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
626
Reaction score
340

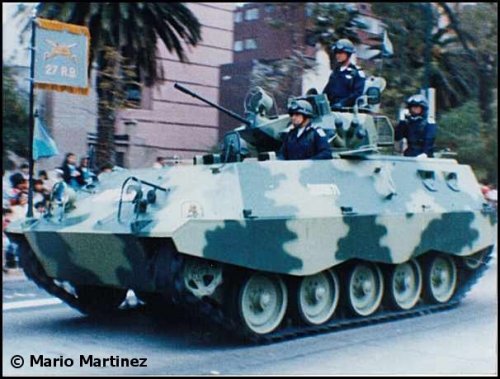

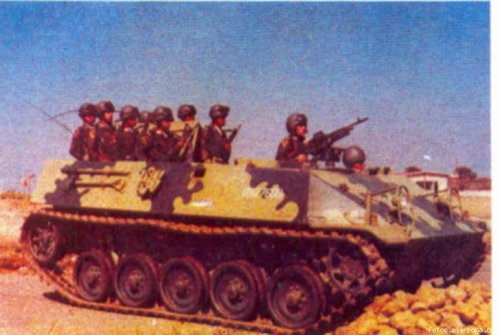

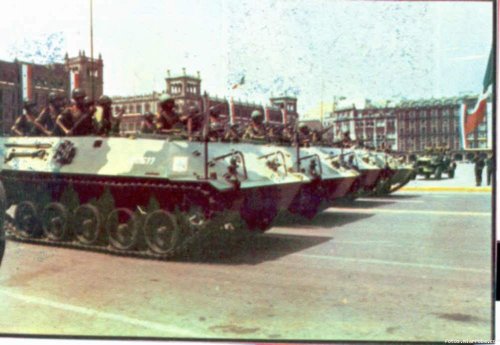

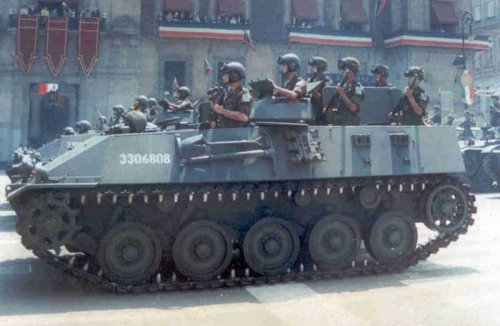

At http://idd007kg.eresmas.net/art/hkw11/index.html you may find an article in Spanish with a few photos of the HWK-11 APC during a Mexican army parade.

Here are some pictures of the vehicle and its version designated the HWK-13, whice was to be an armoured recce vehicle with an engine moved to the rear and a two-man turret armed with a 20mm automatic cannon. It did't got beyond a prototype stage.

Best regards,
Piotr


Attachments

  • d_hw-k13_01.jpg
    16.7 KB · Views: 190
  • d_hw-k10_01.jpg
    12 KB · Views: 185
  • hwk13_001.jpg
    34.8 KB · Views: 152
  • HWK_mexico2_001.jpg
    69 KB · Views: 114
  • hwk11_002.jpg
    61.2 KB · Views: 141
  • hens_big.jpg
    35.3 KB · Views: 284
  • hwk_helio_001.jpg
    46.8 KB · Views: 334
  • hwk-11_mexico4_001.jpg
    60 KB · Views: 284

smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
48
Thanks, Piotr. Some nice pictures I've not seen before. But still no HWK 12 with 90mm recoilless gun.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
626
Reaction score
340

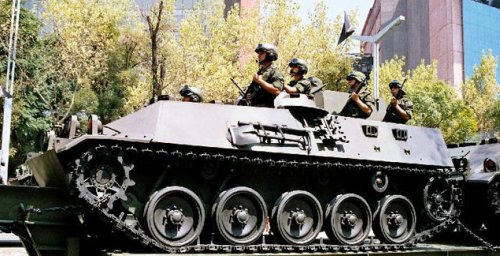

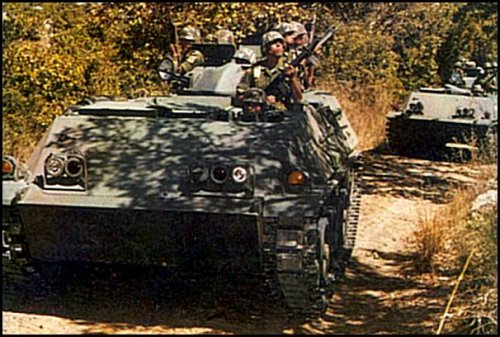

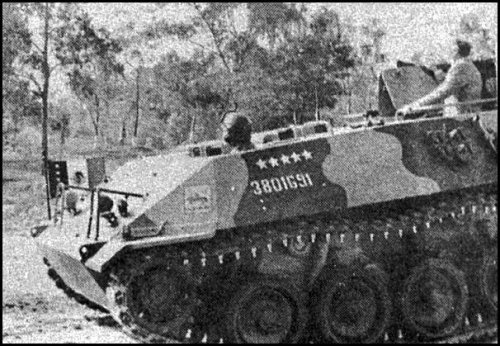

Here are two more pictures of the HWK-11. This time they both show the original version of the vehicle, with no turret and firing ports and with a pintle-mounted machine gun over the commander's hatch.

As for the HWK-12, this was to be a vehicle somehow similar to the HWK-11 with a 90-mm gun-armed turret mounted where the troop compartment of the APC was and without a commander's hatch in the hull (to the rear of the driver position). As far as I know the HWK-12 was never built (unlike the HWK-13 reconnaissance vehicle). This is perhaps why there is no photos of the beast.

Best regards,
Piotr


Attachments

  • hwk-11_261d9768.jpg
    60.9 KB · Views: 139
  • hwk-11_831386f5.jpg
    43.7 KB · Views: 136

smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
48
This is perhaps why there is no photos of the beast.
Seems logical!
Seriously, Piotr, thanks for the extra pics and the information, which gives some idea of how it would have looked. Perhaps a drawing will surface sometime.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
626
Reaction score
340

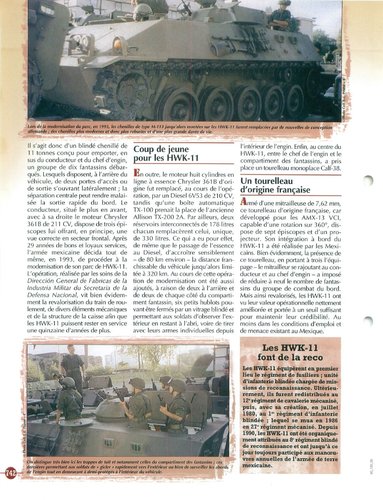

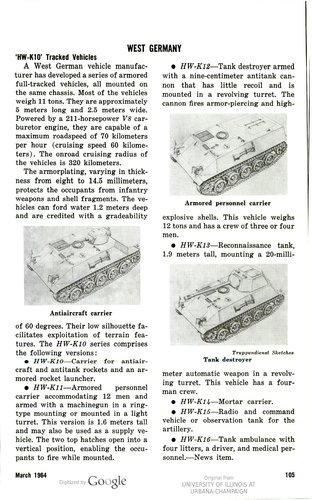

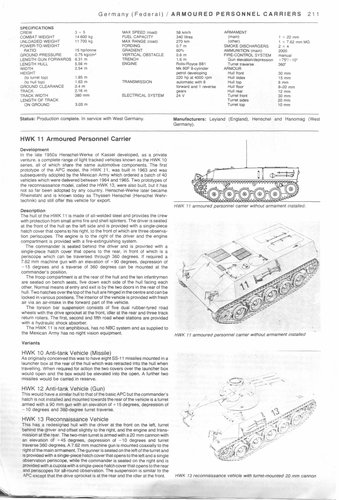

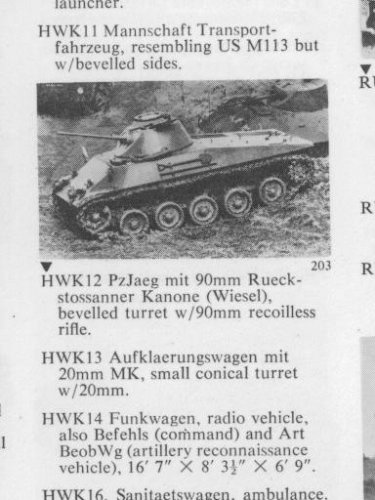

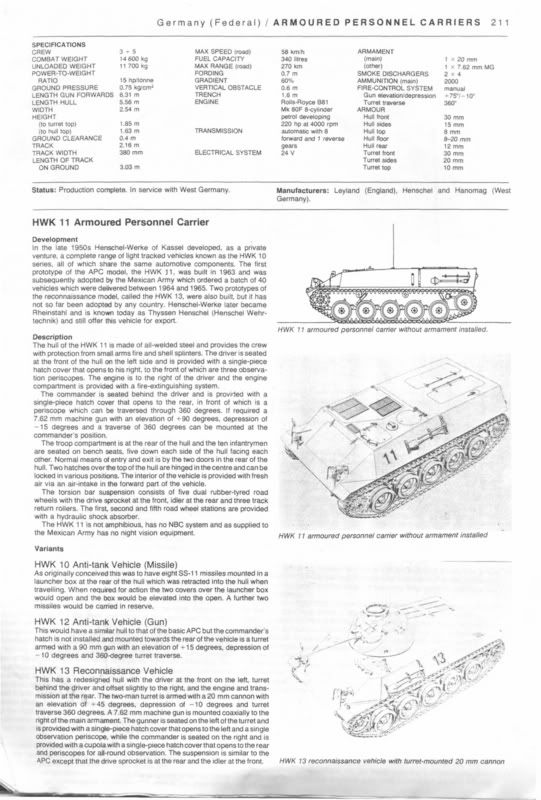

Here are scans that come from a Jane's publication of the late 1970s or the early 1980s. Unfortunately, when I made the photocopies a few years ago at a library I didn't put the title and the year down (now the library is closed till the end of June for it's being refitted).





Regards,
Piotr


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
48
Thanks again. Those are good, and can be read!
I notice the HWK12 entry says 90mm gun, not 90mm recoilless gun.
There was a 90mm version of the Hotchkiss Spz, IIRC


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
626
Reaction score
340
I think in the 1950s and 1960s the Germans and the Swiss, not to mention the French, used 90mm caliber for their anti-tank guns.
The Swiss army adopted towed 90mm guns in the early 1950s. Quite a few vehicle prototypes armed with the gun were built in Switzerland, but non of them was adopted. Amongst them was a tank-destroyer based on the HS-30 chassis. Here is its photo.


Attachments

  • hs3090.jpg
    43 KB · Views: 194

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
626
Reaction score
340
smurf said:
I recalled incorrectly. It was 75mm

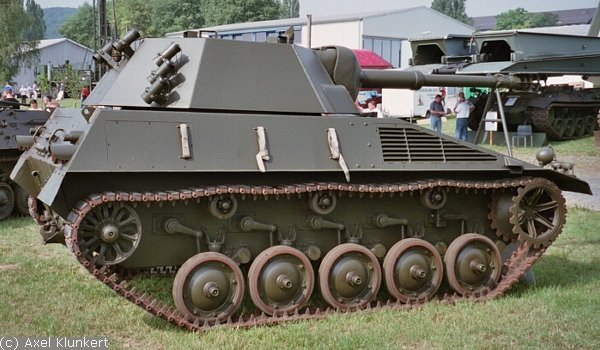

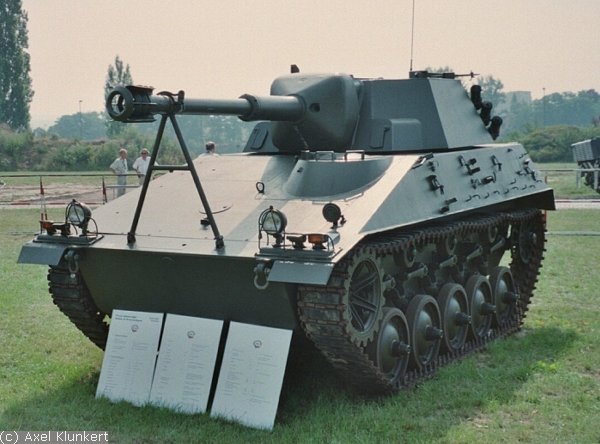

You was absolutely right. Contrary to what I thought there had been a version of the Hotchkiss Schutzenpanzer-kurz armed with a 75mm gun mounted in a turret. Here are two photos showing its prototype (of course, the vehicle was not adopted by any army):





(The photos come from http://www.panzerbaer.de/types/bw_spz_kurz_jgpz_75mm.htm)

Best regards,
Piotr


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
48
Yes, that's the one I had in mind. Does anyone know what type of gun was used? High velocity, medium velocity, even high pressure/low pressure?


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
626
Reaction score
340

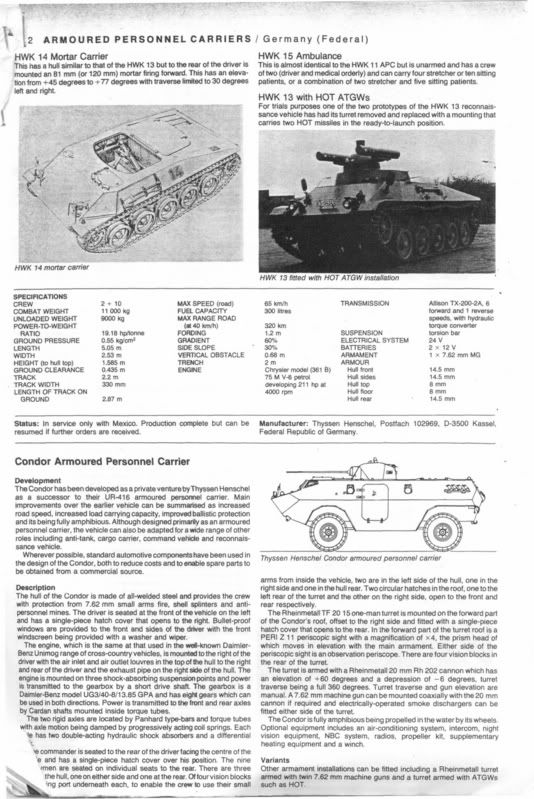

Here are scans that come from a Jane's publication of the late 1970s or the early 1980s.
Now I'm reposting the scans posted here 13 years ago using Photobucket.
Piotr


Attachments

  • HWK_Janes_Scan_01.jpg
    654.2 KB · Views: 62
  • HWK_Janes_Scan_02.jpg
    779.8 KB · Views: 60

skylancer-3441

I really would not change much my personal text
Joined
Jan 17, 2015
Messages
81
Reaction score
186

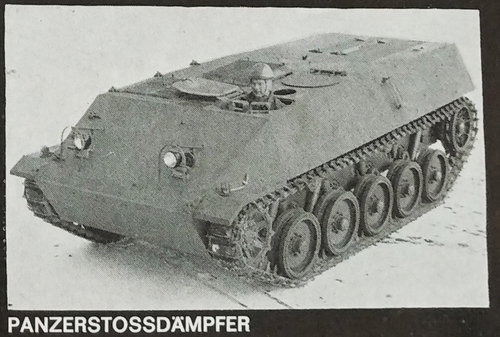

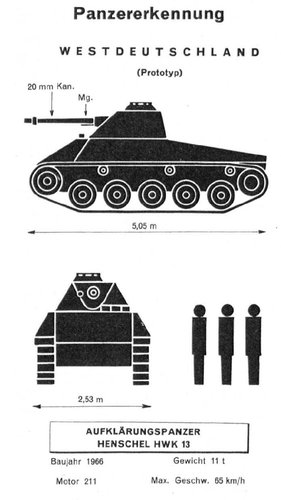

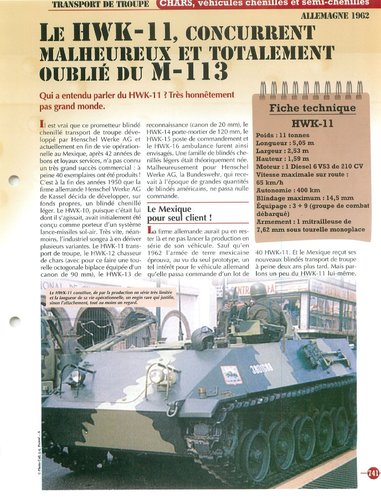

some pics


Attachments

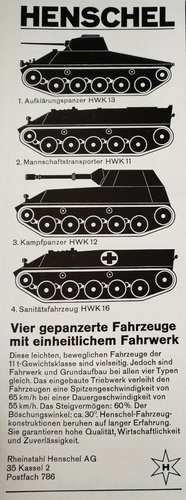

  • Jahrbuch der Wehrtechnik 1 (1966) p.250_cr.jpg
    Jahrbuch der Wehrtechnik 1 (1966) p.250_cr.jpg
    831.7 KB · Views: 55
  • sol-001_1967_43__638_d p.2_cr.jpg
    sol-001_1967_43__638_d p.2_cr.jpg
    51.3 KB · Views: 44
  • Herkenning 1964-09-10 p.116_cr2.jpg
    Herkenning 1964-09-10 p.116_cr2.jpg
    73.2 KB · Views: 41
  • MR 1964-03 p.107.jpg
    MR 1964-03 p.107.jpg
    2 MB · Views: 52
