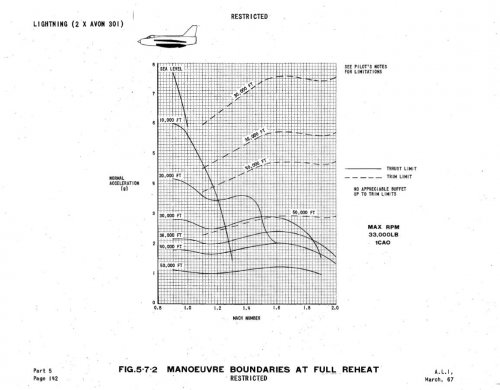

How to read this Lightning Manoeuvre Boundaries?

GUNDAM123dx

I really should change my personal text
Joined
Oct 31, 2017
Messages
16
Reaction score
9

The "Thrust Limit" means steady turn loading factor (SEP=0) and the "Trim Limit" means the maximum turn loading factor?
Does it mean that Lightning F.6 got an even higher 'G' limit than F-86F?
I'm not sure about it. Plz help me.

Thanks.


red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
553
Reaction score
2
View attachment 613605

The "Thrust Limit" means steady turn loading factor (SEP=0) and the "Trim Limit" means the maximum turn loading factor?
Does it mean that Lightning F.6 got an even higher 'G' limit than F-86F?
I'm not sure about it. Plz help me.

Thanks.
Trim limit is probably the maximum useable lift coefficient. For all the altitudes stated the aircraft is lift limited rather than g limited. At lower altitudes it will become g limited.
