Hispano Suiza C-36

Jan den Das

ACCESS: Secret
Joined
Dec 27, 2008
Messages
270
Reaction score
33
In 1934 Enrique Corbella designed a fighter the Hispano Suiza C-36, it should be powered by a HS 14-HA radial engine of 1120 hp.
Its possible that the design was based on the lines of the Fokker D.21.
What I read is that the construction was the same as used on the Fokker.

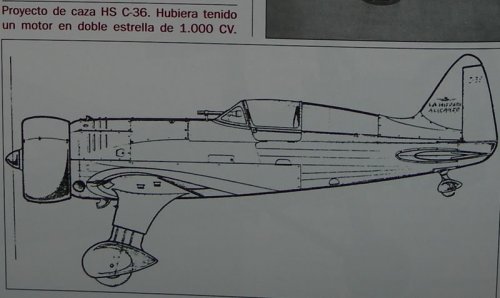

Enclosed some technical details and a side view.

Who knows/has more abot this project?
Maybe better drawings etc.??

Jan


Attachments

  • hsc-36.jpg
    46.9 KB · Views: 314
  • c362iv9.jpg
    57.5 KB · Views: 314

glmm

ACCESS: Confidential
Joined
May 21, 2006
Messages
52
Reaction score
2
What`s the source for the data and the side view? It may help me to track it down....


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31
Hello Jan,

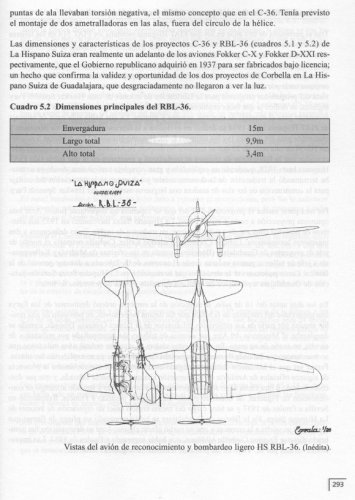

Information about this project and the contemporary RBL-36 reconnaissance/light bombing aircraft first appeared in the book by Lage on Hispano Suiza.
An English version of the book does exist, ISBN 0768009979.
Adrien


Attachments

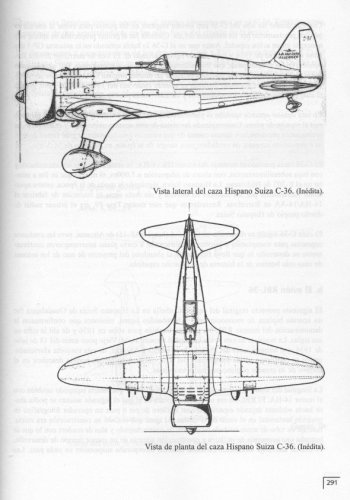

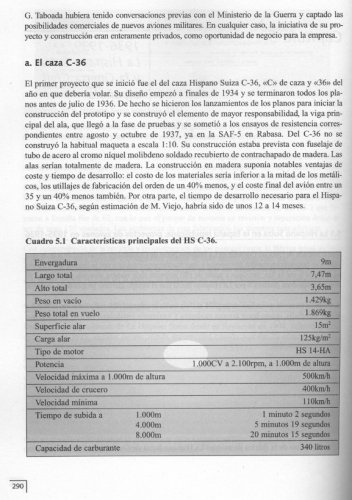

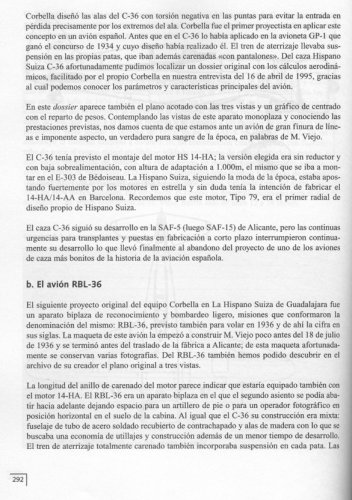

  • hispano_lage_p290s.jpg
    138.6 KB · Views: 216
  • hispano_lage_p291s.jpg
    101 KB · Views: 207
  • hispano_lage_p292s.jpg
    169.8 KB · Views: 192
  • hispano_lage_p293s.jpg
    115.3 KB · Views: 111

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,790
Reaction score
4,944
Excellent my dear C460,


and for Jan,I have this project from Spain magazine,I will search about it.
