Greetings All -

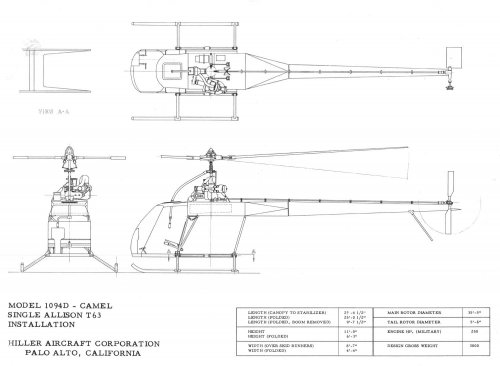

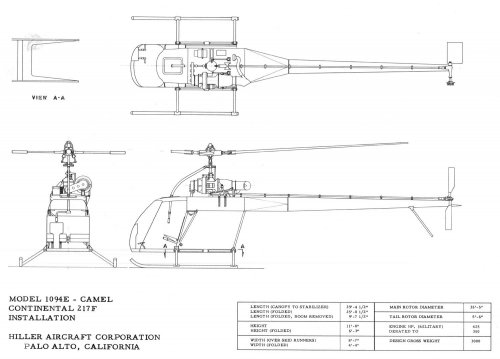

A single seat design from Hiller called the Model 1094 Camel - here with two different engine options.

The original still exists in the collection of the Classics Rotor Museum in Ramona, California.


Enjoy the Day! Mark


Attachments

  • xHiller Model 1094D Camel 3V.jpg
    xHiller Model 1094D Camel 3V.jpg
    122.5 KB · Views: 411
  • xHiller Model 1094E Camel 3V.jpg
    xHiller Model 1094E Camel 3V.jpg
    123.2 KB · Views: 395
Thanks Mark! More on the CAMEL:


Attachments

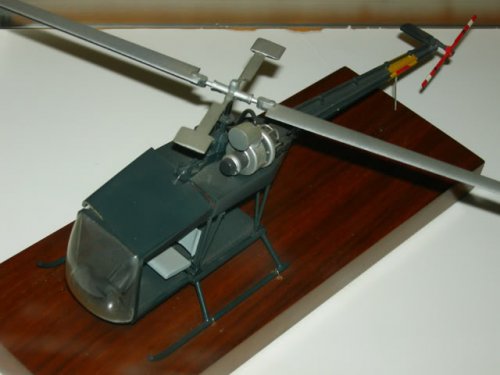

  • DSCN3047.jpg
    38.2 KB · Views: 341
And:


Attachments

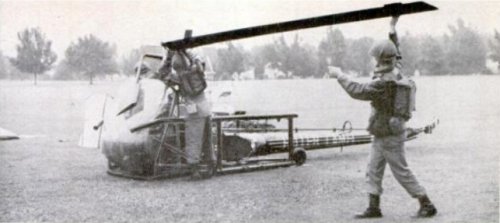

  • mock-up2.jpg
    150.2 KB · Views: 331
  • text - Marines & Helicopters.jpg
    text - Marines & Helicopters.jpg
    101.8 KB · Views: 311

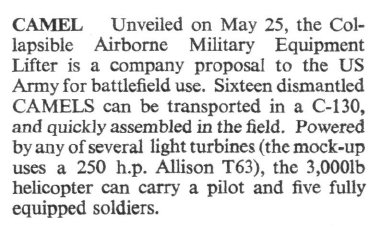

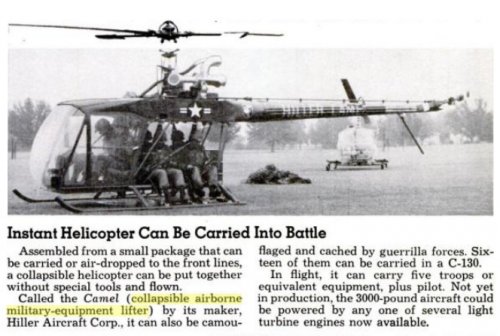

  • text 1962.jpg
    text 1962.jpg
    56.7 KB · Views: 54

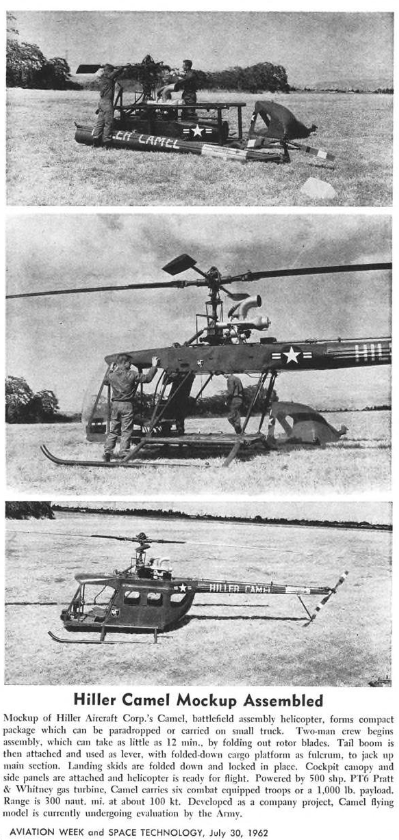

  • mock-up1.jpg
    87.7 KB · Views: 73

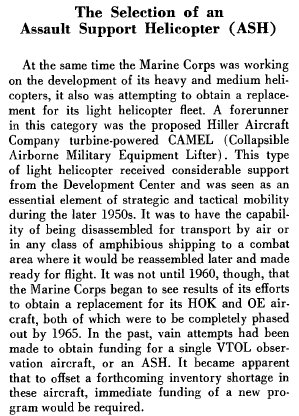

The Selection of an Assault Support Helicopter (ASH)

At the same time the marine corps was working on the development of its heavy and medium helicopters, it also was attempting to obtain a replacement for its light helicopter fleet. A new forerunner in this category was the proposed Hiller Aircraft Company turbine-powered CAMEL (Collapsible Airborne Military Equipment Lifter).

This type of light helicopter received considerable support from the Development Center and was seen as an essential element of strategic and tactical mobility during the later 1950s. It was to have the capability of being disassembled for transport by air or in any class of amphibious shipping to a combat area where it would be reassembled later and made ready for flight. It was not until 1960, though, that the marine corps began to see results of its efforts to obtain a replacement for its HOK and OE aircraft, both of which were to be completely phased out by 1965.


Source: http://www.combatreform.org/killerbees.htm

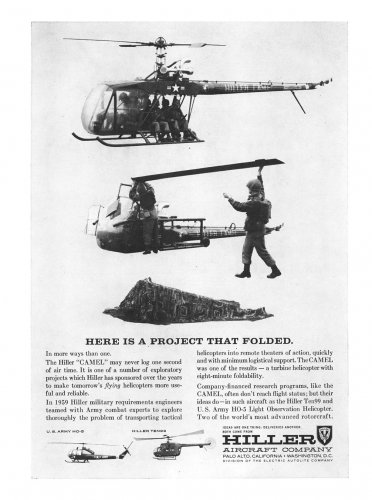

I found this rather neat contemporary advert from October 1962 for the Hiller Camel (probably from AvWeek , Flying or another US magazine).


Attachments

  • Hiller_1094_Camel_(October_1962)_Advert.jpg
    174.4 KB · Views: 70
