Hi all,

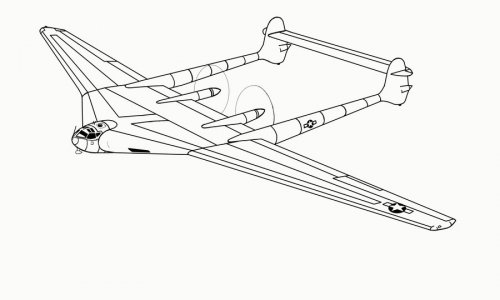

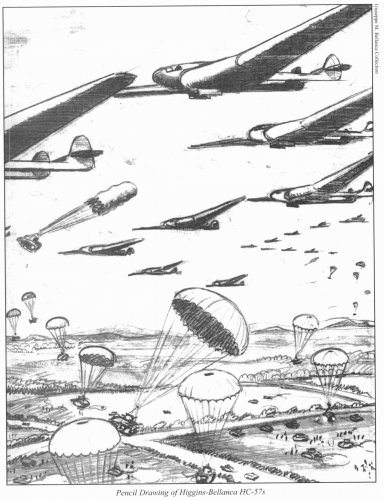

found this pic about the Higgins-Bellanca HC-57. I never heard this designation before, only the name Higgins-Bellanca Cargo Transport is known. I believe there was only one project. Why HC-57?
Can anybody help?

Thanks Maveric


Attachments

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
450
Website
deeptowild.blogspot.com

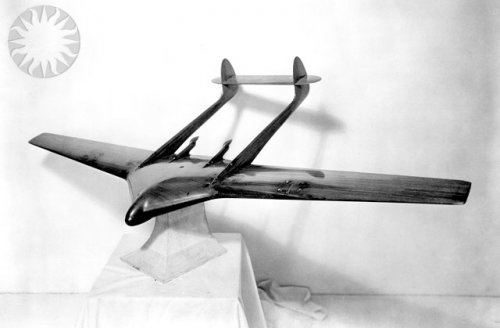

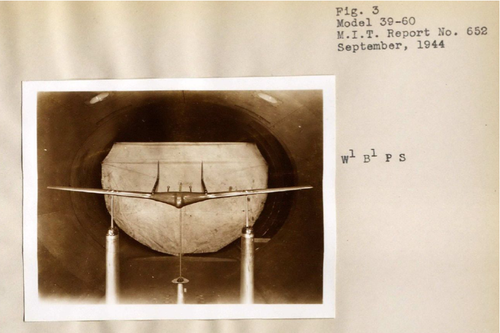

Is this wind tunnel model also the Higgins-Bellanca HC-57? From the Giuseppe M. Bellanca Collection at the Smithsonian Institution.

1/2 left front view of a Higgins-Bellanca artists concept wind tunnel model...Credit: unknown (Smithsonian Institution)
Source:
http://www.flickr.com/photos/publicresourceorg/493977852


Attachments

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,921
Reaction score
283
I know this pic from "Bellanca-The Golden Years" as Higgins-Bellanca Transport Cargo.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
450
Website
deeptowild.blogspot.com
Guiseppe M. Bellanca was head of the Aviation Department at Higgins Aircraft, in New Orleans, from 1941-43 designing large cargo aircraft for troop movement during the war. Higgins Aircraft was a subsidiary, some sources say division, of Higgins Industries, Inc. set up to build aircraft during World War II. Looking at the United States Army Air Force aircraft designations, there is no HC designation. Just C for Cargo and no HC for Heavy Cargo. The C-56 designation was given to the Lockheed Model 18 Lodestar.

Perhaps HC stands for Higgins Aircraft Company like DC stands for Douglas Aircraft Company?

Sources:
http://www.nasm.si.edu/research/arch/findaids/bellanca/gmb_sec_5.html
http://en.wikipedia.org/wiki/Higgins_Aircraft


Tophe

CLEARANCE: Top Secret
Joined
Feb 18, 2006
Messages
1,150
Reaction score
34
Website
cmeunier.chez-alice.fr
I did not know this twin-boomer, thanks! ;D
Do you mean this is a 1941-43 design, or a project after war? As it is posted in this part of the forum, it seems 1945 maximum but I would prefer a confirmation.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
450
Website
deeptowild.blogspot.com
Tophe said:
I did not know this twin-boomer, thanks! ;D
Do you mean this is a 1941-43 design, or a project after war? As it is posted in this part of the forum, it seems 1945 maximum but I would prefer a confirmation.
Bellanca was employed at Higgins Aircraft from 1941-43 designing large transport aircraft for service during World War II. This is not a postwar project. From the Wikipedia entry, it appears that the assets of Higgins Aircraft were seized by the government and sold at auction sometime in 1946.

Source:
http://en.wikipedia.org/wiki/Higgins_Aircraft


jzichek

CLEARANCE: Secret
Senior Member
Joined
Nov 26, 2008
Messages
266
Reaction score
40
Website
www.patreon.com

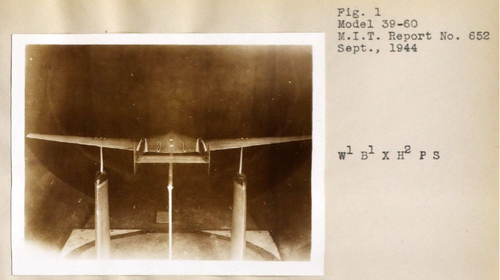

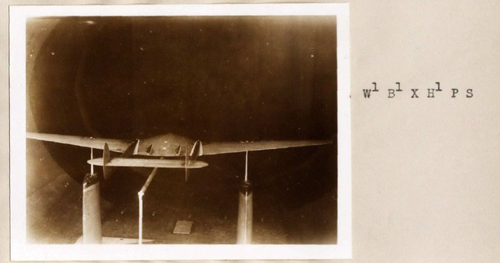

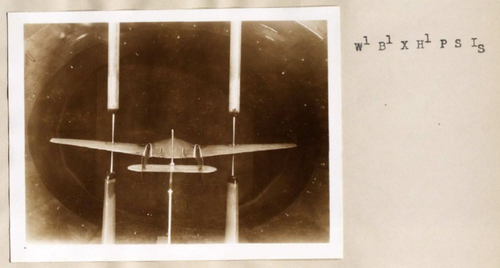

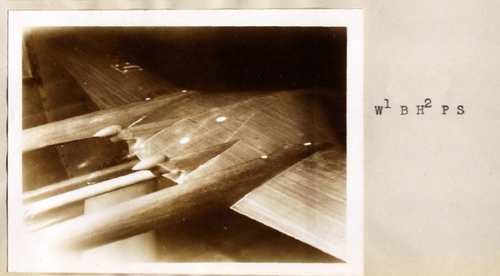

Higgins-Bellanca Cargo Model 39-60

A new post is up at RetroMechanix.com on the Higgins-Bellanca Cargo Model 39-60, a huge transport designed for the USAAF in 1944:



The aircraft featured a blended wing-body combined with a twin boom tail assembly; power was provided by a pair of pusher Pratt & Whitney Model R-4360 two-stage radial engines. The article reproduces the original specification for the aircraft, along with general arrangement drawings. Also included is a cleaned-up digital tracing of the three-view to provide greater clarity.

-Jared


theponja

CLEARANCE: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
11
Great data in the Jared documents.
I liked the idea of tinypass sometimes spend several bucks is too much but just 0,30 it's perfect. Well I'd spend a lot of bucks but 0,30 is better for discuss with your wife, you know. ;)


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
396
Are the Model 39-60 and the HC-57 one and the same project?


jzichek

CLEARANCE: Secret
Senior Member
Joined
Nov 26, 2008
Messages
266
Reaction score
40
Website
www.patreon.com
It appears so, though HC-57 is not mentioned in the specification I have posted in the article.


Tophe

CLEARANCE: Top Secret
Joined
Feb 18, 2006
Messages
1,150
Reaction score
34
Website
cmeunier.chez-alice.fr
Re: Higgins-Bellanca Cargo Model 39-60

jzichek said:
A new post is up at RetroMechanix.com on the Higgins-Bellanca Cargo Model 39-60, a huge transport designed for the USAAF in 1944:
-Jared

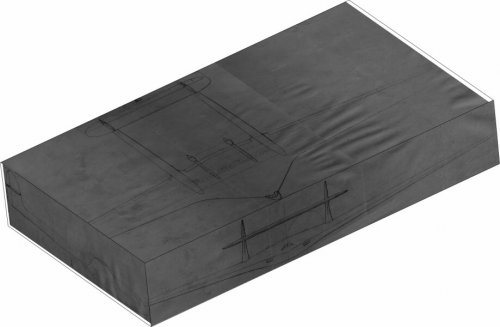

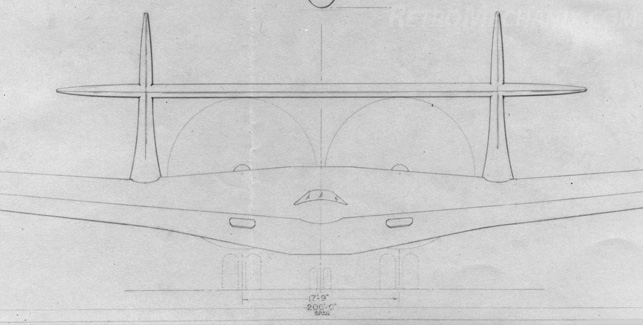

I bought from RetroMechanix the high res pictures, so cheap and wonderful, and from the blueprints I created this box view. Far more clear could be done with the other views. Jared nicely authorized me to post it here:
Tophe


Attachments

tonton42

CLEARANCE: Restricted
Joined
Jan 19, 2009
Messages
16
Reaction score
0
Tophe said:
On the What-if forum at http://www.whatifmodelers.com/index.php/topic,33875.105.html
RussC presented his drawing of the Higgins-Bellanca HC-57 (from RetroMechanix source). As he is not member here, he authorized me to post it fot you:
Excellent idea Tophe ! If there was some dimensions of this project (span, length ...) it would be pleasant for me to do a little three view drawing. I think this HC-57 a good subject for making a pretty flying model with electric engines (may be, if it had not be made at this time) !


tonton42

CLEARANCE: Restricted
Joined
Jan 19, 2009
Messages
16
Reaction score
0
Tophe said:

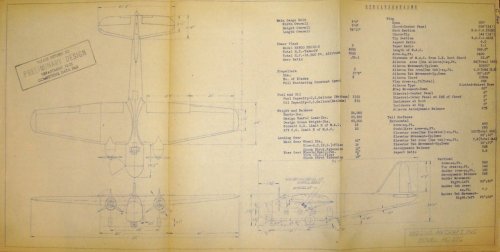

At http://retromechanix.com/article/transports/higgins-bellanca-cargo-model-39-60-1944/ are the data you need: Length 97ft, Span 200ft, Height 31 ft 1 in. Two 3-view drawings are included high res (with a little payment required). If you ever build a flying one, I am pretty sure you will be the first, no?
I think models can make alive forgoten projects or old forgoten planes ... It is a form of tribute for conceptors and also pilots, over all when they payed with their life in a time where it was no computer to make simulations ... I think very much of our Cormoran, a sort of French C-130 ancestor, and it's bad destiny. An another of my numerous project ...


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
396

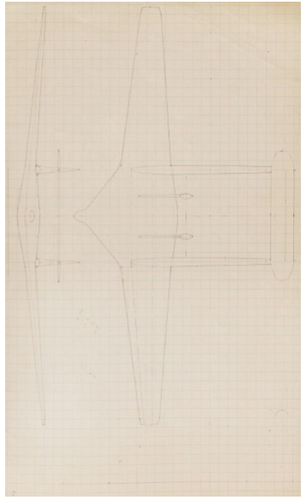

Apparently, once Higgins separated from Bellanca, they continued to work on the HC-57 program with a conventional tail aircraft of a totally different shape and configuration designated the HC-57C:


Attachments

J

joncarrfarrelly

Guest

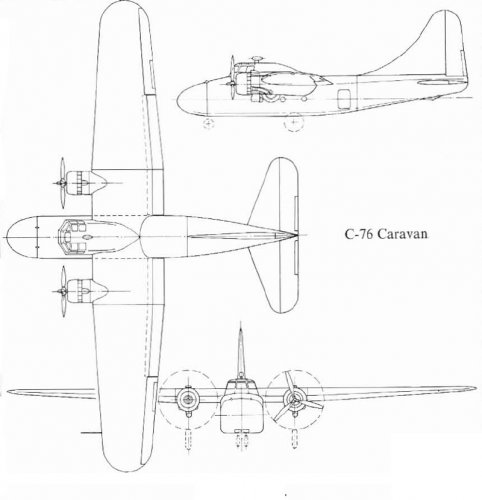

That looks an awful lot like an enlarged Curtiss CW-27/C-76 Caravan, which type Higgins
had been contracted to build.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
396
The story behind the creation of the Higgins-Bellanca flying wing transport project is told in pretty much detail in the book Skylark: The Life, Lies, and Inventions of Harry Atwood, by Howard Mansfield, and is a fascinating one. I'm quoting a few selected extracts but the whole chapter is really worth reading:

[Harry] Atwood brought Higgins the latest generation of his woven plastic-plywood. Higgins was impressed. The entire log could be used, and they could use locally grown Southern wood, bypassing wartime shortages. Atwood had also brought Higgins his plans for a 150-ton, ten-engine flying wing with a three-hundred-foot wingspan. (One-third larger than a 747's wingspan.) Atwood had revived his flying wing dreams from his Monson days, and presented it as the solution for flying cargo. A flying wing just looks good, a “pure” airplane; the stretch of wing is what we respond to when we see a soaring hawk or a seabird. Higgins took up the cause: “I shall build planes without outside privies on them," he said.
Airplanes are the future of cargo, said the shipbuilder. “I much prefer being in the air cargo carrier business to building surface carriers, because the airships are so much less vulnerable."
He set up Atwood and Bellanca and a staff of engineers in a mansion on a lake (...) Higgins had housed his other research geniuses in mansions around New Orleans, all reportedly under guard.
The Atwood-Bellanca project was separate from Higgins's other aviation business, a “super secret off-shoot devoted exclusively to research and experimenting. Atwood has developed a sensational kind of woven plywood and an even more sensational cargo plane design. Both are cloaked in secrecy,” wrote one aviation magazine. “Remember this,” said a company vice-president, “Mr. Higgins is in aviation for keeps.”
They were at work on the Higgins Air Freighter. The cargo would be carried inside the wing. As the design evolved, it was no longer a pure flying wing. One slightly smaller version had eight engines on the leading edge of a 240-foot wingspan, with a twin, 80-foot long tailboom supporting a horizontal stabilizer. For its day, it was a Paul Bunyan-sized airplane, about double the size of the B-29, then the largest plane flying.
Two wartime shortages and the politics of a cancelled contract had made this outsized dream seem attainable. There was an urgent need for air transport planes. “Not a single plane originally conceived for cargo is in service in the Western Hemisphere,” reported the Office of War Information in June 1943. (...) “At present American air transport needs are being filled by operations that show considerable ingenuity but which cannot be called eflicient,” said the Office of War Information.
The War Production Board called on the army to double cargo plane production. The head of the army’s air forces, Lt. General "Hap" Arnold, said the cargo planes should be built of “noncritical materials.” Steel, aluminum, and other metals were in short supply. Wood was in fashion again for airplanes.
(...)
In 1942 Higgins gained and lost the largest ship contract in American history. (...) He was building a two-mile-long floating assembly line for ships, the world’s first. A ship would be built in 5 days, instead of the usual 150 days. One ship a day would come off the line, a rate that would match the country's entire ship production. “It can't be done,“ said other shipbuilders. “The hell it can't,” said Higgins.
Four months later, the contract was abruptly cancelled. Higgins had spent ten million dollars blasting and dredging twelve hundred acres of swamp for the factory where upwards of sixty thousand workers would build the ships. The steel shortage had worsened; there was not enough steel to build the factory, let alone the ships. Other shipyards had cut back, some Detroit assembly lines had shut down, and armament production was threatened.
Higgins (...) made so much noise that President Roosevelt came to visit, the only Louisiana stop on his cross-country tour. Roosevelt had been secretary of the navy and knew Higgins, and recently Higgins had stood up at one of Eleanor Roosevelt's rallies and pledged to hire Negroes at equal pay (for which he was criticized). Roosevelt toured the plant for an hour, and invited Higgins to Washington. The uncompleted shipyard would be put to use.
For five weeks, Higgins and Atwood met with the president, the War Production Board, and army officials, including Atwood's old friend Hap Arnold. They displayed a three-foot model of the Higgins Air Freighter, and outlined their plan to build it with Atwood's woven plywood, which contained metal. “l call it a wood alloy,” said Higgins, adding apologetically, “I had to coin a name for it which is not very good, but the best l could do.” It was twice as strong as duraluminum of the same thickness, he said, but it was made primarily from noncritical materials. The Air Freighter‘s construction would make it virtually unsinkable, should it be forced down in the ocean, he said.
He wanted to build an untested type of airplane at a colossal scale with a new, untested material. The army was wary. “Mr. Higgins' proposal to build his planes of plywood—an unprecedented use of such material in planes of the contemplated size—aroused a storm of controversy,” said the New York Times. “It was pointed out, however, that the Russians had built their best fighters, the MIG-3, out of plywood. The British have also used plywood in a combat plane known as the Mosquito.”
Kaiser was already building a huge cargo plane, and there were many critics who said the plane would not be ready in time. The army needed production.
Higgins left Washington with a contract for twelve-hundred cargo planes of a conventional design [the Curtiss C-76 Caravan], to be built with Atwood's “wood alloy.” The two-hundred-million-dollar contract was larger than all the rest of his business, and one of the largest airplane contracts in American history. He would have to hire fifty to sixty thousand workers—80 percent women and 50 percent Negro, he said—and build a factory large enough to house a dozen football fields and a half dozen baseball fields.
He had not given up on the Air Freighter. He would build a demonstration plane with his own money. He had done that with the landing boats, and now they were in use all over the world. He would do it again with the great flying wing.
(...)
There was a big party at the Willard Hotel in Washington in a ballroom hung with model airplanes. Army brass and various wartime commissioners and congressmen toasted the success of Higgins. He'd show them how to build cargo planes in a hurry.
But he never got the chance. Higgins built his large assembly factory, set up Preston Tucker in a factory to build engines, and built a plywood sawmill, veneer mill, veneer plywood and molding plant, and a “wood alloy structures plant.”
A month before the airplane factory was completed, the contract for the Curtiss C-76 was cancelled. There were problems up the line. Higgins was a subcontractor, and, unfortunately, he had been yoked to a disaster.
In the light of what is said above (and in the rest of the chapter) about the C-76 Caravan debacle, I do wonder if Higgins's HC-57C conventional transport design may not have been a desperate, last minute proposal to try and not lose the 200-aircraft contract, once the Caravan had clearly proved a disaster.
