HFB/Ryan HFB 530/Y2A Ranger Jet VTOL project......

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
30 November 2007
Messages
1,088
Reaction score
419

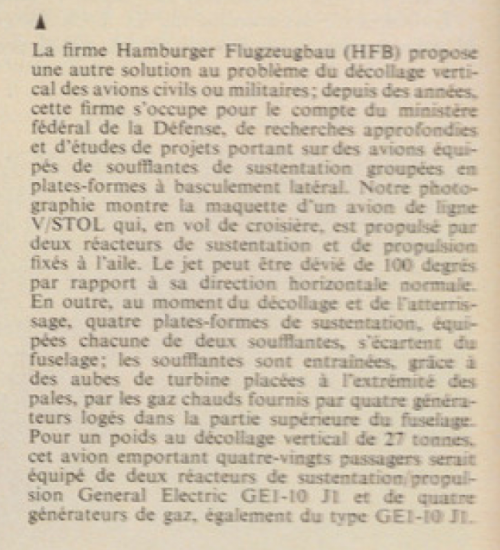

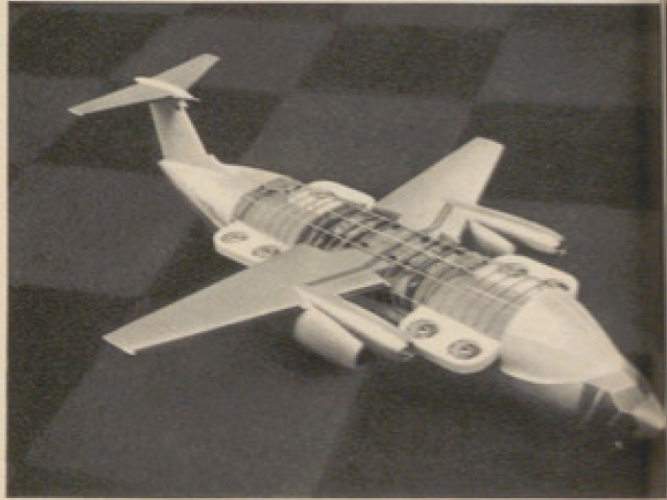

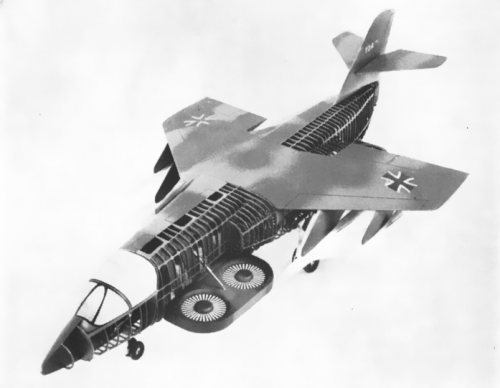

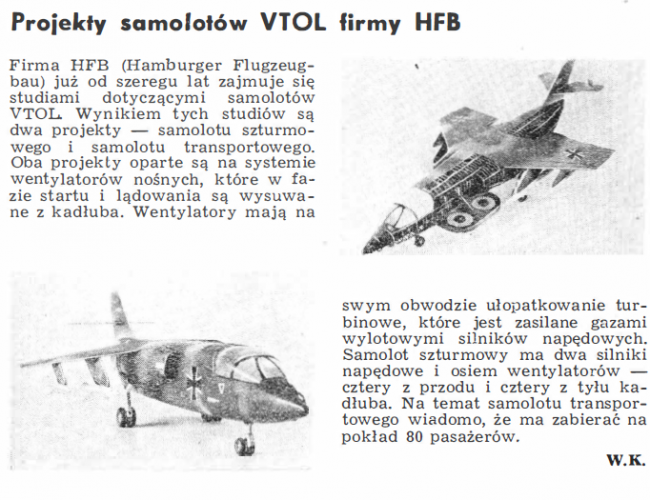

Dear Boys and Girls, here is a feature with a caption in French about a Hamburger Flugzeugbau GmbH VTOL Jet Fighter "project" with pop-out lift fans. Not knowing anything about military fast-jets or German aircraft; I can't identify it and I've searched the fora here thoroughly......

If any one can identify the "project", I'll gladly retitle this topic or re-post the feature in the proper place......

The feature comes from the 1st Aprl 1968 issue of Aviation Magazine International......

Terry (Caravellarella)

Last edited by a moderator:

Attachments

  • 1968 - 0830.PDF
    347.6 KB · Views: 4
  • 1968 - 0831.PDF
    327 KB · Views: 3
Re: HFB/Ryan HFB 530 / Y2A Ranger Jet VTOL project

overscan said:
HFB 530 Ranger (Y2A Ranger), a joint study with Ryan. Oddly, we don't seem to have a topic for it yet. Forum member Mike Hirschberg wrote an article on it in Aerospace Projects Review, V4N4. Here's a brief mention in Flight:

http://www.flightglobal.com/pdfarchive/view/1968/1968%20-%200830.html
http://www.flightglobal.com/pdfarchive/view/1968/1968%20-%200831.html

Thank you Overscan for identifying this "project" for me......

Terry (Caravellarella)

Some details on the Ryan / HFB 530 Ranger:

Crew: 1
Engines: General Electric GE.1 J85-J1 (2 x 16.52 kN)
Wing Span: 7.97 m
Length: 13.73 m
Height: 3.99 m
Max Speed: 1,150 km/h
Cruise Speed: 700 km/h
Empty Weight: 5,579 kg
Take-off Weight: 7,600 kg
Operating Ceiling: 14,500 m
Max Range: 250 km

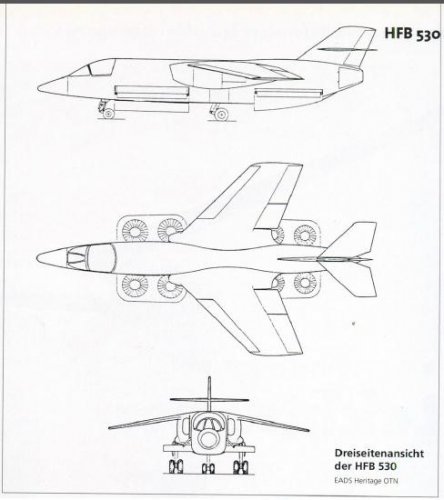

Source: Blohm & Voss Flugzeuge Seit 1933
by Manfred Griehl (Motorbuch Verlag 2011) ISBN 9783613032675

(which also has a good 3vu of this HFB/Ryan collaboration)

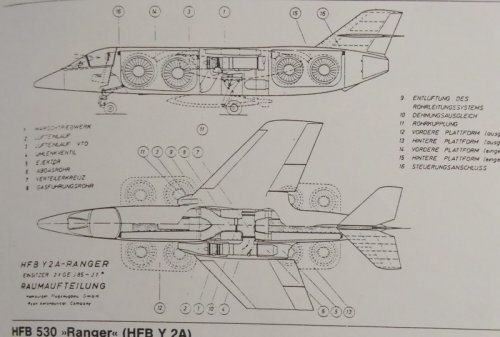

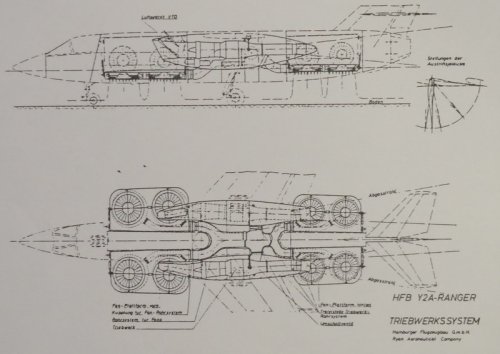

Have somewhat missed this topic back then. From "Bilderchronik HFB 1955 - 1969", two drawings
showing the internal arrangement of the HFB 530:


Attachments

  • HFB-530_Ranger_01.jpg
    118.3 KB · Views: 741
  • HFB-530_Ranger_02.jpg
    116.3 KB · Views: 685
Jemiba said:
Have somewhat missed this topic back then. From "Bilderchronik HFB 1955 - 1969", two drawings
showing the internal arrangement of the HFB 530:

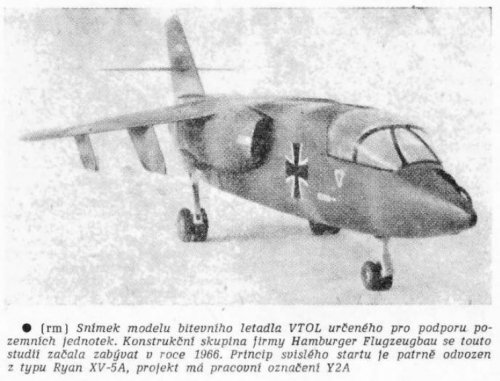

A fantastic drawing from my dear Jemiba,


and here is a model for it from L + K.


Attachments

  • HFB Y2A.JPG
    HFB Y2A.JPG
    72.5 KB · Views: 464
Hi,

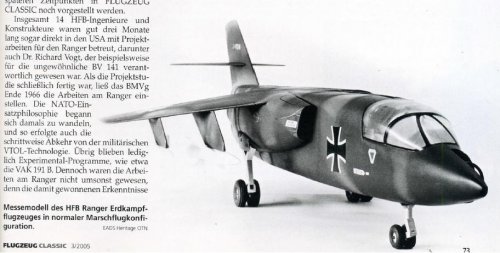

here is the HFB-530 VTOL aircraft from Flugzeug Classic 3/2005.


Attachments

  • HFB-530.JPG
    28.6 KB · Views: 348
  • HFB-530 Model.JPG
    HFB-530 Model.JPG
    69.1 KB · Views: 154
In 1964, Hamburger Flugzeugbau (HFB) received an order from the Federal Ministry of Defense (BMVg) to study a ground attack and reconnaissance aircraft with VTOL properties (Vertical Take Off and Landing). For HFB this was a welcome opportunity to conduct timely research in military air-wrapping and testing. So it is hardly surprising that from the very beginning a close cooperation was sought with the Ryan Aeronautical Company in San Diego and that this was called on as a subcontractor together with the engine manufacturer General Electric.

Under the designation HFB 530 or HFB Y2A Ranger, the design of a 13.73 m long twin-engine high-wing aircraft with a span of 7.97 m and conventional tail unit was created. The great feature of the HFB 530, analogous to the XV-5A, was a so-called lift fan system, which was developed at General Electric by the former BMW engineer Peter Kappus. In principle, this is a single-circle jet engine, which is pneumatically coupled via a system of pipes with a single-stage axial fan - the lift fan. The axial fan is driven by a blade tip turbine, which in turn is powered by the hot exhaust gas jet from one of the two main engines. In this way, a cold lifting jet can be generated at low speed, but with a large air mass and a significantly higher momentum than that of the hot exhaust gas jet from the cruise drive. A total of eight of these lift fans were intended for the Ranger.

During the take-off and landing phases and when hovering, the two cruise engines of the type GE J85-J1, each with 1685 kp static thrust, were only intended to serve as gas generators for the lift fans. These were in pairs for a total of four sliding platforms on the underside of the fuselage in front of and behind the wings. The transition to or from level flight would have been effected by appropriate deflection of the fan beam. The control of the machine during the hover flight around the longitudinal and transverse axis should be done by different loading of the blade tip turbines and thus a change in the lifting capacity of the respective lift-fan pair. Appropriate twisting of the beam deflection grids would have enabled steering around the vertical axis. For normal cruise flight, the fan platforms should be fully retracted into the fuselage.

In contrast to other drive systems, the advantages of lift-fan technology were obvious. No additional (lift) engines were required for take-off and hovering. Switching from cruising to lifting thrust was also possible without any problems, and no additional jets were required for control in hovering flight. And since the fans only generated a low air flow rate, the machine could easily be used from unprepared places. All arguments that seemed to promise a great future for the lift-fan system - also or especially in the civil sector. Therefore, HFB soon also dealt with a number of other lift fan projects, some of which will be presented at a later point in time in FLUGZEUG CLASSIC.

A total of 14 HFB engineers and designers were supervised directly in the USA for a good three months with project work for the Ranger, including Dr. Richard Vogt, who was responsible for the unusual BV 141, for example. When the project study was finally completed, the BMVg stopped work on the Ranger at the end of 1966. The NATO operational philosophy was beginning to change then, and so did it gradual move away from military VTOL technology. Only experimental programs remained, such as the VAK 191 B. Nevertheless, the work on the Ranger was not in vain, because the knowledge gained with it enabled HFB the "intensive participation in fundamental future tasks of military aviation technology in cooperation with the other German aircraft companies".

Source: Flugzeug Classic 3/2005.

From the timeline and details shown here, it seems like we can potentially connect this project to the US/FRG studies.

Last edited:
Ryan, HFB Discuss Joint V/STOL Effort

Ryan Aeronautical Co. and \Vest Germany’s Hamburger Flngzenvbau (HFB) are negotiating a Phase-2 development contract for a V/STOL light strike fighter probably using General Electric lift- fan engines. Work on a Phase 1 study contract is under way.

The project is regarded by the West German Defense Ministry as primarily a back-up for the Vereinigte llugttchnische Werke VAK- 191B pure-lift V/STOL fighter. The VAK- 191B was designed as a potential earlv 1970s replacement for the Luftwaffe's FIAT G.91 now in service. A reconnaissance version of the HFB aircraft also is envisioned.

Ryan officials visited the \Vest German company late last year for initial discussions on the project. HFB currently is building the HFB-320Hausa executive jet transport and parts for the Dornier Do. 31 V/STOL transport.
28 March 1966
