Henschel(HFW) Designations

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Hi guys,

this is what I have found. Feel free to fill in the gaps!

P.21- Various fast bomber designs (1936).
P.24- Heavy pursuit fighter (1936).
p.25- Long range bomber w/ 4xJumo 210.
p.26- As P.25.
P.28- 3 crew reconnaissance aircraft(Hs126).
P.30-Testbed for DVL for experimenting w/high altitude engines.
P.54- Airliner.
P.72- Airliner.
P.76- Ground attack aircraft.
P.77- High altitude bomber.
P.77- Helicopter.
P.80- High altitude bomber(Hs130E).
P.87- Canard fast bomber.
P.90- Glide bomber or attack aircraft w/ pulsejets.
P.122-Tailless jet bomber.
P.130- Jet fighter.
P.135- As P.130 but w/piston engine and pusher configuration.
P.136- single seat, prone pilot w/ Walther rocket propulsion.
P.136- Jet fighter.
P.137- Jet fighter.

Unknown designation

P. ? - Twin-boom transport.
P. ? - 1943 jet bomber, 3 crew.
P. ? - 1944 Jet bomber, 4x BMW 018, 3 crew.
P. ? - Point defense fighter, a combo with the Hs117 missile.
P. ? - 1941 airliner project for 20 passengers derived from the P.54.
P. ? - 1942 airliner w/ 4xBMW 801A for transatlantic cargo flights.
P. ? - Hs72 based cargo aircraft for the Luftwaffe.

Any help?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Hi,

P.75 was a fighter,powered by one 2200 hp DB.610 engine.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,035
Reaction score
441

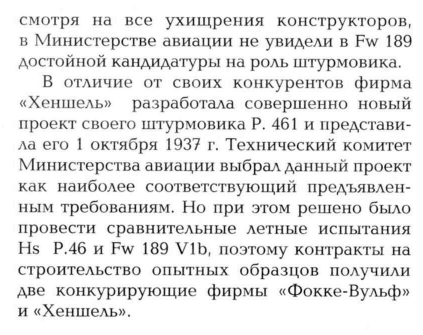

HsP. 46 become Hs.129
HsP.118 fighter project 1945


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,035
Reaction score
441
I have the HsP. 30 as Hs.128 and the HsP.123 as Hs.132.


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
Excellent,

many thanks guys. The P.77 is puzzling. Steve Coates states that it was a helicopter project, and that even metal was cut for it in 1942. But it happears in Horst Materna`s book "Die Geschichte der Henschel Flugzeug-Werke..." as a high altitude bomber.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,552
Reaction score
6,299
Some explanations;

P.54 was airliner project,powered by two 1700 hp BMW 801 engines.
P.72 was airliner project,also powered by two 1700 hp BMW 801 engines.
P.76 was ground attack aircraft project,powered by two 700 hp Gnome/
Rhone 14M engines.
P.? was twin boom transport project,powered by two piston engines a
competitor to Arado Ar.232;

http://www.secretprojects.co.uk/forum/index.php/topic,8857.0/highlight,henschel.html


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
993
Reaction score
142
This is an "odd ball" designation since it differs from the others:

PJ 600/67

It somewhat fits the P.90 description.


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
602
Reaction score
324
In Manfred Griehl's latest slim offering on Henschel there are some additions to the projects already noted:

Hs P.54 - This twin engine high-wing design was for a fourteen seat passenger airliner for DLH. Crew of 2 - 4.

Hs P.87 - Canard fast bomber with swept wings with a single DB 610 A-1 engine.

Hs P.122 - Tailess jet bomber with two BMW 018 jet engines under the wings. Work began early 1945 and work stopped after a couple of months.

Hs P.135 - Single He S011 jet engine fighter, short, stubby in appearance with wing tips angled up.

Hs P.136 - Two Argus engines mounted beneath the fin of this canard with straight wings. No horizontal tail as such but the engines gave the aircraft a distinctive appearance from above. Known as "Projekt Nahkampfflugzeug", work started at the end of 1944.

The book is a compact 128 page paperback and has a breakdown of Henschel types, production numbers, variants and illustrations. All of the projects mentioned above have 3-vu's, even if the P.122 is little more than a company sketch of the layout.

Source:
Henschel Flugzeuge seit 1933
Motorbuch Verlag Typenkompass (2001) ISBN 978-2-613-03337-5


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,344
Reaction score
6,339
Dear all

A very straightforward question about the HS.129 "tank buster" aircraft. The A prototypes had Argus 410 with 450 hp and obviously the aircraft was underpowered.
We all know that the "solution" found was to put radial G&R engines produced by Vichy France. Ok. Those engines had nearly 700 hp and greatly helped.
Fine.

Now Wikipedia keep telling me that the Argus 410 become the 411 with far more hp - 650 hp. What's more, a lot of secondary LW aircraft build by Vichy France used that engine - to the point Renault carried on after WWII.



So why on Earth did the HS-129 never got Argus 411 ? far more straightforward than freakkin' French radials ! and same horsepower.

Then again, nazis and rationality were mutually exclusive words...
