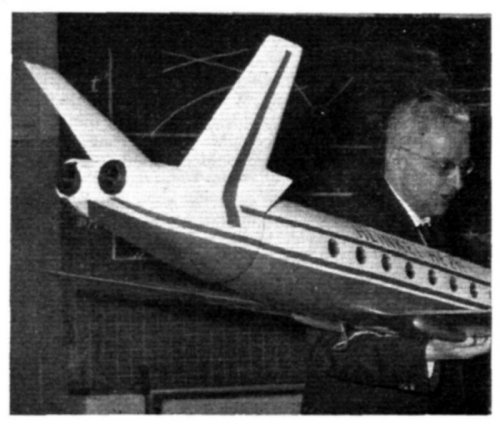

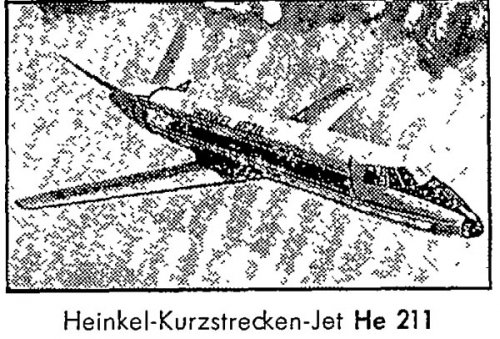

A bit more on the He 211 (and some very ugly artwork from Der Spiegel).

Flight, June 1963: Lufthansa wanted this "twin [GE] CF700, 24,250lb, 540/m.p.h. aircraft on German domestic services where their small size (32 facing inward or 22 conventionally placed) and high speed will permit close matching to fluctuating traffic on different routes without sacrificing utilization".

The He 211 began as a turboprop DC-3 replacement concept in 1959 (Flight, 22 March 1962, other sources say design began in 1958). The He211A-1 was the turboprop, the He 211B-1 was the jet.

He-211B-1 specs (from the Flugzeug Forum):
Crew: 2 Passengers: 22-24
Engines: 2x GE CF 700 (circular intake near Y-tail)
Span: 14.70m
Length: 19.15m
Height: 4.72m
Take-off weight 10,965 kg
Cruising speed 840-872 km/h
Range 780 - 2080km*

http://www.flugzeugforum.de/forum/archive/index.php?t-25057.html

* According to Die Zeit, 16.03.1962 Nr.11 ("Weltmarktchance für Heinkel?), range would be only 1150 km (with reserve). Die Zeit goes on to say that the He 211 would be able to operate from 650 m grass runways. Cruising speed is given as 872 km/h at 8000 m.

It looks like the German government decided to fund the VFW 614 instead.

http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200936.html

http://wissen.spiegel.de/wissen/image/show.html?did=45143830&aref=image035/0552/cqsp196324082-P2P-085.pdf&thumb=false
---------------------------


Attachments

  • He211-spiegel.jpg
    122.9 KB · Views: 1,477

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,660
Reaction score
4,257

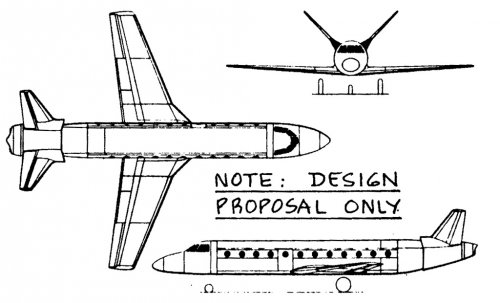

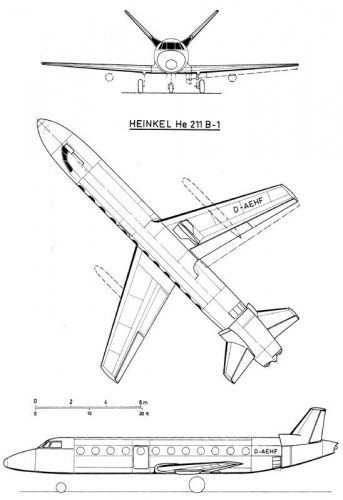

Drawing from Airplane Design by Dr Jan Roskam


Attachments

  • He-211.jpg
    105 KB · Views: 1,396

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,115

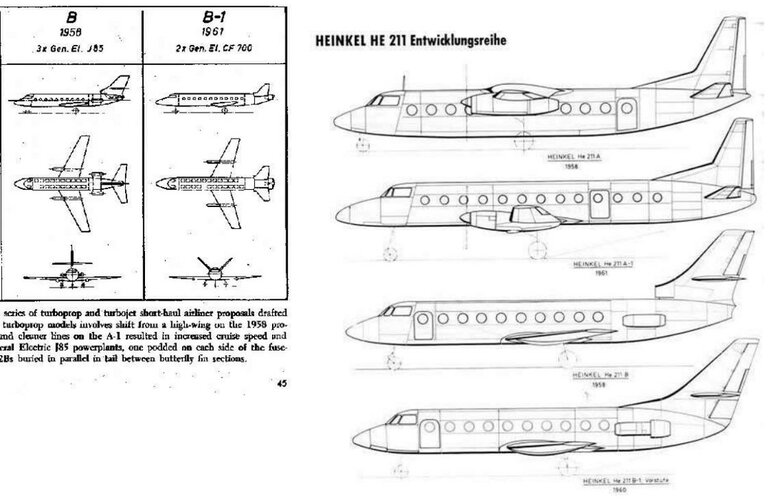

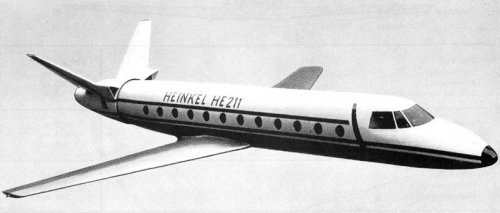

Variations on a theme ...
(from AviationWeek 4/1962)


Attachments

  • He-211-Varianten.gif
    72.9 KB · Views: 1,378

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
12,851
Reaction score
2,857
I suppose this project died with the VFW takeover in 1965?


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106

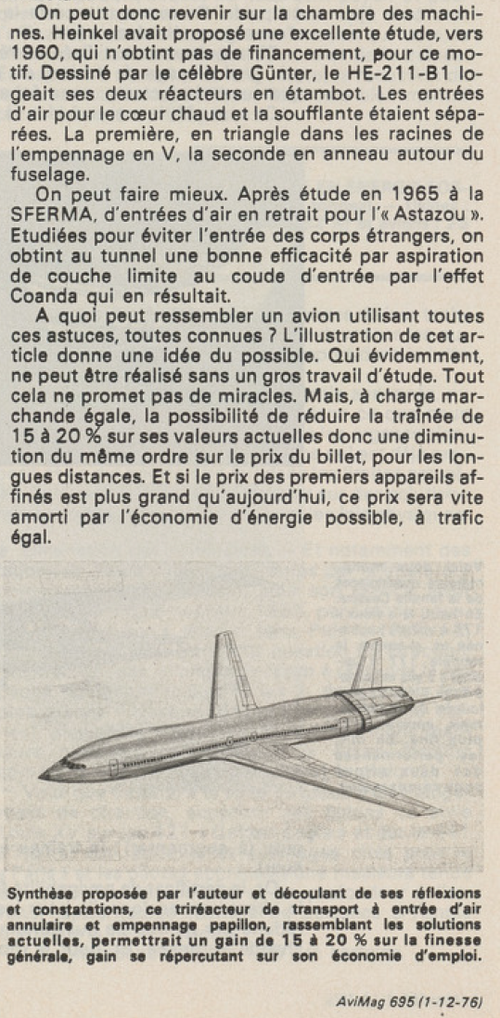

HI ALL
From an old "aviation week"
Bye


Attachments

  • Scan.pdf
    827.8 KB · Views: 55

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
668
Website
deeptowild.blogspot.com

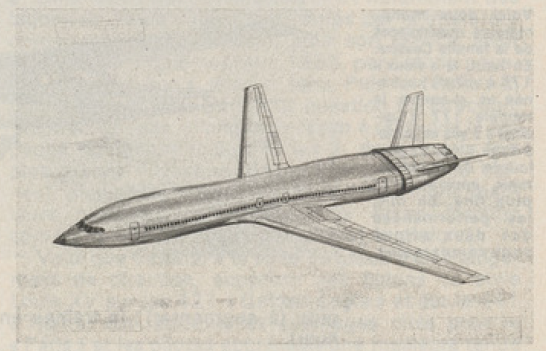

Source:
http://allaircraftsimulations.com/forum/viewtopic.php?f=20&t=14616&start=15


Attachments

  • w0ry9i.jpg
    34.5 KB · Views: 171

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
668
Website
deeptowild.blogspot.com

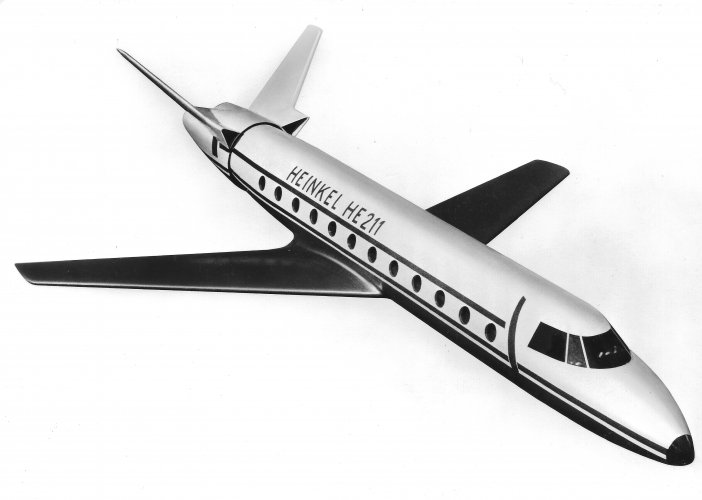

Source:
http://www.flickr.com/photos/sdasmarchives/7585409142/in/photostream


Attachments

  • 7585409142_67beaefdef_o.jpg
    217.7 KB · Views: 144

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,525
Reaction score
279

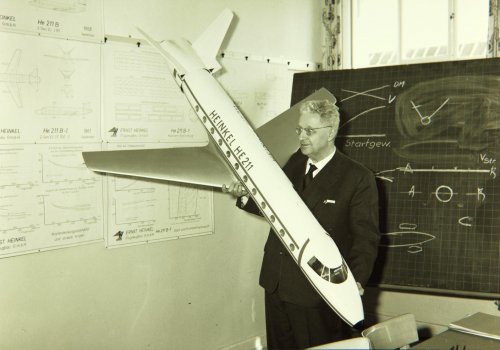

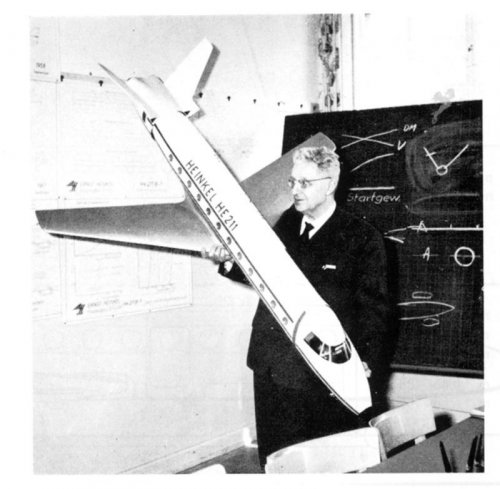

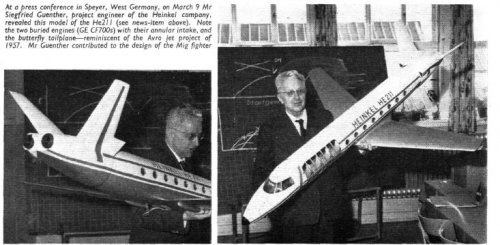

Interesting to note that He 211B and He 211B-1 are shown in the posters behind the man in the photo.


zeroc

ACCESS: Confidential
Joined
Apr 20, 2010
Messages
89
Reaction score
19

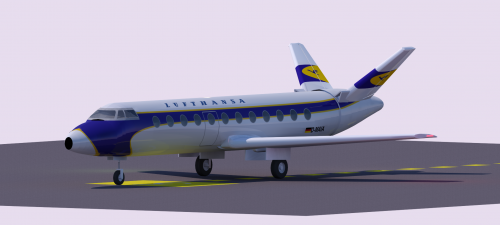

My contribution with one of my early work.


Attachments

  • Heinkel211.png
    760.1 KB · Views: 169

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
zeroc said:
My contribution with one of my early work.

Thanks for sharing! You must share more of your work (in the User Artwork section, for instance) so we can see how much you've progressed since... ;)


zeroc

ACCESS: Confidential
Joined
Apr 20, 2010
Messages
89
Reaction score
19
Stargazer2006 said:
zeroc said:
My contribution with one of my early work.

Thanks for sharing! You must share more of your work (in the User Artwork section, for instance) so we can see how much you've progressed since... ;)

Sure! ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,310
Reaction score
4,086

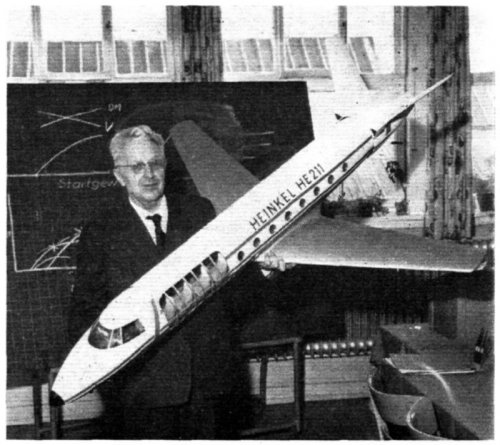

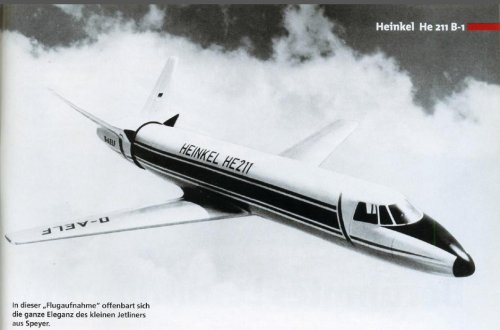

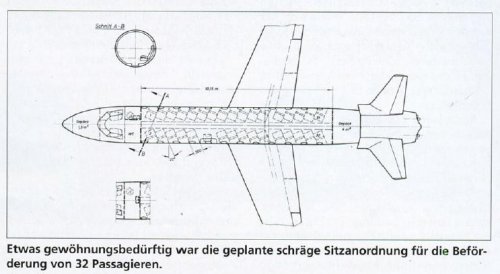

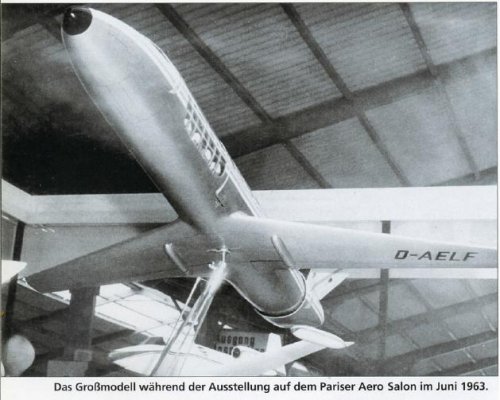

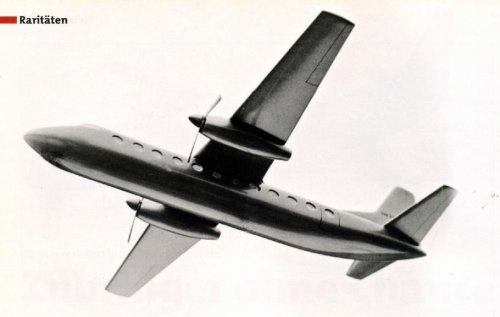

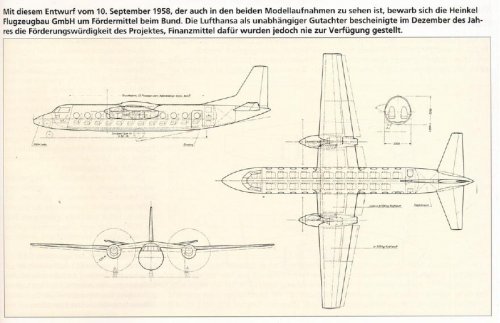

From Flugzeug Classic 6/2005,here is a more or clearance photos to Heinkel He-211.


Attachments

  • 211-1.JPG
    50.1 KB · Views: 443
  • 211-2.JPG
    54 KB · Views: 444
  • 211-3.JPG
    38.9 KB · Views: 442

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,310
Reaction score
4,086

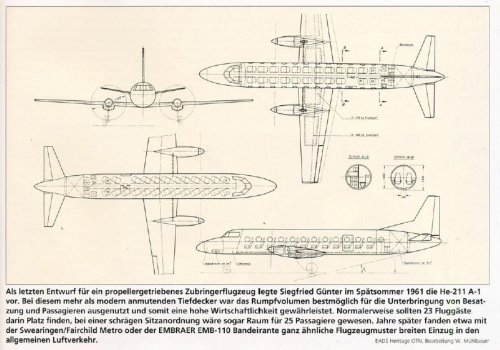

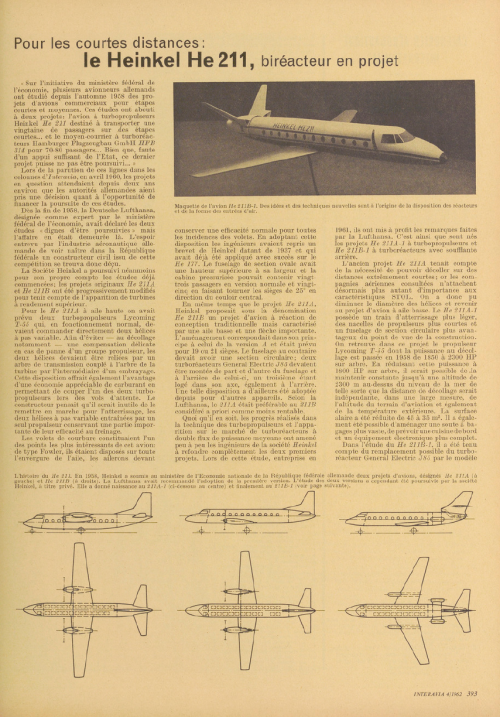

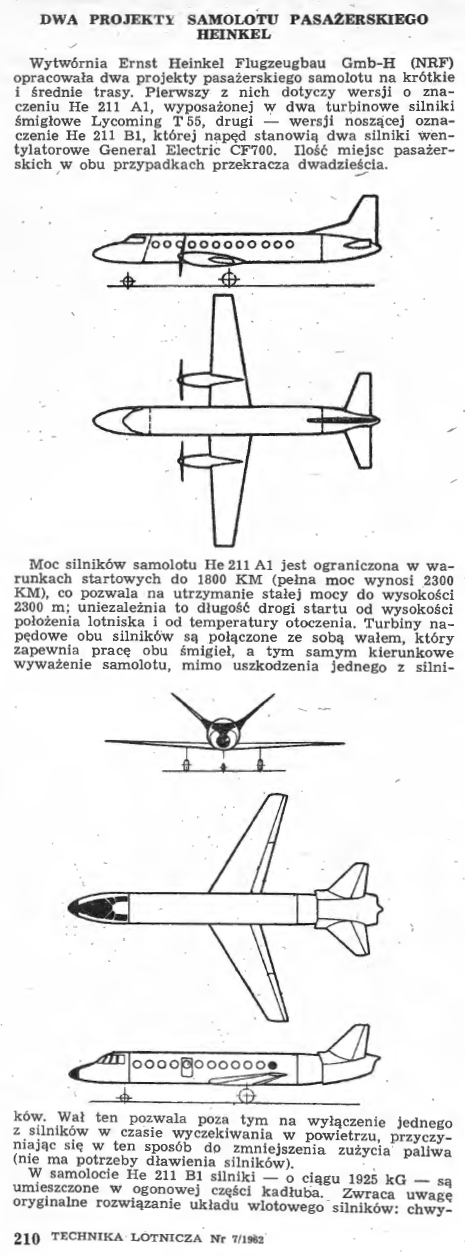

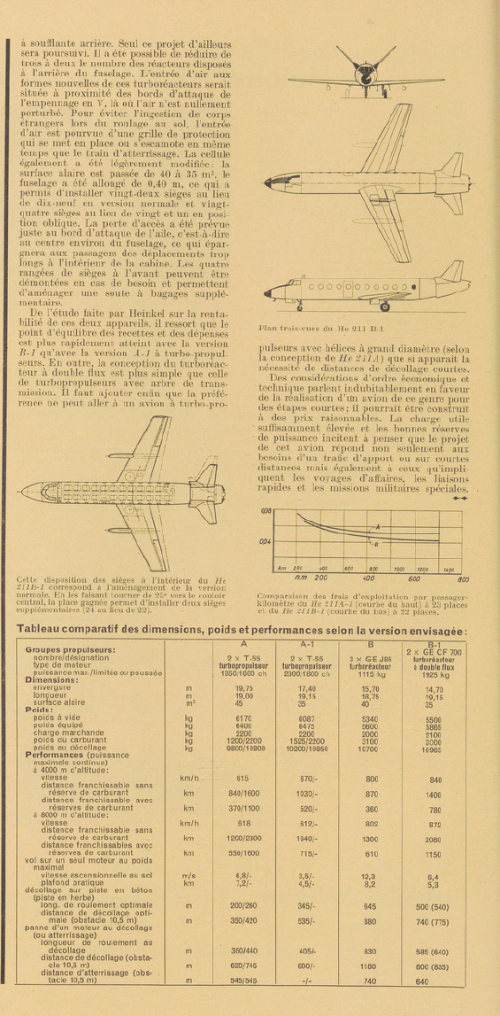

From Flugzeug Classic 8/2006,

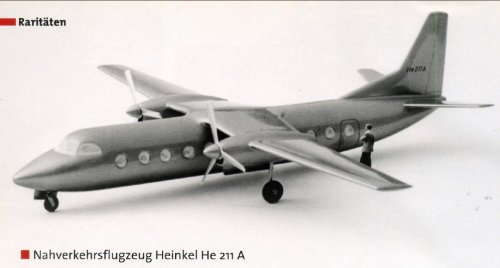

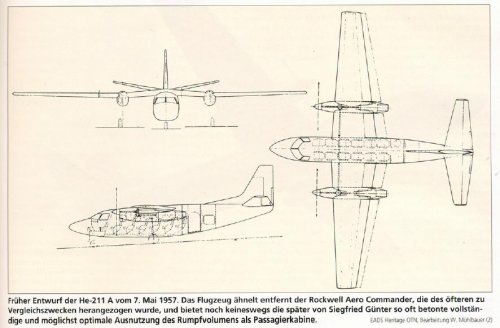

here is the Heinkel He.211A and He.211A-1 aircraft projects.


Attachments

  • 211A-1.JPG
    92.1 KB · Views: 108
  • 211A  4.JPG
    211A 4.JPG
    37.3 KB · Views: 84
  • 211A  3.JPG
    211A 3.JPG
    65.6 KB · Views: 102
  • 211A  2.JPG
    211A 2.JPG
    62.8 KB · Views: 331
  • 211A  1.JPG
    211A 1.JPG
    39.8 KB · Views: 351

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
660
Reaction score
303

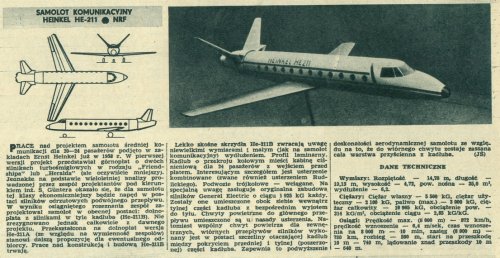

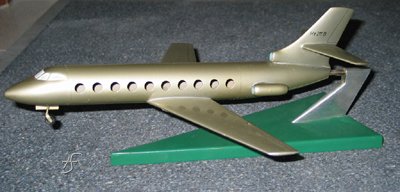

From this ebay auction; http://www.ebay.de/itm/Heinkel-He-211-Verkehrsflugzeug-Projekt-Original-Bericht-von-1962-/401275207930


Attachments

  • he pax.jpg
    he pax.jpg
    335.1 KB · Views: 85
  • he jet pax.jpg
    he jet pax.jpg
    307.2 KB · Views: 109
  • he jet pax2.jpg
    he jet pax2.jpg
    340.8 KB · Views: 134

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,984

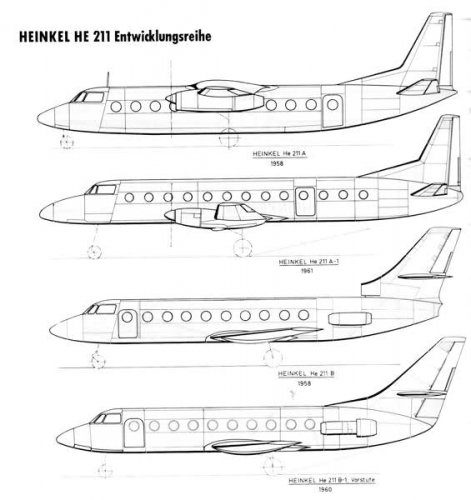

Hi! B-1(1960) and B-1(1961).


Attachments

  • B-1(1960) and B-1(1961).jpg
    B-1(1960) and B-1(1961).jpg
    146.8 KB · Views: 76
