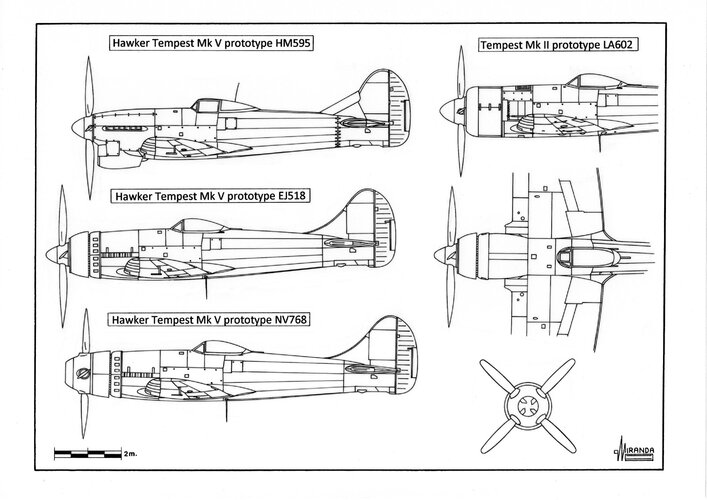

Hawker tempest prototypes

[Justo Miranda]

Hawker tempest prototypes



[Arjen]

Images of annular cowled Tempest and Typhoon here:

https://www.secretprojects.co.uk/threads/napier-sabre-engines.11807/#post-114558



[Antonio]

Gorgeus drawings to an extreme interesting subject which is all that design effort at Hawker. Thanks again Mr Miranda for sharing your indefatigable talent with us.



[Justo Miranda]



[Foo Fighter]

Thank you, marvelous as ever.



[Deltafan]

Hi,

on the Tempest's French Wikipedia page,

Hawker Tempest — Wikipédia

fr.wikipedia.org

is wrote :

• Hawker Tempest PW2800 : Un prototype intérimaire du Tempest équipé du moteur en étoile Pratt & Whitney Twin Wasp. Cette version fut développée en raison du manque de fiabilité du moteur Sabre et de l'indisponibilité du Bristol Centaurus.

Hawker Tempest PW2800: An interim prototype of the Tempest fitted with the Pratt & Whitney Twin Wasp radial engine. This version was developed due to the unreliability of the Saber engine and the unavailability of the Bristol Centaurus.

I have never seen this version of the plane anywhere.

Is this fake news? And if not, does anyone on the forum have a photo or image or any other info on this device?



[Apophenia]

Perhaps confusing Tempest development with one of the briefly-considered Tornado engine options?

There was a Hawker scheme for alternative engines for the Tornado airframe which included the Bristol Centaurus (ultimately fitted to P5224), Fairey Monarch, and an American radial. Some sources mistakenly say 'R-2800' but most say Wright Duplex Cyclone (R-3350). That concept died in July 1941 by which time Tornado prototype contracts were being slid over to the Tempest.

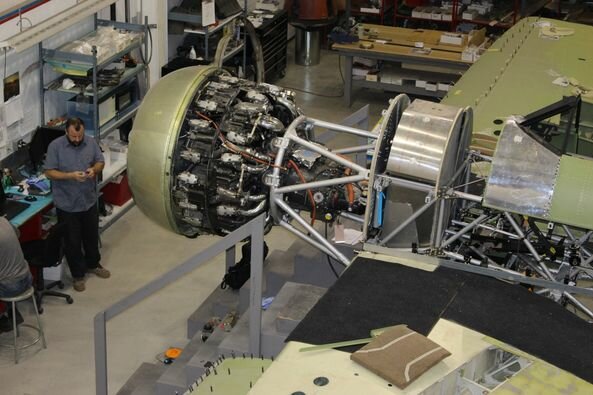

There is a Tempest II restoration which swapped the Centaurus for a R-2800, which gives an idea of what an R-2800-engined Tempest might have look like ...

Log into Facebook

Log into Facebook to start sharing and connecting with your friends, family, and people you know.

www.facebook.com

Why and How KF is Restoring a Warplane

Nearly 80 years after missing its role in the theatre of war, the Hawker Tempest II will take centre stage in Okanagan skies thanks to a breakthrough restoration by KF Aerospace. A Little Boy and A Toy Plane Warplane restoration isn't exactly a core business focus at KF—so why have we...

www.kfaero.ca



[Deltafan]

Hi,

Yes, thanks to Google search, I knew this today's Tempest with R-2800

Canada: roll-out du Hawker Tempest Mk II MW376 – L’Echarpe Blanche

www.lecharpeblanche.fr

But indeed. A confusion between a current project and what may have happened during WW2 is possible. I admit I didn't think about it
