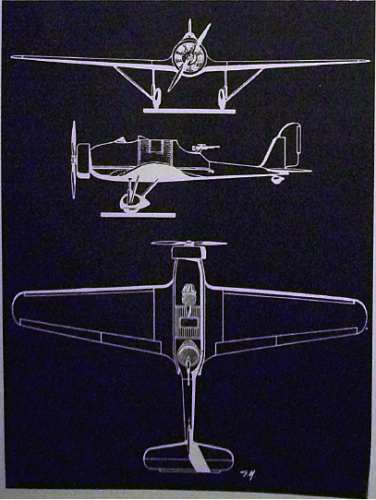

Hi all - I hope someone can help me identify the acompanying drawing. It's drawn by Doug Rolfe and I scanned it from a 1952 Air Trails magazine. I've looked for it in my own library and on through Google. All he called it was "Handly Page Bomber - 1935". I'd like to know a bit more about it - like its name, so I can file the drawing away.
Any help would be most appreciated.
Thanks, John


Attachments

  • (03) Handley Page (1935) Bomber (01).jpg
    (03) Handley Page (1935) Bomber (01).jpg
    88.7 KB · Views: 410

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
24
Hi Tomac!

It appears to be a Handley Page H.P.47.

Design Specification G.4/31.

I can provide a three-view if you'd like.

SOURCE:
The British Bomber Since 1914
Author: Francis Mason
Putnam Aeronautical Books

Chuck Anderson


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
24
Hi Tomac!

I've got to obey the Forum Rules about posting copyrighted material, so I'm sending you the 3-view to your e-mail address!

See you in a sec' !!!

Chuck


GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,633
Reaction score
1,929
Website
beyondthesprues.com
A simple Google image search on "Handley Page H.P.47." will also provide you photos of the real thing.

Regards,

Greg


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,461
Reaction score
6,114
Hi,

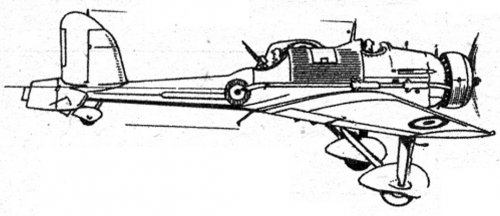

I can't ID this airplane drawing ?,who can help ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201935%2008.pdf


Attachments

  • 1.png
    450.4 KB · Views: 357

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,212
Hi!

Wikipedia
https://en.wikipedia.org/wiki/Handley_Page_H.P.47
"The Handley Page H.P.47 was a British single-engined low-wing monoplane built to an Air Ministry specification for a general-purpose bomber and torpedo bomber aircraft. Only one was built."

"Behind the radial Bristol Pegasus IM3 engine, producing 650 hp (485 kW) and enclosed in a Townend ring, the semi-monocoque, corrugated skinned fuselage grew in diameter to the pilot's midwing cockpit then remaining constant rearwards to the gunner's position. He sat facing rearwards below the upper fuselage line and out of the slipstream, at a point where the fuselage stepped to a slim and narrowing oval boom. There was usable space inside the fuselage between the cockpits, enough to carry three passengers or two stretcher cases. All the tail surfaces moved; the fin, mounted ahead of the tailplane, moved with the horn-balanced rudder but through smaller angles, changing the camber, and the tailplane and single elevator were similarly coupled. "

"General characteristics
Crew: two
Length: 37 ft 7½ in (11.51 m)
Wingspan: 58 ft (17.7 m)
Height: ()
Wing area: 438 ft2 (40.7 m2)
Empty weight: 5,362 lb (2,435 kg)
Loaded weight: 7,708 lb (3,500 kg)
Powerplant: 1 × Bristol Pegasus IIIM 9-cylinder radial, 690 (515)

Performance
Maximum speed: 161 mph (245 km/h)
Range: 1,250 miles (2,150 km)
Service ceiling: 19,900 ft (5,940 m)

Armament
Guns: 1 ×0.303 in (7.7 mm) Vickers machine gun fixed forward firing and 1× 0.303 in Lewis machine gun on high speed mounting in rear cockpit"

Picture source

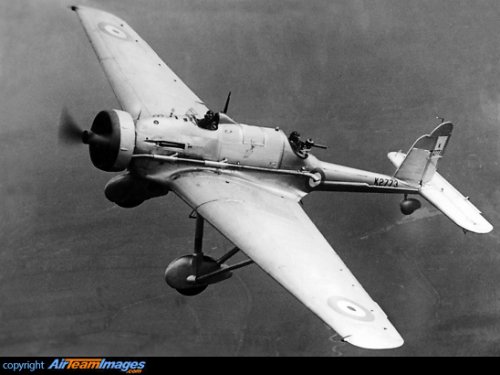

http://www.airteamimages.com/handley-page-h.p.47_K2773_united-kingdom---royal-air-force_116911.html
http://richard.ferriere.free.fr/3vues/H-3vues.html
http://picssr.com/photos/68286707@N00/page4?nsid=68286707@N00
http://www.aviastar.org/air/england/handley_hp-47.php
http://aviadejavu.ru/Site/Crafts/Craft34577.htm

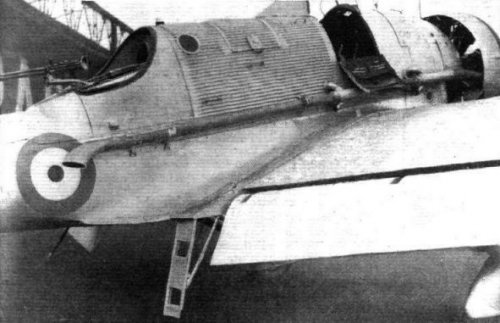

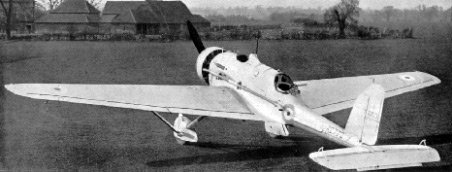

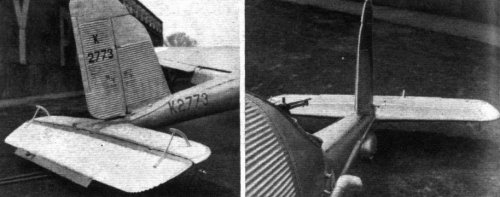

Bottom picture explanation.
"The unusual tail arrangement of the H.P.47 is well shown in these photographs. As the fin and rudder are ahead of the horizontal tail surfaces they are not "blanketed" at large angles of incidence. The picture on the right gives a good idea of the view and field of fire obtained by the rear gunner. "


Attachments

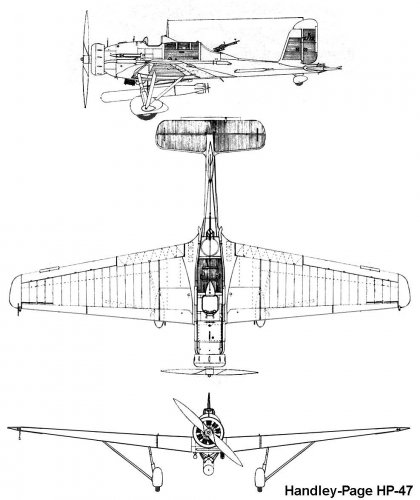

  • hp47_3v.jpg
    125.8 KB · Views: 153

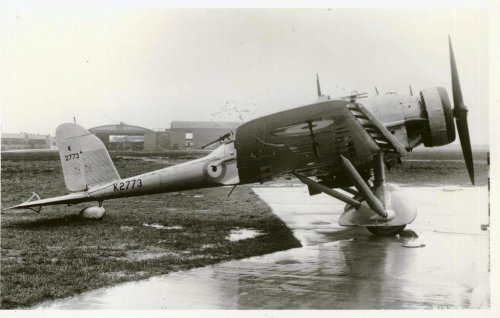

  • HP.47 PIC1.jpg
    HP.47 PIC1.jpg
    166.8 KB · Views: 142

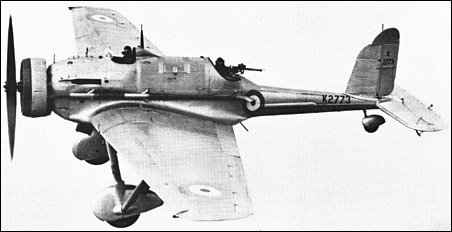

  • HP.47 PIC2.jpg
    HP.47 PIC2.jpg
    93.6 KB · Views: 122
  • HP.47 PIC3.jpg
    HP.47 PIC3.jpg
    28.9 KB · Views: 38
  • HP.47 PIC4.jpg
    HP.47 PIC4.jpg
    28.3 KB · Views: 35
  • 866-2.jpg
    57 KB · Views: 32
  • 867-1.jpg
    72.4 KB · Views: 31
