Hall-Matthews Fan-in-Wing Airplane

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,007
Hi,

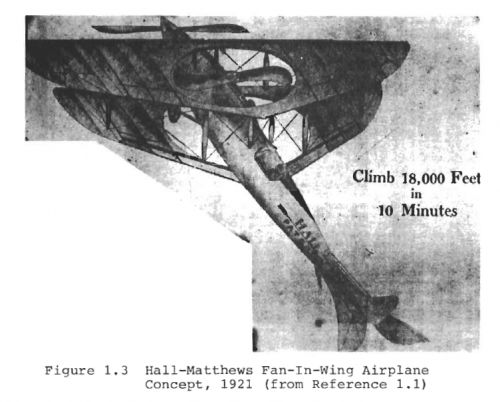

here is the Hall-Matthews fan-in-wing airplane concept of 1921,no more details
are known.

http://contrails.iit.edu/DigitalCollection/1986/AFWALTR86-3071volume01.pdf


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,019
Reaction score
193
Seems to have been an attempt to get a fast climbing aircraft, not something like a V/STOL.
10 minutes to 18,000 feet would have been quite impressive for 1921, when Spitfire I in
1939 needed 8.1 minutes for the same height. The tail looks too small ...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,007
That's right my dear Jemiba,


and you know in 1921,the airplanes was too weak to that performance.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,007
By the way,

I get a full name to the designers,Charles S. Hall from Hall Aeroplane Company,and C.
Matthews,it was mentioned in Aerofiles in two projects,one of 1920 and 1932;

Helicopter Aeroplane 1920 = OB; v: 150. Had ordinary tractor prop, plus a horizontal prop in a cut-out of the upper wing, which would allow near-vertical descent. Claimed climb to 18,000' in 10 minutes.

Helicopter Aeroplane c.1932 = OhwM. A realization of the 1920 design, possibly a rebuilt Crawford A-1 Parasol, since its registration [X12205] earlier belonged to such a machine. The horizontal prop was driven by a separate engine, mounted in the wing. The added weight of this engine made the airplane too heavy, and cooling was blocked by the fuselage—it probably never flew.
http://www.aerofiles.com/_h.html


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,139
Reaction score
67
hesham said:
I get a full name to the designers,Charles S. Hall from Hall Aeroplane Company,and C.
Matthews,it was mentioned in Aerofiles in two projects,one of 1920 and 1932; ...

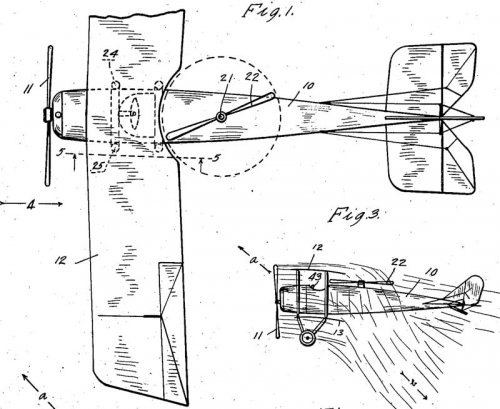

And Chris Matthews of San Pedro, California. See http://www.google.ca/patents/US1307826 for a slightly earlier variation on the Hall-Matthews theme.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,007
Nice find my dear Apophenia.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,007
Hi,

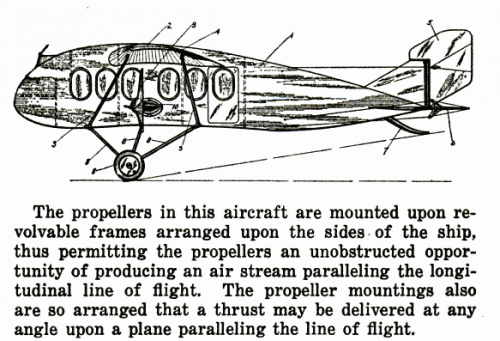

Anther one in 1928;

https://books.google.com.eg/books?id=rFmpUR9iLmAC&pg=PA125&dq=charles+S.+Hall+aircraft&hl=ar&sa=X&ved=0ahUKEwinsqyem5zSAhXHI8AKHdTMADAQ6AEIHDAA#v=onepage&q=charles%20S.%20Hall%20aircraft&f=false


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,007

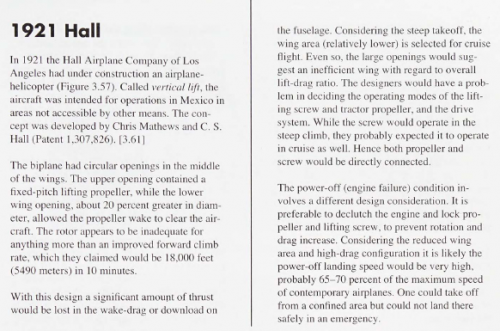

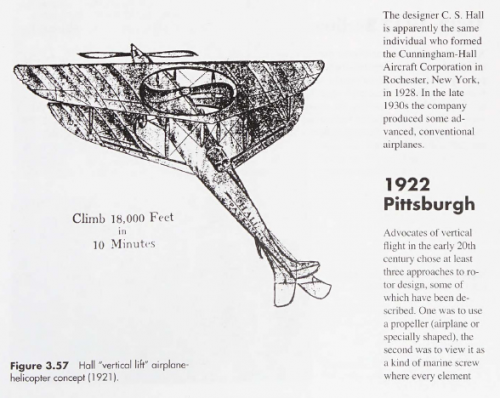

From Helicopters Before Helicopters.


Attachments
