Haessler H-3

Maveric

Fight for yor Right!
Joined
14 January 2007
Messages
2,147
Reaction score
657
Hi all,

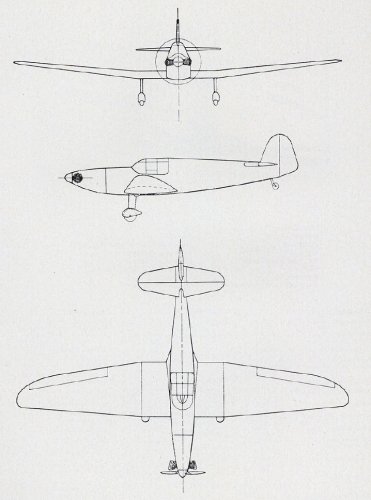

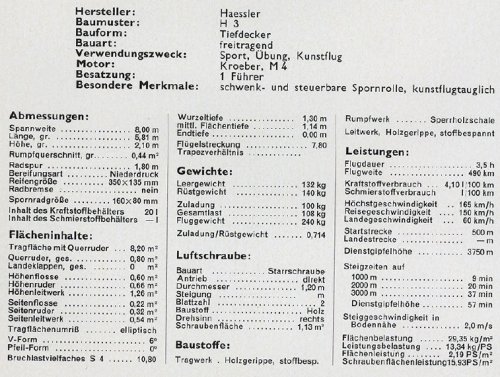

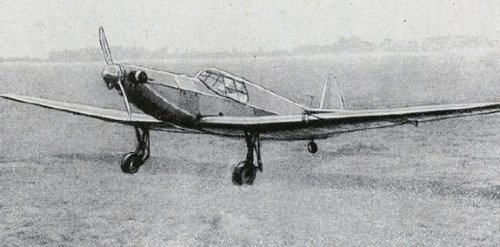

found this very rare bird Haessler H. 3, built by Ing. Helmut Haessler, good known for the muscle aircraft (-Villinger) H.V.1. Only 1 built.

Maveric
(Source: Das große Flugzeugtypenbuch von 1944)


Attachments

  • Haessler H-3.jpg
    Haessler H-3.jpg
    81.1 KB · Views: 359
  • Haessler H-3-.jpg
    Haessler H-3-.jpg
    192 KB · Views: 358
  • Haessler H-3--.jpg
    Haessler H-3--.jpg
    246.3 KB · Views: 334
Great find Maveric,

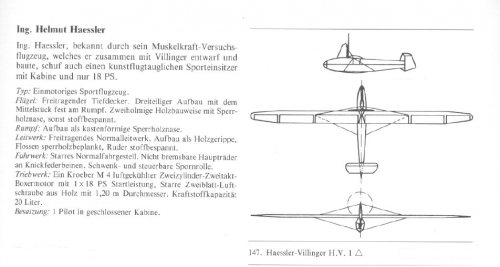

and here is the H.V.1.


Attachments

  • H.V.1.png
    174.2 KB · Views: 278
Helmut Haessler's letter to Flight on man-powered flight (with photos of H.V.1 in the air):

http://www.flightglobal.com/pdfarchive/view/1962/1962%20-%200254.html

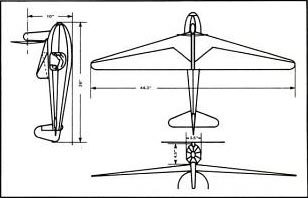

Popular Mechanics (Oct 1972, Vol. 152, No. 4) has a 3-view of the H.V.1 showing a wing closer in shape to the H-3 than to Hesham's 3-view (and historical photographs)

BTW: According to a letter to New Scientist (5 Mar 1964) by BS Shenstone (Vice-Chair of the RAeS man-powered aircraft group), Helmut Haessler "had re-designed his prewar Mufli, but he lives in Toronto and it is a single-seater." Haessler actually lived in Richmond Hill, Ontario, but Shenstone's letter makes it sound like serious work was under way on this Canadian version of the H.V.1.


Attachments

  • haeßler-hv1-3v-popular-mechanics.jpg
    19.4 KB · Views: 187

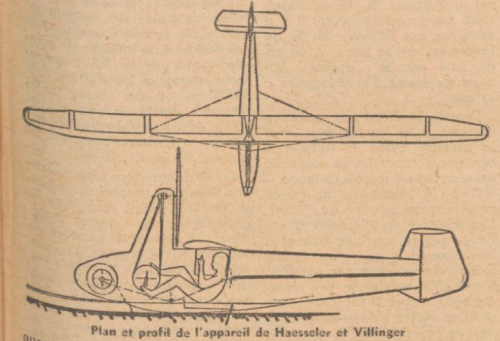

From Ailes 1/3/1958.


Attachments

  • 3.png
    566.3 KB · Views: 58

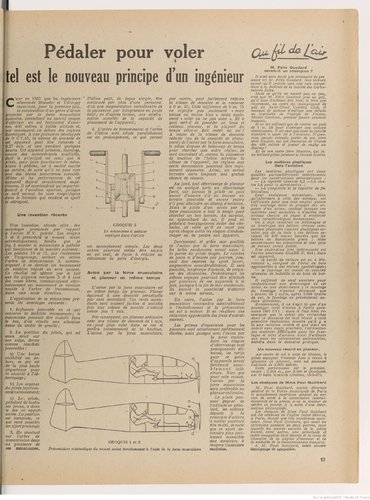

From L'Air Revue 1943,

if that was not a hypothetical airplane,so maybe it was H.V.2 ?.


Attachments

  • 1.png
    418.9 KB · Views: 37
  • L'Air___revue_mensuelle___[...]Ligue_nationale_bpt6k9796472q_19.jpeg
    1.1 MB · Views: 38

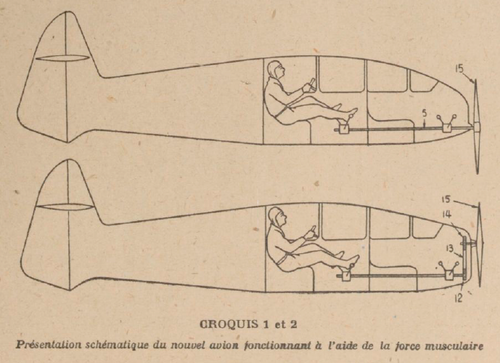

I may be wrong, but I think, that article just describes a then new mechanism to use leg power for turning a propellor.
It's obviously not bicycle-like and it seems to have been recommended for sail planes to give them more range and
better choices of a landing site in the case of an off-field landing.
So, no relation to a real Haessler design, I think.
