H. Capelis Tandem-Wing Airliner Projects

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593

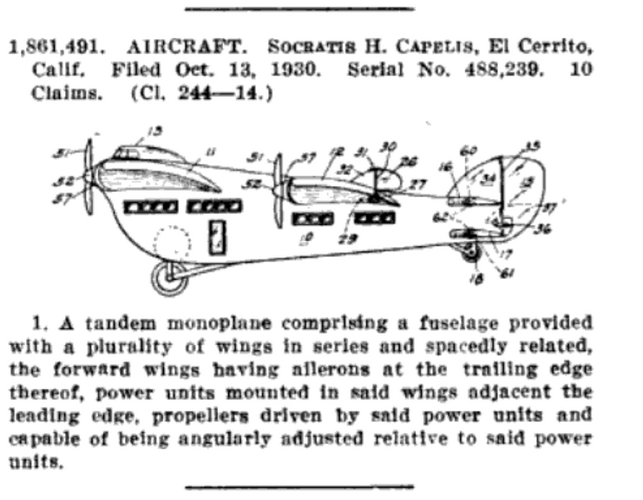

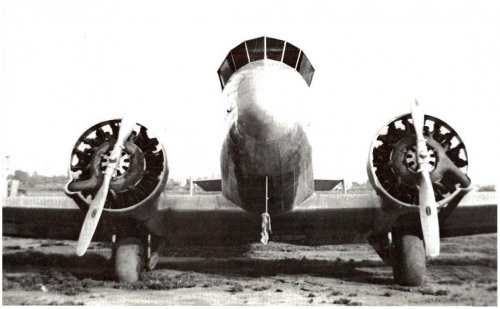

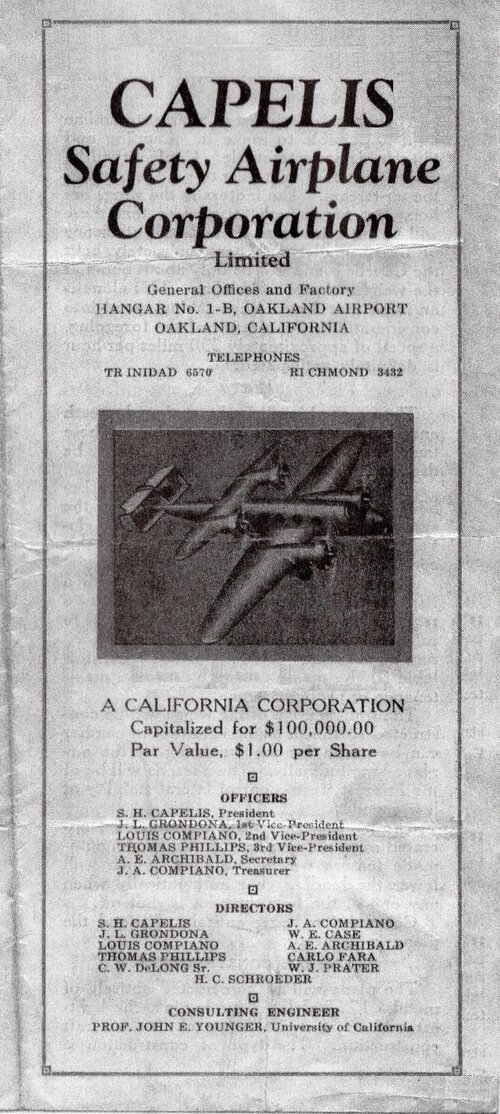

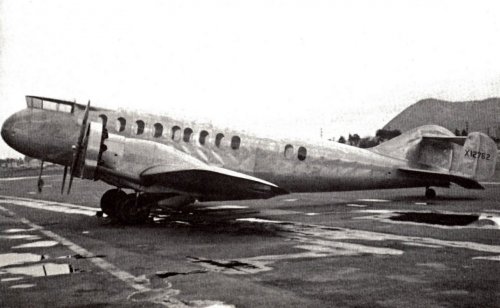

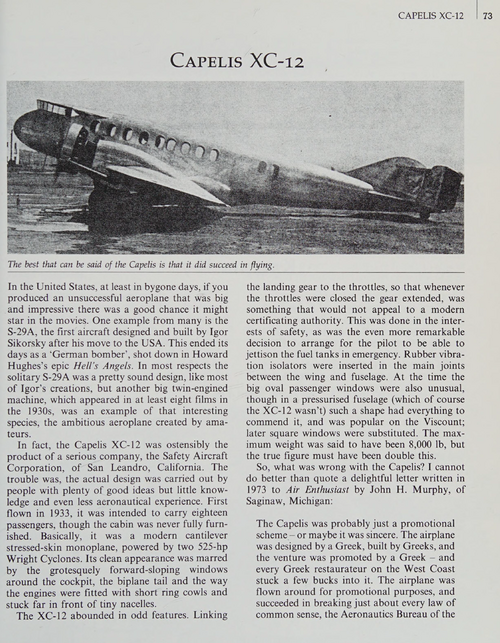

The Capelis XC12 prototype transport [X12762], built after a patent issued to Greek immigrant Socrates H. Capelis, of El Cerrito, in 1930. It was the sole product of the Capelis Safety Airplane Corp., based at Oakland Airport and El Cerrito, Calif. The aircraft was funded by local Greek restaurateurs as a promotional aircraft, and constructed at the Alameda airport with help from University of California students.

The funding, apparently, was insufficient for such an ambitious project, as Capelis ended up in debt. The local sheriff put a padlock on the hangar door and the plane was not to be moved until all bills had been paid. Story has it that Capelis "cut the lock one morning and before the sun was up, he took off for parts unknown". And after landing at Glendale's Grand Central Airport, the C.A.A. and the sheriff were there waiting for him... The XC12 was grounded for good by the C.A.A shortly after that.

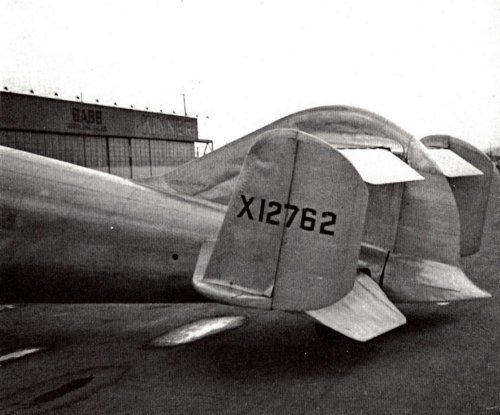

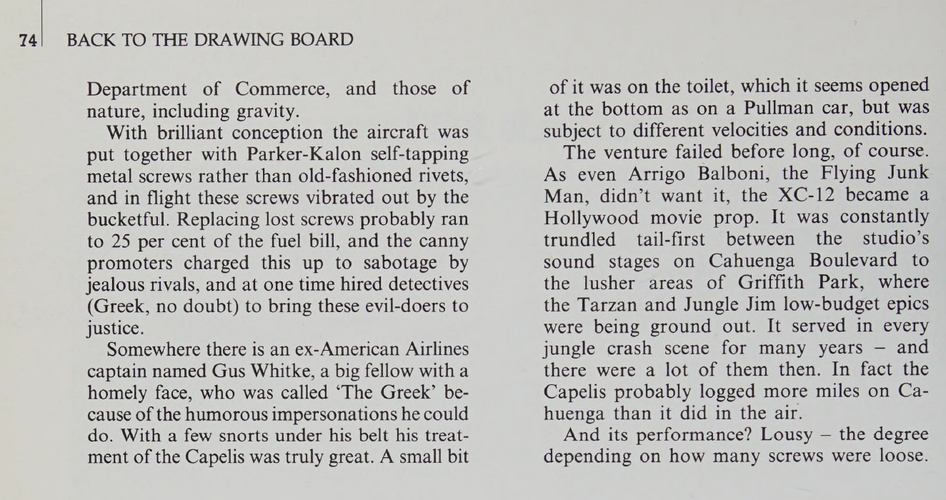

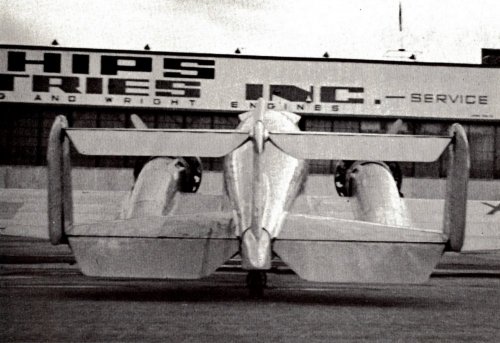

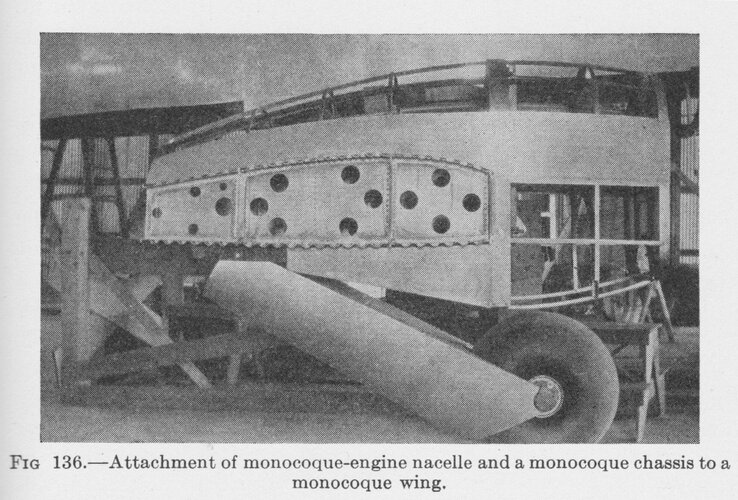

The most unusual features of the Capelis design was its triple-fin biplane empennage and its string of narrow rounded windows. Construction of the XC12 presented many faults: The main spar was bolted together and the leading edge and wing fairings were held in place by P.K.'s (sheet metal screws) rather than rivets. These tended to vibrate loose, requiring tightening or replacing every few flights.

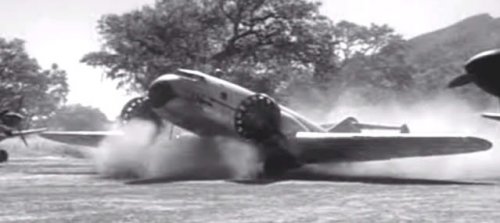

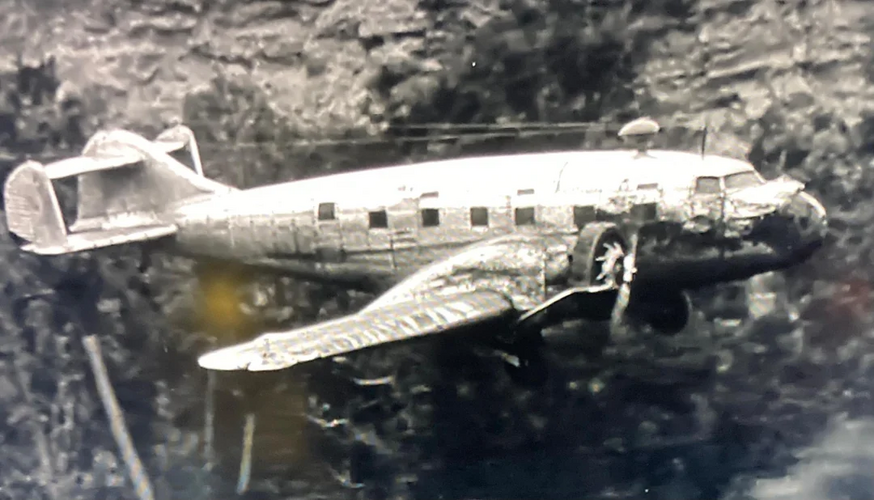

Unexpectedly, the XC12 enjoyed a notable career, not as a flying transport but as a movie prop, appearing in ground roles in several motion pictures ("Five Came Back" in 1939, "Flying Tigers" in 1942 and others). The studios just taxied it and used it as a background. A scale model was built and was used in a flying sequence for one of the movies. The XC12 was eventually scrapped.


Attachments

  • 000979.jpg
    29.2 KB · Views: 244
  • Capelis 2 small.jpg
    Capelis 2 small.jpg
    131.9 KB · Views: 234
  • Capelis 4 small.jpg
    Capelis 4 small.jpg
    98.4 KB · Views: 231
  • Capelis 1.jpg
    Capelis 1.jpg
    95.6 KB · Views: 216
  • Capelis 3 small.jpg
    Capelis 3 small.jpg
    127.6 KB · Views: 191

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,612
Reaction score
4,576
Hi,

Mr. H. Capelis who designed the XC-12 twin engined medium transport aircraft,we spoke about
it before,he developed his design into two Projects,the first was four-engined tandem-wing
aircraft,and the second was a six-engined aircraft,also with a tandem wing.

http://www.secretprojects.co.uk/forum/index.php/topic,19680.msg209528.html#msg209528
http://www.aerofiles.com/_ca.html

https://books.google.com.eg/books?id=ZqSyaqHhvMcC&pg=PA244&dq=capelis+airplane+magazine&hl=ar&sa=X&ved=0ahUKEwjFy_i6o_fKAhWIVxoKHRs6Ay4Q6AEIGjAA#v=onepage&q=capelis%20airplane%20magazine&f=false

https://books.google.com.eg/books?id=b9zKW7_lSwwC&pg=PA151&dq=capelis+airplane+magazine&hl=ar&sa=X&ved=0ahUKEwjFy_i6o_fKAhWIVxoKHRs6Ay4Q6AEIIDAB#v=onepage&q=capelis%20airplane%20magazine&f=false


Attachments

  • Capelis  I.png
    Capelis I.png
    213.7 KB · Views: 198
  • Capelis  II.png
    Capelis II.png
    295.5 KB · Views: 203

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,612
Reaction score
4,576
Hi,

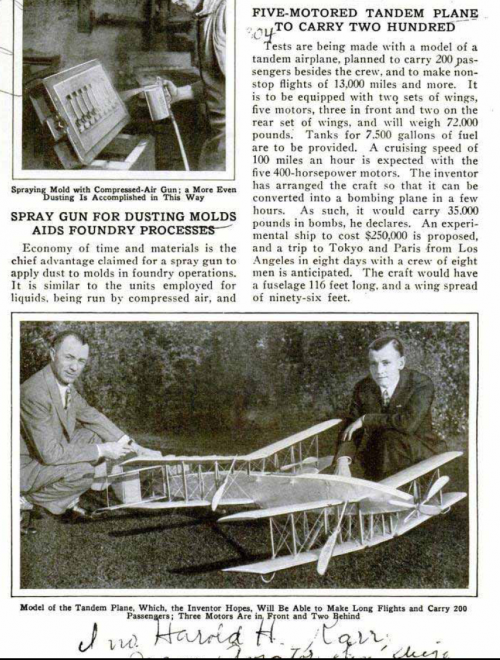

need confirm,this designer drew a bomber Project,based on his concept,was that right ?.

Old Info on the Internet


royabulgaf

ACCESS: Top Secret
Joined
Dec 29, 2008
Messages
510
Reaction score
88
Hi,

need confirm,this designer drew a bomber Project,based on his concept,was that right ?.

Old Info on the Internet
I have no information on a bomber version as such. However the aircraft played a bomber in the movie "Flying Tigers".


royabulgaf

ACCESS: Top Secret
Joined
Dec 29, 2008
Messages
510
Reaction score
88
Beware Greeks designing aircraft"!
I have no information on a bomber version as such. However the aircraft played a bomber in the movie "Flying Tigers".
I haven't looked. If you can't find it, I certainly cannot. Were it not for its fate as a movie prop, the XC-12 would be even more obscure, and there would be no interest at all in his follow up ideas. The pre-WWII period was full of of designers of varying abilities working out of their garages or basements, with dreams of challenging the major players. The US "Popular Mechanics" thpe magazines were full of articles about them.
Unfortunately no more Info about him on Net ?.
