Guidoni Three Engines Flying Boat Project

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,734
Reaction score
2,721
Hi,

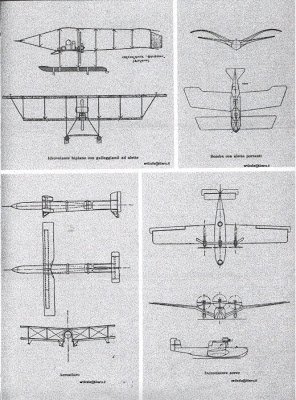

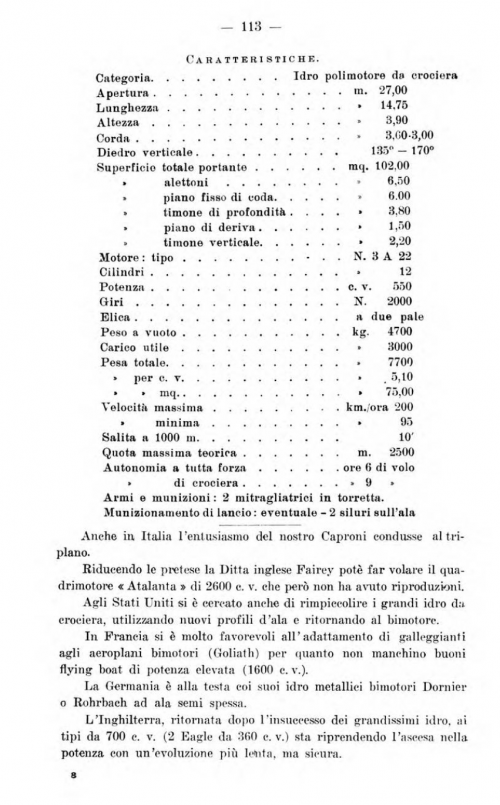

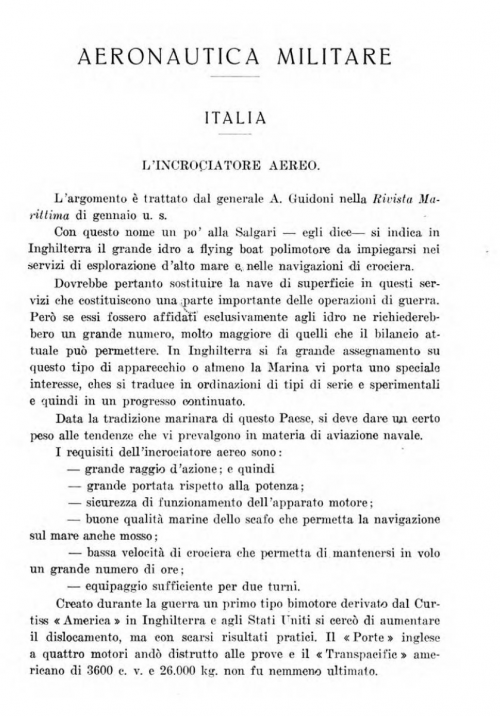

the Italian Alessandro Guidoni designed in 1920s,a three engined channel-wing
flying boat project,but unfortunately no more info survivor,and I can't make the
drawing clear than this,and we can say,its wing looks like a channel shape.


http://bascogrigioverde.blogspot.com/2008_05_01_archive.html


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,734
Reaction score
2,721

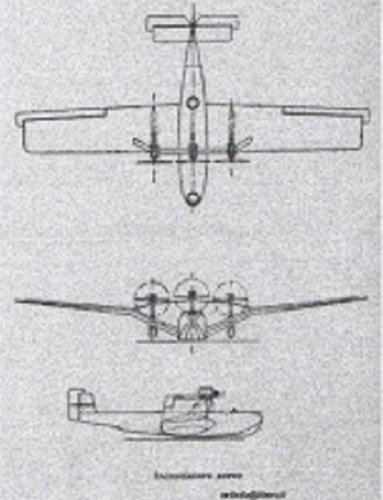

Hi,


can anyone make a more clearance to this drawing from Guidoni ?.

J

joncarrfarrelly

Guest
Hesham, it's not a 'channel-wing', it's a gull-wing, it also appears that the 'V-ed' inner part
may have been intended to supply flotation like the high dihedral lower wing of the English
Electric Ayr flying boat and the later WWII period USN flying-boat gliders. The upper
right drawing appears to show the same principle applied to a tandem-wing design.

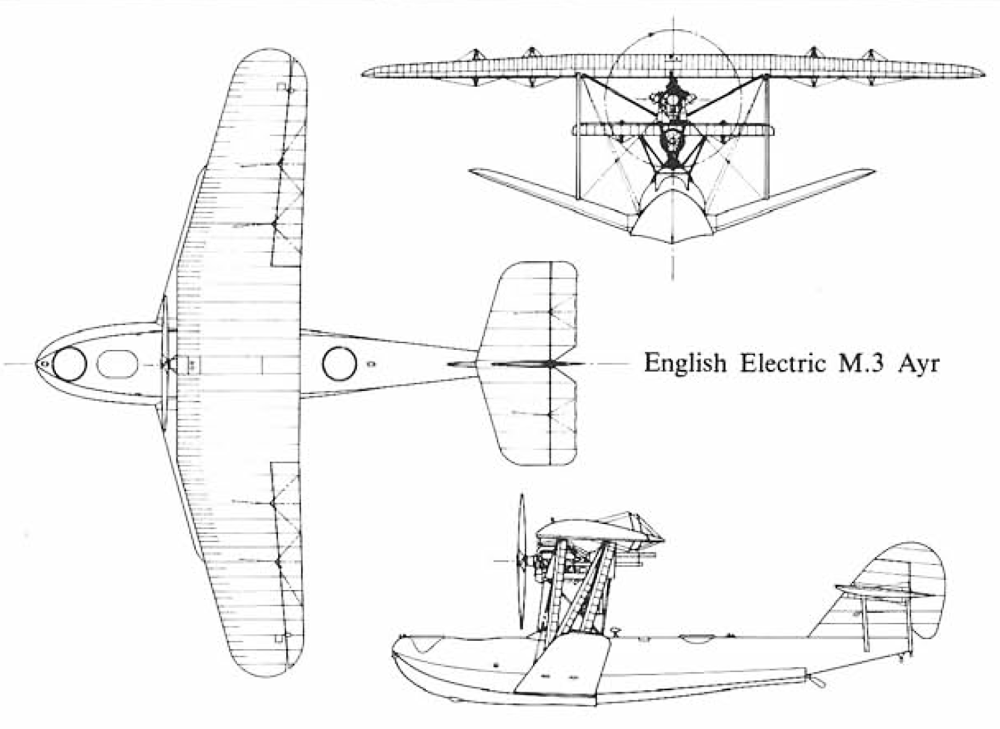

http://www.airwar.ru/enc/flyboat/ayr.html


http://en.wikipedia.org/wiki/Bristol_XLRQ

BTW much of Guidoni's work concerned perfecting the use of hydrofoils on seaplanes,
which is what the drawings in the left column show.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,734
Reaction score
2,721
Thank you my dear Jon.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
10,889
Reaction score
1,242
Speaking of the English Electric Ayr:
