Grumman G-674 "Nutcracker" folding-fuselage VTOL fighter concept

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,772
Reaction score
191
PopSci cover


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,772
Reaction score
191

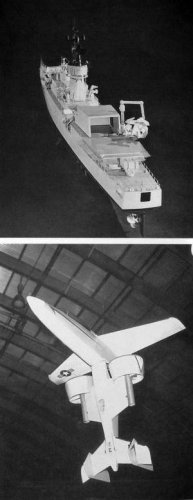

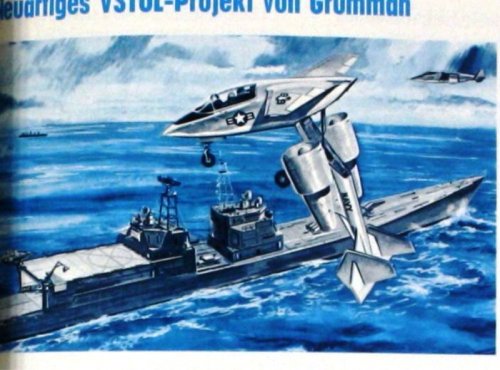

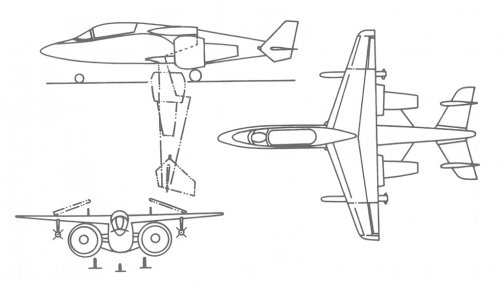

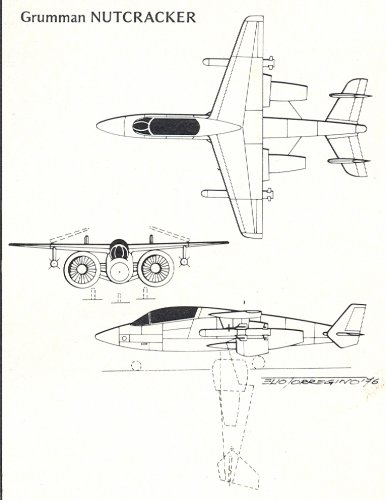

finally Grumman Nutcracker 3-view

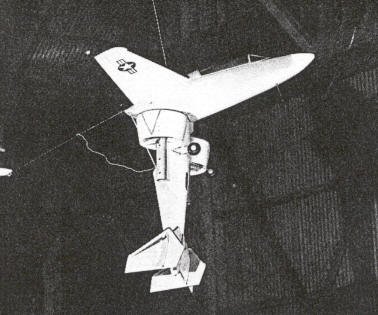

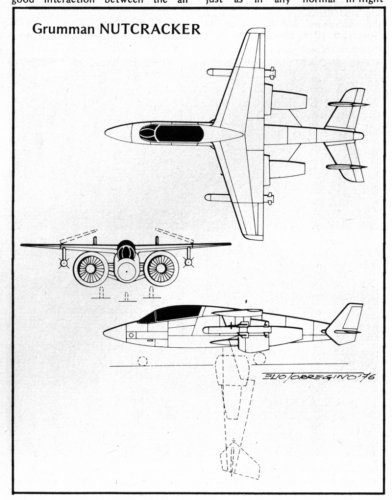

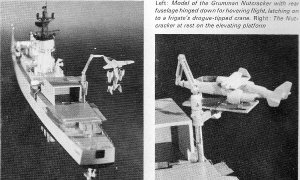

second image from Air Pictorial via 'Barrington Bond'


Attachments

chuck4

CLEARANCE: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
0
What is the point? Why not pivot the whole airplane and save the weight of the hinges?


Madurai

CLEARANCE: Confidential
Joined
Aug 17, 2009
Messages
97
Reaction score
0
chuck4 said:
What is the point? Why not pivot the whole airplane and save the weight of the hinges?
A wealth of bad experience from all the tailsitter VTOL prototypes, presumably.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
170
Website
deeptowild.blogspot.com

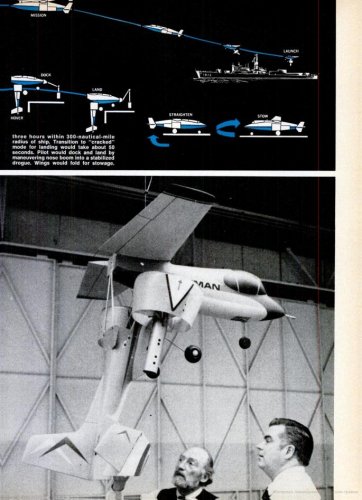

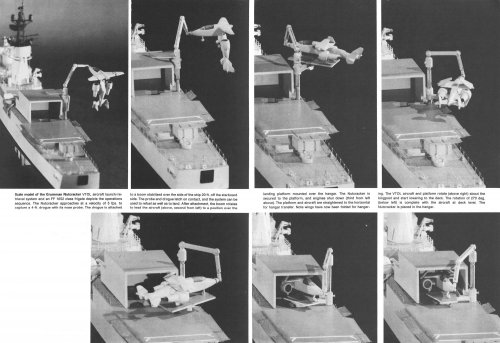

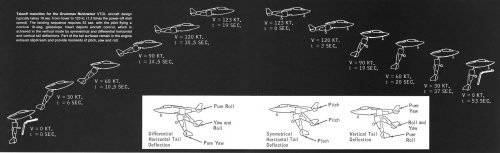

Aviation Week & Space Technology September 20, 1976 pp. 16-17
Aviation Week & Space Technology September 20, 1976 pp. 18-19
Aviation Week & Space Technology September 20, 1976 p. 15
Aviation Week & Space Technology March 01, 1976 p. 12


Attachments

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
802
Reaction score
55
Bear with me for a moment but, how on earth can that ever work? Can anyone demonstrate the process? Not wanting to be funny or nasty but I cannot see that system ever working.


allysonca

CLEARANCE: Confidential
Joined
Mar 11, 2011
Messages
169
Reaction score
136

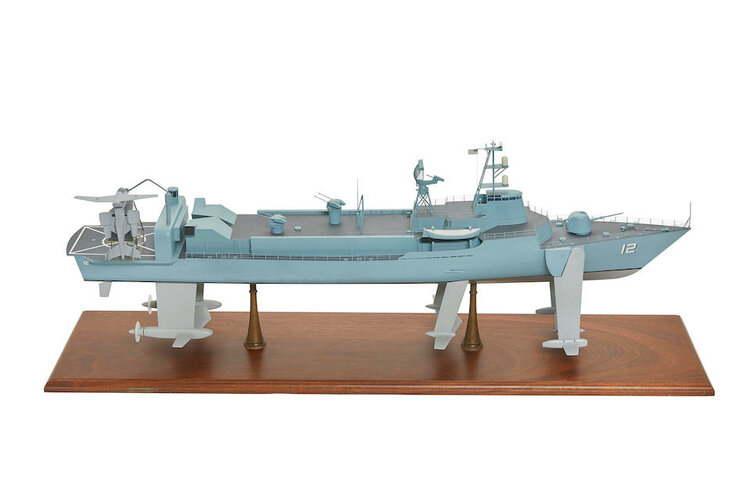

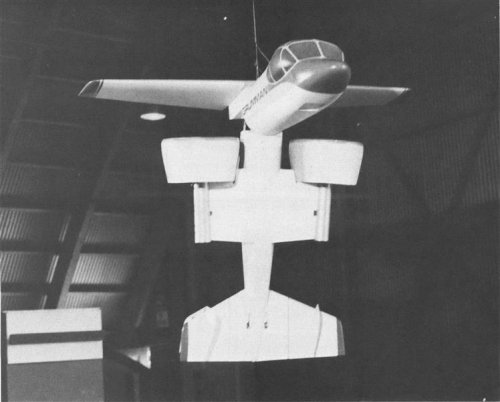

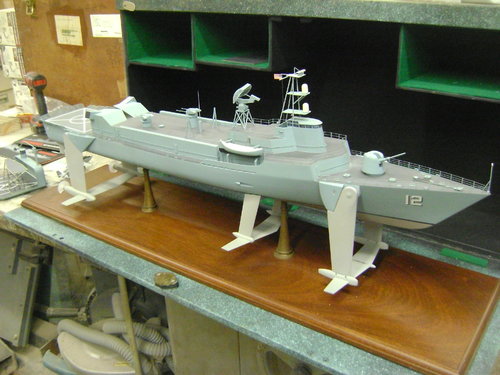

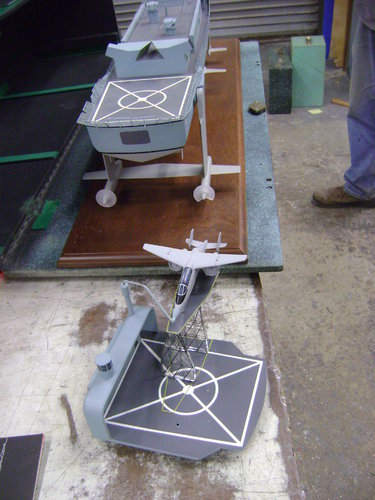

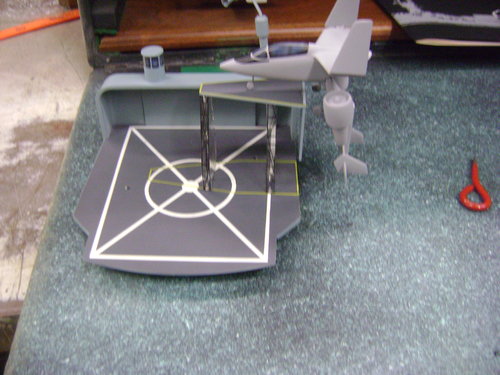

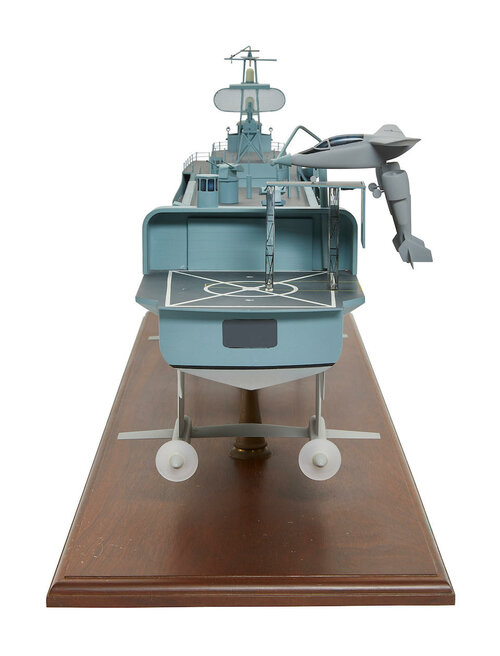

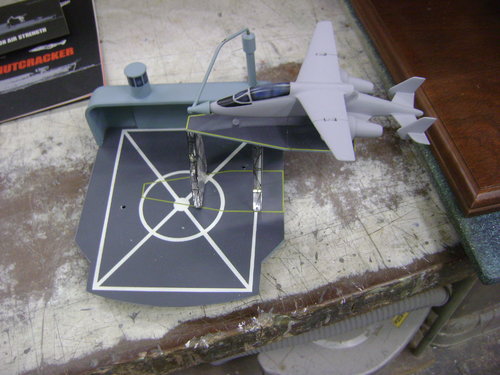

Awwwww, it's so silly that it's cool and makes for a great model.


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,595
Reaction score
25
Bear with me for a moment but, how on earth can that ever work? Can anyone demonstrate the process? Not wanting to be funny or nasty but I cannot see that system ever working.
It works by maintaining the thrust vector through the center of mass.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
802
Reaction score
55
How can the thing take off and land vertically with a bendy fuselage and the undercarriage where it is in those pictures? I cannot see it being a starter even. Sorry.


Richard N

CLEARANCE: Secret
Senior Member
Joined
Jun 18, 2009
Messages
315
Reaction score
19
During the JSF competition, a lot of people outside of Lockheed Martin said the lift fan/gimbaled nozzle VTOL system would never work (before it did).

The sky is falling types always come out of the woodwork when someone is trying to do something new. Opinions from those outside the programs are usually just wrong.


TomcatViP

Hellcat
Senior Member
Joined
Feb 12, 2017
Messages
822
Reaction score
36
I think you land the front oleo on the reduced size platform and while the rear fuselage unfold and you transit forward, you apply the brake once the landing gear is firmly on the ground until the rear fuselage as leveled out.

That's not the most simple landing to describe but it looks as fairly in on single move.


Tailspin Turtle

CLEARANCE: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
688
Reaction score
8
Website
www.tommythomason.com

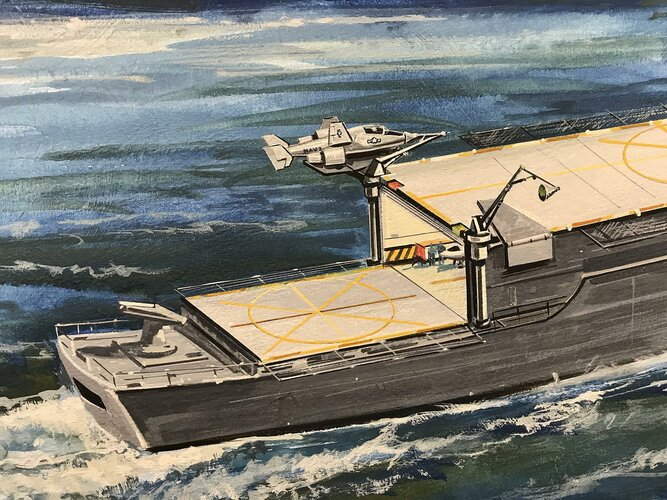

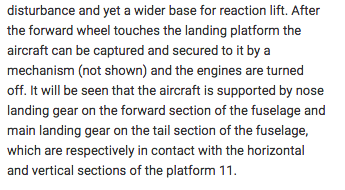

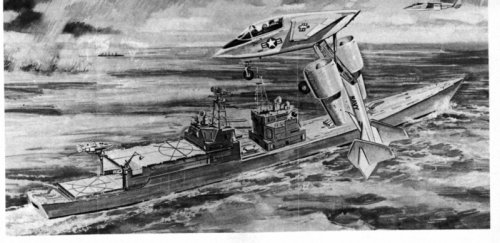

The airplane hooks into the probe first. Then the landing platform is raised up so the nose landing gear rests on it. Note that its aft section is initially hinged downward like the aft fuselage so the main landing gear can touch it. The aft section of the platform is then pivoted to horizontal as the aft fuselage pivots up to horizontal. Presumably the main landing gear wheels are somehow restrained to the hinged platform when it is vertical so the engines can be shut down while it is raised (the patent application was a little vague in that regard).

Nutcracker Landing.png

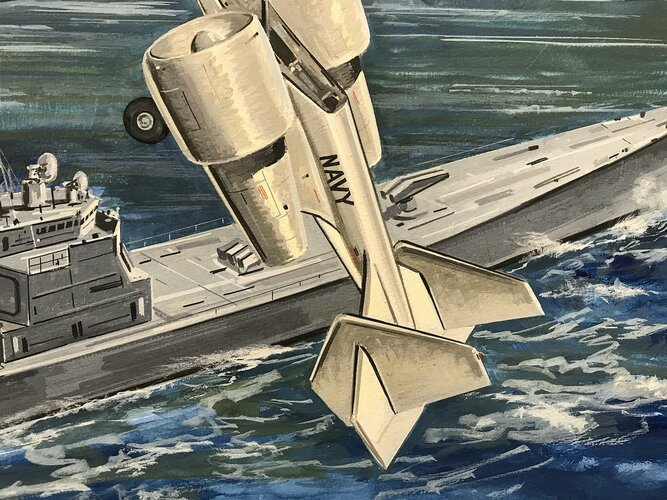

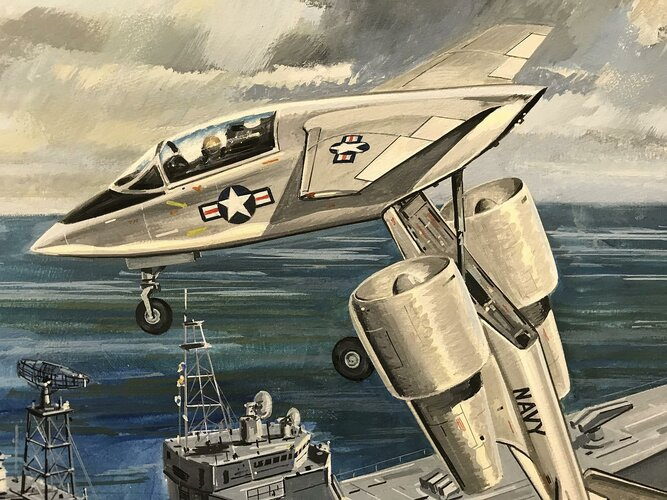

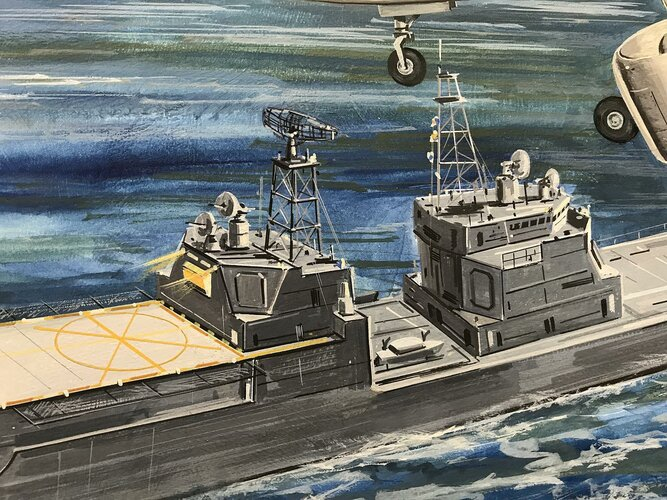

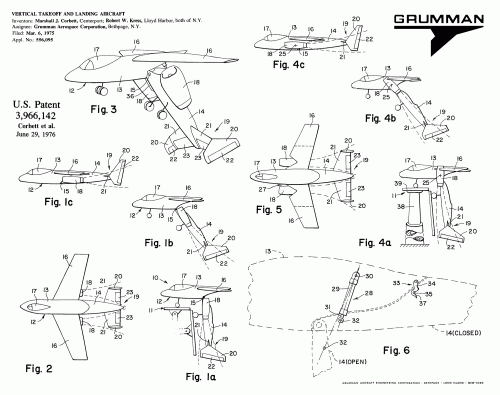

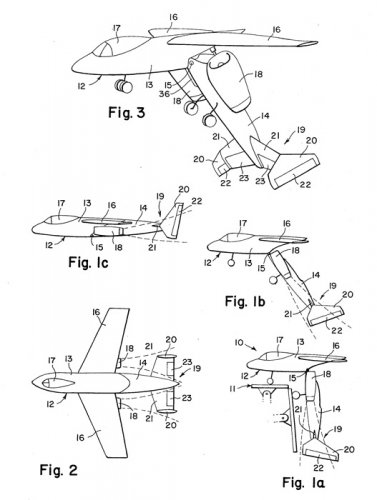

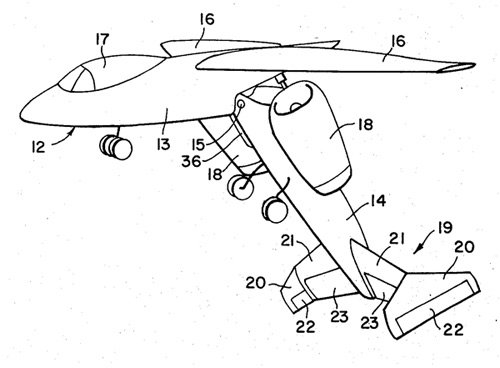

Also see https://patents.google.com/patent/US3966142A/en
