Hi,

the Grokhovski G-26 was a high speed aircraft in class of Stal-6,powered
by one 860 hp Hispano-Suiza 12Y brs engine it had all-metal stressed-skin
construction,cantilever low wing,single retractable landing wheel and a
single seat enclosed cabin.It was designed in 1935-1936 and never
completed.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
Grokhovski/Urlapov- G-26
Span-7, 0m,
length-6, 33m,
wing area-8, 96m2,
take-off weight of 1640kg,
max. speed-565km / h,
range-750km,
source:m-n "Wings" #2 2008


Attachments

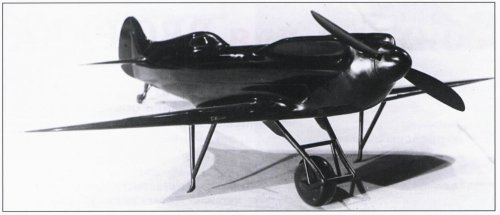

  • G-26.jpg
    77.7 KB · Views: 609

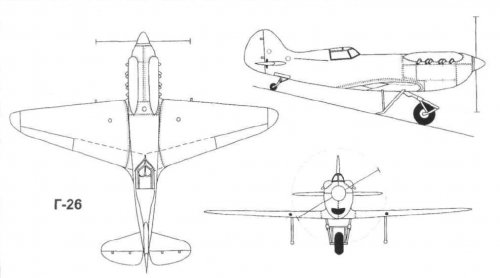

  • G-26..jpg
    36.2 KB · Views: 588

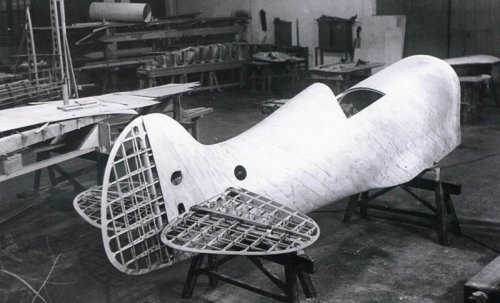

  • G-26 (in work).jpg
    G-26 (in work).jpg
    70.1 KB · Views: 539

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,852
Reaction score
1,487
Nice, cheers borovik! http://cosmopark.ru/g26.htm


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,351
Reaction score
5,986
Thank you my dear Borovik very much,

and can we consider this aircraft as a fighter ?.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
Yes, certainly a fighter.
Originally planned to install 2 X ShKAS,
continue with the installation of the engine M-100A, it was supposed to add one gun ShVAK.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,351
Reaction score
5,986
Thank you my dear Borovik,

but we know the company designed only the G-26 and G-38 as a
fighters,and also the G-34 was ramming wing fighter,do you know
it ?.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
161
As far as I know project STOL ramming wing fighter bore the designation G-39, but not G-34.
It was built by his simplified analogue of the "Cucaracha" with a low-powered (written off - Spent resource) engine M-11. (1935) Experience has been unsuccessful.
Oskonbyuro (Special Design Bureau of VVS)
which was headed by P.Grokhovsky has been working on virtually every technical industry, from boat on hydrofoils and ANS (Arctic unsinkable station), the craft of the amphibious armored vehicles to the ecranoplans. He was the first in the USSR have developed the principles of air vertical
assault /airdrop ...
All these developments were its internal designation, letter "G" ...
By the way mark G-26 previously wore a draft of a flying car (since the project was not implemented, the numbers passed to the fighter)
http://www.secretprojects.co.uk/forum/index.php/topic,724.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,351
Reaction score
5,986
Thank you my dear Borovik,

and I found this info about G-34 in a Russian museum.


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
20

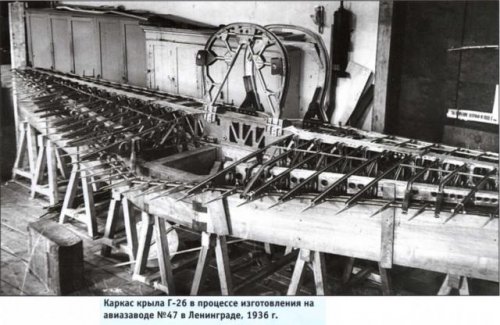

Hi, G-26 wing under construction


Attachments

  • drugie-ludi-drugie-proekti-01-640x416.JPG
    56.8 KB · Views: 321

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Vladimir,
as you missed to read the PM sent to you (new PM are indicated by a number in brackets behind "My Messages"
and additionally you get an email), I would like to ask you to state your sources this way.
I know, that's difficult for other members here, too, and to forget it sometimes is just human. But others, too, are
reminded from time to time and so are you now.
The insistence to state sources isn't just a totalitarian coercion by me, but it may allow other members to read those
sources by themselves and it's a matter of fairness to the authors and publishers of the publication.
I would recommend to read the forum rules about this point.


Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
20
Jemiba said:
Vladimir,
as you missed to read the PM sent to you (new PM are indicated by a number in brackets behind "My Messages"
and additionally you get an email), I would like to ask you to state your sources this way.
I know, that's difficult for other members here, too, and to forget it sometimes is just human. But others, too, are
reminded from time to time and so are you now.
The insistence to state sources isn't just a totalitarian coercion by me, but it may allow other members to read those
sources by themselves and it's a matter of fairness to the authors and publishers of the publication.
I would recommend to read the forum rules about this point.

Ok, Jemiba, i will try post sources. But many images from my PC hard drive so i can remember from where i take tham...Sorry


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,351
Reaction score
5,986

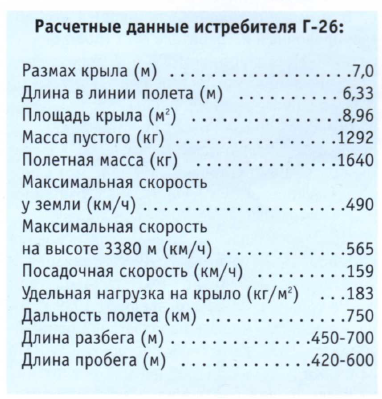

Also from Kryl'ya 2008.
