Grob aircraft :

G-110 : was two seat low wing light aircraft with fixed tricycle
u/c and powered by one 118 hp Lyc O-235-M1 engine.
G-111 : special version G-109B certificated to FAR.23 standard
with developed GVW.2500 engine.
G-112 : side-by-side two seat GRP trainer developed from G-110
Gruci form tail and short span wings,powered by 90 hp
GVW.2500F1 engine.
G-116 : four seat version of G-115 with 200 hp Lyc IO-360-A engine.
G-140 : four seat version of G-115D as light aircraft.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
760
New topic recycling some old generic list by hesham. Feel free to add to it!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,119
Reaction score
5,627
From Airlife's General Aviation and the net;

his all designs are;

G-101,G-102,G-103,G-104,G-109,G-110,G-111,G-112,G-115,G-116,
G-116,G-117,G-120,G-125,G-140,G-160,G-180,GF-200,GF-250,GF-300,
GF-350,G-500,G-520,G-600,G-850,CS 77 & Cycrogyro.

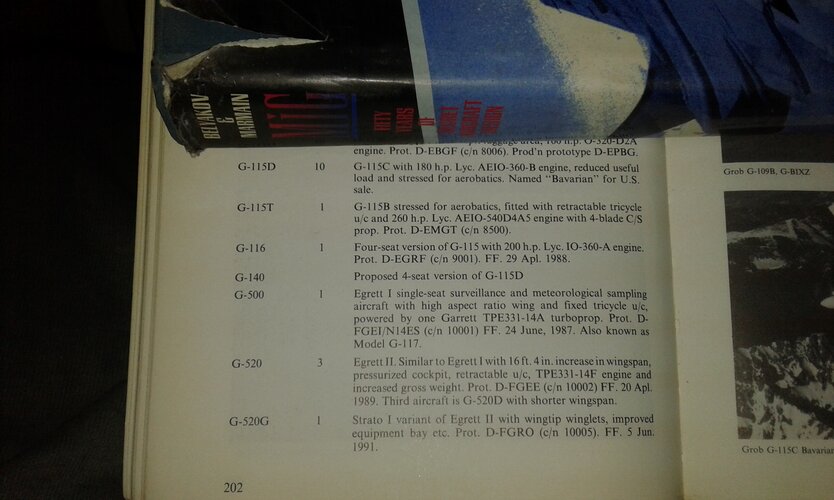

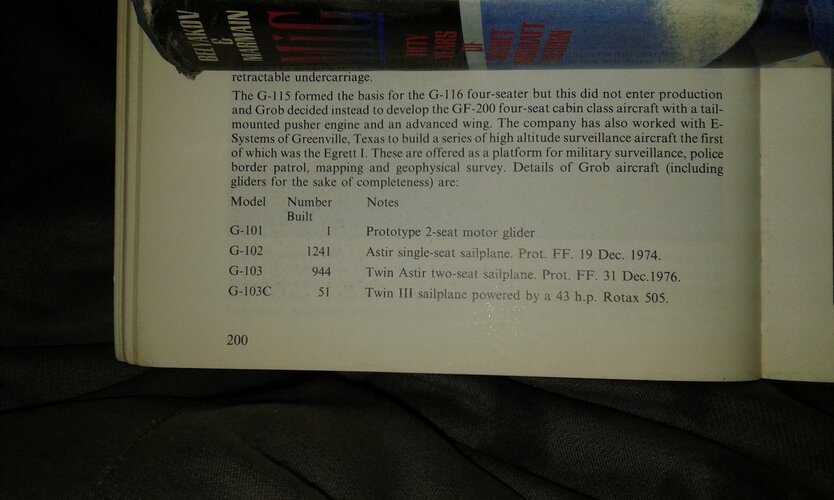

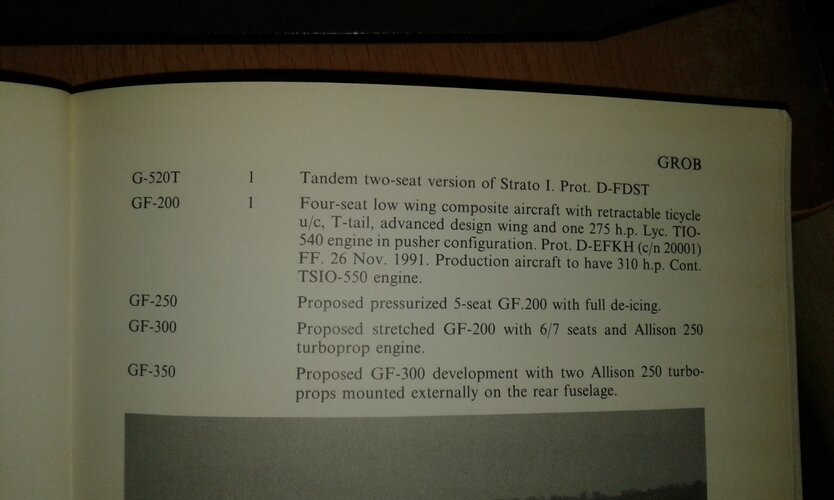

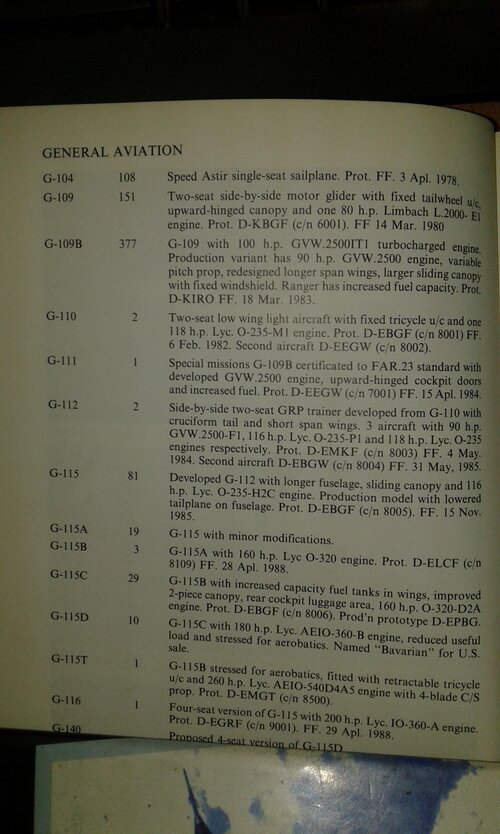

Attachments

  • ٢٠٢١٠٢٢١_٠٦٢٤٤١.jpg
    1.2 MB · Views: 10
  • ٢٠٢١٠٢٢١_٠٦٢٥١٦.jpg
    1.4 MB · Views: 10
  • ٢٠٢١٠٢٢١_٠٦٢٥٥٢.jpg
    1.3 MB · Views: 10
  • ٢٠٢١٠٢٢١_٠٦٢٦١٠.jpg
    1 MB · Views: 11
