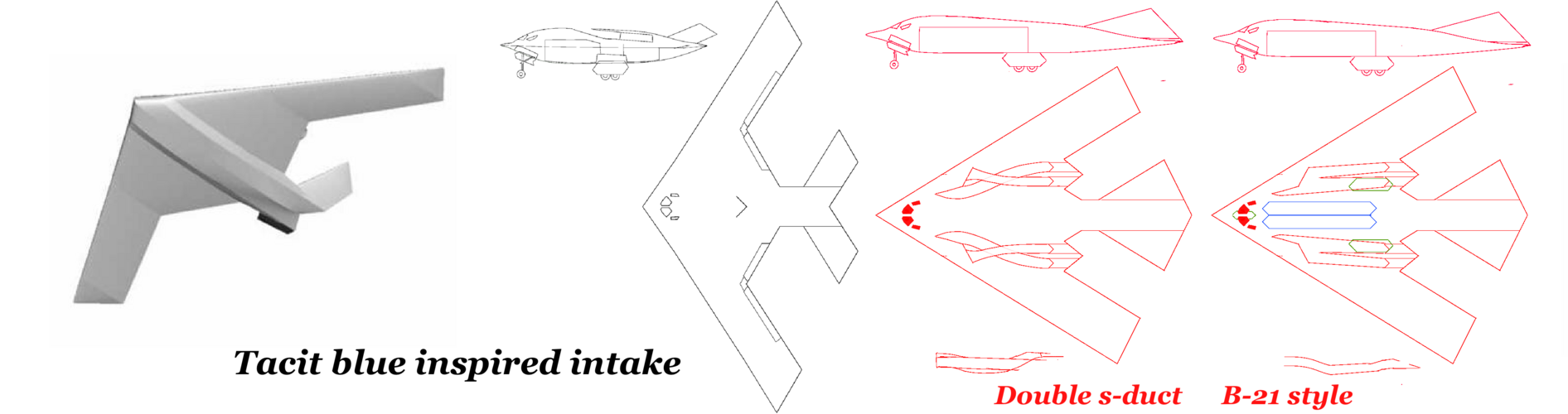

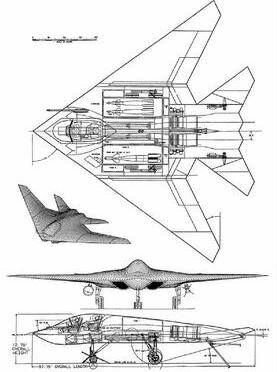

taking inspiration from an old lockheed concept I have devised a set of 3 interesting bombers, possible alternatives for the b-21. The aircraft in red is designed to support immense payloads using 1 or 2 long bays aswell as flying at a high speed. The aircraft on the left is really just a modified b-21 that is also designed for large payloads using a very wide bay achieved by ising a tacit blue inspired intake. My main concern lies with the second red aircraft as it uses a strange solution to hide the engines, Are theses concepts viable? Which is best? Very rough concepts as of now


Attachments

  • IMG_5020.png
    300.9 KB · Views: 117
If I can make an observation - you should get a better drawing program. It looks like you are using Paint or similar. Inkscape is a free vector drawing program that would make the drawings look a lot better.

If I can make an observation - you should get a better drawing program. It looks like you are using Paint or similar. Inkscape is a free vector drawing program that would make the drawings look a lot better.
You are right I probably should but I’d need a FREE application that I can use on mobile devices and computer

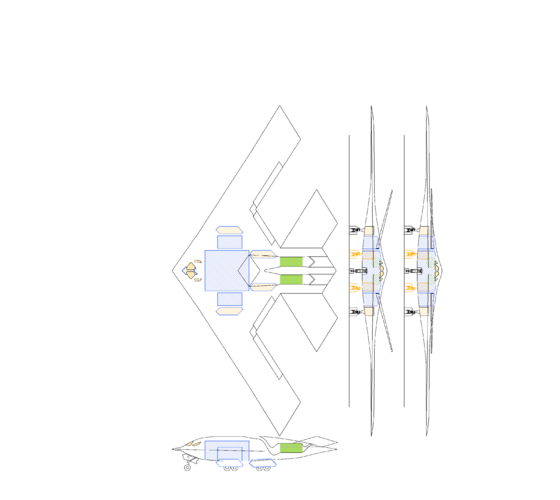

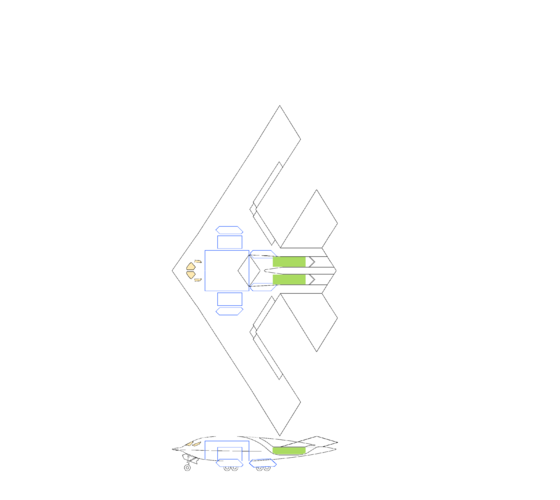

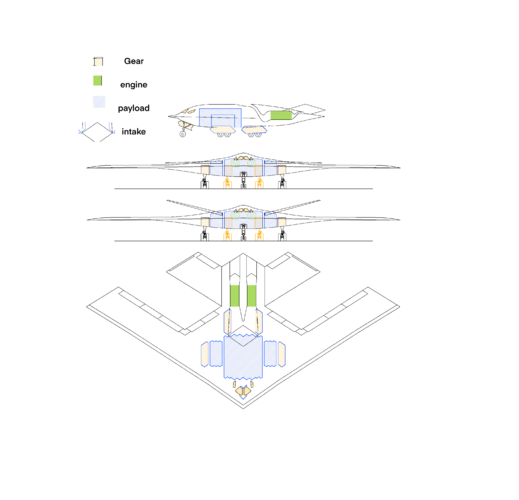

Added a rough legend and serrations that match the angles of the wings. Can someone estimate the payload capacity of this thing? If you need something for scale the whole plane is the same width as the b-21, 48, something meters


Attachments

  • IMG_5064.png
    308.1 KB · Views: 36
Last edited:
